Washer Microplate Reader Machine MDLER08
- New design with advanced operation system
- Touch screen with 7” high resolution color LCD display
- 8 channel optical fiber scanning
- Single or dual wavelength measurements
- Performs 12 different tests in one plate
- Stores up to 200,000 test data and 500 test projects
- User-friendly and easy to program
- Compatible with 96/48-well microplate types
- Features a built-in thermal printer and multiple interface connections
- SKU
- MDLER08
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

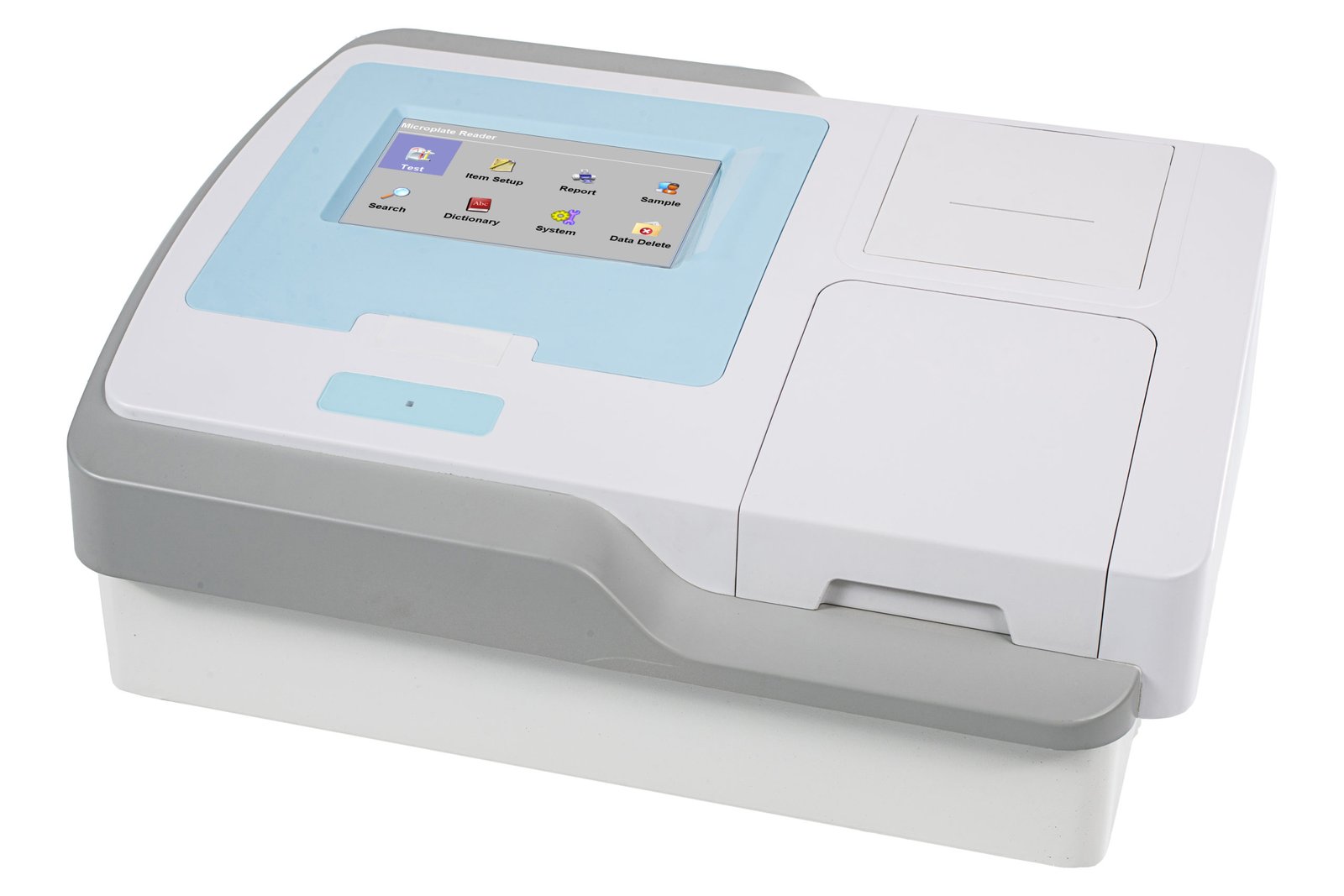

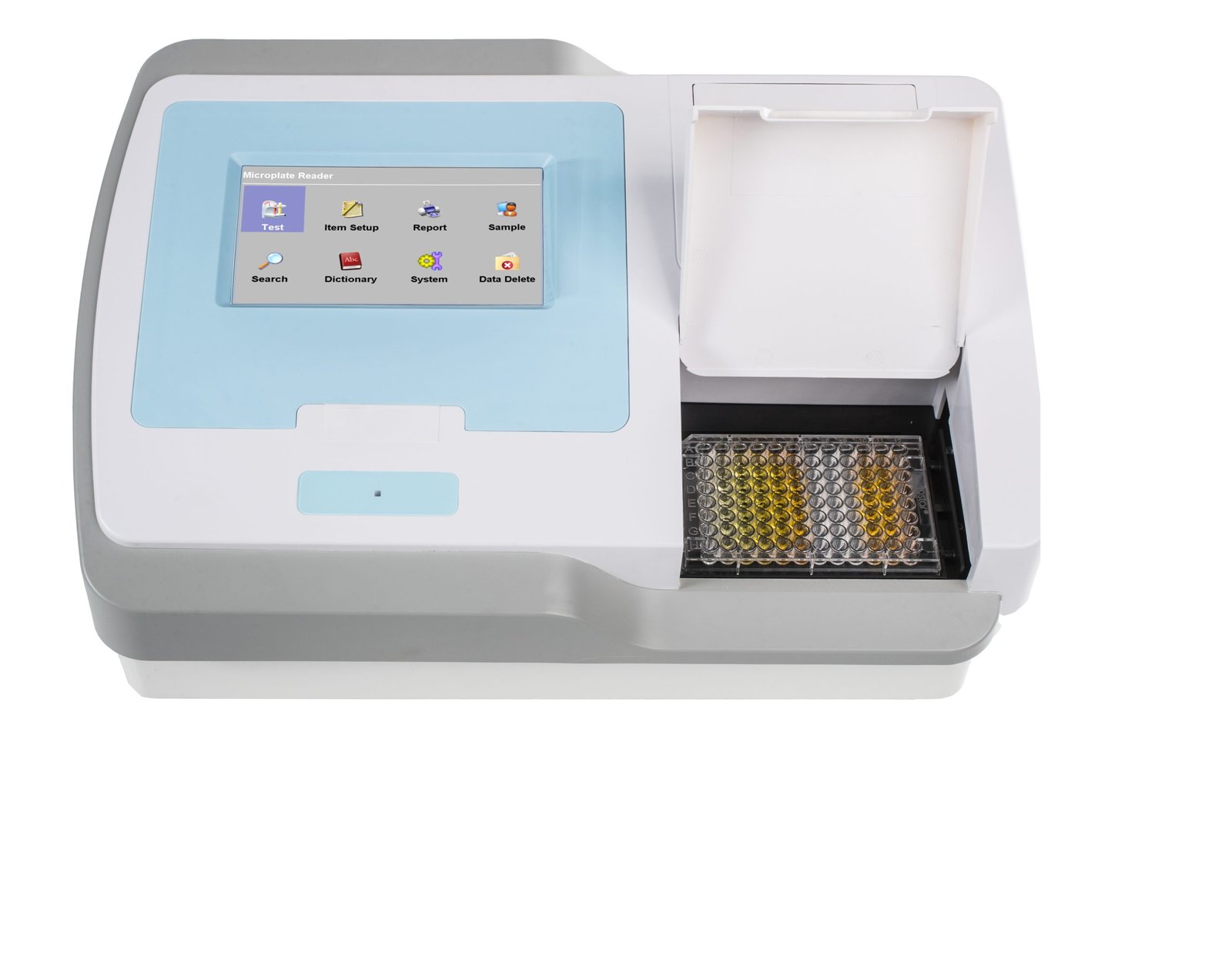

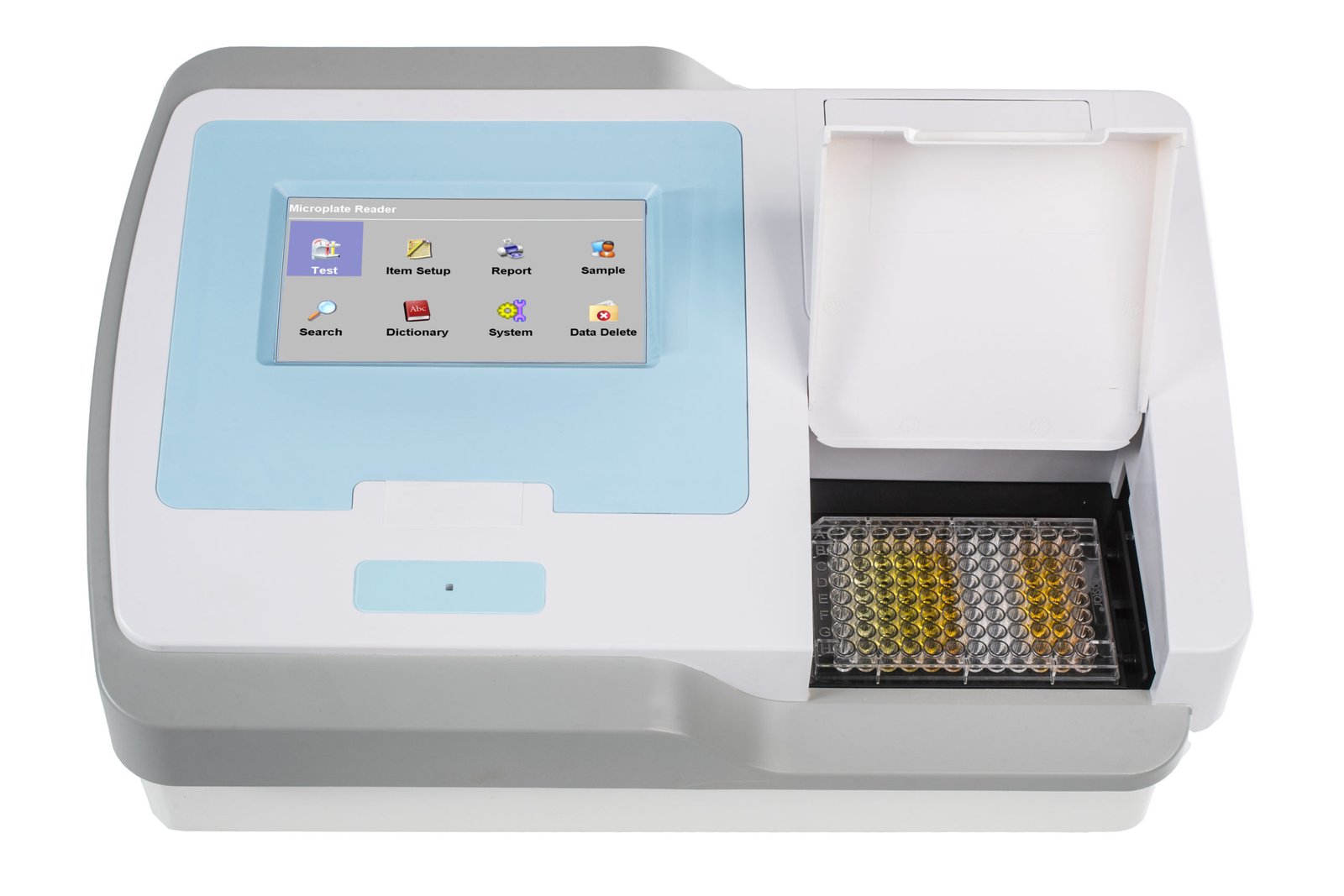

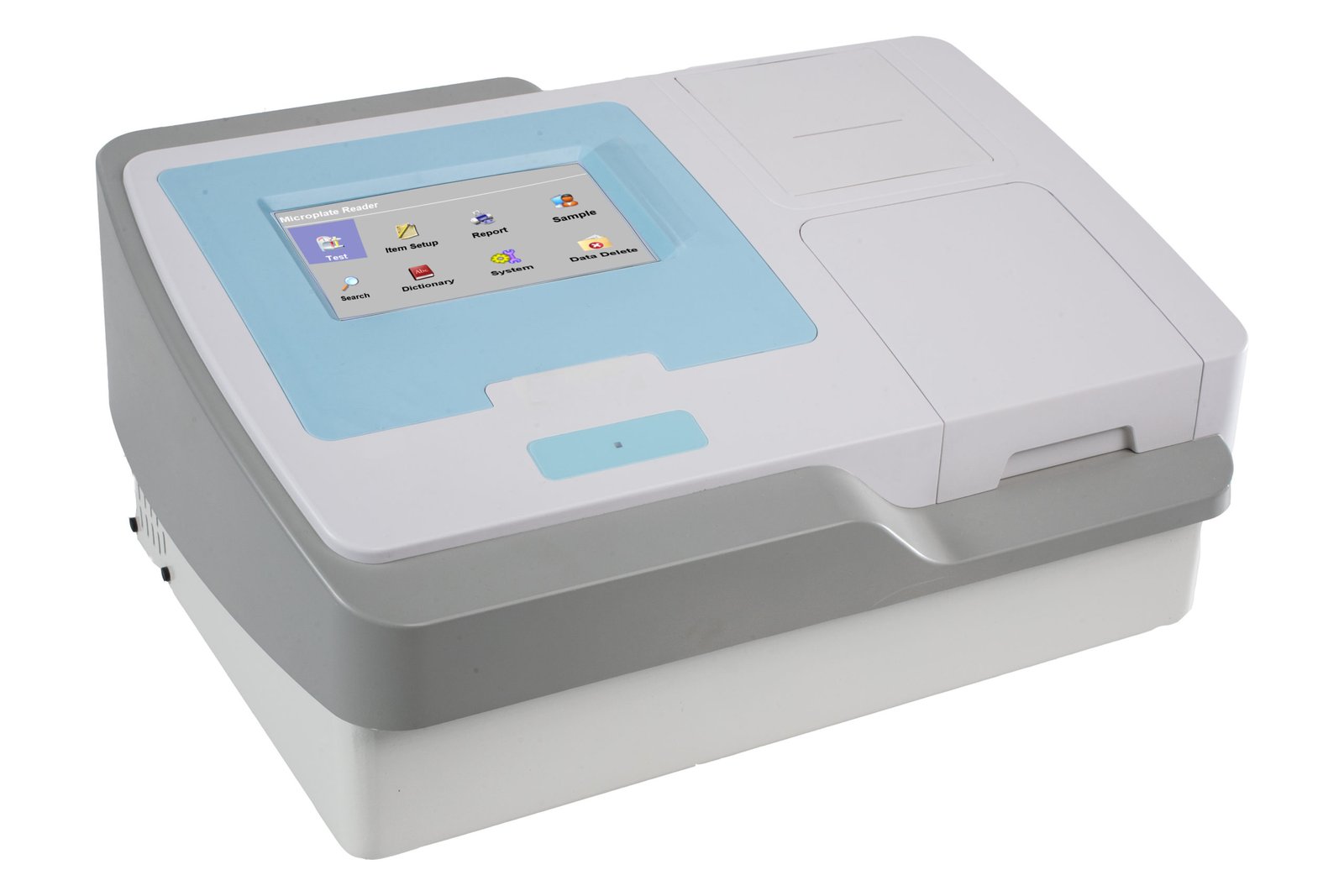

Washer Microplate Reader Machine MDLER08
Advanced microplate reader with 7" high-resolution touch screen for single or dual wavelength measurements. Supports 12 different tests from a single 96/48-well microplate with fast reading speeds and stable memory storage for up to 200,000 test results.
Clinical overview
The MDLER08 Washer Microplate Reader is a precision laboratory instrument designed for high-throughput immunoassay and microplate-based diagnostic testing. With its advanced 7" high-resolution colour LCD touch screen and intuitive user interface, the system enables rapid, accurate analysis of 96-well and 48-well microplate formats. The instrument supports both single and dual wavelength measurements, allowing clinicians and laboratory technicians to perform up to 12 different tests from a single microplate without manual reconfiguration.
Built-in thermal printing and optional external printer connectivity ensure seamless integration into existing laboratory workflows. The MDLER08 combines speed, accuracy, and reliability with a compact footprint (475 × 350 × 210 mm, 11.5 kg), making it ideal for clinical laboratories, research facilities, and point-of-care testing environments requiring reproducible, high-precision optical measurements across the visible and near-infrared spectrum.
Key features & surgeon benefits
Speed & Accuracy
- Single wavelength reading in ≤3 seconds
- Dual wavelength reading in ≤6 seconds
- Resolution of 0.001A with ±0.008A accuracy
- Reproducibility ≤0.2%; stability ±0.003A
Ease of Use

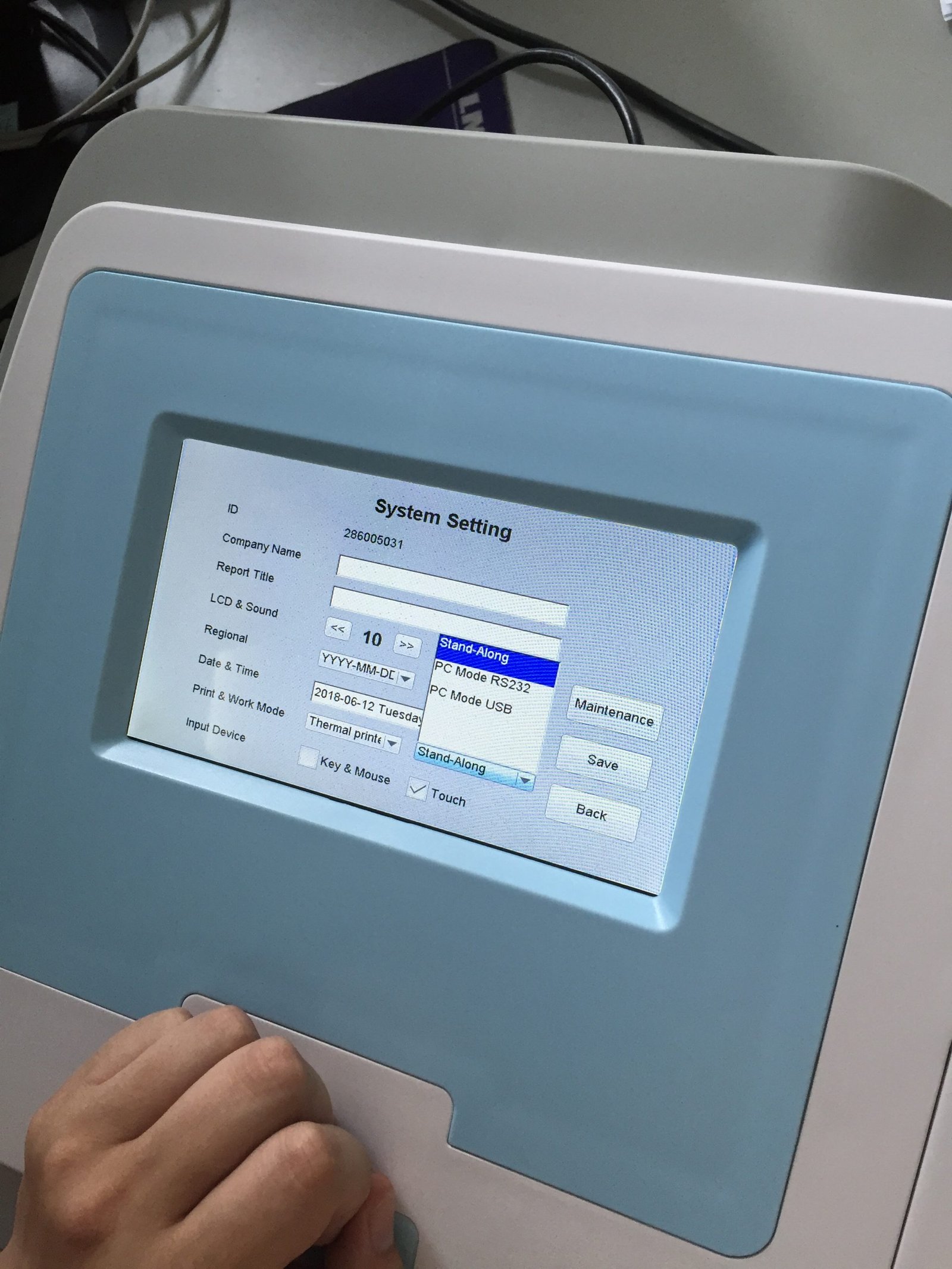

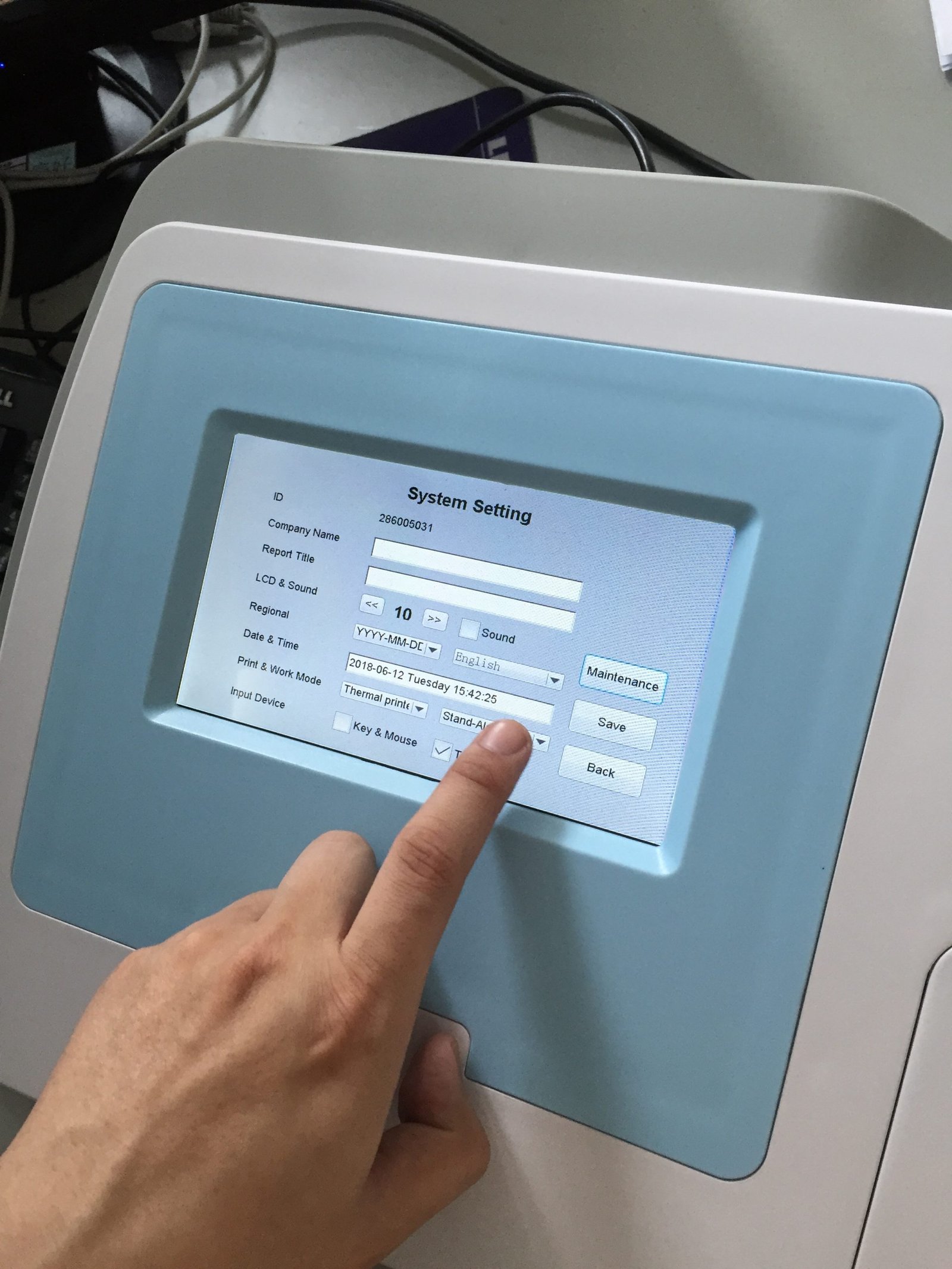

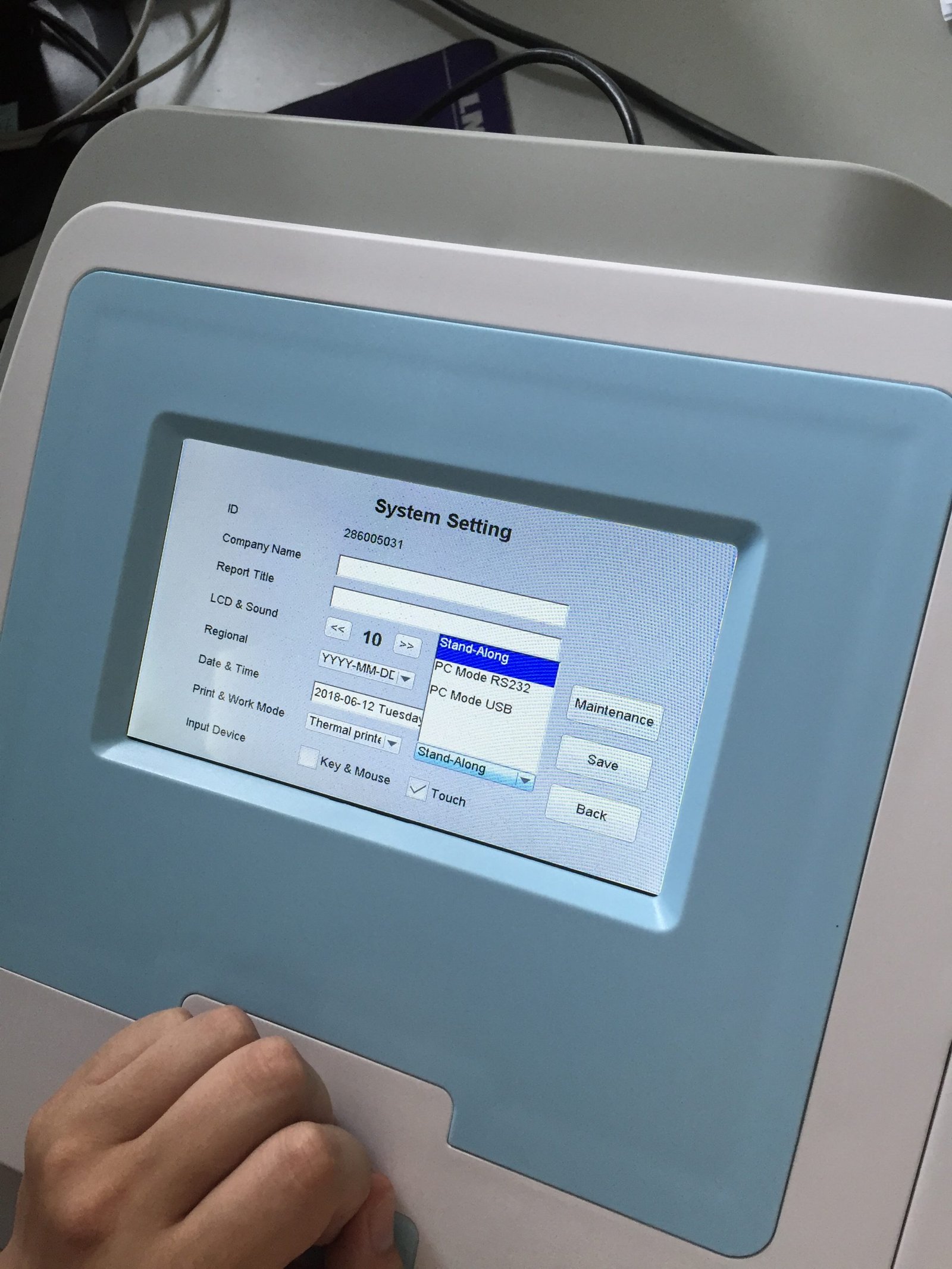

- 7" high-resolution colour touch screen interface
- User-friendly programming with minimal training
- Auto lamp adjustment and auto calibration
- Linear shaking with 3 adjustable speeds
Storage & Reporting
- Stable memory stores up to 200,000 test results
- Support for 500 test projects
- Multiple report formats for patient information
- Built-in thermal printer with optional external connectivity
Multi-Test Capability
- Perform 12 different tests from a single plate
- 96-well and 48-well microplate compatibility
- Wavelength range 400nm–800nm with standard filters
- Optional filter configurations available
Technical specifications
| Microplate Types | 96-well and 48-well formats |
|---|---|
| Photodetector | Silicon Photodiode |
| Light Source | 8V/50W controlled tungsten halogen lamp |
| Wavelength Range | 400nm–800nm |
| Standard Filters | 405, 450, 492, 630nm + 4 optional filters |
| Reading Range | 0.000–4.000A |
| Resolution | 0.001A |
| Accuracy | ±0.008A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003A |
| Reading Speed (Single Wavelength) | ≤3 seconds |
| Reading Speed (Dual Wavelength) | ≤6 seconds |
| Shaking Function | Linear shaking, 3 speeds |
| Printer | Built-in thermal printer; optional external printer |
| Connectivity | 2× USB, 1× RS-232, PS/2 mouse & keyboard |
| Power Supply | 100–110V/240V, 50–60Hz |
| Dimensions | 475(L) × 350(W) × 210(H) mm |
| Net Weight | 11.5 kg |
| Memory Storage | Up to 200,000 test results; 500 test projects |
| Display | 7" high-resolution colour LCD touch screen |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLER08 Main Unit | Microplate reader with integrated touch screen, optical system, and thermal printer | 1 |
| Power Cable | 100–110V/240V, 50–60Hz compatible | 1 |
| USB Cables | For computer connectivity and data transfer | 2 |
| RS-232 Cable | For legacy system integration | 1 |
| PS/2 Mouse & Keyboard | Input devices for touch screen operation | 1 set |
| Standard Filter Set | 405, 450, 492, 630nm optical filters | 1 set |
| Thermal Paper Roll | For built-in printer | 2 |
| User Manual & Documentation | Operating instructions, maintenance guide, troubleshooting | 1 |
| Calibration Kit | Reference standards for system calibration | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the MDLER08 Microplate Reader. We offer flexible purchasing and lease arrangements for clinical and research laboratories.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
