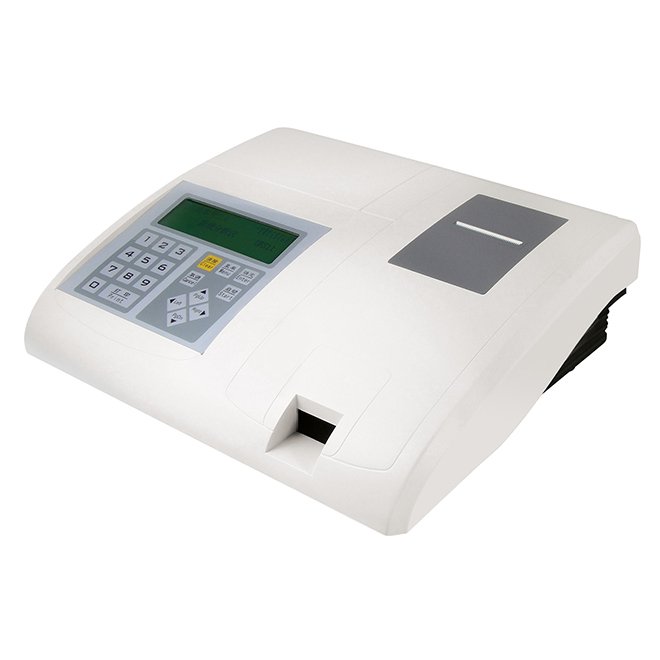

Automatic Urine Analyzer MDLUA16
- Efficient luminous tube technology for stable performance
- Chinese and English interface for user convenience
- Automatic calibration and testing with reminders for errors
- Output options: RS232 for computer connection, built-in or built-out printer
- Tests for PH, BIL, GLU, Vc, PRO, LEU, BLD, CRE, URO, KET, SG/ ALB, CRE, and Ca
- Spherical integrator test theory for accurate results
- Throughput of 120 samples per hour for efficiency
- Built-in 57mm thermal printer for easy result printing
- Suitable for a wide range of healthcare settings due to its reliable performance.
- SKU
- MDLUA16
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Automatic Urine Analyzer MDLUA16
High-performance automatic urine analyzer delivering efficient, reliable testing with dual-language interface and comprehensive parameter analysis. Processes up to 120 samples per hour with integrated thermal printing and computer connectivity for seamless laboratory workflow integration.
Clinical overview
The MDLUA16 is a fully automatic urine analyzer engineered for high-throughput clinical laboratory environments. Utilising advanced optical reflectivity measurement technology with dual wavelengths (550nm and 620nm), the analyser delivers accurate, reproducible results across 13 key urinary parameters. The system combines robust performance with user-centric design, featuring automatic calibration, intuitive dual-language interface (Chinese and English), and comprehensive error detection to minimise false results and operational errors.
With a throughput of 120 samples per hour and integrated thermal printing capability, the MDLUA16 streamlines urinalysis workflows whilst maintaining clinical accuracy. The built-in sample storage for 1000 results, RS232 connectivity for laboratory information systems (LIS) integration, and selectable report formats make it an ideal solution for hospitals, diagnostic centres, and high-volume testing facilities seeking reliable, efficient urinalysis automation.
Key features & surgeon benefits
13-Parameter Analysis
- Measures pH, bilirubin, glucose, vitamin C, protein, leukocytes, blood, creatinine, urobilinogen, ketones, specific gravity, albumin, and calcium
- Spherical integrator optical system for precise reflectivity measurement
- Dual-wavelength detection (550nm, 620nm) ensures accuracy across parameter ranges
High-Throughput Automation
- Processes 120 samples per hour for rapid turnaround
- Automatic calibration and testing eliminates manual steps
- Integrated 57mm thermal printer with Chinese and English report formats
Error Detection & Stability
- False operation and false category reminder functions prevent reporting errors
- Fault-free operation time approximately 5000 hours
- Efficient luminous tube with extended lifespan and stable performance
LIS-Ready System
- Standard RS232 output for seamless computer and LIS connectivity
- Optional external printer support for distributed reporting
- Sample storage for 1000 results with searchable history
Technical specifications
| Indications | Urinalysis; screening and monitoring of urinary parameters |
|---|---|
| Parameters tested | pH, BIL, GLU, Vc, PRO, LEU, BLD, CRE, URO, KET, SG, ALB, Ca (13 parameters) |
| Test method | Spherical integrator reflectivity measurement |
| Wavelengths | 550nm, 620nm |
| Throughput | 120 samples per hour |
| Sample storage | 1000 samples |
| Printer | Built-in 57mm thermal printer; Chinese and English report formats selectable |
| Connectivity | RS232 standard output; optional external printer support |
| Interface languages | Chinese and English |
| Voltage | AC 110V/220V ±10%, 50/60Hz ±1Hz |
| Power consumption | ≤30VA |
| Operating temperature | 15–35°C |
| Relative humidity | ≤80% |
| Fault-free time | Approximately 5000 hours |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer unit | MDLUA16 automatic urine analyzer with integrated thermal printer | 1 |
| Power cable | AC 110V/220V mains connection cable | 1 |
| RS232 interface cable | Computer connectivity cable | 1 |
| Thermal paper roll | 57mm thermal printer paper (initial supply) | 2 |
| User manual | Operation and maintenance guide (Chinese and English) | 1 |
| Calibration reagents | Initial calibration kit for system setup | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the MDLUA16. We offer volume discounts, extended warranty packages, and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
