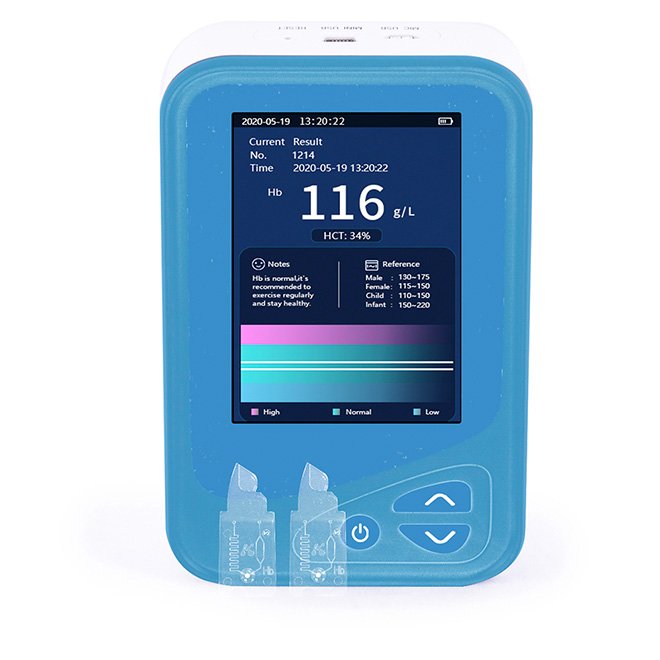

Veterinary Hemoglobin Analyzer MDLEAM124
- Factory calibrated veterinary hemoglobin analyzer with no further calibration needed
- Capable of analyzing both capillary and venous whole blood samples
- Provides measurements for Hemoglobin (Hb) and Hematocrit (Het) parameters
- Quick results in less than 3 seconds
- Stores up to 2000 test results in memory
- Precision with a Coefficient of Variation (CV) less than 15%
- Operates in a temperature range of 5°C to 35°C with 85% relative humidity
- Equipped with USB, Bluetooth, and printer interface for data transfer
- Compact and lightweight design, weighing 220g with built-in battery included
- SKU
- MDLEAM124
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Veterinary Hemoglobin Analyzer MDLEAM124
Factory-calibrated hemoglobin analyzer delivering rapid, accurate results in under 3 seconds. Supports capillary and venous whole blood samples with memory capacity for 2000 test results. Compact, lightweight design ideal for clinic and field use.
Clinical overview
The MDLEAM124 is a precision veterinary hemoglobin analyzer engineered for rapid, reliable hematology assessment in clinical and field settings. Factory-calibrated and requiring no further calibration, it delivers hemoglobin and hematocrit results in under 3 seconds, enabling faster clinical decision-making. The analyzer accepts both capillary and venous whole blood samples, accommodating diverse sampling protocols across small and large animal practices.
With a measurement range of 0–25.6 g/dL and precision within CV < 15%, the MDLEAM124 provides clinically actionable data for anemia screening, blood loss assessment, and routine wellness monitoring. Its integrated 2000-result memory, USB and Bluetooth connectivity, and compact 220g form factor make it suitable for both stationary clinic use and portable field deployment. Rechargeable lithium battery and AC adapter options ensure continuous operation in diverse environments.
Key features & surgeon benefits
Rapid, Precise Results
- Results in under 3 seconds
- Factory-calibrated; no recalibration needed
- Precision CV < 15% for reliable diagnostics
Flexible Sample Handling
- Accepts 7″L capillary or venous whole blood
- Intuitive operation with minimal training
- Integrated memory for 2000 test results
Compact & Mobile Design
- Lightweight at 220g with built-in battery
- Dimensions: 130 × 82 × 31.5 mm
- Rechargeable lithium battery for field use
Modern Data Management
- USB and Bluetooth connectivity
- Optional printer interface for immediate records
- Seamless integration with clinic software
Technical specifications
| Indications | Hemoglobin and hematocrit measurement in veterinary diagnostics |
|---|---|
| Measurement range | 0–25.6 g/dL |
| Sample type | 7″L capillary or venous whole blood |
| Result time | Less than 3 seconds |
| Precision | CV < 15% |
| Memory capacity | 2000 test results |
| Calibration | Factory calibrated; no further calibration required |
| Operating temperature | 5°C to 35°C |
| Operating humidity | ≤ 85% RH |
| Storage temperature | −20°C to 60°C (device); 2°C to 35°C (cuvettes) |
| Storage humidity | < 90% RH (device); < 85% RH (cuvettes) |
| Cuvette shelf life | 2 years; 3 months after opening |
| Power source | AC adapter and rechargeable lithium battery |
| Connectivity | USB, Bluetooth, optional printer interface |
| Dimensions | 130 mm × 82 mm × 31.5 mm |
| Weight | 220 g (including built-in battery) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer unit | MDLEAM124 hemoglobin analyzer with integrated battery | 1 |
| AC adapter | Power supply for mains operation | 1 |
| USB cable | Data transfer and connectivity | 1 |
| Cuvettes | Single-use measurement cuvettes (box of 100) | 1 |
| User manual | Operating instructions and maintenance guide | 1 |
| Quick reference card | Sample preparation and operation summary | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, schedule a product demonstration, or discuss volume pricing and customisation options for the MDLEAM124 veterinary hemoglobin analyzer.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
