Visible Spectrophotometer Machine MDLUV08
- Single beam visible spectrophotometer ideal for routine analysis
- Microprocessor controlled for easy operation
- High resolution with 12000 line grating monochromator
- Equipped with USB port for data output to PC
- Compact design for easy portability
- Four display modes for different measurements
- Wavelength range: 325-1000nm
- Spectral bandwidth: 4nm
- Photometric accuracy: ±0.5%T
- SKU
- MDLUV08
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

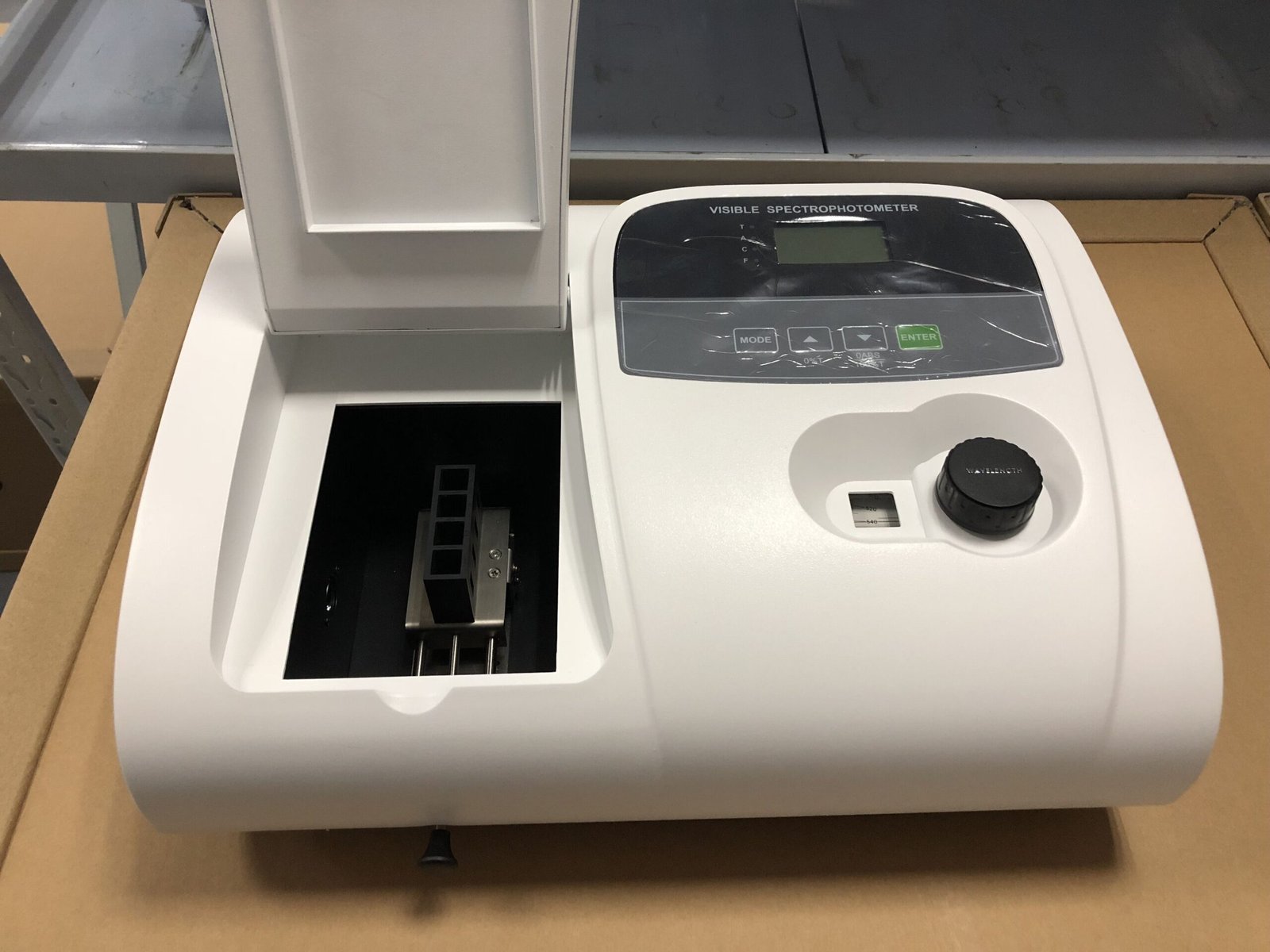

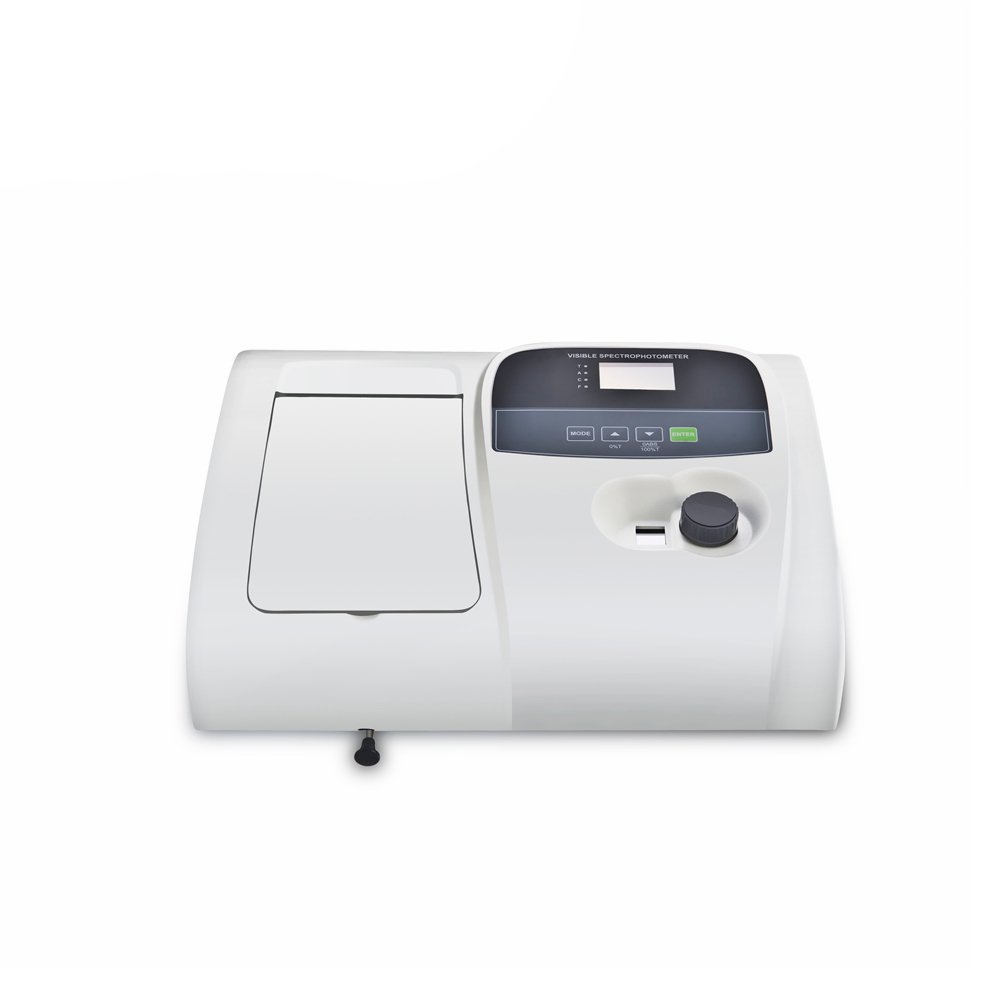

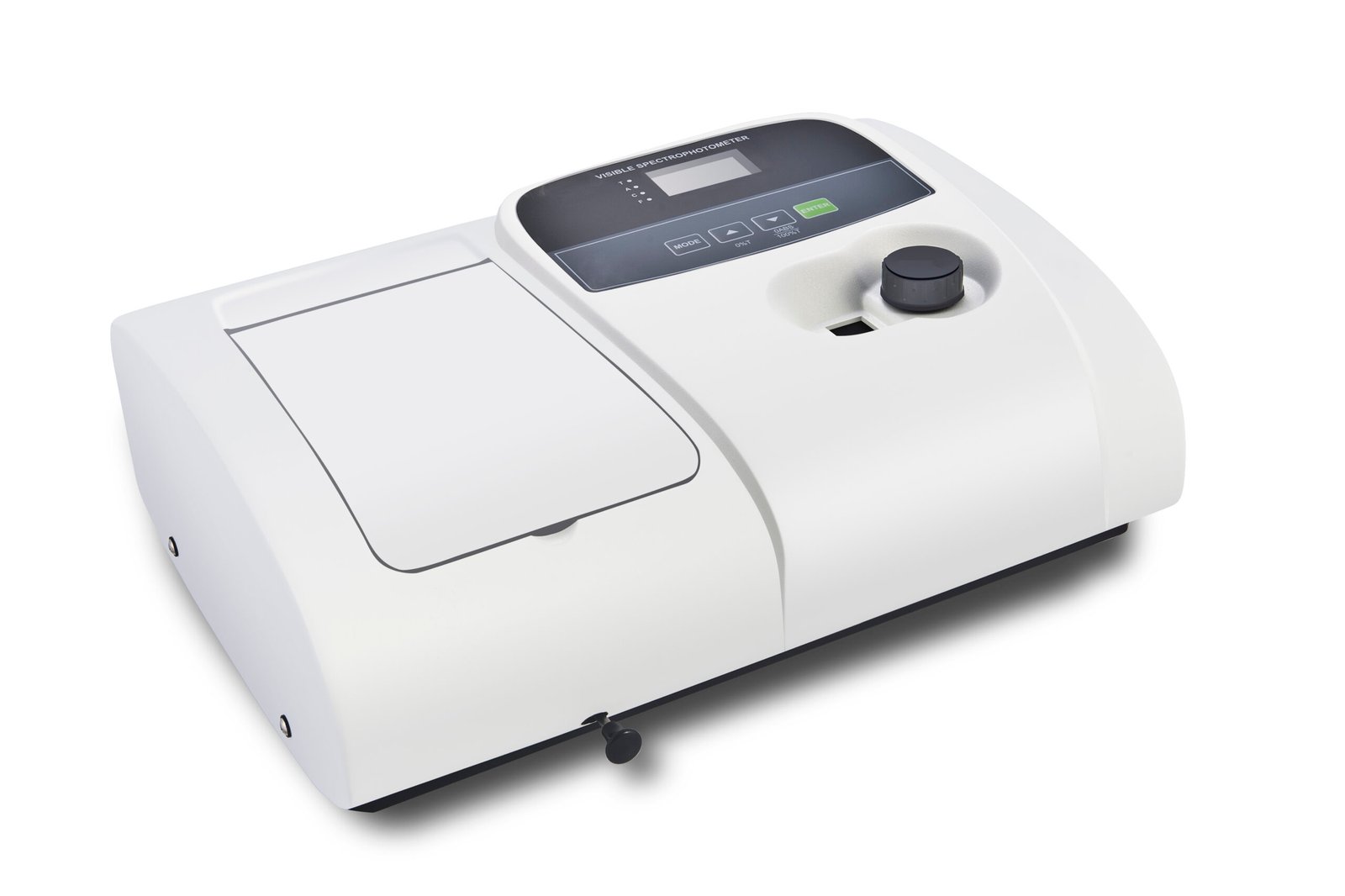

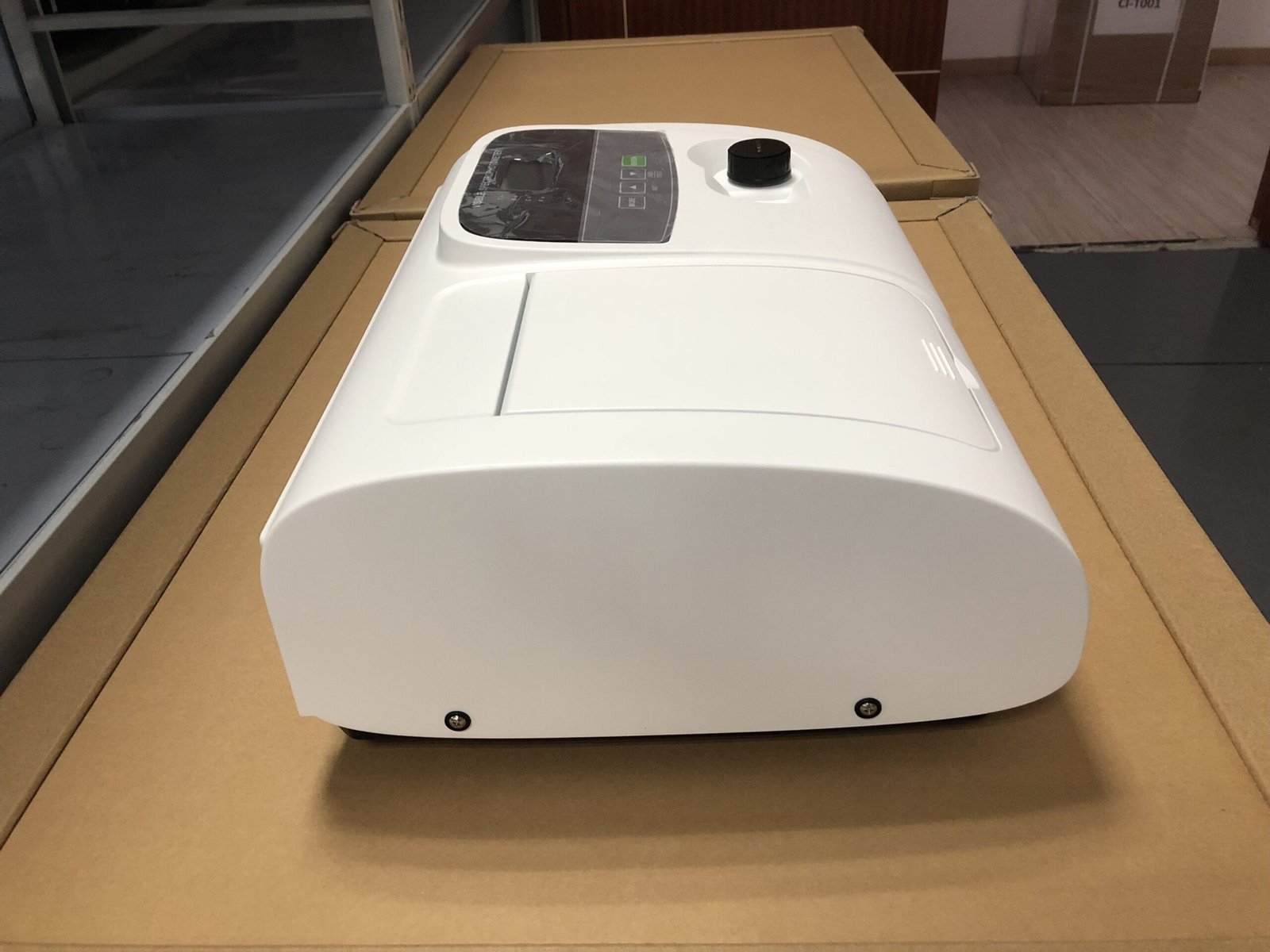

Visible Spectrophotometer Machine MDLUV08
Single-beam visible spectrophotometer with microprocessor control and manual wavelength setting. Ideal for routine analysis, general experiments, and clinical laboratory applications requiring high-resolution optical measurements with compact bench-top design.
Clinical overview
The MDLUV08 is a single-beam visible spectrophotometer engineered for routine laboratory analysis and general experimental work. With microprocessor control, it delivers reliable absorbance, transmittance, concentration, and coefficient measurements across the 325–1000 nm wavelength range. The 12,000-line grating monochromator ensures high spectral resolution and low stray light, making it suitable for clinical chemistry, pharmaceutical analysis, and quality control applications where cost-effectiveness and ease of operation are paramount.
Featuring a tungsten halogen lamp light source and silicon photodiode detector, the MDLUV08 provides excellent stability (±0.002 A/h at 500 nm) and photometric accuracy (±0.5% T). The compact bench-top design saves laboratory space while maintaining full optical performance, including a 120 mm wide sample compartment and long optical path monochromator. USB and parallel port connectivity enable seamless data export to PC and direct printing, streamlining workflow integration in modern laboratory environments.
Key features & surgeon benefits
High-Resolution Grating Monochromator
- 12,000-line grating ensures superior spectral resolution
- Stray light ≤0.3% T for accurate measurements
- Wavelength accuracy ±1 nm with 0.5 nm repeatability
Microprocessor Control & Display Modes
- Auto Zero and auto 100% T adjustment with single button
- Four display modes: Transmittance (T), Absorbance (A), Concentration (C), Coefficient (F)
- 4-digit LED display for direct readout and easy operation
Compact & Cost-Effective Design
- Bench-top footprint saves valuable laboratory space
- Low-cost entry point for routine analysis without performance compromise
- Tungsten halogen lamp provides stable, long-life illumination

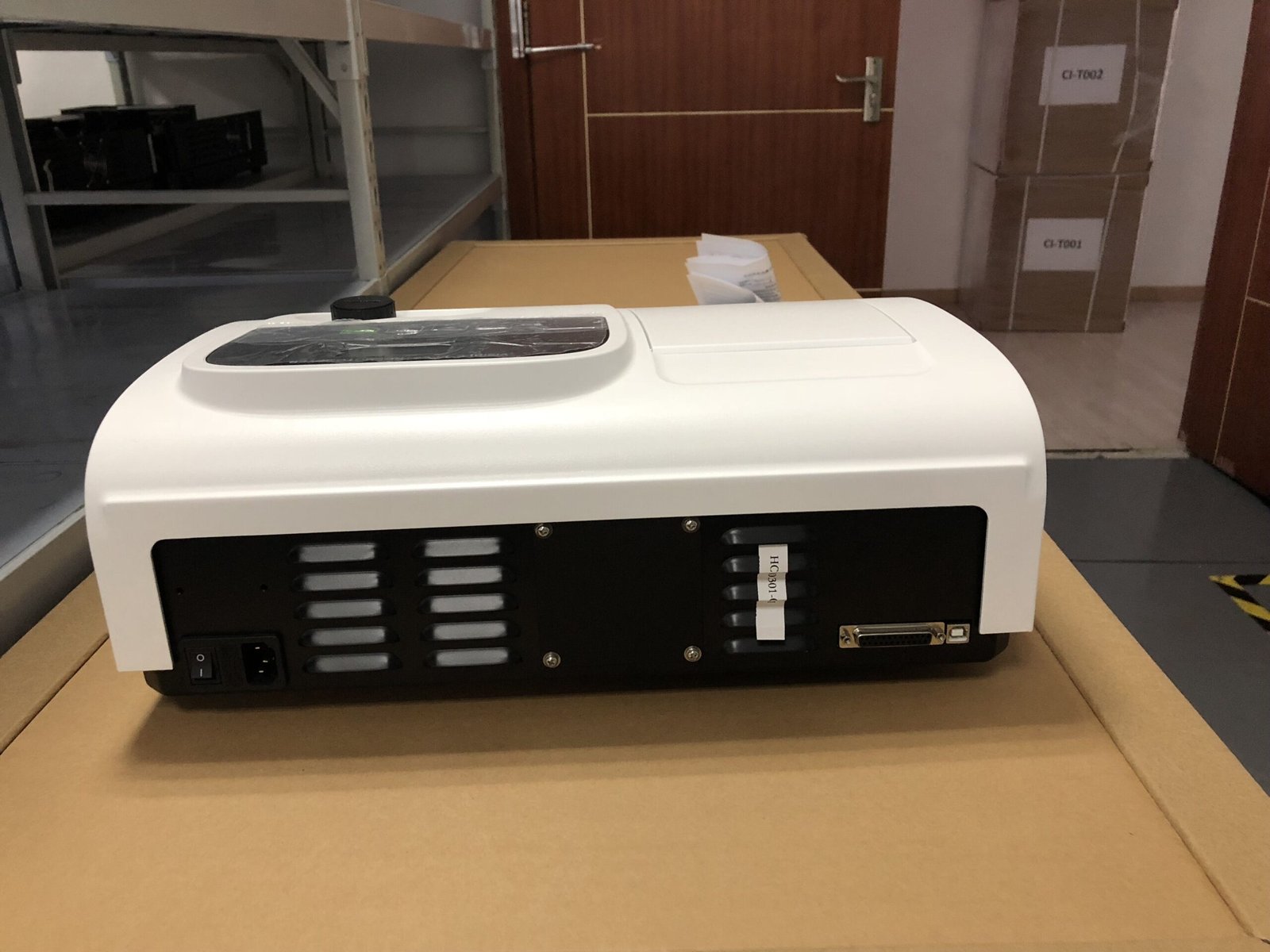

USB & Parallel Port Connectivity
- USB port for direct PC connection and data editing via software
- Parallel port for micro-printer output and documentation
- Seamless integration with laboratory information systems (LIS)
Technical specifications
| Optical System | Single Beam, Grating 12,000 lines/mm |
|---|---|
| Wavelength Range | 325–1000 nm |
| Spectral Bandwidth | 4 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | 0.5 nm |
| Photometric Accuracy | ±0.5% T |
| Photometric Repeatability | 0.3% T |
| Photometric Modes | T (Transmittance), A (Absorbance), C (Concentration), F (Coefficient) |
| Stray Light | ≤0.3% T |
| Stability | ±0.002 A/h @ 500 nm |
| Display | 4-digit LED |
| Detector | Silicon Photodiode |
| Light Source | Tungsten Halogen Lamp |
| Data Output | USB Port & Parallel Port (Printer) |
| Sample Compartment | 120 mm wide |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | MDLUV08 Visible Spectrophotometer with microprocessor control | 1 |
| Power Cable | AC power supply cable with appropriate regional connector | 1 |
| USB Cable | USB Type-A to device connector for PC data transfer | 1 |
| Sample Cuvettes | Standard optical glass cuvettes (10 mm path length) | 2 |
| User Manual | Comprehensive operation and maintenance guide | 1 |
| Calibration Certificate | Factory calibration documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory spectrophotometry requirements, request detailed specifications, or arrange a demonstration of the MDLUV08. We offer flexible delivery options and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Medical Enteral Feeding Pump with Optional Liquid Warmer MDLIS29
- The Medical Enteral Feeding Pump MDLIS29 is a reliable and accurate device for enteral feeding. - It offers a flow rate of 1-2000 ml/h in various increments for precise control. - The pump features alarms for occlusion, air-in-line, and other malfunctions to ensure patient safety. - With additional features like real-time infused volume and history log, monitoring and tracking are made easy. - Optional features include a liquid warmer with over-temperature alarm for patient comfort. - The pump can be powered by AC, battery, or even in a vehicle with a 12 V power supply. - Designed for safety, it has IPX5 fluid ingress protection and is classified as Class II, type CF.
LCD Screen Uv Visible Spectrophotometer MDLUV09
- LCD screen UV visible spectrophotometer model MDLUV09 - Equipped with a 2.5' LCD screen for clear display of standard curves and results - Can set up various standard curves for different solutions - Imported deuterium lamp for low stray light and accurate results - USB port for data output and connectivity to PC - Multiple results readout for wavelength, absorption, and transmittance - Automatic wavelength setting to avoid errors
Double Beam Uv Visible Spectrophotometer MDLUV12
- Wide screen double beam spectrophotometer MDLUV12 - Features long light path design for stability and accuracy - Powerful software functions for spectrum scanning, standard curve, kinetics, and more - Unique 520mm long light path design for improved resolution - Equipped with a 6 inches LCD display for easy viewing of results and curves - Calibration system for automatic calibration of baseline, wavelength, and dark current - USB port for data output and connection to a PC
Portable Uv/vis Spectrophotometer MDLUV15
- Touch Screen Portable UV/VIS spectrophotometer MDLUV15 with intelligent alarm function and system encryption - Features an 800x480 touch screen display for clear graphs and data viewing - Stand-alone system for spectrum measurement, quantitative analysis, and more - Rigid 8mm die-case aluminum base for stability and reliability - Automatic system calibration and positioning for accuracy - Can print data and graphs in A4 format directly via USB connection to a printer - Wavelength range: 190-1000nm, spectral bandwidth: 2nm - Photometric accuracy: ±0.2%T(0-100%T), baseline flatness: ±0.001A
Automatic Blood & Gas Electrolyte Analyzer Machine MDLEA03
- Ion selective electrode method for accurate results - Measures K+, Na+, Cl-, Ca++, Li+, and pH parameters - Offers various combinations of parameter tests - Throughput of 100 samples per hour for efficient testing - Supports different sample types including whole blood, serum, and urine - Automatic and manual calibration options for accuracy - Features collision detection and automatic probe cleaning - Equipped with a 7-inch color touch screen and built-in printer - Multiple interface options for connectivity and data transfer
Hemoglobin Analyzer Meter Machine MDLAH01
- Portable Hemoglobin Analyzer Meter Machine MDLAH01 for quick and accurate hemoglobin and hematocrit measurements - Utilizes innovative technology for precise results in less than 3 seconds - Requires only 7uL of venous whole blood sample for analysis - Comes with 50 test chips for convenient testing - Features a memory function to store up to 2000 test results - Calibration done at the factory eliminates the need for further calibration - Offers a wide measurement range of 0-25.6 g/dL for versatile testing applications

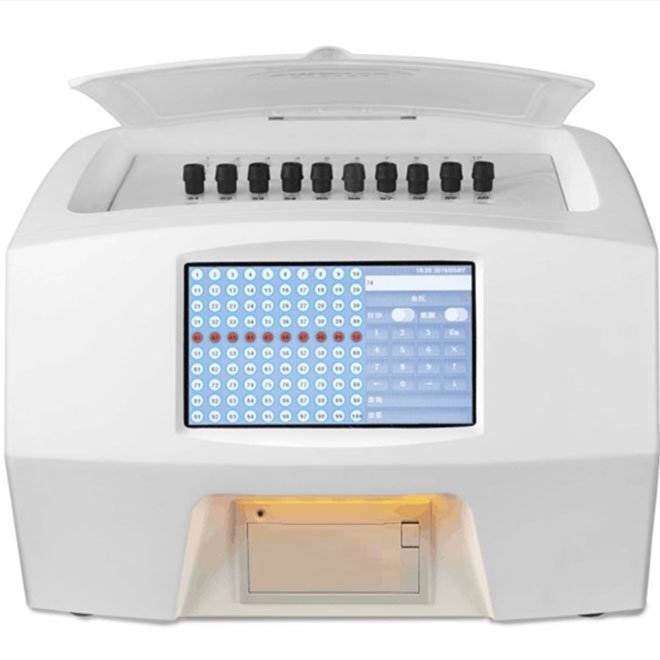

Blood Dynamic Full Automatic ESR/HCT Analyzer Machine MDLXC03
