Hemoglobin Analyzer Meter Machine MDLAH01
- Portable Hemoglobin Analyzer Meter Machine MDLAH01 for quick and accurate hemoglobin and hematocrit measurements
- Utilizes innovative technology for precise results in less than 3 seconds
- Requires only 7uL of venous whole blood sample for analysis
- Comes with 50 test chips for convenient testing
- Features a memory function to store up to 2000 test results
- Calibration done at the factory eliminates the need for further calibration
- Offers a wide measurement range of 0-25.6 g/dL for versatile testing applications
- SKU
- MDLAH01
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

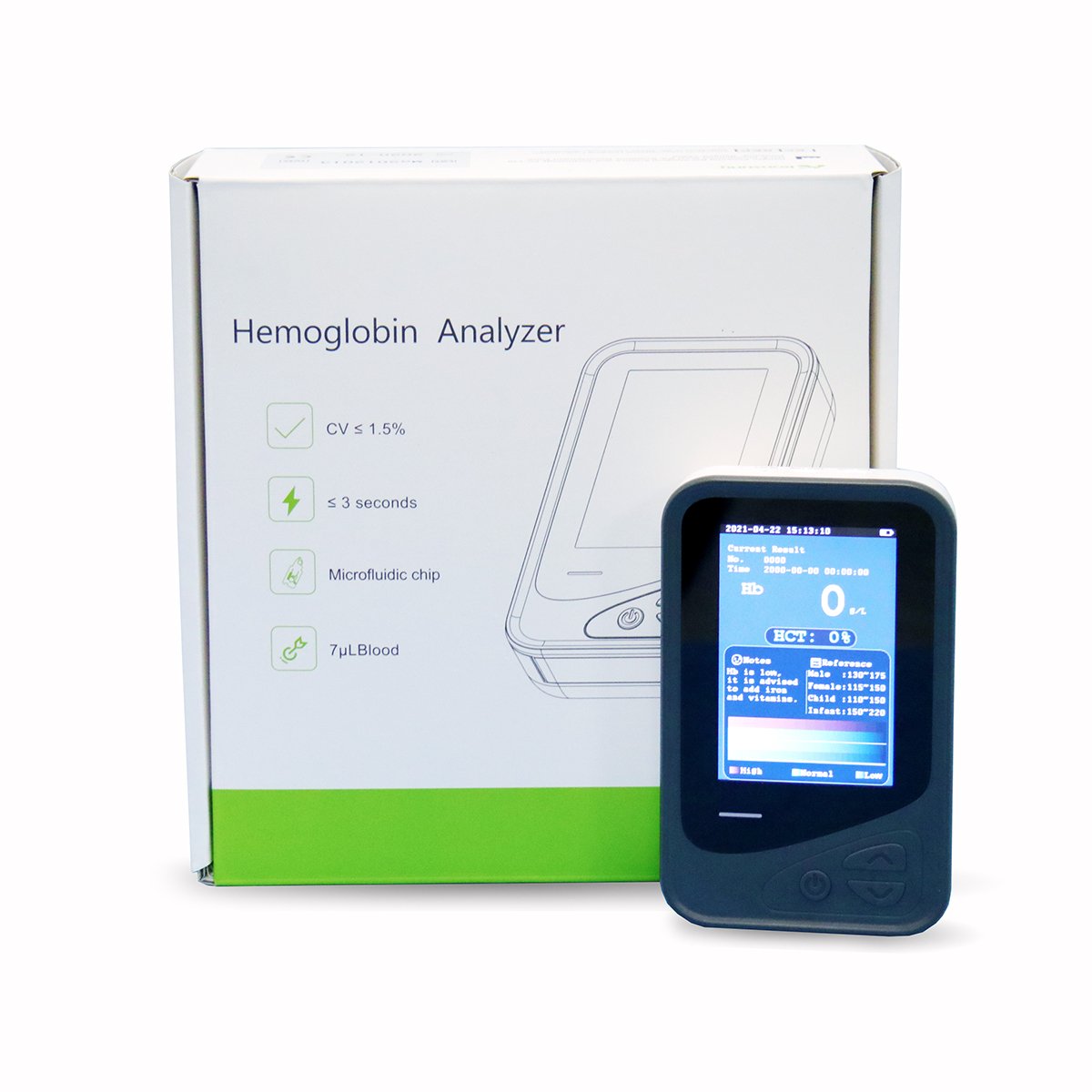

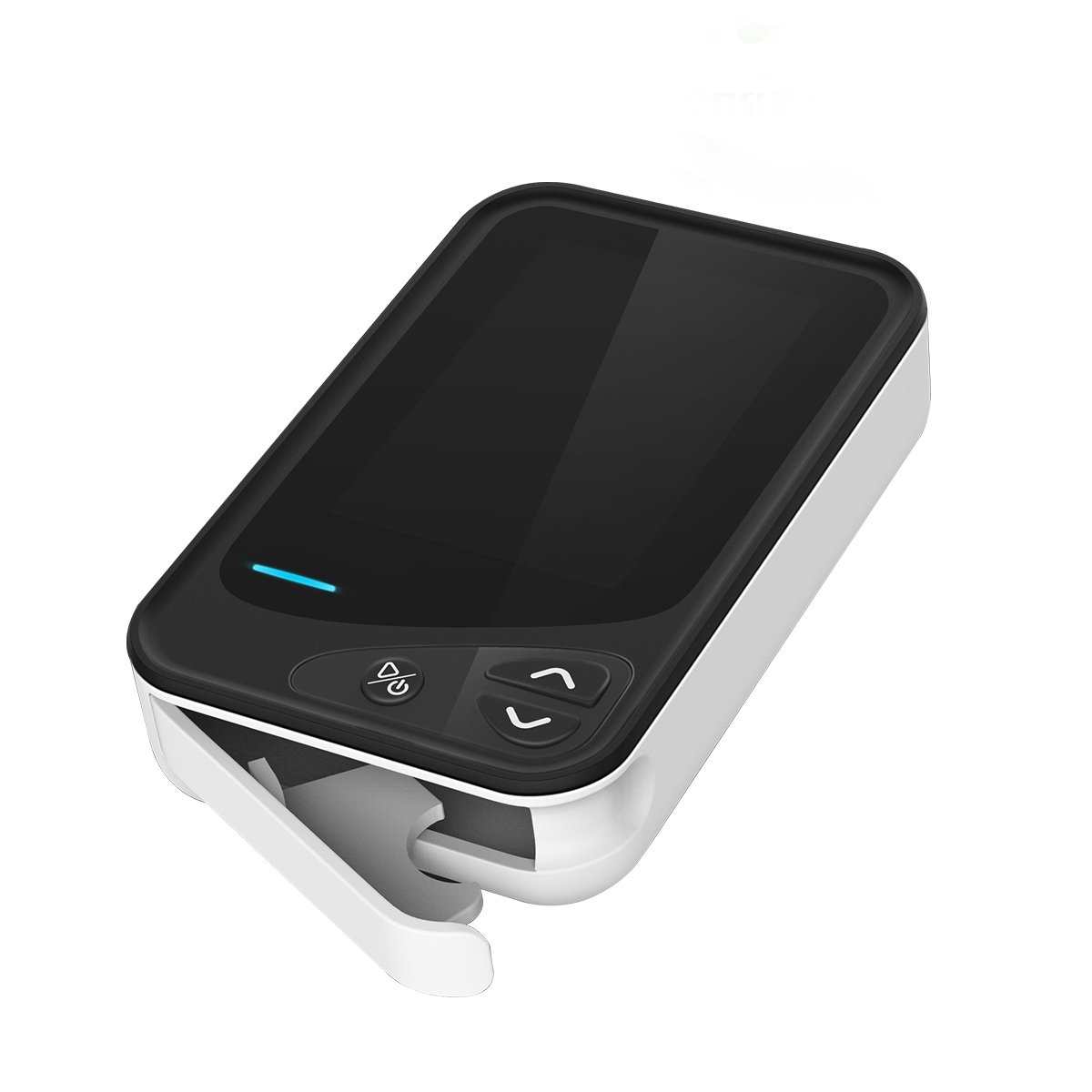

Hemoglobin Analyzer Meter Machine MDLAH01
Rapid, accurate hemoglobin and hematocrit measurement in under 3 seconds. Portable analyzer requiring only 7 µL of capillary or venous whole blood. Factory-calibrated with no further calibration required, ideal for clinical laboratories, point-of-care testing, and home healthcare applications.
Clinical overview
The MDLAH01 Hemoglobin Analyzer is a portable, rapid-result device designed for accurate measurement of hemoglobin and hematocrit levels in clinical and point-of-care settings. With measurement times of 3 seconds or less and requiring only a 7 µL blood sample, it streamlines workflow while maintaining high precision. The device features factory calibration, eliminating the need for routine recalibration and reducing operational complexity.
Equipped with a 2000-test memory capacity, the analyzer supports comprehensive patient record management and trend analysis. Its compact design facilitates easy transport between clinical departments or for home healthcare applications, making it an ideal solution for hospitals, clinics, laboratories, and mobile health services.
Key features & surgeon benefits
Rapid Results
- Measurement time ≤3 seconds
- Minimal sample requirement (7 µL)
- Immediate clinical decision support
High Precision
- Coefficient of variation ≤1.5%
- Factory calibrated, no recalibration needed
- Consistent, reproducible results
Data Management
- 2000-test memory capacity
- Portable and compact design
- Easy operation with clear instructions
Cost-Effective Solution
- Minimal consumable waste per test
- No ongoing calibration costs
- Durable construction for long service life

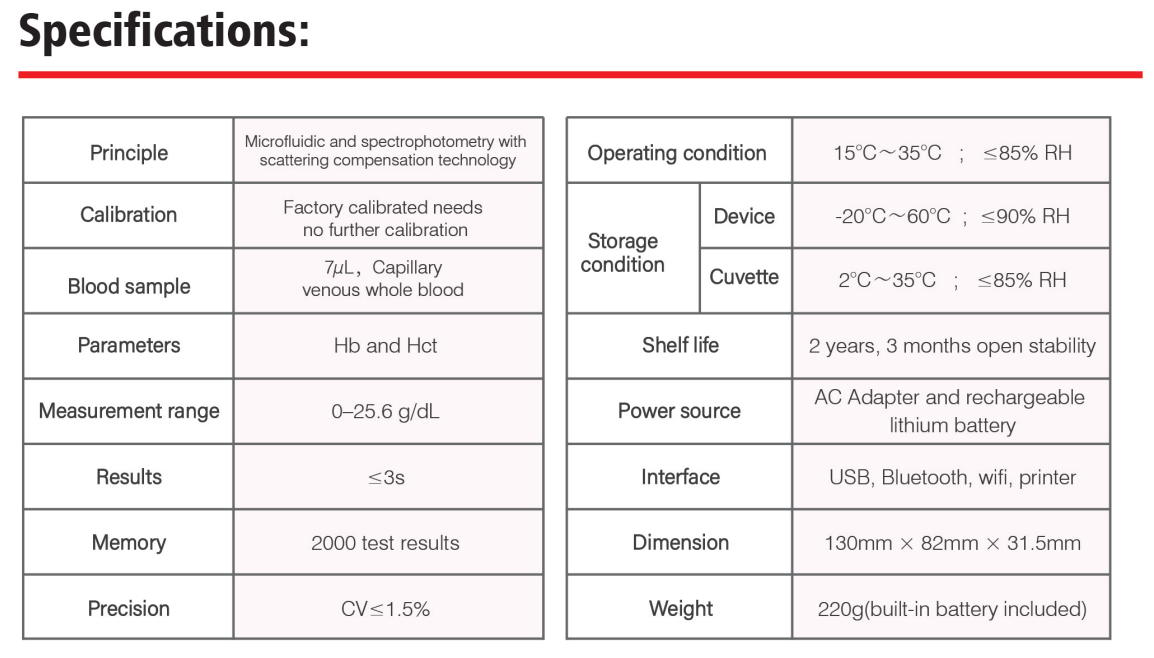

Technical specifications
| Indications | Hemoglobin (Hb) and Hematocrit (Hct) measurement |
|---|---|
| Measurement range | 0–25.6 g/dL |
| Sample volume | 7 µL capillary or venous whole blood |
| Measurement time | ≤3 seconds |
| Precision (CV) | ≤1.5% |
| Memory capacity | 2000 test results |
| Calibration | Factory calibrated; no further calibration required |
| Technology | Microfluidic and spectrophotometry with scattering compensation |
| Packaging | Hemoglobin analyzer, power cable, test chip (50 units), user instructions |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Hemoglobin Analyzer | MDLAH01 portable analyzer unit | 1 |
| Power Cable | AC power supply cable | 1 |
| Test Chips | Single-use test chips for blood analysis | 50 |
| User Instructions | Operation and maintenance manual | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, schedule a product demonstration, or discuss customization options for your facility or organization.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
