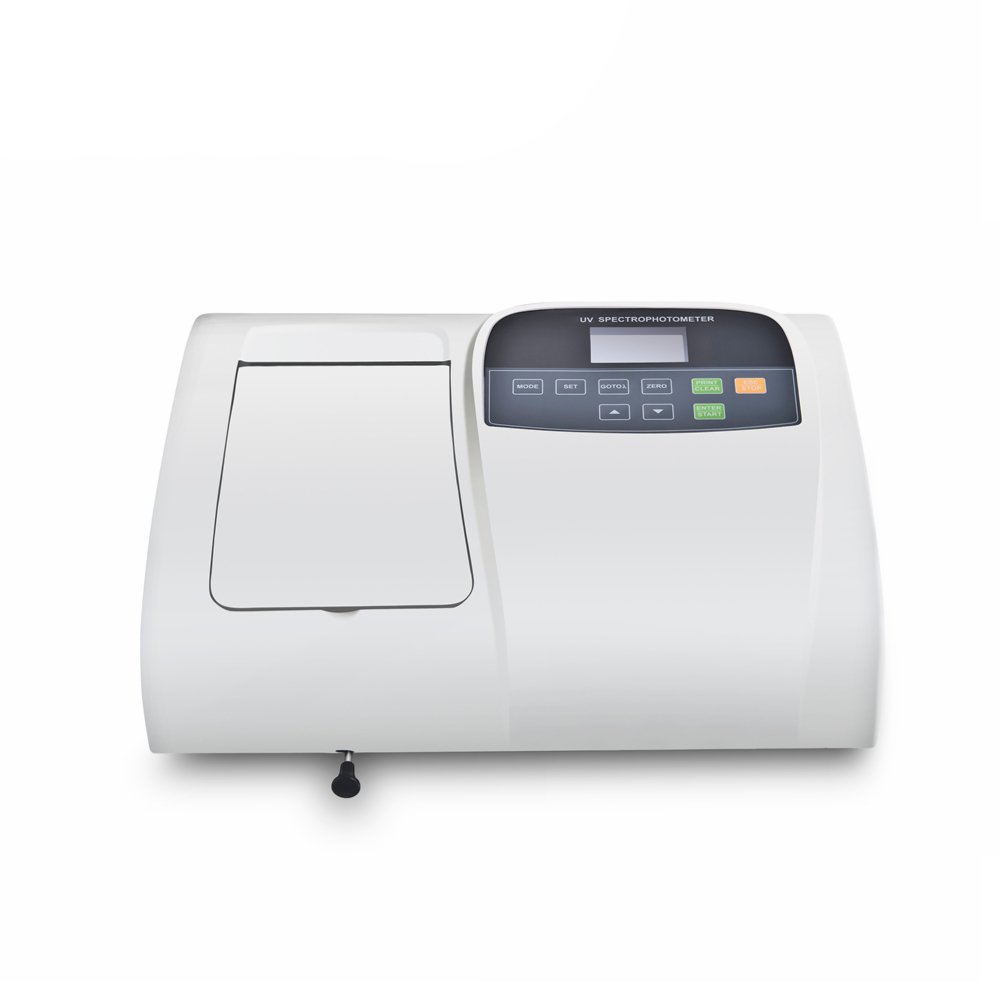

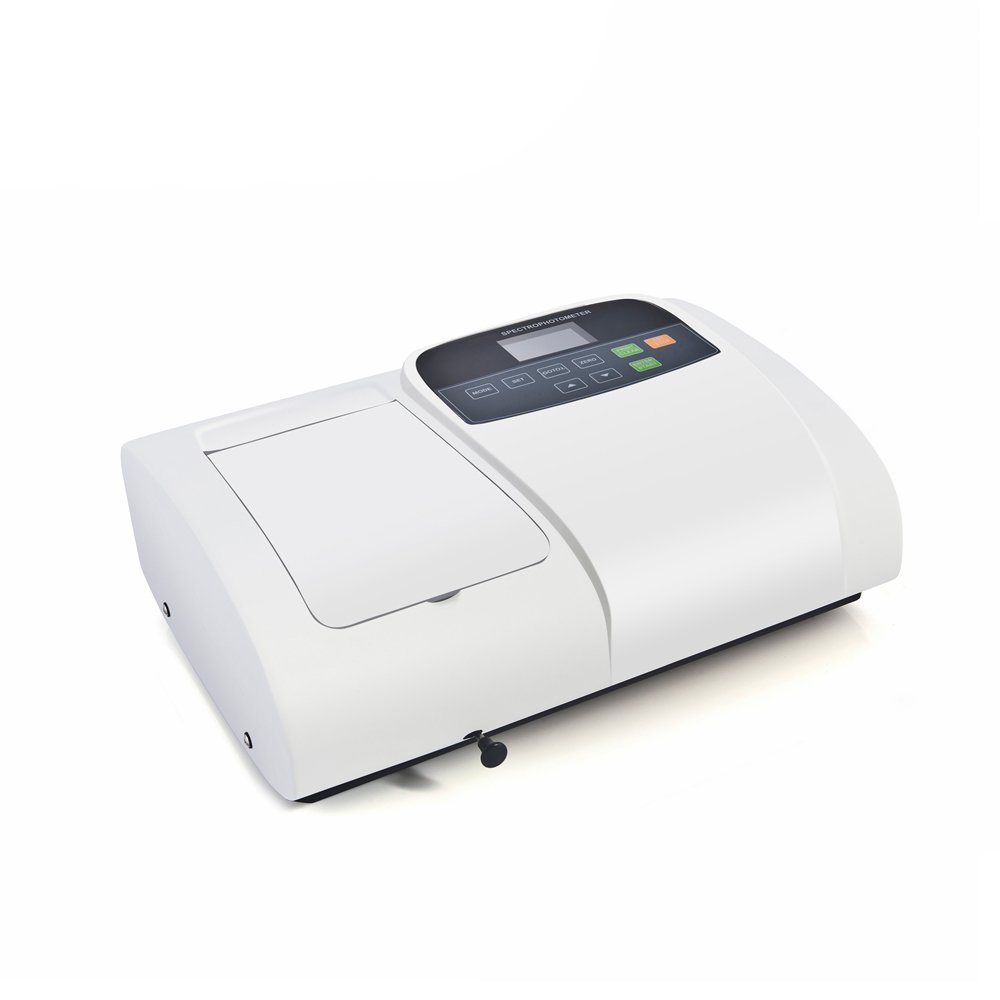

LCD Screen Uv Visible Spectrophotometer MDLUV09
- LCD screen UV visible spectrophotometer model MDLUV09
- Equipped with a 2.5' LCD screen for clear display of standard curves and results
- Can set up various standard curves for different solutions
- Imported deuterium lamp for low stray light and accurate results
- USB port for data output and connectivity to PC
- Multiple results readout for wavelength, absorption, and transmittance
- Automatic wavelength setting to avoid errors
- SKU
- MDLUV09
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
LCD Screen UV Visible Spectrophotometer MDLUV09
Precision UV-Vis analysis with 2.5" LCD display and imported deuterium lamp. Delivers wavelength range 190–1000 nm with ±1 nm accuracy, multiple measurement modes, and USB data output for seamless laboratory integration.
Clinical overview
The MDLUV09 is a single-beam UV-Visible spectrophotometer designed for precise concentration analysis and standard curve development in clinical, pharmaceutical, and research laboratories. Equipped with an imported deuterium lamp and 1200 lines/mm grating, it delivers exceptional photometric accuracy (±0.5% T) and wavelength repeatability (0.5 nm) across the 190–1000 nm range. The 2.5" LCD display provides clear visualization of multiple results including wavelength, absorption, and transmittance, with memory storage for up to 200 measurements.
The instrument features auto wavelength setting to minimize operational errors, USB connectivity for seamless PC integration and data export, and optional software for spectrum scanning, kinetics, and multi-wavelength analysis. With a compact footprint (420×280×180 mm) and lightweight design (12 kg), the MDLUV09 is ideal for high-throughput laboratory workflows requiring reliable, repeatable measurements and easy portability between workstations.
Key features & surgeon benefits
Precision Measurement
- Wavelength range 190–1000 nm with ±1 nm accuracy
- Photometric accuracy ±0.5% T; repeatability 0.3% T
- Stray light ≤0.2% T; stability ±0.002 A/h @ 500 nm
User-Friendly Operation

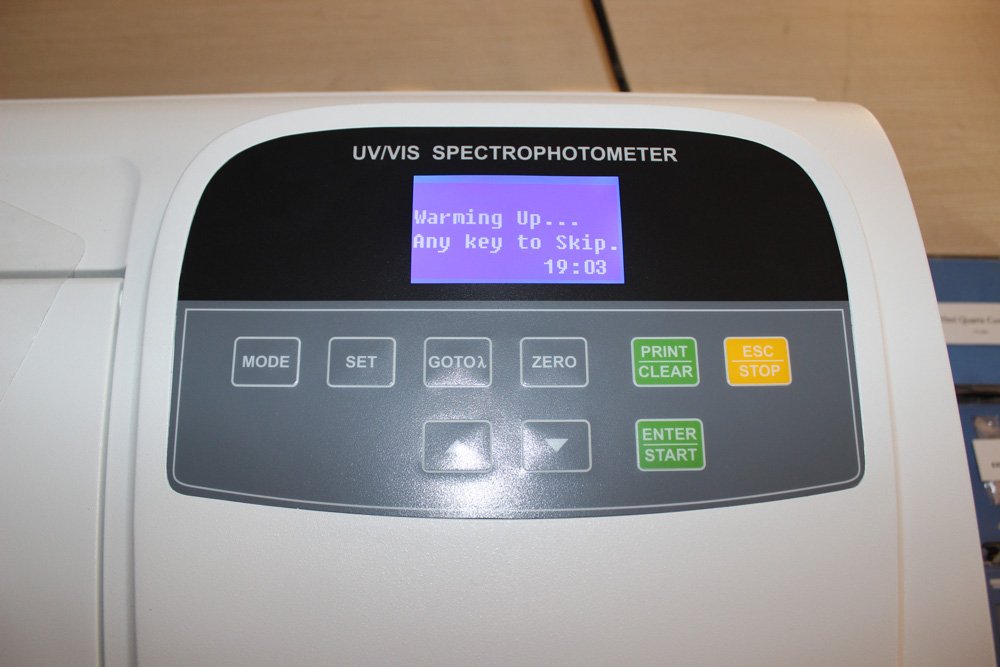

- 2.5" LCD display with clear result visualization
- Auto wavelength setting via arrow keys reduces errors
- Memory storage for up to 200 results
Connectivity & Analysis
- USB port for PC connection and data export
- Optional software for spectrum scanning and kinetics
- Multiple photometric modes: T, A, C, F
Compact Design
- Dimensions 420×280×180 mm; weight 12 kg
- Easy to relocate between laboratory stations
- Imported deuterium lamp for durability and low stray light
Technical specifications
| Optical System | Single beam, grating 1200 lines/mm |
|---|---|
| Wavelength Range | 190–1000 nm |
| Bandwidth | 4 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | 0.5 nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.5% T |
| Photometric Repeatability | 0.3% T |
| Photometric Range | −0.3–3 A or 0–200% T |
| Photometric Mode | T, A, C, F |
| Stray Light | ≤0.2% T |
| Stability | ±0.002 A/h @ 500 nm |
| Display | 128×64 LCD |
| Detector | Silicon photodiode |
| Light Source | Tungsten lamp & D₂ lamp (imported) |

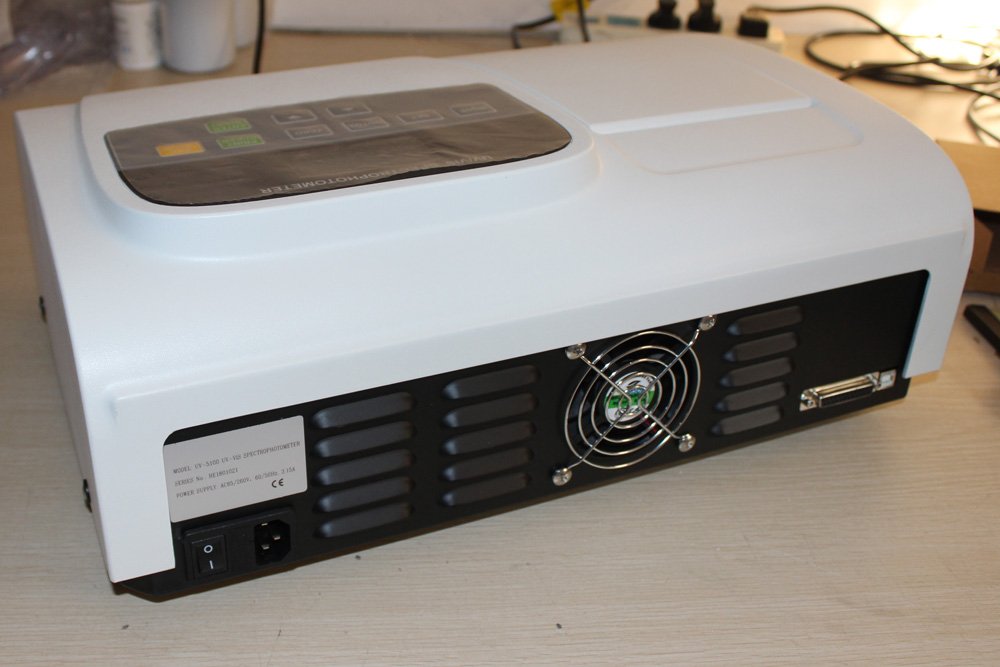

| Output | USB port & parallel port (printer) |
| Power Requirements | AC 85–250 V |
| Dimensions | 420×280×180 mm |
| Weight | 12 kg |
| Warranty | 2 Year Manufacturer Warranty |

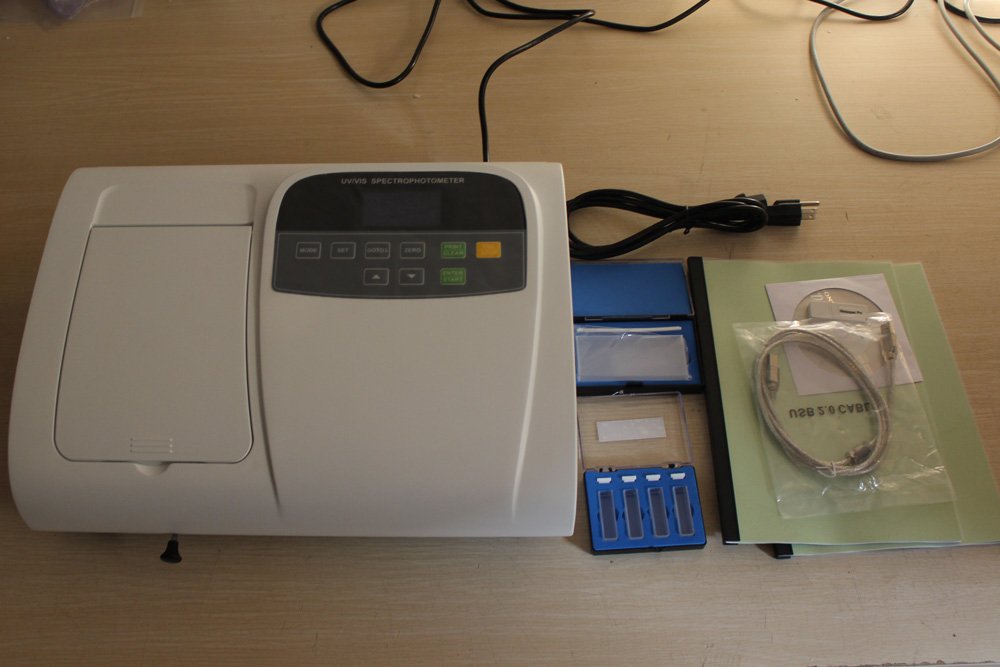

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Spectrophotometer (MDLUV09) | 1 set |
| 2 | 1 cm glass cuvette | 4 pcs |
| 3 | 1 cm quartz cuvette | 2 pcs |
| 4 | Power cord | 1 pc |
| 5 | User's manual | 1 pc |
| 6 | Dust cover | 1 pc |
