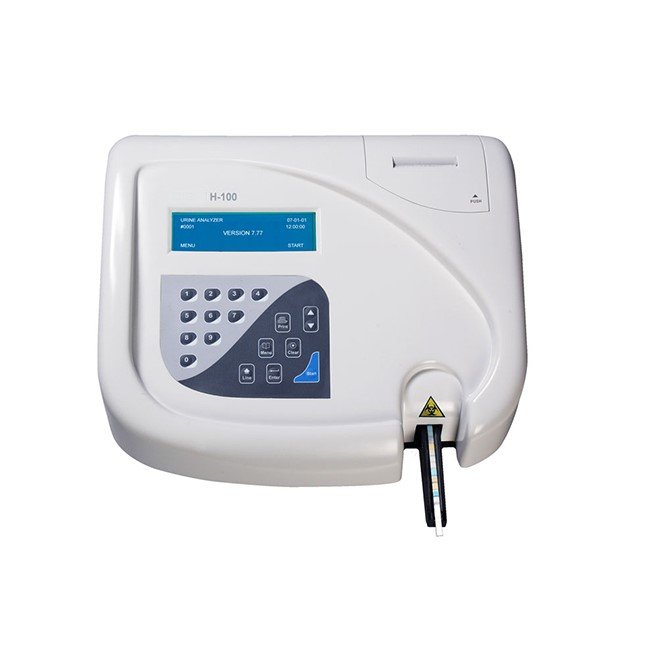

- The Semi-Automatic Clinical Urine Analyzer 11 and 13 parameters H-100 offers advanced high luminosity cold light source with 4-wavelength for improved sensitivity and accuracy.
- It features an automatic waste handling system to prevent cross-contamination between samples.
- The analyzer automatically rectifies test results influenced by non-specificity, pH, specific gravity, and color.
- Comes with a built-in thermal printer with high speed and low noise, and is also connectable with DIRUI urine sediment analyzer.
- Allows users to set abnormal value flags and offers international, regular, and symbol system units display options.
- Tests a variety of parameters including urobilinogen, bilirubin, ketone, creatinine, and more with a test throughput of 120 strips/h.
- Equipped with data storage for up to 1000 patient results and a 240x64 dot-matrix LCD display.
Advanced 11 and 13-parameter urine analysis with high luminosity cold light source technology. Delivers rapid, accurate results with automatic waste handling and integrated thermal printing for clinical laboratories and hospital settings.
The H-100 Semi-Automatic Clinical Urine Analyzer is a Class II laboratory device engineered for high-throughput urinalysis in hospital and diagnostic laboratory environments. Featuring advanced 4-wavelength high luminosity cold light source technology, the H-100 delivers superior sensitivity and accuracy while minimizing interference from ambient light. The system automatically rectifies test results affected by non-specificity, pH, and specific gravity, ensuring clinically reliable data for informed diagnostic decisions.
With a throughput of 120 strips per hour, integrated thermal printer, and automatic waste handling system, the H-100 optimizes laboratory workflow while preventing cross-contamination. The analyzer supports 13 test parameters including urobilinogen, bilirubin, ketone, creatinine, micro-albumin, blood, protein, nitrite, leukocytes, glucose, specific gravity, pH, and vitamin C. Multi-language support and user-defined abnormal value flags enable customized reporting for diverse clinical settings.
| Test Parameters | 11 or 13 parameters: urobilinogen, bilirubin, ketone, creatinine, micro-albumin, blood, protein, nitrite, leukocytes, glucose, specific gravity, pH, vitamin C |
|---|---|
| Test Wavelengths | 525nm, 572nm, 610nm, 660nm |
| Test Principle | Photoelectric colorimetry |
| Compatible Strips | DIRUI H8, H10, H11, H11-MA, and standard urinalysis strips |
| Throughput | 120 strips/hour or 60 strips/hour (optional) |
| Data Storage | 1000 patient results |
| Display | 240×64 dot-matrix LCD |
| Printer | Built-in thermal printer; external stylus printer compatible |
| Computer Interface | RS-232 port; parallel printer interface |
| Languages | Chinese, English, Russian, Polish, Italian, Spanish, Portuguese, Turkish, German, French |
| Power Supply | 100–110V/240V, 50/60Hz |
| Power Consumption | 40VA |
| Dimensions | 385mm (L) × 337mm (W) × 166mm (H) |
| Weight | 3–9kg |
| Classification | Class II Medical Device |
| Certification | CE ISO |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| H-100 Analyzer | Semi-automatic clinical urine analyzer with 4-wavelength optical system | 1 |
| Thermal Printer | Built-in high-speed, low-noise thermal printer module | 1 |
| Power Cable | 100–110V/240V universal power supply cable | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
| Quality Control Materials | Calibration and QC reagents (as applicable) | As applicable |
