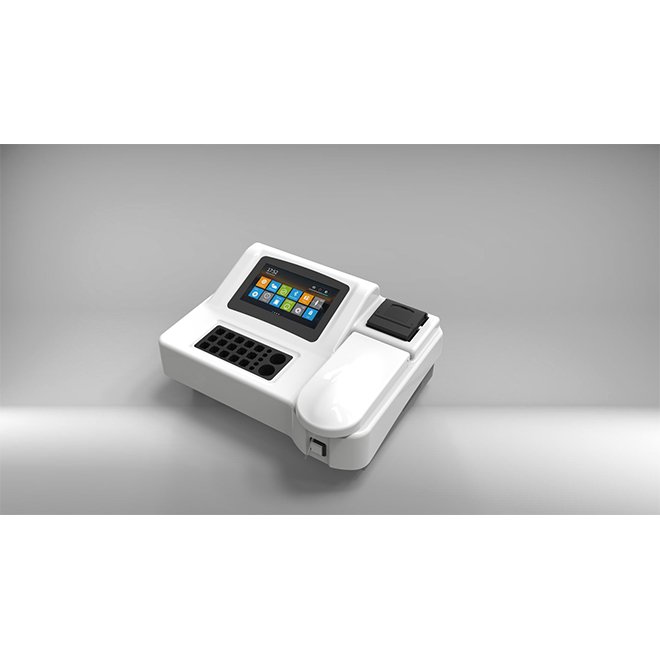

Semi-auto Chemistry Analyzer MDLES105
- Window embedded compact 7 smart operation system
- 7-inch true color touch screen with 800x480 pixels resolution
- Flow cell & cuvette testing modes available
- Huge storage capacity for more than 300 programs & 200,000 sample results
- 2 reading modes for flow cell and cuvette
- Built-in thermal printer with 57mm printer paper
- Interference Filters: 340, 405, 450, 505, 546, 578, 630 nm
- Multiple USB ports for keyboard, mouse, printer, U disk, and PC connection
- SKU
- MDLES105
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Semi-auto Chemistry Analyzer MDLES105
Compact, intelligent semi-automatic biochemistry analyzer with 7-inch true color touchscreen, dual testing modes (flow cell and cuvette), and extensive data storage. Designed for clinical laboratories requiring reliable, efficient sample analysis with minimal operator intervention.
Clinical overview
The MDLES105 is a compact, semi-automatic biochemistry analyzer engineered for clinical laboratories that require flexible, accurate sample analysis without full automation. The instrument supports both flow cell and cuvette testing modes, enabling laboratories to perform a wide range of assays including endpoint, kinetic, and fixed-time measurements. With a 7-inch true color touchscreen interface and intuitive Windows-embedded operation, the MDLES105 minimizes training time and operator error while maintaining high analytical precision.
Equipped with a long-life tungsten halogen lamp, seven standard interference filters spanning 340–630 nm, and optional additional filters, the analyzer delivers reliable photometric accuracy (0.0001 Abs resolution, 0.0000–4.0000 Abs range). Built-in thermal printing, extensive data storage (over 300 programs and 200,000 sample results), and multiple connectivity options (USB host/slave, Ethernet) ensure seamless integration into modern laboratory workflows and information systems.
Key features & surgeon benefits
Flexible Assay Capability
- Flow cell and cuvette testing modes for diverse assay types
- Support for endpoint, kinetic, fixed-time, and optional coagulation methods
- Seven standard filters with optional expansion for specialized applications
Intuitive Operation & Integration
- 7-inch true color touchscreen with Windows-embedded smart operation system
- Built-in thermal printer (57 mm paper) for immediate result documentation
- USB host ports for keyboard, mouse, barcode reader, and external devices
Robust Storage & Connectivity
- Over 300 stored programs and 200,000 sample result capacity
- USB slave and Ethernet ports for PC connection and remote software control
- DDR2 SDRAM (1 GB) and 256 MB Flash for reliable performance
High-Performance Optics
- Long-life tungsten halogen lamp (6V/10W) with auto-sleep function for extended service life
- 0.0001 Abs resolution and 0.0000–4.0000 Abs photometric range
- Peltier-controlled temperature (25, 30, 37°C, and room temperature)
Technical specifications
| Test Method | 1-point end, 2-point end (sample blank), kinetics, fixed-time, coagulation (optional) |
|---|---|
| Optics | 7 standard filters: 340 nm, 405 nm, 450 nm, 505 nm, 546 nm, 578 nm, 630 nm; 2 additional optional |
| Lamp House | Long-life tungsten halogen lamp (6V/10W) with auto-sleep function |
| Display | 7.0" TFT LCD with touchscreen, 800×480 pixels |
| Printer | Built-in thermal printer, 57 mm paper |
| Temperature Control | 25, 30, 37°C and room temperature via Peltier elements |
| Flow Cell Capacity & Optical Path | 32 µL, 10 mm |
| Resolution | 0.0001 Abs |
| Photometric Range | 0.0000–4.0000 Abs |
| CPU | ARM Cortex-A8, 720 MHz |
| Memory | DDR2 SDRAM: 1 GB; Flash: 256 MB (over 300 programs, 200,000 results) |
| Interface | 4 USB host ports, 1 USB slave port, 1 Ethernet port |
| Operating Environment | Temperature: 10–30°C; Humidity: 30–80% |
| Power Requirement | AC 100–110V/240V, 50/60 Hz |
| Dimensions | 400 × 300 × 160 mm (L × W × H) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | Semi-automatic chemistry analyzer with 7-inch touchscreen and integrated optics | 1 |
| Thermal Printer | Built-in 57 mm thermal printer for result documentation | 1 |
| Interference Filters | 7 standard filters (340, 405, 450, 505, 546, 578, 630 nm) | 7 |
| Flow Cell | 32 µL capacity with 10 mm optical path | 1 |
| Cuvette Holder | For cuvette-based testing mode | 1 |
| Power Cable | AC 100–110V/240V, 50/60 Hz compatible | 1 |
| USB Cables | For host and slave connectivity | 2 |
| User Manual & Documentation | Operating instructions, maintenance guide, and technical specifications | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the MDLES105. We provide comprehensive support and can arrange demonstrations at your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
