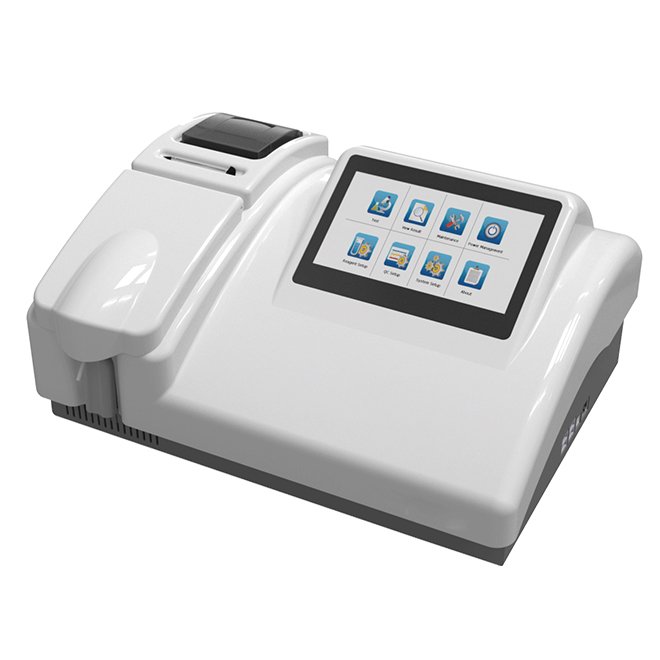

Semi-auto Chemistry Analyzer MDLES102
- Compact and smart semi-automatic chemistry analyzer
- 7-inch true color touch screen for easy operation
- Multiple USB ports and an ethernet port for connectivity
- Offers flow cell and cuvette testing modes
- Stores over 300 programs and 200,000 sample results
- Built-in thermal printer with 57mm paper
- Features interference filters at various wavelengths
- Large memory capacity with DDR2 SDRAM and Flash storage
- Connectivity options include USB ports for peripherals and PC connection.
- SKU
- MDLES102
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Semi-Auto Chemistry Analyzer MDLES102
Compact, intelligent semi-automatic biochemistry analyzer with 7-inch true color touch screen and advanced connectivity. Supports both flow cell and cuvette testing modes with storage for over 300 programs and 200,000 sample results. Ideal for clinical laboratories, hospital settings, and diagnostic facilities requiring reliable, efficient chemistry analysis.
Clinical overview
The MDLES102 is a compact, intelligent semi-automatic biochemistry analyzer designed for high-throughput clinical chemistry testing in laboratory and hospital environments. Featuring a responsive 7-inch true color touch screen with intuitive Windows-embedded operation, the analyzer delivers rapid, accurate results while maintaining ease of use for laboratory technicians. The system supports both flow cell and cuvette testing modes, providing flexibility for diverse assay protocols and sample types.
With extensive storage capacity for over 300 pre-configured programs and 200,000 sample results, the MDLES102 enables comprehensive data management and traceability. Built-in thermal printer functionality with 57 mm paper support ensures immediate documentation of results. Multiple connectivity options—5 USB ports and 1 Ethernet port—facilitate seamless integration with laboratory information systems (LIS), barcode readers, and external peripherals, supporting modern laboratory workflow automation.
Key features & surgeon benefits
Intuitive Touch Screen Operation
- 7-inch true color display (800×480 pixels)
- Windows-embedded smart operation system
- User-friendly interface for rapid method selection
Dual Mode Analysis
- Flow cell and cuvette testing modes
- Multiple interference filters (340, 405, 450, 505, 546, 578, 630 nm)
- Supports diverse assay protocols and sample types
Comprehensive Storage & Reporting
- Over 300 pre-configured programs
- Storage for 200,000 sample results
- Built-in thermal printer with 57 mm paper support
Seamless Integration
- 5 USB host ports for keyboard, mouse, printer, barcode reader
- 1 USB slave port for PC connection and LIS integration
- 1 Ethernet port for network connectivity
Technical specifications
| Indications | Biochemical analysis, clinical chemistry testing, laboratory diagnostics |
|---|---|
| Display | 7-inch true color touch screen, 800×480 pixels |
| Dimensions | 400 × 300 × 160 mm (compact form factor) |
| Testing Modes | Flow cell and cuvette |
| Interference Filters | 340, 405, 450, 505, 546, 578, 630 nm |
| Memory | DDR2 SDRAM: 1 GB; Flash: 256 MB |
| Processor | ARM Cortex-A8, 720 MHz |
| Programs & Storage | Over 300 programs; 200,000 sample results capacity |
| Printer | Built-in thermal printer, 57 mm paper support |
| Connectivity | 5 USB host ports, 1 USB slave port, 1 Ethernet port |
| Operating System | Windows-embedded smart operation system |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer Unit | Semi-Auto Chemistry Analyzer MDLES102 with 7-inch touch screen | 1 |
| Thermal Printer | Built-in 57 mm thermal printer | 1 |
| Power Supply | Integrated power management system | 1 |
| USB Cables | Host and slave connectivity cables | As applicable |
| Documentation | User manual, quick start guide, technical specifications | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the MDLES102 analyzer. We provide comprehensive support and technical guidance for laboratory integration.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
