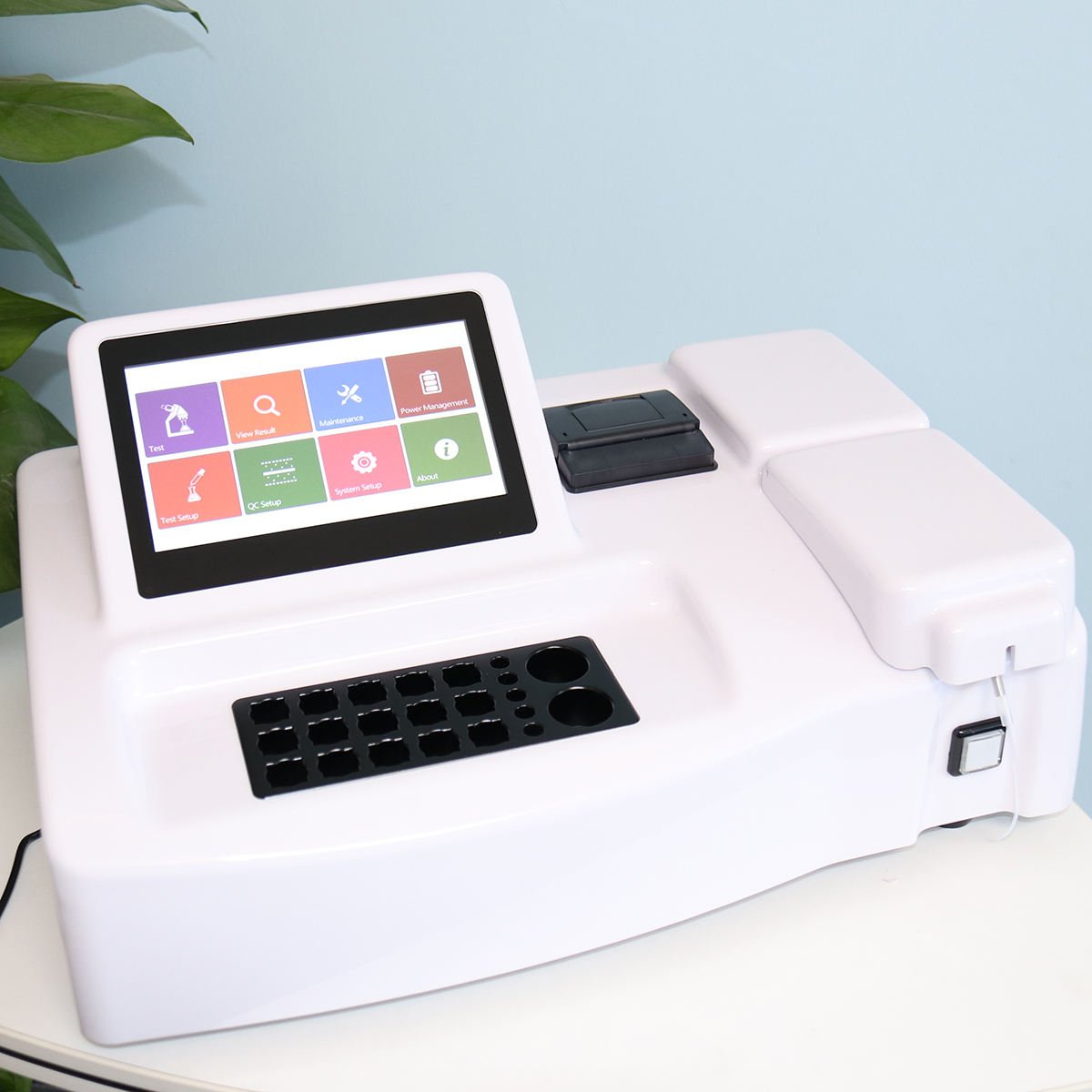

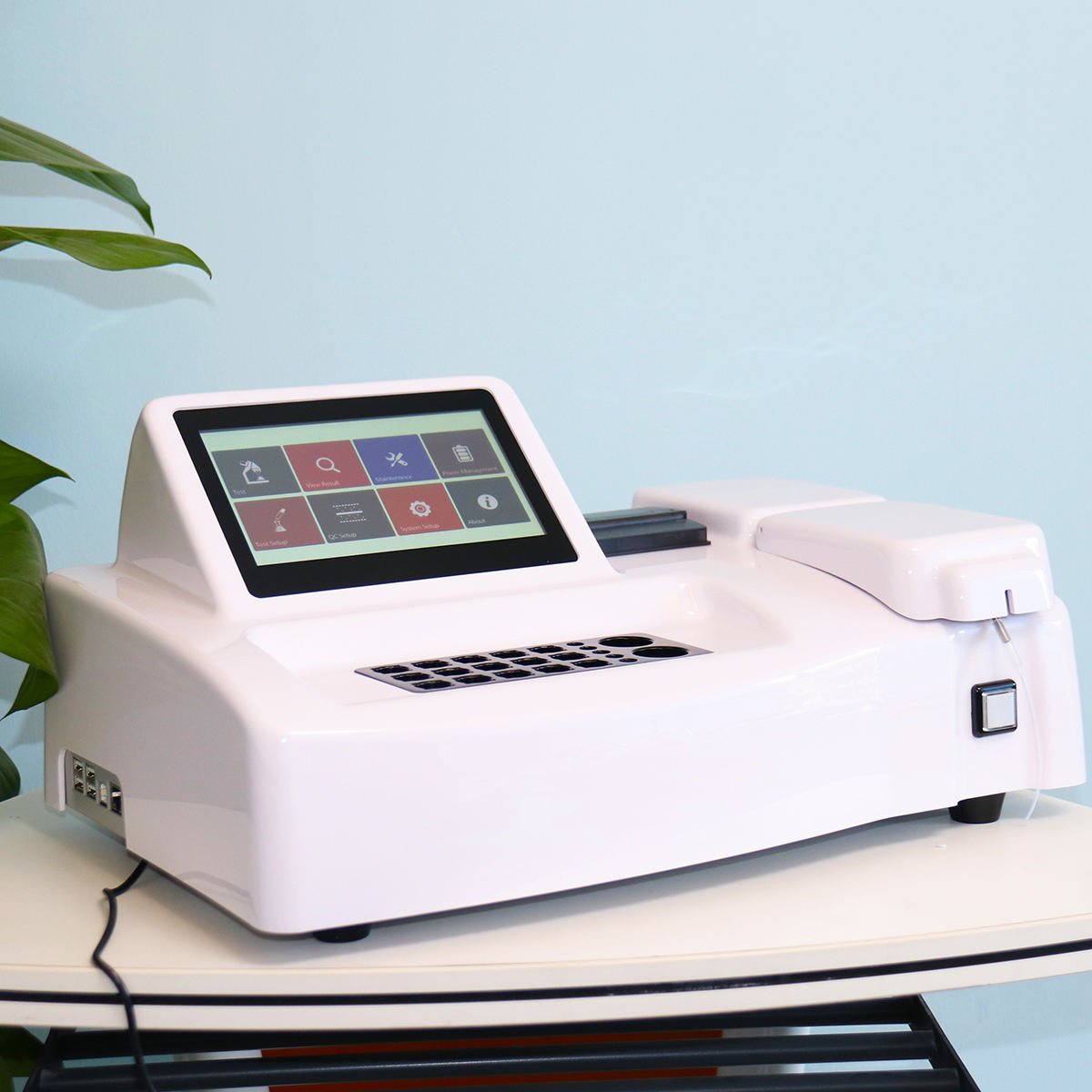

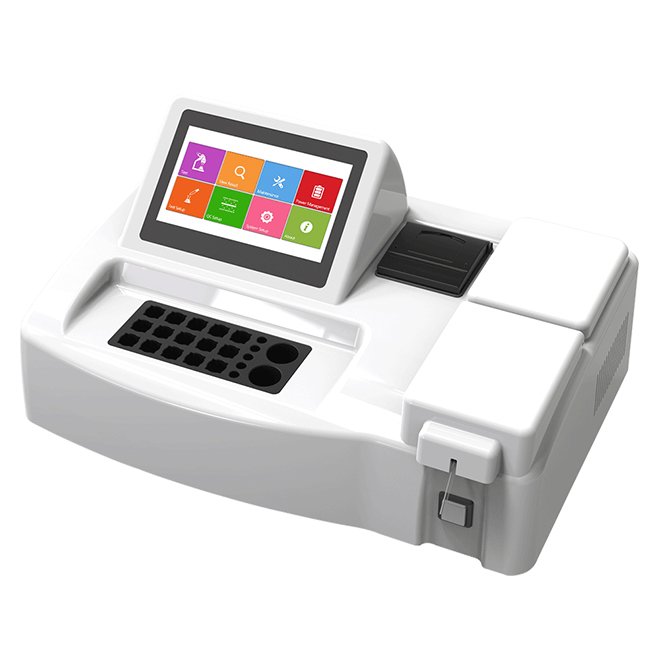

- Semi-auto Chemistry Analyzer MDLES101C with advanced features for accurate testing
- Test methods include 1 point end, 2 point end, Kinetics, Fixed-time, Coagulation (optional)
- Optics with 7 standard filters and additional optional filters for precise results
- Long-life tungsten halogen lamp with auto-sleep function for convenience
- 7.0” TFT LCD touch screen display for easy operation

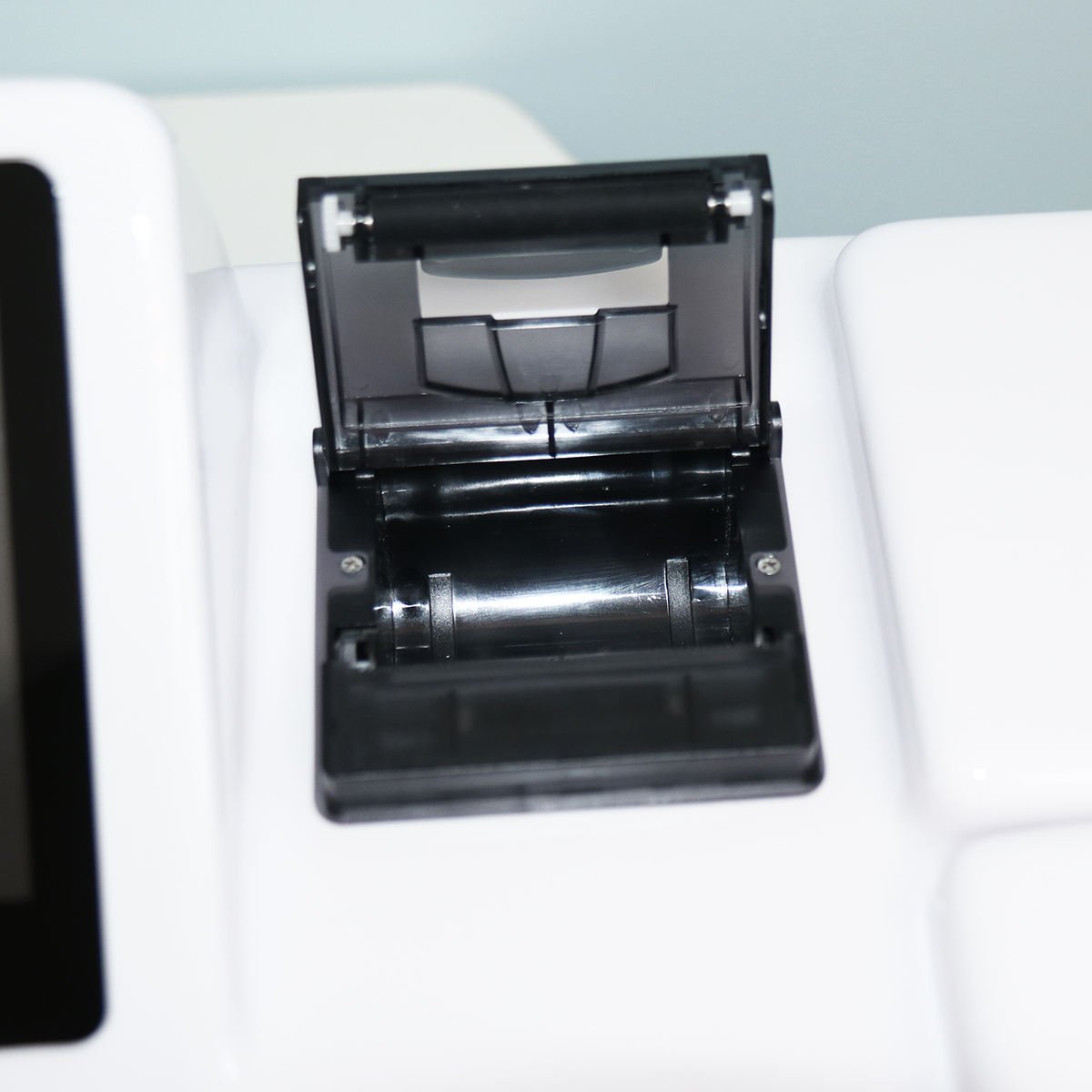

- Built-in thermal printer for instant result documentation
- Wide temperature range and operational environment for flexibility
- Multiple connectivity options including USB ports for various devices
Compact, versatile semi-automated chemistry analyzer with multi-method capability, 7-wavelength optical system, and integrated thermal printing. Ideal for clinical laboratories requiring flexible test protocols with high sample throughput and reliable results.
The MDLES101C is a semi-automated chemistry analyzer designed for mid-to-high-volume clinical laboratories. It combines flexible test methodology with robust optical performance, supporting 1-point end, 2-point end, kinetics, fixed-time, and optional coagulation assays. The 7-wavelength filter system (340–630 nm) accommodates a broad range of analytes, while the long-life tungsten halogen lamp with auto-sleep function ensures consistent performance and extended lamp life.
With integrated thermal printing, large touchscreen display, and comprehensive data storage (200,000 results), the MDLES101C streamlines workflow and reduces manual documentation. USB connectivity enables seamless integration with laboratory information systems, keyboards, barcode readers, and external printers, making it a practical choice for laboratories seeking reliability and operational flexibility.
| Test Methods | 1-point end, 2-point end (sample blank), kinetics, fixed-time, coagulation (optional) |
|---|---|
| Optical Filters | 7 standard: 340, 405, 450, 505, 546, 578, 630 nm; 2 additional slots available |
| Lamp House | Long-life tungsten halogen (6/10 W) with auto-sleep function |
| Display | 7.0" TFT LCD touchscreen, 800 × 480 pixels |
| Printer | Built-in thermal printer, 57 mm paper |
| Temperature Control | 25, 30, 37 °C and room temperature via Peltier elements |
| Flow Cell | 32 µL capacity; 10 mm optical path |
| Photometric Resolution | 0.0001 Abs |
| Photometric Range | 0.0000–4.0000 Abs |
| Processor | ARM Cortex-A8, 720 MHz |
| Memory | DDR2 SDRAM: 1 Gbit; Flash: 256 MB |
| Assay Programs | Over 300 programs; stores up to 200,000 results |
| Interfaces | 4 USB hosts, 1 USB slave, 1 Ethernet port |
| Operational Environment | Temperature: 10–30 °C; Humidity: 30–80% |
| Power Supply | AC 100–110V/240V, 50/60 Hz |
| Dimensions | 400 × 300 × 160 mm (L × W × H) |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main Unit | MDLES101C Semi-auto Chemistry Analyzer with integrated thermal printer and touchscreen display | 1 |
| Optical Filter Set | 7 standard interference filters (340, 405, 450, 505, 546, 578, 630 nm) | 1 set |
| Flow Cell | 32 µL capacity cuvette with 10 mm optical path | 1 |
| Thermal Printer Paper | 57 mm thermal paper roll (starter pack) | 1 roll |
| USB Cables | USB-A to USB-B for PC connection and peripheral connectivity | 2 |
| Power Cable | AC power cord with universal voltage support (100–110V/240V) | 1 |
| User Manual | Complete operation, maintenance, and troubleshooting guide | 1 |
| Quick Reference Card | Laminated operational quick-start guide | 1 |
