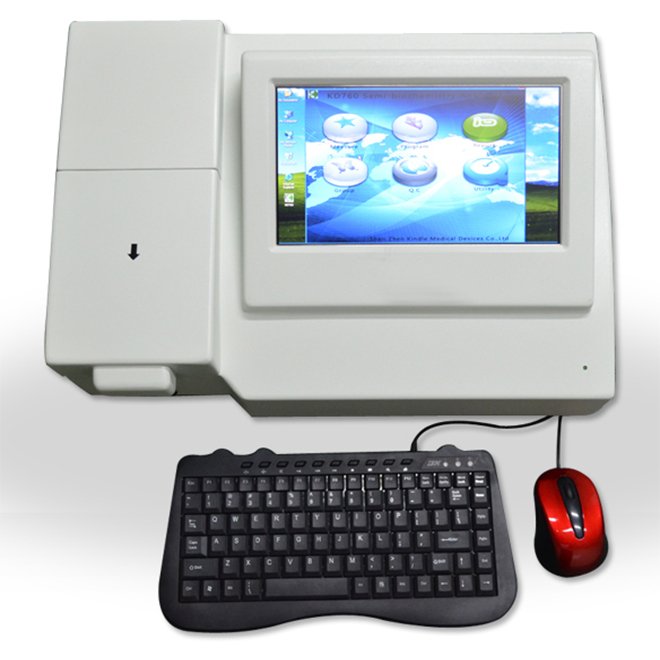

Semi-auto Chemistry Analyzer MDLBA22
- The Semi-auto Chemistry Analyzer MDLBA22 offers diverse analytical modes including kinetic, fixed time, end-point, and absorbance.
- It comes equipped with 7 standard filters and an optional additional filter for enhanced wavelength selection.
- With a full open reagent system, users can program an unlimited number of items for analysis.
- The voice prompting feature adds a touch of interactivity to the operation process.
- Enjoy a user-friendly experience with the Windows operation interface and real-time graph display and print capabilities.
- Benefit from longer lamp life with the lamp saving feature and up to 1000,000 result storage capacity.
- SKU
- MDLBA22
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Semi-Auto Chemistry Analyzer MDLBA22
Advanced semi-automatic chemistry analyzer delivering precise, reliable testing across multiple analytical modes. Features an open reagent system, intuitive Windows interface, and real-time result visualization for streamlined laboratory workflows.
Clinical overview
The MDLBA22 is a versatile semi-automatic chemistry analyzer engineered for high-throughput clinical laboratories and point-of-care settings. It supports four analytical modes—kinetic, fixed time, endpoint, and absorbance—enabling comprehensive testing across a wide range of analytes. The instrument's open reagent architecture eliminates vendor lock-in, allowing laboratories to select reagents based on clinical needs and cost considerations.
With precise PELTIER temperature control (±1°C accuracy) and seven standard optical filters spanning 340–630 nm, the MDLBA22 delivers consistent, reproducible results. The intuitive Windows-based interface, voice prompts, and real-time graphical display reduce operator error and streamline result interpretation. Large data storage capacity (up to 1,000,000 results) and comprehensive quality control features make it ideal for busy clinical environments requiring reliability and compliance.
Key features & surgeon benefits
Multi-Mode Testing
- Four analytical modes: kinetic, fixed time, endpoint, absorbance
- Seven standard filters (340–630 nm) plus one optional filter
- Double wavelength and multiple standard support for advanced assays
User-Centric Design
- Windows XP interface with intuitive figure button and mouse control
- Voice prompts guide operators through each step
- Real-time graph display and A4 report printing for immediate interpretation
Precision & Stability
- Absorbance repeatability ±0.001; linearity ±1%
- PELTIER temperature control at 25°C, 30°C, 37°C (±1°C accuracy)
- Permanent quartz flow cell with minimal 32 µL volume; disposable option available
Open System Architecture
- Full open reagent system with unlimited test item programming
- RS-232 serial port for LIS integration
- Pressure auto-releasing pumps ensure sampling accuracy (≤1% carry-over)
Technical specifications
| Analytical Modes | Kinetic, fixed time, endpoint, absorbance, two-point, double wavelength, coefficient, multiple standards, blank reagent, blank sample, Q.C., Q.C. graph, turbidity |
|---|---|
| Wavelengths | 7 standard filters: 340, 405, 492, 510, 546, 578, 630 nm; 1 optional filter |
| Optical Precision | ±2 nm; FWHM ≤10 nm; stray light ≤0.5% (absorbance ≥2.5) |
| Absorbance Range | −0.214 to 3.000 |
| Absorbance Linearity | ±1% |
| Absorbance Repeatability | ±0.001 |
| Precision | ≤1% |
| Carry-Over | ≤1% |
| Temperature Control | PELTIER system: 25°C, 30°C, 37°C; accuracy ±1°C |
| Light Source | 6V, 10W halogen lamp; lifespan >2000 hours |
| Flow Cell | Permanent quartz (minimal volume 32 µL); disposable option available |
| Sample Volume | 10–50 µL |
| Absorption Volume | 200–3000 µL |
| Resolution | 1 mAbs |
| Absorbance Stability | ≤3 mAbs/h |
| Data Storage | Up to 1,000,000 results |
| Operating System | Windows XP; 1 GB memory |
| Display | 10.1" LCD |
| Print Output | Standard A4 test report |
| Interface | RS-232 serial port (LIS integration) |
| Operating Conditions | Temperature: 10–30°C; relative humidity: 20–80% |
| Power Supply | AC 85–264 V (auto-adaptive); ≤100 W consumption |
| Sterilisation & Compliance | CE certified |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | Semi-automatic chemistry analyzer with integrated temperature control and optical system | 1 |
| Quartz Flow Cell | Permanent quartz flow cell (32 µL minimal volume) | 1 |
| Optical Filters | 7 standard filters (340, 405, 492, 510, 546, 578, 630 nm) | 1 set |
| Sampling Pump | Pressure auto-releasing pump system | 1 |
| Halogen Lamp | 6V, 10W light source (>2000 hours lifespan) | 1 |
| Temperature Control Module | PELTIER temperature control component | 1 |
| LCD Display | 10.1" LCD touchscreen interface | 1 |
| Thermal Printer | A4 report printing capability | 1 |
| Power Supply | AC 85–264 V auto-adaptive power unit | 1 |
| RS-232 Interface Cable | Serial port for LIS integration | 1 |
| User Manual & Software | Windows XP compatible software and comprehensive documentation | 1 |
