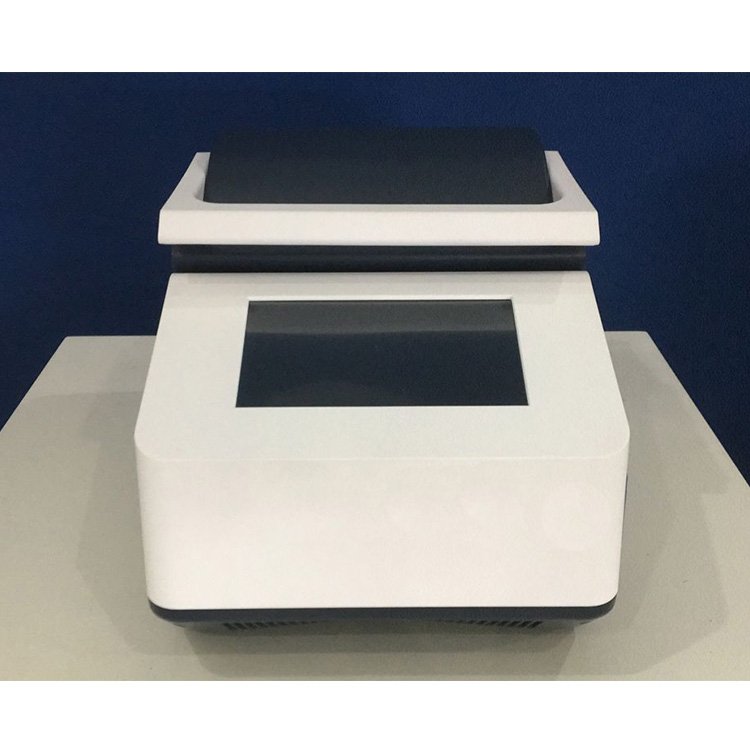

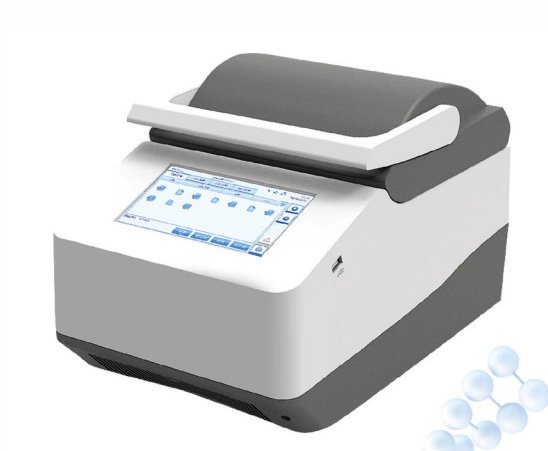

Real-Time PCR System MDLPCR16E
- Real-Time PCR System MDLPCR16E with 48-well sample capacity
- Temperature range of 0°C-100°C with Peltier heating/cooling
- Excitation source with 4 LEDs and photodiode detector
- Multi-channel detection with 4 excitation/emission wavelengths
- Functionality includes qualitative analysis, genotyping, melt curve analysis
- Multiple control modes: touchscreen, PC direct control, WLAN control
- Data storage for 1000 results, power failure protection
- Connectivity options include Ethernet and USB ports
- Compact design with dimensions of 260mm x 400mm x 2605mm and weight of 11kg
- SKU
- MDLPCR16E
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
MDLPCR16E Real-Time PCR System
Advanced 48-well real-time PCR detection platform with precision thermal control, 4-channel simultaneous optical scanning, and WLAN connectivity for molecular diagnostics and research applications.
Clinical overview
The MDLPCR16E Real-Time PCR System represents a breakthrough in molecular diagnostic technology, offering laboratories a sophisticated yet accessible platform for quantitative PCR analysis. Engineered with precision Peltier-based thermal cycling and a state-of-the-art 4-LED optical detection system, this instrument delivers exceptional accuracy with temperature uniformity of ±0.1°C across all 48 wells. The lateral excitation and scanning method eliminates edge effects, ensuring consistent results across the entire thermal block.
Designed for modern laboratory workflows, the MDLPCR16E features innovative connectivity options including WLAN control capability that allows a single PC to manage up to 10 units simultaneously. The integrated 1.7" touch screen provides intuitive on-device control, while power failure protection automatically resumes experiments after power restoration without requiring PC intervention. With support for multiple probe types, comprehensive data analysis modes, and flexible reaction volumes from 5–100 µL, this system adapts seamlessly to diverse research and diagnostic applications requiring reliable, high-throughput real-time PCR performance.
Key features & surgeon benefits
Precision Temperature Management
- ±0.1°C accuracy and uniformity across all 48 wells
- Peltier-based heating/cooling with 8.0°C/sec max heating rate
- Temperature range 0°C to 100°C with rapid cycling capability
4-Channel Simultaneous Detection
- Four LED excitation sources with photodiode detection
- Lateral scanning eliminates edge effects
- Complete 48-well scan in 2 seconds across all channels
WLAN & Multi-Unit Management
- One PC controls up to 10 instruments simultaneously
- Network access from any connected workstation
- Ethernet and USB ports for LIS integration
Comprehensive Analytical Modes
- Qualitative, absolute, and relative quantification analysis
- Melt curve and high-resolution melting capability
- Genotyping and endpoint analysis functions
Technical specifications
| Indications | Infectious disease detection, gene expression analysis, oncology diagnostics, prenatal genetic testing, cardiovascular disease markers, pharmacogenomics, GMO detection, quality control |
|---|---|
| Sample capacity | 48 wells |
| Reaction volume | 5–100 µL |
| Temperature range | 0°C to 100°C |
| Temperature accuracy | ±0.1°C |
| Temperature uniformity | ±0.1°C |
| Heating/cooling method | Peltier |
| Max heating rate | 8.0°C/sec |
| Max cooling rate | 5.5°C/sec |
| Gradient range | 1°C to 40°C (8-row gradient block) |
| Excitation source | 4 LEDs |
| Detector | Photodiode |
| Detection method | 4-channel simultaneous scanning (no edge effect) |
| Detection time | 2 seconds for 48 wells (all channels) |
| Fluorescence linearity | r ≥ 0.990 |
| Sample linearity | r ≥ 0.999 |
| Sample repeatability | Ct value CV ≤ 0.5% |
| Sample dynamic range | 1–10¹⁰ copies |
| Probe compatibility | TaqMan, Molecular Beacons, Scorpion probes |
| Multiplexing | Up to 4 targets per well |
| Touch screen | 1.7" |
| Communication ports | 1 Ethernet, 2 USB |
| Data storage | 1,000 results internally; USB disk transfer |
| PC operating system | Windows 7, Windows 10 |
| Dimensions (W × D × H) | 260 mm × 400 mm × 260 mm |
| Weight | 11 kg |
| Power consumption | 600 VA |
| Operating temperature | 10°C to 30°C |
| Operating humidity | 20% to 85% |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | MDLPCR16E Real-Time PCR System with 48-well thermal block | 1 |

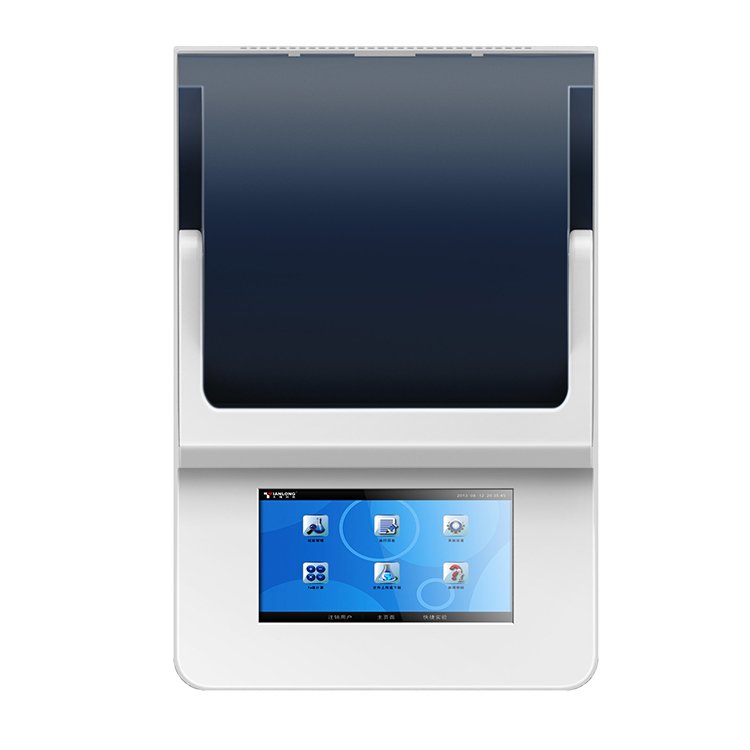

| Touch screen interface | 1.7" integrated control panel | 1 |
| Optical detection module | 4-LED excitation system with photodiode detector | 1 |

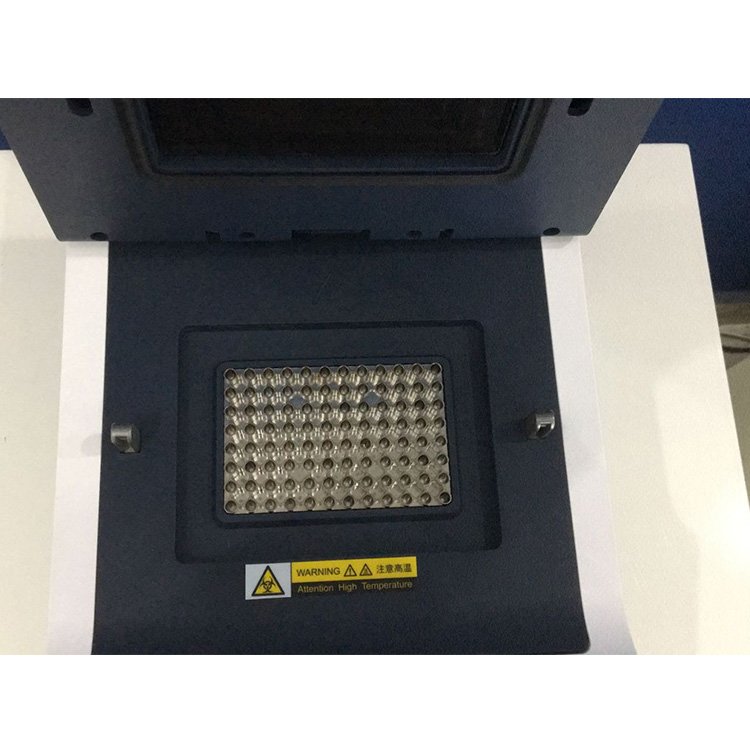

| Thermal block | 48-well aluminium block with Peltier heating/cooling | 1 |

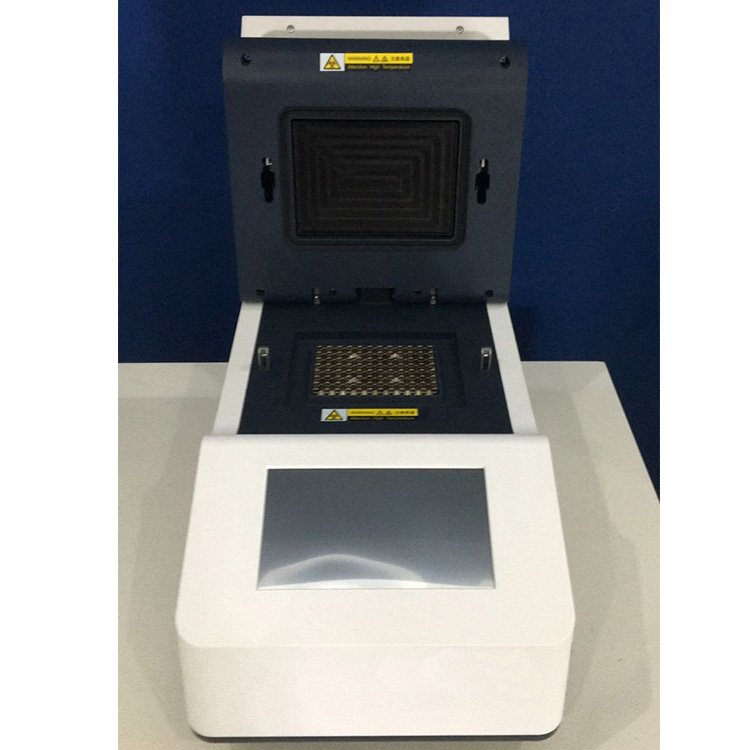

| Heat lid | Heated cover (room temperature to 110°C) | 1 |
| Power supply | AC 100–125 V / 200–110V/240V (50/60 Hz) | 1 |
| Software | Real-time PCR analysis software with data management | 1 |
| Cables | Ethernet and USB connectivity cables | As applicable |
| Documentation | User manual, technical specifications, quality certificate | 1 set |
