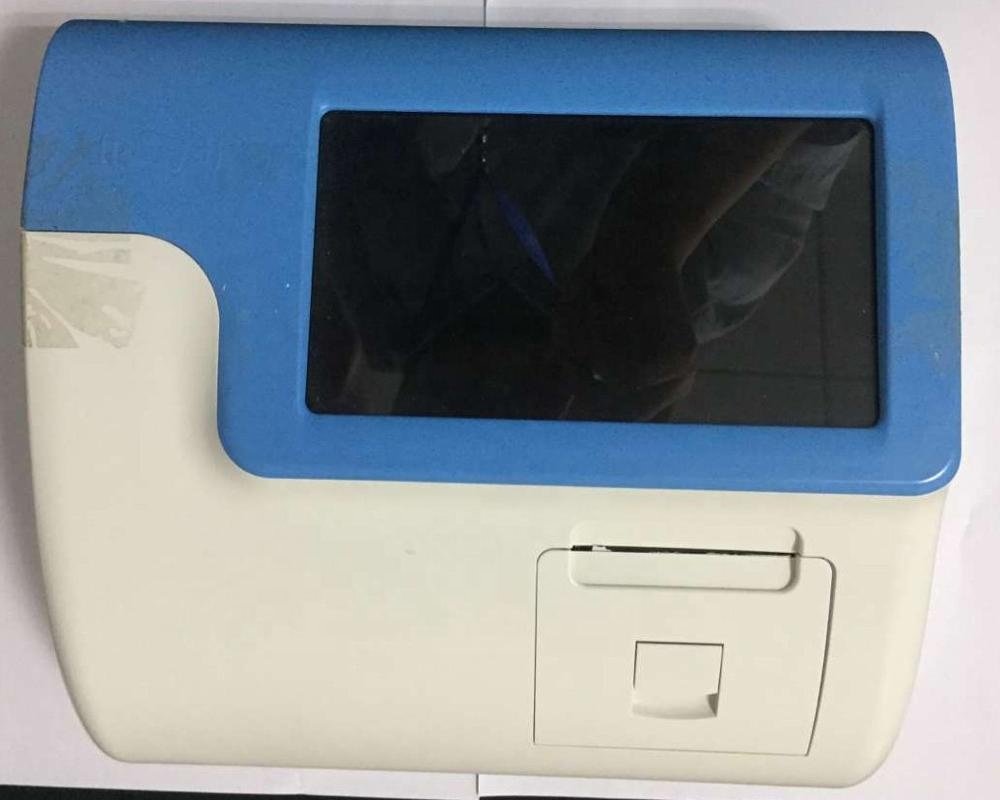

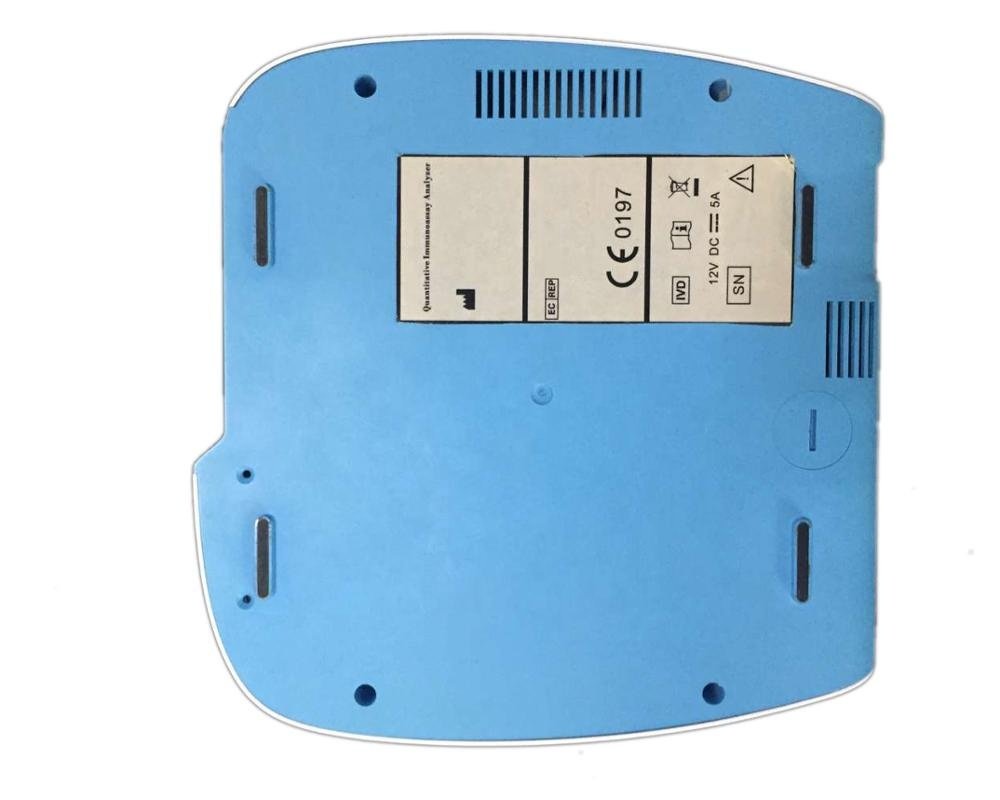

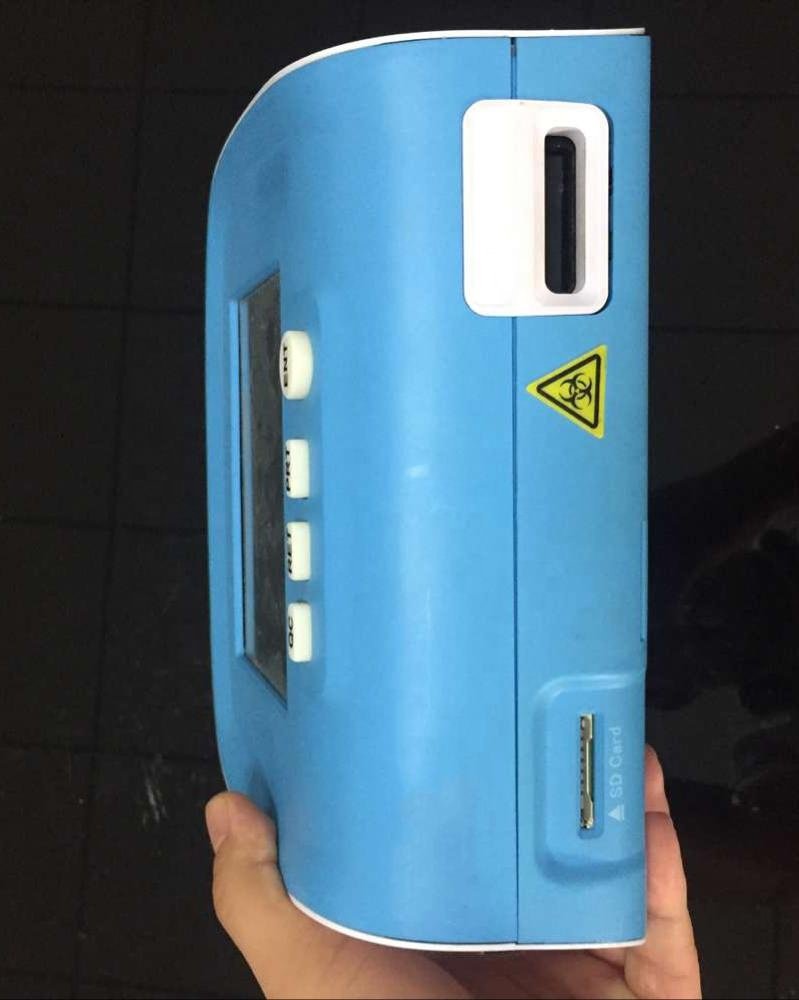

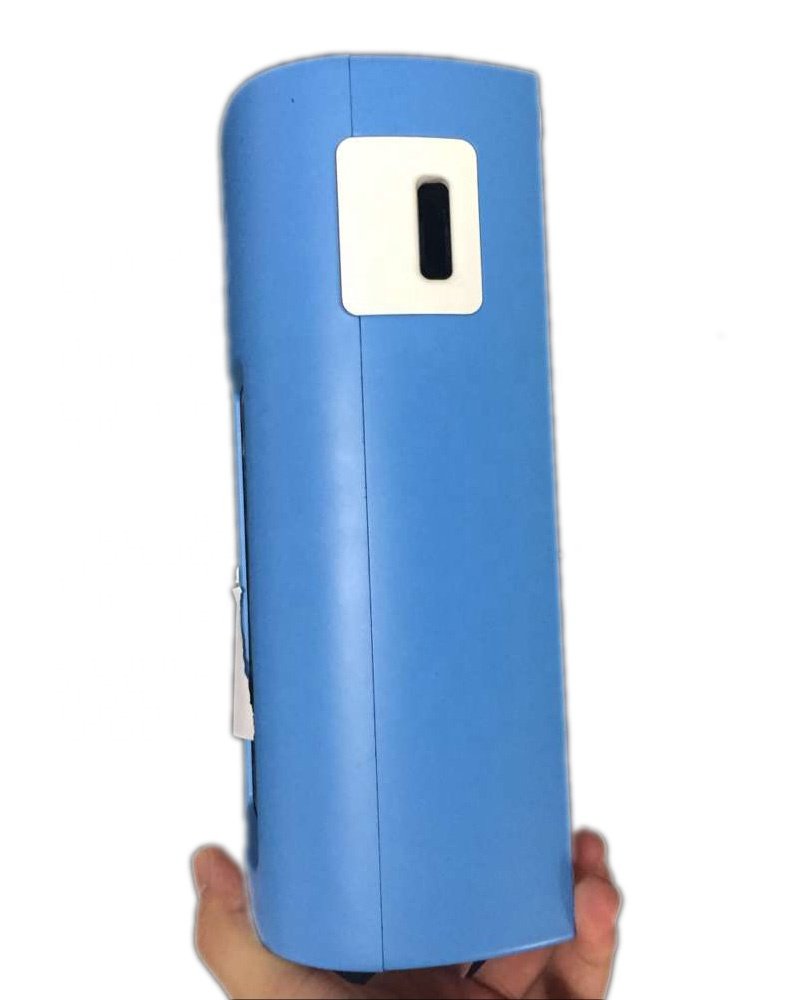

Quantitative Immunofluorescence Analyzer MDLIF08
- High-efficiency & Accuracy with advanced Fluorescence immunoassay
- Real-time Testing with results in about 2-15 minutes after sampling
- 7 Inch Touch Screen for user-friendly interface and simple operation
- Wide Applications with small size, light weight, and inbuilt lithium battery
- Comprehensive Detection Items for Diseases Management
- Assay Method: Lateral flow chromatography (Immunofluorescence)
- Test Result: Quantitative
- Language: English/Chinese
- Dimensions: 261 mm×241 mm×115 mm (D×W*H)
- SKU
- MDLIF08
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

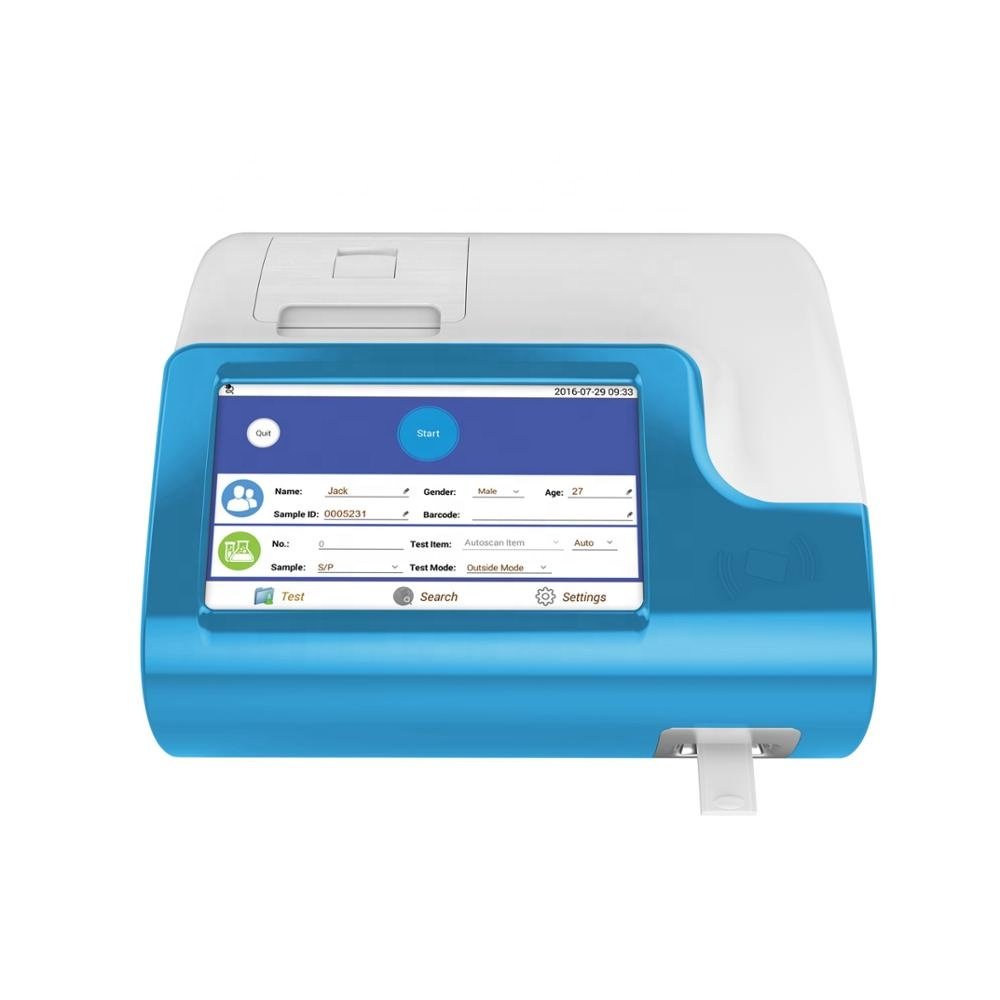

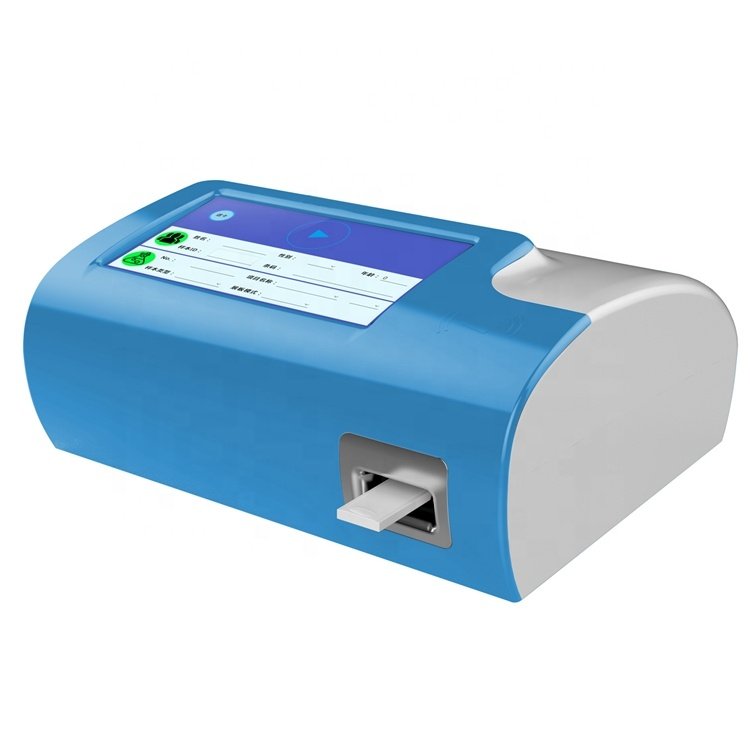

Quantitative Immunofluorescence Analyzer MDLIF08
Advanced fluorescence immunoassay technology delivering quantitative results in 2–15 minutes. Compact, portable design with 7-inch Android touch screen, integrated thermal printer, and support for over 10 disease management reagents. Ideal for point-of-care and laboratory environments.
Clinical overview
The MDLIF08 Quantitative Immunofluorescence Analyzer represents a breakthrough in rapid, accurate point-of-care diagnostics. Employing advanced lateral flow chromatography with immunofluorescence detection, the system delivers quantitative results in as little as 2–15 minutes following sample collection. Multi-item testing is completed in just 5 seconds after cartridge insertion, enabling high-throughput screening without compromising accuracy.
Designed for versatility, the MDLIF08 supports comprehensive disease management across cardiac, inflammatory, renal, and metabolic markers. With over 10 matching reagent panels available, clinicians can tailor testing protocols to specific patient populations and clinical workflows. The integrated thermal printer and automatic data logging ensure seamless documentation and regulatory compliance, while bilingual interface support (English/Chinese) expands accessibility across diverse healthcare settings.
Key features & surgeon benefits
High-Efficiency Immunoassay
- Advanced fluorescence immunoassay technology for precise quantitative results
- Multiple quality control protocols built into every assay cycle
- Lateral flow chromatography ensures reproducible, clinically validated performance
Rapid Turnaround & Ease of Use
- Results in 2–15 minutes; multi-item testing in 5 seconds post-insertion
- 7-inch Android touch screen with intuitive, user-friendly interface
- Integrated thermal printer for automatic data printing and record retention
Compact Design with Built-In Battery
- Dimensions: 261 mm × 241 mm × 115 mm; weighs only 1.9 kg
- Integrated lithium battery supports operation in varied environments
- Broad operating conditions: +15°C to +35°C, 10–85% humidity
Comprehensive Diagnostic Coverage
- Stores up to 10,000 data records for efficient patient information management
- Over 10 matching reagents covering cardiac, inflammation, renal, and diabetes care
- Bilingual support (English/Chinese) with automatic data upload capability
Technical specifications
| Assay Method | Lateral flow chromatography (Immunofluorescence) |
|---|---|
| Test Result | Quantitative |
| Result Time | 2–15 minutes (single item); 5 seconds (multi-item after insertion) |
| Display | 7-inch touch screen with Android interface |
| Language Support | English and Chinese |
| Printer | Internal thermal printer with automatic data printing |
| Operating Temperature | +15°C to +35°C |
| Operating Humidity | 10% to 85% RH |
| Air Pressure | 70.0 kPa to 106.0 kPa |
| Power Supply | AC 100V–110V/240V, 50–60 Hz, 60 VA |
| Battery | Built-in lithium battery |
| Data Storage | Up to 10,000 records (maximum) |
| Dimensions | 261 mm (D) × 241 mm (W) × 115 mm (H) |
| Weight | 1.9 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer Unit | MDLIF08 Quantitative Immunofluorescence Analyzer with integrated thermal printer and lithium battery | 1 |
| Touch Screen Display | 7-inch Android interface with bilingual support | 1 |
| Power Adapter | AC 100V–110V/240V input, 50–60 Hz | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
| Quality Control Materials | Calibration and control cartridges (as applicable) | As applicable |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, reagent panel options, and customisation for your laboratory or point-of-care setting. We offer flexible delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
