- Portable urine analyzer for quick and accurate on-the-go testing
- Utilizes photoelectric colorimetry for precise results
- Supports a wide range of test items including urobilinogen, bilirubin, and more
- Can test at wavelengths of 525nm, 572nm, 610nm, and 660nm
- Compatible with various urine analysis strips from DIRUI
- Features a built-in thermal printer for convenient result reports
- Offers data storage for up to 1000 patient results
- Comes with a user-friendly 240×64 dot-matrix LCD display

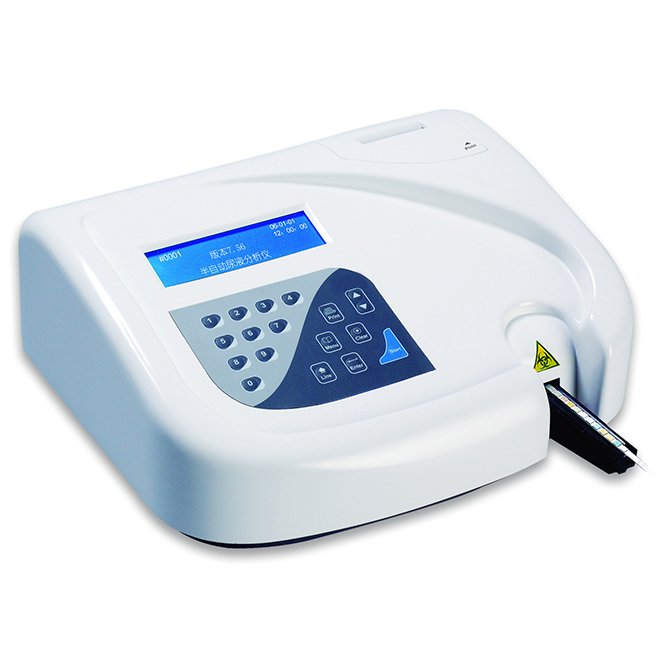

Rapid, accurate urinalysis in a compact, portable design. The MDLUA13 delivers high-throughput testing of 13 parameters with 1000-result storage capacity, thermal printing, and multilingual support for clinical and point-of-care environments.
The MDLUA13 is a fully automated, portable urinalysis system designed for rapid screening and diagnostic testing across clinical laboratories, urgent care facilities, and point-of-care environments. With support for 13 test parameters—including glucose, protein, bilirubin, urobilinogen, ketone, creatinine, microalbumin, blood, nitrite, leukocytes, specific gravity, pH, and vitamin C—the analyzer delivers comprehensive urinalysis in minutes.
Engineered for high-volume workflows, the MDLUA13 processes up to 120 strips per hour (or 60 strips/hour in alternative mode) with photoelectric colorimetry across four wavelengths (525nm, 572nm, 610nm, 660nm) for precise optical measurement. The built-in thermal printer provides instant hardcopy results, while the 1000-patient result storage capacity and RS-232/parallel printer interfaces enable seamless integration into laboratory information systems.
| Test Parameters | Urobilinogen, bilirubin, ketone, creatinine, microalbumin, blood, protein, nitrite, leukocytes, glucose, specific gravity, pH, vitamin C |
|---|---|
| Test Wavelengths | 525nm, 572nm, 610nm, 660nm |
| Test Principle | Photoelectric colorimetry |
| Compatible Strips | DIRUI H8, H10, H11, H11-MA urinalysis strips |
| Throughput | 120 strips/hour or 60 strips/hour (optional mode) |
| Data Storage | 1000 patient results |
| Display | 240×64 dot-matrix LCD |
| Languages | Chinese, English, Russian, Polish, Italian, Spanish, Portuguese, Turkish, German, French |
| Computer Interface | RS-232 port; parallel printer interface |
| Printer | Built-in thermal printer |
| Power Supply | 100–110V/240V, 50/60Hz |
| Power Consumption | 40VA |
| Dimensions | 385mm (L) × 337mm (W) × 166mm (H) |
| Weight | 3–9 kg |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | MDLUA13 portable urinalysis analyzer with integrated thermal printer | 1 |
| Power Cable | Universal AC power cable (100–110V/240V, 50/60Hz) | 1 |
| RS-232 Interface Cable | Serial communication cable for LIS integration | 1 |
| User Manual | Multilingual operating and maintenance guide | 1 |
| Thermal Paper Roll | Replacement thermal printer paper (sample) | 2 |
| Cleaning Kit | Optical lens cleaning solution and lint-free wipes | 1 |
Contact our sales team to discuss pricing, bulk orders, and integration requirements for the MDLUA13. We offer flexible delivery options and comprehensive technical support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
