Portable Microplate Reader Machine MDLER07
- The Portable Microplate Reader Machine MDLER07 features a 10.4” color LED touch screen display for easy operation.
- It offers a flexible plate layout that includes Blanks, Standards, Samples, Reference, and QC in one screen.
- This microplate reader provides comprehensive qualitative and quantitative data evaluation functions with cut-offs, curve-fits, and transformation formulas.
- With more than 20 different report formats, users can easily analyze and present their data.
- The machine has auto lamp adjustment and auto calibration features for accurate readings.
- It supports keyboard and mouse connectivity with USB interfaces for added convenience.
- The memory can store up to twenty million test data and 500 test projects, ensuring ample storage capacity for research and analysis.
- SKU
- MDLER07
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

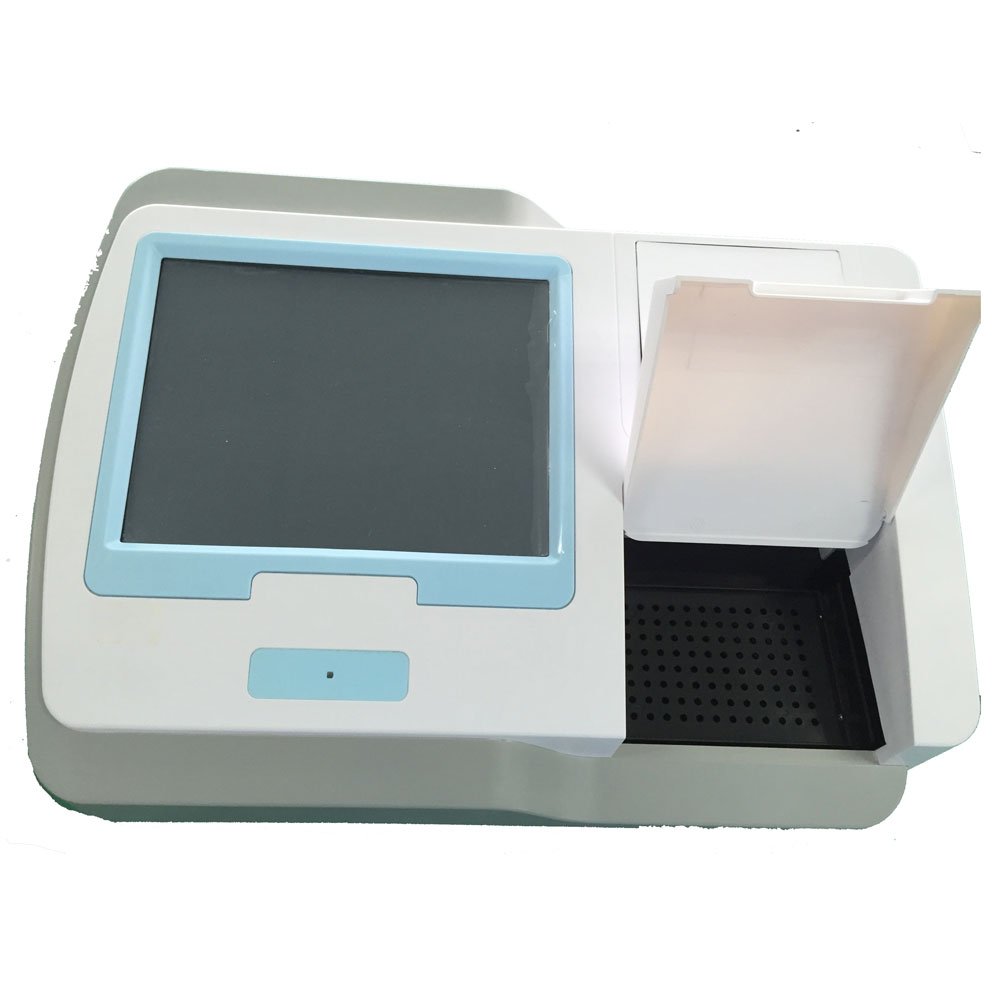

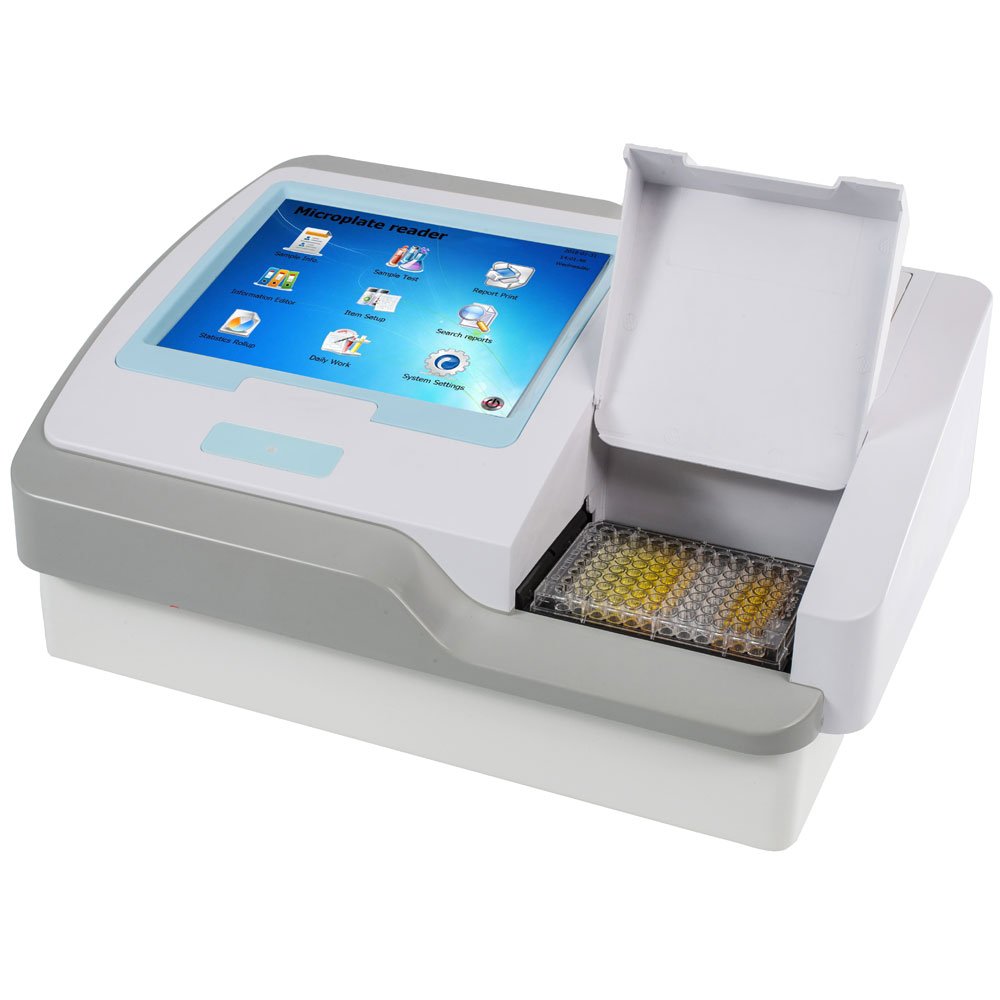

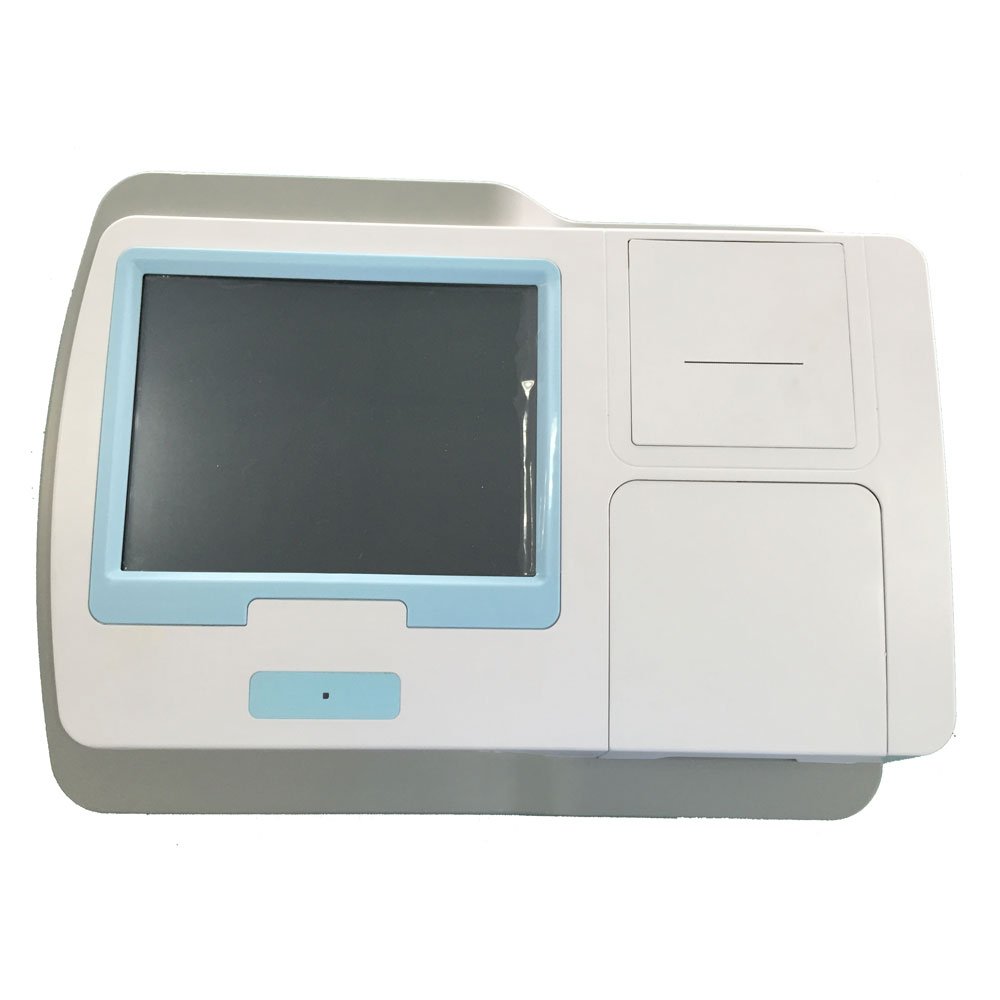

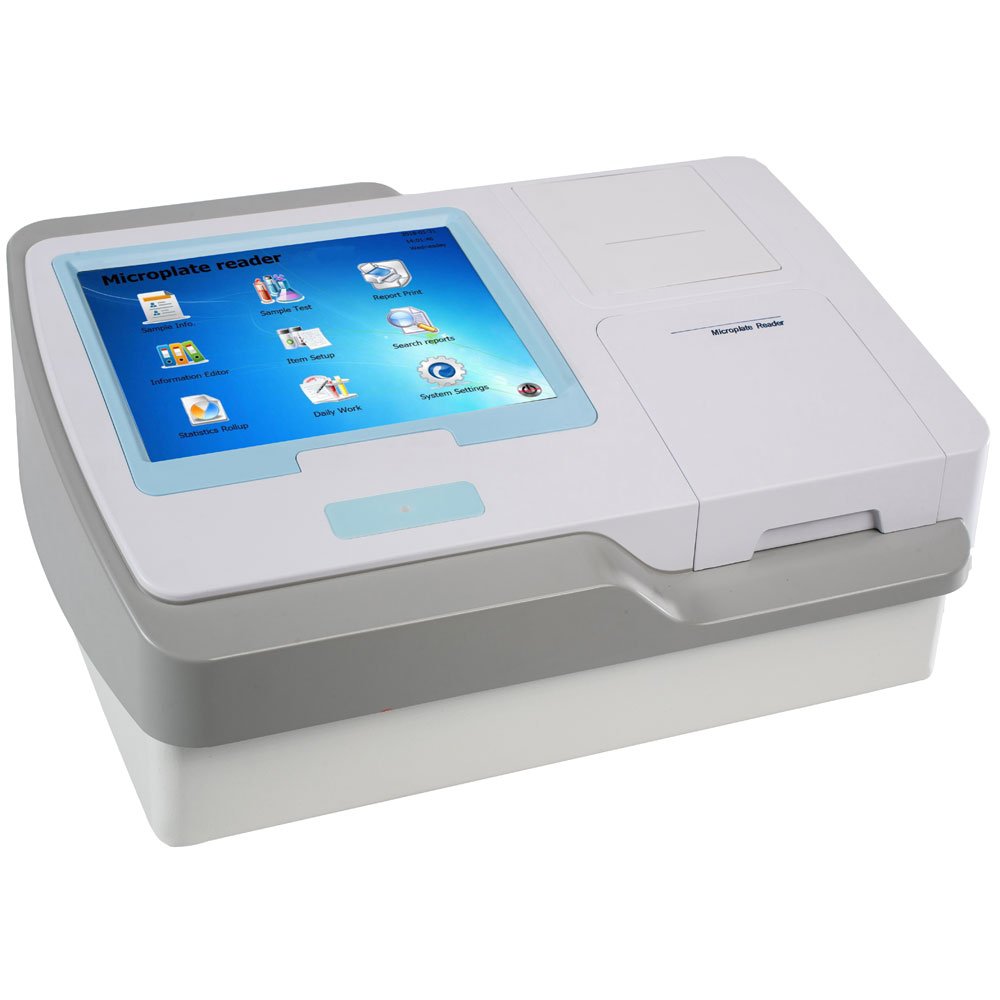

Portable Microplate Reader Machine MDLER07
Advanced microplate analysis with 10.4" touch screen interface and comprehensive data management for clinical laboratories and research facilities.
The MDLER07 combines precision optics, intelligent software, and intuitive operation to deliver accurate, reproducible results across immunoassay and biochemical applications. Supporting both 96 and 48-well microplates with reading speeds as fast as 3 seconds per plate, this portable system is ideal for multi-location laboratories and space-constrained facilities.
Clinical overview
The MDLER07 Portable Microplate Reader represents next-generation laboratory analysis equipment designed to meet the demanding requirements of modern clinical and research environments. This advanced system combines precision optics, intelligent software, and intuitive touch-screen operation to deliver accurate, reproducible results across a wide range of immunoassay and biochemical applications. With support for both 96 and 48-well microplates, the MDLER07 offers exceptional versatility for laboratories performing ELISA, protein quantification, enzyme activity assays, and cellular analysis.
Built with a silicon photodiode detection system and a controlled tungsten halogen lamp, the MDLER07 ensures stable, high-quality readings with exceptional linearity across the 400–850nm wavelength range. The system's auto-calibration functionality and automatic lamp adjustment eliminate the need for manual intervention, reducing operator error and ensuring consistent performance. With its compact footprint of just 460×350×197mm and a lightweight design of only 8kg, this microplate reader is truly portable, making it ideal for multi-location laboratories, field research, and space-constrained facilities.
Key features & surgeon benefits
Precision Detection System
- Silicon photodiode with 400–850nm wavelength range
- Reading range 0.000–4.000A with 0.001A resolution
- Accuracy ±0.008A; reproducibility ≤0.2%; stability ±0.003A
Rapid Analysis & Operation
- Complete 96-well plate reading in 3 seconds (single wavelength)

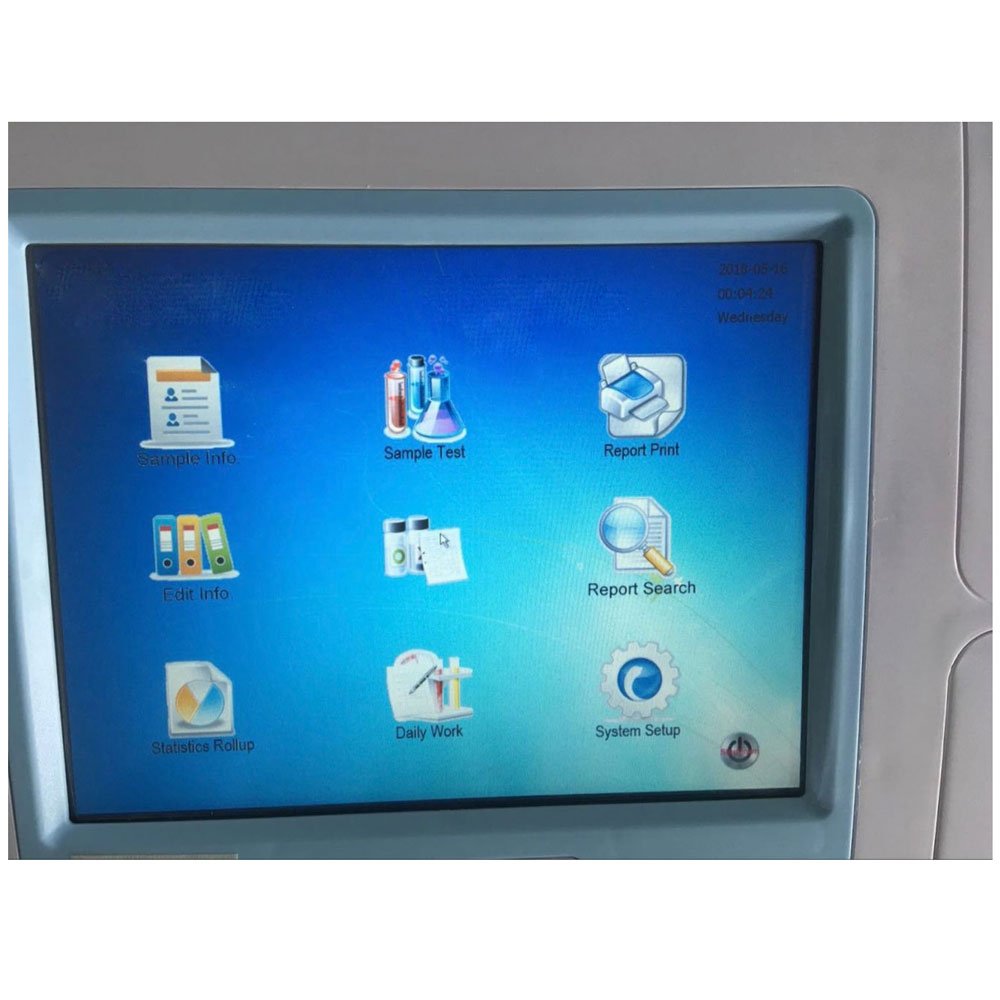

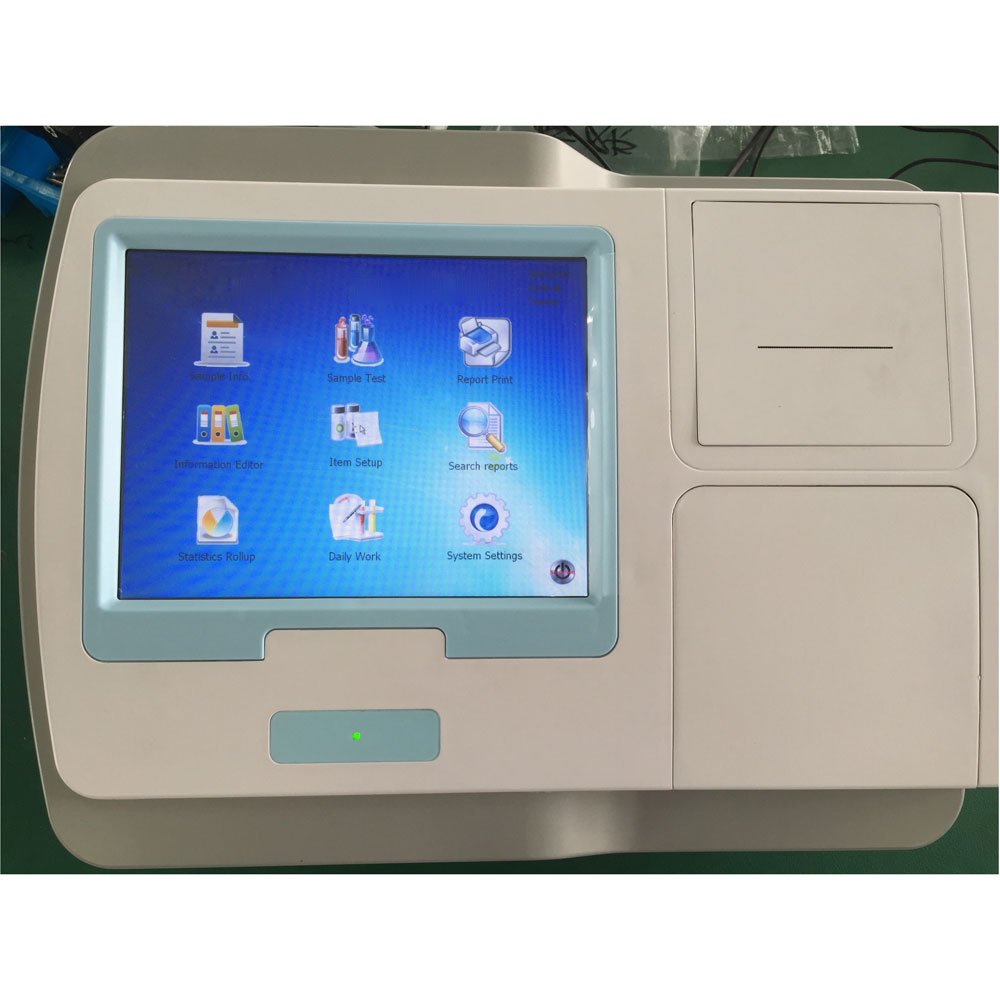

- Intuitive 10.4" color LED touch screen interface
- Built-in linear shaking with 3 adjustable speeds
Comprehensive Storage & Reporting
- Store up to 20 million test data points and 500 projects
- Generate professional reports in 20+ formats
- Multiple curve-fit algorithms and transformation formulas
Seamless Connectivity
- DVI, VGA, USB, RS-232, network, and audio interfaces
- Built-in thermal printer with optional external printer support
- Auto-calibration and automatic lamp adjustment
Technical specifications
| Indications | ELISA testing, protein quantification, cell viability assays, clinical diagnostics, enzyme activity studies, drug development, microbiology testing, quality control |
|---|---|
| Microplate types | 96-well and 48-well plates |
| Photodetector | Silicon photodiode |
| Light source | 8v/50w controlled tungsten halogen lamp |
| Wavelength range | 400–850nm |
| Standard filters | 405, 450, 492, 630nm (4 optional positions available) |
| Reading range | 0.000–4.000A |
| Resolution | 0.001A |
| Accuracy | ±0.008A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003A |
| Reading speed | Single wavelength ≤3s; double wavelength ≤6s |
| Shaking function | Linear shaking with 3 adjustable speeds |
| Display | 10.4" color LED touch screen, 1024×600 resolution |
| Printer | Built-in thermal printer; optional external printer support |
| Interface connections | DVI, VGA, network interface, USB, audio interface, RS-232 |
| Data storage | Up to 20 million test data points; 500 test projects |
| Power supply | 100–110V/240V, 50–60Hz |
| Dimensions | 460(L) × 350(W) × 197(H)mm |
| Net weight | 8kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLER07 Microplate Reader | Complete portable microplate reader system with 10.4" touch screen, silicon photodiode detection, tungsten halogen lamp, and integrated thermal printer | 1 |
| Power cable | Universal AC power cable (100–110V/240V, 50–60Hz) | 1 |
| USB cable | USB interface cable for computer connectivity | 1 |
| RS-232 cable | Serial interface cable for legacy system integration | 1 |
| User manual | Comprehensive operation and maintenance documentation | 1 |
| Quick start guide | Quick reference guide for initial setup and basic operation | 1 |
| Thermal paper roll | Replacement thermal paper for built-in printer | 2 |
| Cleaning kit | Optical cleaning materials and maintenance supplies | 1 |
