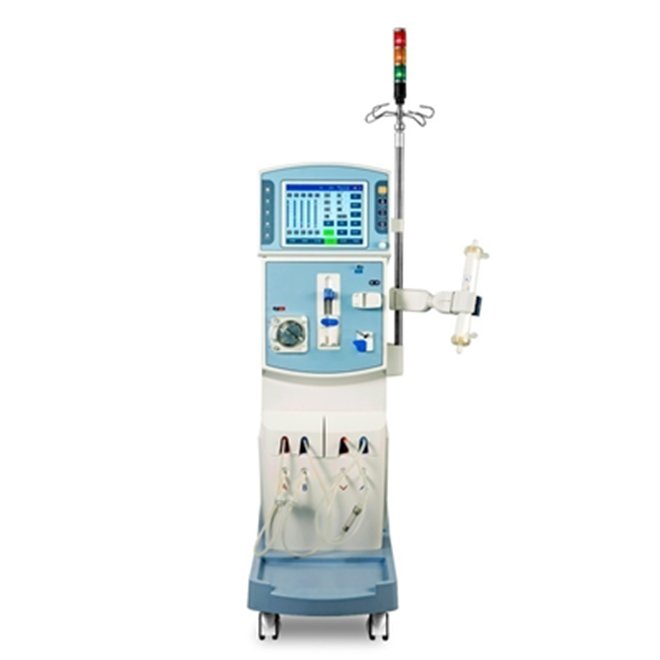

Portable Hemodialysis Machine MDLHM20
- Portable hemodialysis machine for various clinical applications such as hemodialysis, ultrafiltration, hemoperfusion, and plasma exchange.
- Features LCD touch screen with high definition (12.1"), automation for self-test, rinse, disinfection, and more.
- Compatible with dialysis fluid of different formulas and blood lines of various diameters.
- Equipped with brushless blood pump driving motor and double needle dialysis system.
- Adjustable dialysate flux linearity (300~800mL/min) with a unique rotating knob for convenience.
- Na+ and ultrafiltration profile adjustment for patient comfort.
- In-built battery backup for at least 30 minutes of operation.
- SKU
- MDLHM20
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Portable Hemodialysis Machine MDLHM20
Advanced portable hemodialysis system delivering efficient patient treatment across multiple clinical modalities. Features high-definition 12.1" LCD touch screen, automated operation, and state-of-the-art international components for reliable performance in diverse clinical settings.
Clinical overview
The MDLHM20 is a versatile, portable hemodialysis machine engineered for efficient renal replacement therapy across multiple clinical modalities. Its compact design (470×850×1400 mm, 85 kg) enables flexible deployment in diverse clinical environments while maintaining full functionality. The system supports hemodialysis, pure ultrafiltration, hemoperfusion, and plasma exchange, making it suitable for both acute and chronic patient populations.
Integrated safety features including blood leak detection (≥1 mL per litre dialysate), infrared air bubble detection (threshold: 200 μL at 200 mL/min blood flow), and ultrasonic blood level monitoring ensure patient protection throughout treatment. Built-in battery backup provides at least 30 minutes of uninterrupted operation, critical for patient safety during power interruptions. Automated self-test, rinse, disinfection, and treatment initiation protocols reduce operator workload and standardise clinical practice.
Key features & surgeon benefits
Multi-Modality Treatment
- Supports HD, ISO UF, HP, and PE in single device
- Flexible dialysate formulas (acetate and bicarbonate compatible)
- Adjustable Na+ and UF profiles for patient comfort optimisation
Operator Efficiency
- One-key START and STOP with pre-programmed settings
- Rotating knob for intuitive dialysate flux adjustment (300–800 mL/min)
- Automatic treatment initiation upon blood flow detection
Premium Component Integration
- Swiss magnetic valves for precision control
- Italian gear pump for consistent flow delivery
- Japanese stepper motor for brushless blood pump operation
Automated Protection & Disinfection
- Dual-sensor safety (blood leak + air bubble detection)
- Automated chemical and thermal disinfection cycles
- Large-capacity system log storage for compliance tracking
Technical specifications
| Indications | Hemodialysis (HD), Pure Ultrafiltration (ISO UF), Hemoperfusion (HP), Plasma Exchange (PE) |
|---|---|
| Blood pump flow range | 30–500 mL/min (accuracy: ±10 mL/min) |
| Heparin pump rate | 1–10 mL/hr (accuracy: ±0.2 mL/hr); bolus: 2.5–7.5 mL/min (10/20/30 mL syringes) |
| Dialysate flow range | 300–800 mL/min (linearity adjustable, ±10 mL/min) |
| Dialysate temperature | 33–40°C (±0.5°C), selectable |
| Dialysate conductivity | 12–15.5 mS/cm (±0.2 mS/cm) |
| UF flow range | 0–2000 mL/hr (accuracy: ±30 mL/hr or ±5%) |
| Arterial pressure monitoring | –300 to +400 mmHg (±10 mmHg) |
| Venous pressure monitoring | –50 to +300 mmHg (±10 mmHg) |
| TMP range | –100 to +600 mmHg (±5 mmHg) |
| Blood leak detection | Automatic closure at ≥1 mL per litre dialysate (800 mL/min flow) |
| Air bubble detection | Infrared sensor; threshold: 200 μL at 200 mL/min blood flow |
| Dimensions | 470×850×1400 mm (L×W×H) |
| Weight | Approximately 85 kg |
| Power consumption | ≤2200 W |
| Electrical supply | AC220V±10% (50 Hz); AC110V optional |
| Water inlet pressure | 0.15–0.5 MPa |
| Water inlet temperature | 5–30°C |
| Ambient operating conditions | 10–30°C; relative humidity ≤70% |
| Battery backup | Minimum 30 minutes uninterrupted operation |
| Disinfection methods | Chemical (citric acid, peracetic acid, sodium), heat (85°C), heat-chemical |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | Portable hemodialysis machine with integrated control panel and LCD display | 1 |
| Blood pump module | Brushless motor-driven peristaltic pump with flow range 30–500 mL/min | 1 |
| Heparin pump module | Syringe pump (10/20/30 mL compatible) with bolus capability | 1 |
| Dialysate circuit | Integrated heating, conductivity control, and ultrafiltration system | 1 |
| Safety sensors | Blood leak detector, air bubble detector (infrared), blood level detector (ultrasonic) | 1 set |
| Pressure monitoring system | Arterial, venous, and TMP transducers with display | 1 set |
| Battery backup module | Integrated UPS for minimum 30 minutes operation | 1 |
| Control valve assembly | Swiss magnetic valves and Italian gear pump | 1 set |
| 12.1" LCD touch screen | High-definition display with automated operation interface | 1 |
