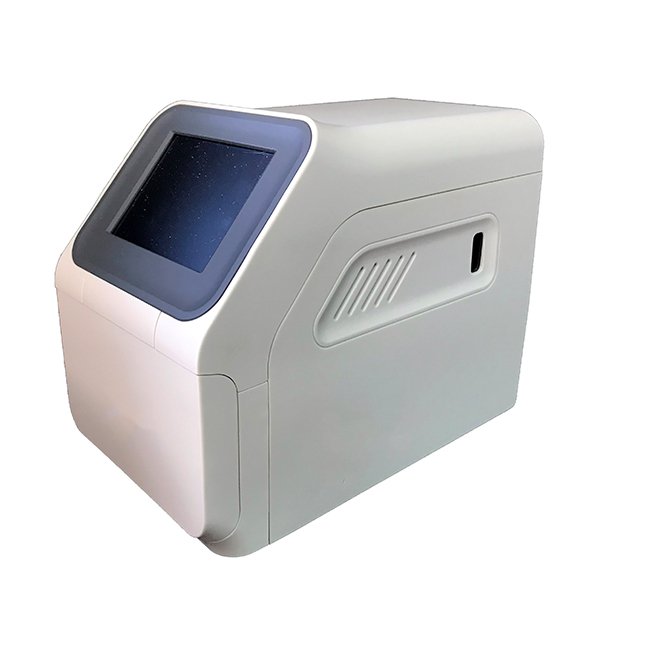

On-site Dry Biochemical Blood Chemistry Analyzer MDLDA02
- On-site dry biochemical blood chemistry analyzer for quick and accurate testing
- Sample types include whole blood, plasma, and serum with a sample size of 100μl
- Results in approximately 10 minutes with up to 17 parameters in one test
- Disposable reagent disc prepackaged with self-contained lyophilized reagent
- Automatic self-calibration by scanning QR Code on reagent pouch
- Built-in Realtime Quality Control (RQC) system for reliable results
- Full-color touch screen user interface for easy operation and data management
- Connection interfaces include WLAN, USB port, Ethernet, and compatibility with HIS for seamless integration
- SKU
- MDLDA02
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Product overview
Specifications
On-site Blood Chemistry Analyzer MSLDA02:
Specifications: Sample Type: Whole blood(lithium-heparinized), Plasma(lithium-heparinized), Serum Sample Size:100μl Time to Results: About 10 minutes Parameters: Up to 17 parameters in one test, 32 parameters configured into 9 profiles Reagent Disc: Disposable, prepackaged with self-contained lyophilized reagent Calibration: Automatic self-calibration by scanning QR Code on the aluminum foil pouch Quality Control: Built-in Realtime Quality Control(RQC) system User Interface: Full-color touch screen Connection Interfaces: WLAN, USB port, Ethernet interface, compatible with HIS Print Mode: Optional external thermal printer, MNCHIP Medical Data Management Platform, HIS Reaction Temperature:37℃±0.1℃ Data Capacity: More than 50,000 sets of patient and quality control data Operation Environment: Temperature 10-30℃,Humidity 40-85% Power Requirement: AC 100V-110V/240V,50-60HZ Dimensions:21(L)*12.5(W)*17.5(H)cm Weight:2.3kg General Chemistry I(17):TP,ALB,GLOB*,ALB/GLOB* ,TBIL,DBIL,IBIL*, ALT,AST, CRE,UREA, UA,TG, CHOL, GLU , HDL-C,LDL-C* Clinical Emergency(13):AST, CK, CK-MB, LDH, α-HBDH, CRE, UA, K+, Na+, Cl-, CO2, GLU, AMY Liver and Renal Function(11):TP,ALB,GLO*,ALB/GLO*,TBIL,ALT,AST,GGT,UREA,CRE,GLU Liver Function Panel(11):TP , ALB ,GLO * , ALB/GLO*, TBIL , DBIL, IBIL*, ALT ,AST ,GGT,ALP Renal Function Panel(7):ALB,CRE,UREA,UA,CO2,Ca2+,P General Chemistry II(8):K+,Na+,Cl-,CO2,GLU,CRE,UREA,AMY Electrolyte Panel(7):K+,Na+,Cl-,CO2,Ca2+,Mg2+,P Myocardial Enzyme Panel(5):AST,CK,CK-MB,LDH,α-HBDH Glucose and Lipid Panel(6):GLU,TG,CHOL,HDL-C, LDL-C*, GSPAvailable on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
