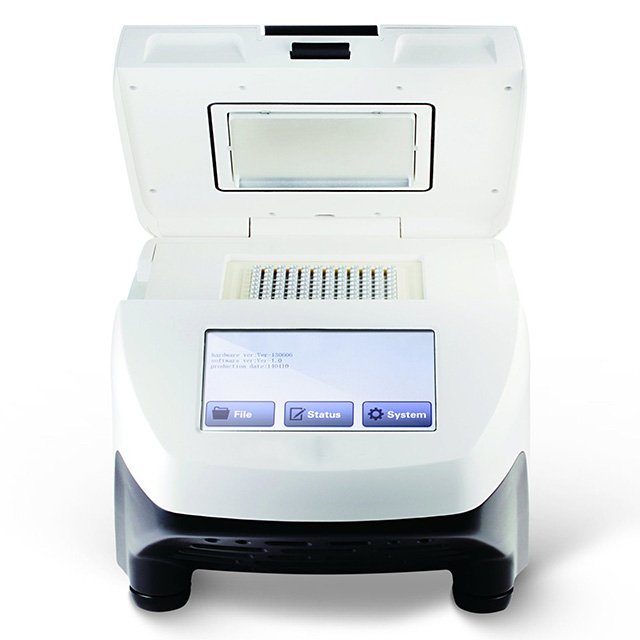

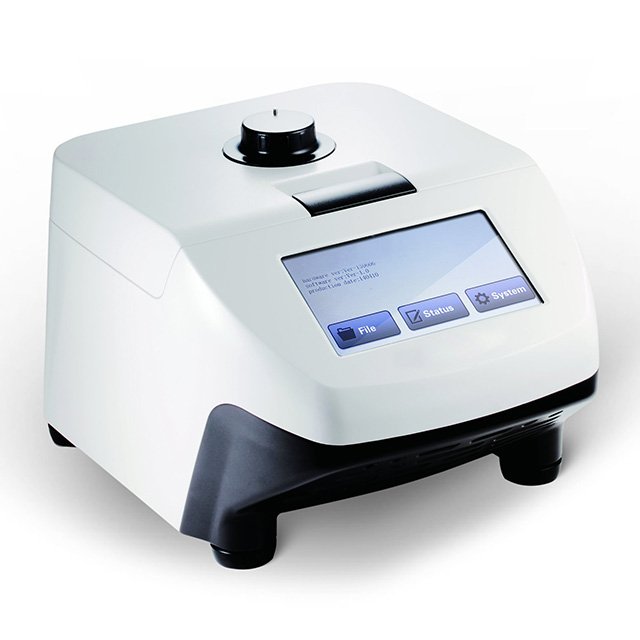

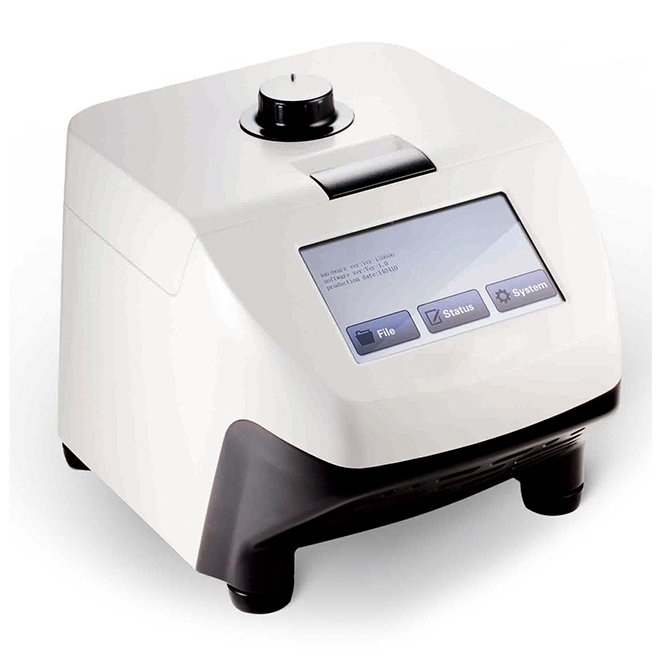

Laboratory Instrument for Molecular Biology Clinical Diagnosis PCR Thermo Cycler Gradient MDLTC100
- The Laboratory Instrument for Molecular Biology Clinical Diagnosis PCR Thermo Cycler Gradient MDLTC100 is equipped with reliable heating/cooling elements and precise temperature control.
- Its unique block design ensures temperature uniformity and repeatable results.

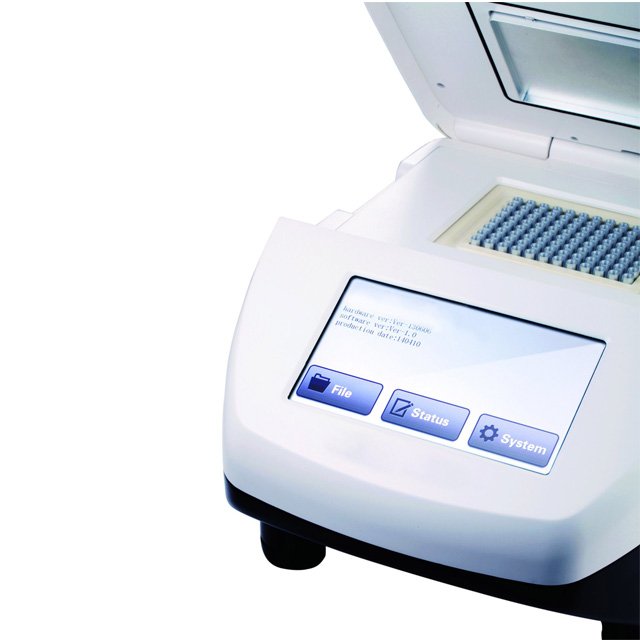

- Featuring a 7-inch large color touch panel screen, it offers easy programming with user-friendly software.
- High performance DSP and temperature control enable fast heating and cooling rates.
- It has a sample capacity of 96X0.2mL PCR tubes, 8X12 PCR plates, or 96-well plates.
- The temperature display accuracy is ±0.1℃, and the control accuracy at 55℃ is ±0.3℃.
- With a max heating/cooling rate of 3℃/sec, this instrument also includes a 7" LCD display and user-defined file system.
- Power off protection is integrated, and the device comes with dimensions of 280x370x250 mm and weighs 11kg.
- SKU
- MDLTC100
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
PCR Thermo Cycler Gradient MDLTC100
Advanced gradient PCR thermo cycler for molecular biology clinical diagnosis. Delivers precise temperature control with fast heating and cooling rates up to 3°C/sec, supporting multiple sample formats with intuitive 7-inch touch panel programming and robust data protection.
Clinical overview
The MDLTC100 is a high-performance gradient PCR thermo cycler engineered for molecular biology clinical diagnosis and genetic testing applications. Built on reliable heating and cooling elements with precise temperature control, the instrument delivers exceptional temperature uniformity and repeatable results essential for diagnostic accuracy. The unique aluminum block design ensures minimal thermal gradients, enabling consistent amplification across all sample positions.
With fast heating and cooling rates of up to 3°C/sec, the MDLTC100 significantly reduces run times while maintaining stringent temperature control accuracy of ±0.3°C at 55°C. The intuitive 7-inch large color touch panel with user-friendly software enables rapid protocol programming, supporting up to 99 cycles across 30 segments. Power-off protection safeguards data integrity, and the compact 11kg design facilitates easy portability between laboratory spaces.
Key features & surgeon benefits
Uniform Thermal Control
- Temperature uniformity <0.3°C at 55°C
- Display accuracy ±0.1°C
- Control accuracy ±0.3°C at 55°C
- Gradient capability for optimization
Rapid Cycling Performance
- Fast heating/cooling rates up to 3°C/sec
- Reduced total run time
- Supports 96-sample capacity
- Multiple format compatibility
Intuitive Programming
- 7-inch large color touch panel (800×480)
- User-friendly software
- Up to 99 cycles per protocol
- 16 folders with 16 files each
Data Protection & Portability
- Power-off protection for data safety
- Compact design (11kg weight)
- High-performance DSP control
- Aluminum block durability
Technical specifications
| Indications | Molecular biology clinical diagnosis, PCR amplification, genetic testing |
|---|---|
| Sample Capacity | 96×0.2mL PCR tubes, 8×12 PCR plate, or 96-well plate |
| Heating Temperature Range | 4–105°C |
| Lid Temperature Range | 30–110°C |
| Temperature Display Accuracy | ±0.1°C |
| Temperature Control Accuracy (at 55°C) | ±0.3°C |
| Temperature Uniformity (at 55°C) | <0.3°C |
| Max. Heating/Cooling Rate | 3°C/sec |
| Block Material | Aluminum |
| Display | 7-inch LCD, 800×480 resolution |
| Input | Touch panel |
| User-Defined File System | Max. 30 segments, 99 cycles, 16 folders with 16 files each |
| Power-Off Protection | Yes |
| Power Supply | 100–120V / 200–110V/240V, 50/60Hz |
| Dimensions (without heating block) | 280×370×250 mm (D×W×H) |
| Weight | 11 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| PCR Thermo Cycler Unit | MDLTC100 gradient thermo cycler with 7-inch touch panel and aluminum block | 1 |
| Power Cord | Universal AC power supply cable (100–110V/240V) | 1 |
| User Manual | Comprehensive operation and maintenance guide | 1 |
| Quick Reference Card | Programming shortcuts and troubleshooting guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your molecular diagnostics requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
