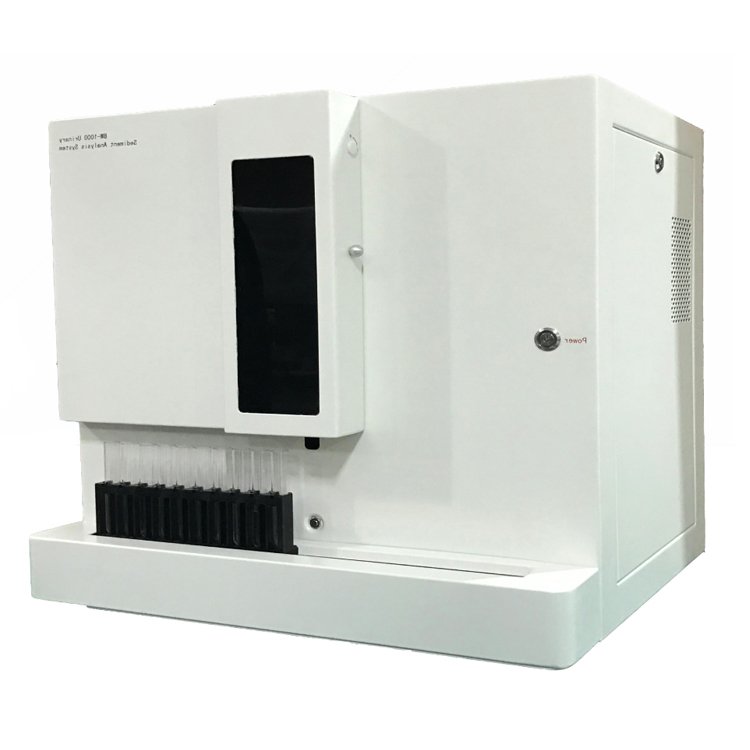

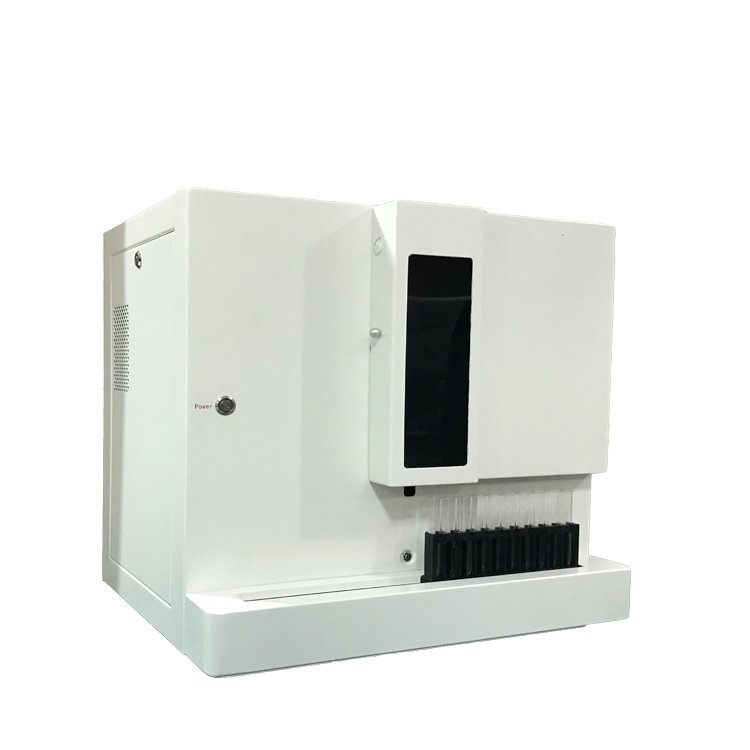

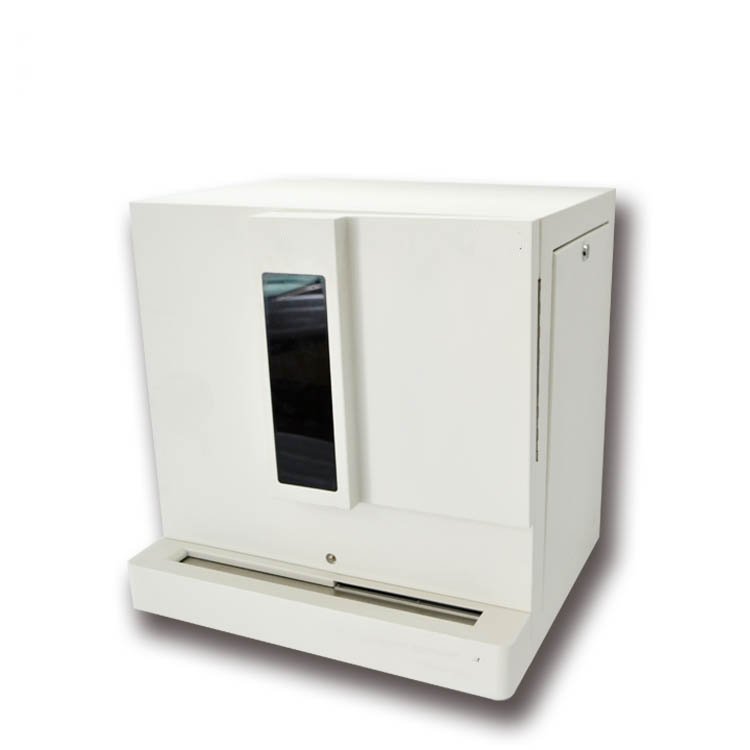

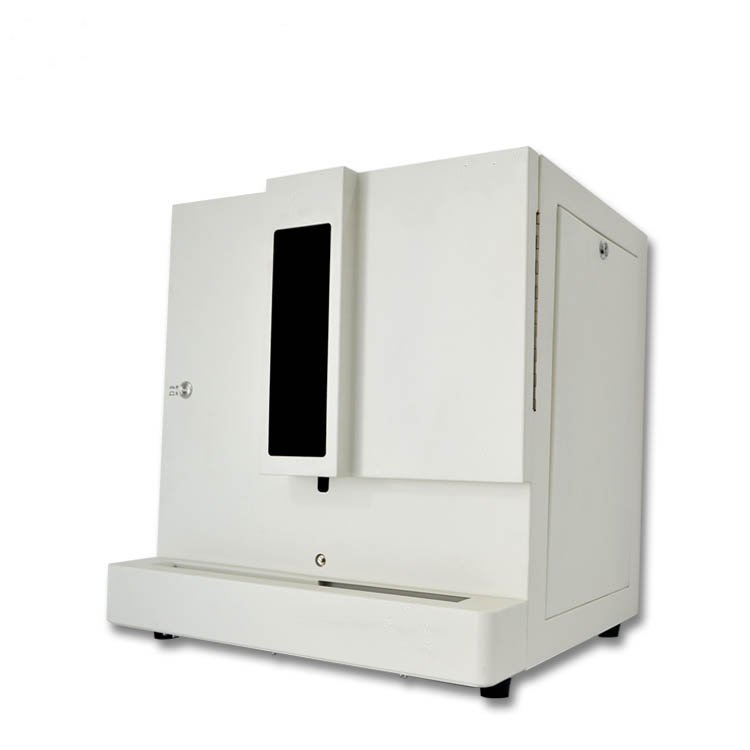

Full Automatic Urine Sediment Analyzer MDLDJ03
- Full Automatic Urine Sediment Analyzer MDLDJ03
- Utilizes machine vision technology for automatic identification, classification, and counting of formed elements in urine
- Test items include red blood cells, white blood cells, pus cells, squamous epithelial cells, crystals, bacteria, sperm, mucus, etc.
- Test speed of 30-50 samples per hour
- Requires minimum urine volume of 2ml and minimum injection volume of 0.5ml
- Features a 5-inch LCD screen display with full computer data interfaces
- Comes with a built-in computer, standard display, mouse, keyboard, and printer
- SKU
- MDL-ECB77FBE2D
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Full Automatic Urine Sediment Analyzer MDLDJ03
Advanced machine vision technology for precise, rapid urine sediment analysis. Processes 30–50 samples per hour with over 90% accuracy. Non-centrifugal testing enables direct sample analysis with comprehensive graphic reporting for clinical decision-making.
Clinical overview
The MDLDJ03 Full Automatic Urine Sediment Analyzer leverages advanced machine vision and support vector machine (SVM) technology to deliver rapid, accurate identification and classification of formed elements in urine. This non-centrifugal system eliminates sample preparation delays, enabling direct analysis of urine samples with minimal handling. The analyzer detects and quantifies red blood cells, white blood cells, epithelial cells, casts, crystals, bacteria, yeast, sperm, mucus, and other clinically relevant components—including erythrocyte morphology analysis for enhanced diagnostic capability.
With a throughput of 30–50 samples per hour and accuracy exceeding 90%, the MDLDJ03 supports high-volume laboratory workflows while maintaining diagnostic precision. Comprehensive graphic reports integrate dry chemical analysis results with quantitative urine sediment findings, providing clinicians with complete diagnostic information in a single report. Full data connectivity enables seamless integration with laboratory information systems, dry chemical analyzers, and network printing infrastructure.
Key features & surgeon benefits
Comprehensive Element Detection
- Identifies RBC, WBC, crystals, bacteria, casts, epithelial cells, yeast, sperm, and mucus
- Erythrocyte morphology analysis for enhanced clinical insight
- Quantitative reporting in international standard units (xx/µL)
Rapid, Non-Centrifugal Analysis
- Processes 30–50 samples per hour without centrifugation
- Automatic sample mixing and aspiration; 10 samples on-board simultaneously
- 5-inch LCD display for intuitive operation and real-time result monitoring
High-Performance Diagnostics
- Over 90% accuracy with low false negative rate (<3%)
- Coefficient of variation <10%; cross-contamination rate <0.05%
- Machine vision technology ensures consistent, objective classification
Seamless Laboratory Connectivity
- Full data interfaces for LIS/HIS integration, dry chemical analyzers, and network printing
- Comprehensive graphic reports combining dry chemical and sediment analysis
- Built-in computer with standard display, keyboard, and mouse included
Technical specifications

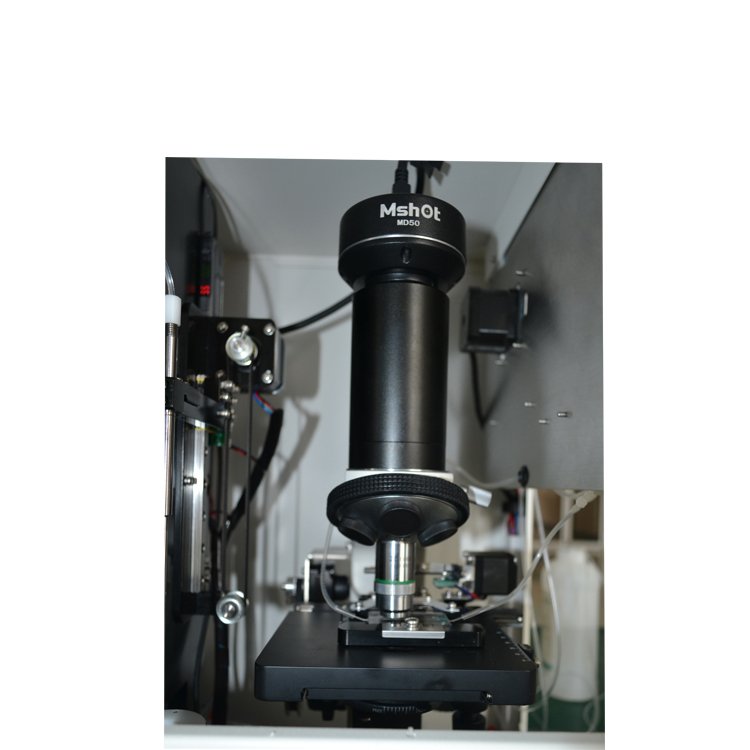

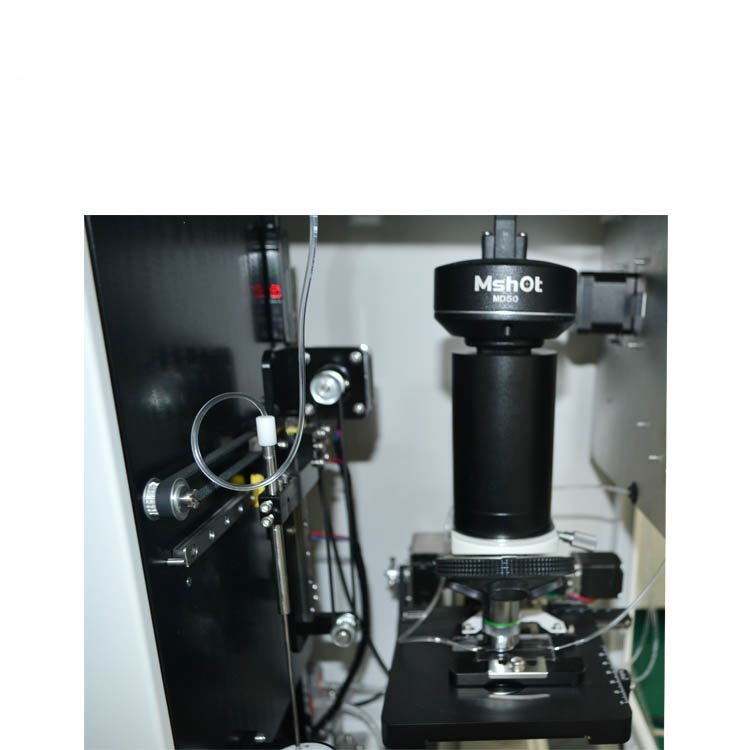

| Test Principle | Machine vision and SVM technology; automatic morphological identification, classification, and counting of formed elements |
|---|---|
| Test Items | RBC, WBC, pus cells, squamous epithelial cells, non-squamous epithelial cells, transparent casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus, WBCC; RBC morphology analysis |
| Test Speed | 30–50 samples per hour |
| Sample Volume | Minimum 2 ml urine; injection volume approximately 0.5–1 ml |
| Sample Processing | Direct analysis without centrifugation |
| Sample Loading | Automatic sample rack loading, mixing, and aspiration; up to 10 samples on-board |
| Accuracy | ≥90% (with artificial auxiliary judgment); ≥95% (advanced model) |
| Repeatability | CV <10% |
| Cross-Contamination Rate | <0.05% |
| False Negative Rate | <3% |
| Report Format | International universal quantitative unit (xx/µL); comprehensive graphic report of dry chemical analysis and urine formed elements |
| Display | 5-inch LCD screen |
| Dimensions (Main Unit) | 420 mm × 340 mm × 395 mm (L × W × H); advanced model: 520 mm × 440 mm × 550 mm |
| Weight | 15 kg (standard); 35 kg (advanced model) |
| Data Interface | Full set of computer data interfaces; connectivity to dry chemical urine analyzer, printers, and laboratory networks |
| Power Requirements | AC 110V/220V ±10%, 50/60Hz |
| Standard Configuration | Built-in computer, standard display, mouse, keyboard, printer |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | MDLDJ03 Full Automatic Urine Sediment Analyzer with integrated optical system and computer | 1 |
| Display Monitor | 5-inch LCD screen with touch interface | 1 |
| Keyboard & Mouse | Standard input devices for system control | 1 set |
| Printer | Integrated or networked printer for report output | 1 |
| Sample Rack | Automatic sample loading rack (10-position capacity) | 1 |
| Power Cable | AC 110V/220V ±10%, 50/60Hz compliant | 1 |
| Data Interface Cables | LIS/HIS integration and peripheral connectivity cables | As applicable |
| User Manual & Documentation | Complete operating instructions, maintenance guide, and technical specifications | 1 set |
