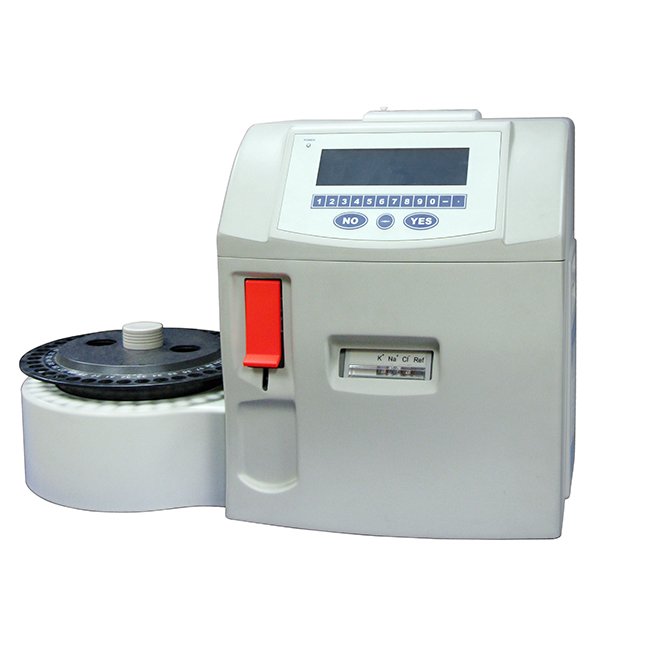

Electrolyte Analyzer MDLEA09
The Electrolyte Analyzer MDLEA09 is a cutting-edge medical device with features that include:
- Sleep mode to conserve reagent
- Self-made maintenance free electrodes
- Automatic one and two points calibration
- Rapid test speed of 30 seconds per test
- Minimal sample consumption of ≤65ul
- On-line instructions for self troubleshooting
- High efficient cleaning procedures ideal for fatty samples
- Electrode maintenance alerts
- Auto sampler with a volume of 39 samples and storage capacity for ≥1000 records.
- SKU
- MDLEA09
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Electrolyte Analyzer MDLEA09
High-performance electrolyte analyzer delivering precise results in 30 seconds per test. Features sleep mode for reagent conservation, maintenance-free electrodes, and automatic calibration for reliable clinical laboratory workflows.
Clinical overview
The MDLEA09 Electrolyte Analyzer is a high-performance laboratory instrument designed for rapid and accurate electrolyte measurement in clinical settings. With a 30-second test cycle and minimal sample consumption of ≤65µl, it delivers efficient throughput without compromising analytical precision. The integrated 39-sample auto-sampler enables batch processing, reducing manual handling and improving laboratory productivity.
Engineered with self-made maintenance-free electrodes and automatic one- and two-point calibration, the MDLEA09 minimizes operator intervention and downtime. Sleep mode functionality conserves reagent usage, lowering operational costs, while on-line troubleshooting instructions and efficient cleaning protocols—optimized for fatty samples—ensure reliable performance across diverse sample types.
Key features & surgeon benefits
Rapid Testing Capability
- 30-second test cycle per sample
- 39-sample auto-sampler for batch processing
- Minimal sample consumption at ≤65µl
Maintenance-Free Operation
- Self-made maintenance-free electrodes
- Automatic one and two-point calibration
- Electrode maintenance alerts for proactive care
Cost Optimization
- Sleep mode conserves reagent usage
- Reduced operational overhead
- Efficient cleaning for extended electrode life
User-Centric Design
- On-line instructions for self-troubleshooting
- High-efficiency cleaning for fatty samples
- Storage of ≥1000 test records for data management
Technical specifications
| Indications | Electrolyte testing (sodium, potassium, chloride, and related analytes) |
|---|---|
| Test cycle time | 30 seconds per test |
| Sample volume | ≤65µl per test |
| Auto-sampler capacity | 39 samples |
| Data storage | ≥1000 test records |
| Electrode type | Self-made maintenance-free electrodes |
| Calibration | Automatic one and two-point calibration |
| Operating temperature | 5°C to 40°C |
| Relative humidity | ≤85% |
| Power supply | 100–110V/240V ~ 50/60Hz |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main analyzer unit | Electrolyte Analyzer MDLEA09 with integrated display and controls | 1 |
| Auto-sampler module | 39-position sample carousel with automatic loading | 1 |
| Electrode set | Maintenance-free ion-selective electrodes (ISE) | 1 set |
| Calibration solutions | One and two-point calibration reagents | As applicable |
| Cleaning solution | High-efficiency cleaning reagent for sample residue removal | As applicable |
| Power cable | 100–110V/240V AC power cord with regional adapters | 1 |
| Documentation | User manual, technical specifications, and on-line troubleshooting guide | 1 set |
