Electrolyte Analyzer MDLEA07
- Maintenance-free electrode membrane with alerts
- Closed container for calibrates and waste, preventing bio-organic pollution
- Random selection of test channels (K, Na, Cl, Ca, Li, pH)
- Rapid test speed of 30 seconds per test, 120 tests per hour
- Low sample consumption of 65μL
- Short conduit design ideal for fatty samples
- RS232 port available for connectivity
- SKU
- MDLEA07
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

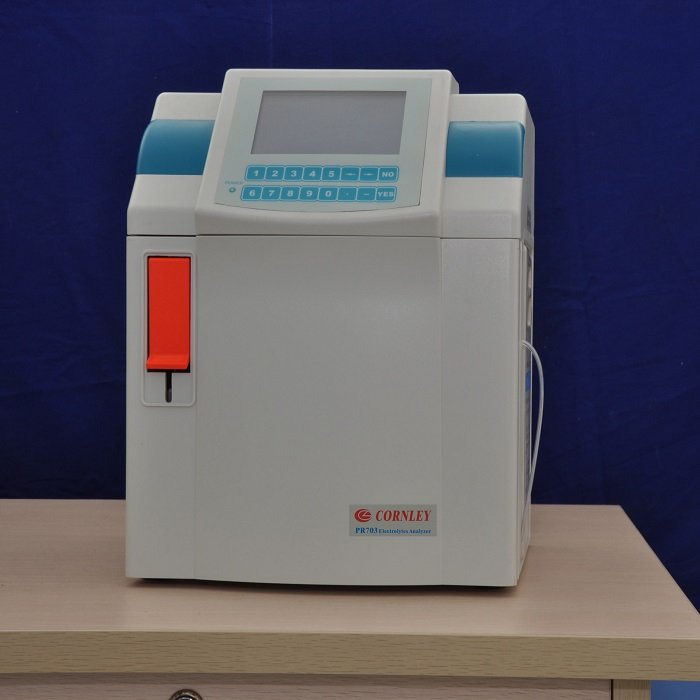

Electrolyte Analyzer MDLEA07
High-speed electrolyte analysis with maintenance-free electrodes and closed-container design. Measures K, Na, Cl, Ca, Li, and pH with results in 30 seconds and minimal sample volume of 65μL. Ideal for clinical laboratories requiring rapid, accurate electrolyte testing with efficient contamination prevention.
Clinical overview
The MDLEA07 Electrolyte Analyzer delivers rapid, accurate electrolyte measurements essential for clinical decision-making in emergency departments, intensive care units, and routine laboratory settings. With maintenance-free electrode technology and a closed-container design, the analyzer eliminates cross-contamination risks while reducing operational overhead. The system's ability to measure potassium, sodium, chloride, calcium, lithium, and pH from minimal sample volumes (65μL) makes it ideal for pediatric and critical care applications where sample preservation is critical.
Featuring automatic one- and two-point calibration with alarm-triggered recalibration, the MDLEA07 ensures consistent accuracy and linearity across all test parameters. The 39-position auto sampler and 120 tests-per-hour throughput enable high-volume laboratory workflows without compromising result quality. Data management capabilities including over 1000 record storage and RS232 connectivity support seamless integration into laboratory information systems.
Key features & surgeon benefits
Maintenance-Free Electrode Design
- Electrode membrane with automatic alert system for optimal performance
- Closed container for calibrants and waste prevents bio-organic contamination
- Slope and intercept adjustable to ensure accuracy and linearity
Rapid Testing & Efficiency
- 30-second test time with 120 tests per hour throughput
- Minimal sample volume requirement: 65μL per test
- 39-position auto sampler for batch processing
Customizable Channel Selection
- Randomly select any combination of K, Na, Cl, Ca, Li, and pH channels
- Automatic one-point and two-point calibration with manual override
- Automatic calibration triggered on alarm conditions
Integration & Record Keeping
- Over 1000 records storage for comprehensive audit trails
- RS232 port for seamless LIS connectivity
- Short conduit design with efficient cleaning for fatty sample analysis
Technical specifications
| Test Parameters | K+, Na+, Cl–, Ca++, Li, pH |
|---|---|
| Sample Types | Plasma, serum, whole blood, urine |
| Sample Volume | ≤65μL per test |
| Test Speed | 30 seconds per sample; 120 tests per hour |
| Auto Sampler Capacity | 39 positions |
| Operating Temperature | 5°C to 40°C ambient |
| Relative Humidity | ≤85% |
| Power Supply | 100–110V/240V, 50/60 Hz |
| Connectivity | RS232 port for LIS integration |
| Calibration | Automatic one-point and two-point; manual calibration available |
| Data Storage | ≥1000 records |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Electrolyte Analyzer Unit | MDLEA07 main analyzer with 6-channel ISE configuration | 1 |
| Auto Sampler | 39-position automated sample carousel | 1 |
| Electrode Set | Maintenance-free ion-selective electrode membrane assembly | 1 |
| Calibration Solutions | Standard calibrant containers (closed system) | 2 |
| Waste Container | Closed waste collection vessel | 1 |
| Power Cable | 100–110V/240V mains connection | 1 |
| RS232 Interface Cable | LIS connectivity cable | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the MDLEA07 Electrolyte Analyzer, request a detailed quote, or arrange a product demonstration at your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
