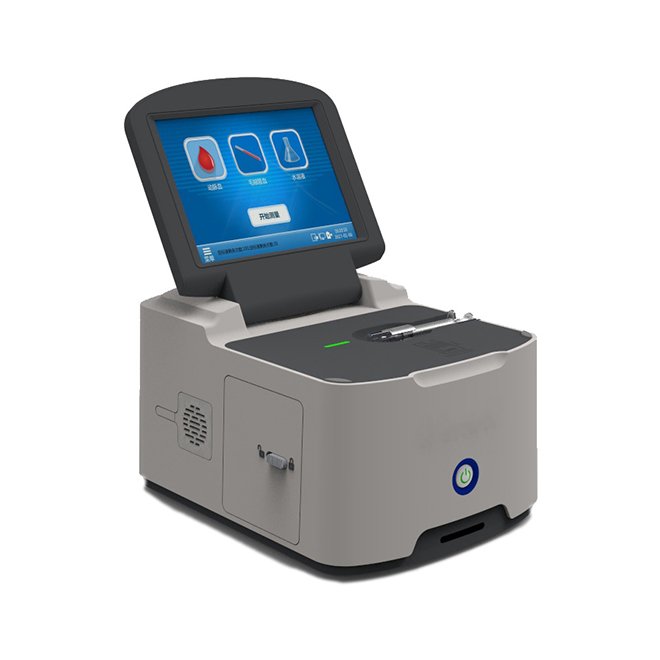

- The Blood Gas Analyzer MDLBGA01 is equipped with an intuitive touch screen for easy operation.
- It features an infrared human-detector for user convenience.
- The device utilizes a flexible and simple calibrants cartridge for accurate measurements.
- It includes an auto QC cartridge for quality control.
- With rich data management capabilities, users can easily store and access results.
- Fast data input allows for quick testing and analysis.
- The Blood Gas Analyzer MDLBGA01 offers reliable and convenient measurement units for healthcare professionals.
Advanced Point-of-Care Blood Gas and Chemistry Analysis System
Experience rapid, reliable blood gas analysis with our intuitive 8-inch color touchscreen analyzer. Delivering comprehensive test results in just 70 seconds, the MDLBGA01 combines portability, precision, and advanced data management to enhance clinical decision-making at the point of care.
The Blood Gas Analyzers MDLBGA01 represents a breakthrough in point-of-care diagnostic technology, offering healthcare professionals a comprehensive solution for rapid blood gas and chemistry analysis. Designed with clinical efficiency in mind, this advanced analyzer combines intuitive operation with exceptional accuracy, making it an indispensable tool for emergency departments, intensive care units, operating rooms, and clinical laboratories worldwide.
Featuring an intuitive 8-inch color TFT touchscreen interface, infrared human-detector technology, and automatic quality control capabilities, the MDLBGA01 streamlines workflow while maintaining the highest standards of analytical precision. Its compact, portable design weighing just 6.5 kg, coupled with integrated battery power, enables flexible deployment across various clinical settings, ensuring critical patient data is available exactly when and where it's needed most.
| Indications | Emergency medicine, intensive care units, operating rooms, pulmonary care, neonatal care, cardiology, clinical laboratories, point-of-care testing |
|---|---|
| Dimensions | 302 × 226 × 180 mm (Length × Width × Height) |
| Weight | ≤6.5 kg (including battery, excluding power adapter) |
| Display | 8-inch Color TFT LCD, 1024×768 resolution |
| Touch Screen | Resistance-type single point touch screen |
| Working Voltage | 100–110V/240V AC |
| Current Input | 1.2 A – 0.5 A |
| Working Frequency | 50/60 Hz |
| Battery | 14.8 VDC/5000 mAh rechargeable lithium battery |
| USB Interfaces | 4 USB ports for connectivity and data transfer |
| Serial Port | DB9 serial communication port |
| Barcode Scanner | Built-in barcode reader for sample identification |
| Printer | Built-in thermal printer with 8 mm printing width |
| Test Time | 70 seconds (from sample introduction to results) |
| Calibration System | Flexible and simple calibrants cartridge design |
| Quality Control | Automatic QC cartridge system |
| Human Detection | Infrared human-detector technology |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | MDLBGA01 blood gas analyzer with 8-inch touchscreen and integrated battery | 1 |
| Power Adapter | AC power supply (100–110V/240V, 50/60 Hz) | 1 |
| Rechargeable Battery | 14.8 VDC/5000 mAh lithium battery pack | 1 |
| Calibration Cartridge | Flexible calibrants cartridge for system calibration | 1 |
| QC Cartridge | Automatic quality control cartridge | 1 |
| Thermal Printer Paper | 8 mm width thermal paper roll for result printing | 2 |
| USB Cables | Multiple USB connection cables for peripherals and data transfer | 2 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
| Quick Reference Guide | Quick-start operational guide | 1 |
Contact our sales team to discuss the MDLBGA01 blood gas analyzer, pricing, delivery timelines, and integration with your facility's laboratory information systems. We provide comprehensive support from initial consultation through installation and ongoing technical assistance.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
pH, pCO2 and lactate results come back within a minute and have matched our central lab closely on split samples. In a critical care setting that turnaround genuinely changes management.
Dr. Vincent Hartley, MDVerified buyerJan 10, 2026
Analytical performance is sound and the interface is clear, but cartridge cost mounts up with our sample load. Maintenance prompts are helpful and well timed.
Dr. Colin Meredith, MDVerified buyerFeb 23, 2025
Cartridge loading is simple and the automated QC has kept us within range with minimal fuss. Electrolyte channels have been stable over several weeks.
Priya Balan, MLSJun 27, 2025
