MDL
Automatic Urine Sediment Analyzer MDLDJ04
3.7(3 reviews)- Automatic Urine Sediment Analyzer MDLDJ04 for accurate urine analysis
- Utilizes flow counting cell and machine vision technology for precise results
- Features a fully automated orbital 10-tube specimen rack for continuous sample injections
- Equipped with a high-precision flushing system to eliminate cross-contamination
- Industry's highest 4-channel design for efficient specimen detection
- Self-learning function for operator-modified target identification
- Automatic focusing function ensures clear and complete sample images
- SKU
- MDLDJ04
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Laboratory Equipment

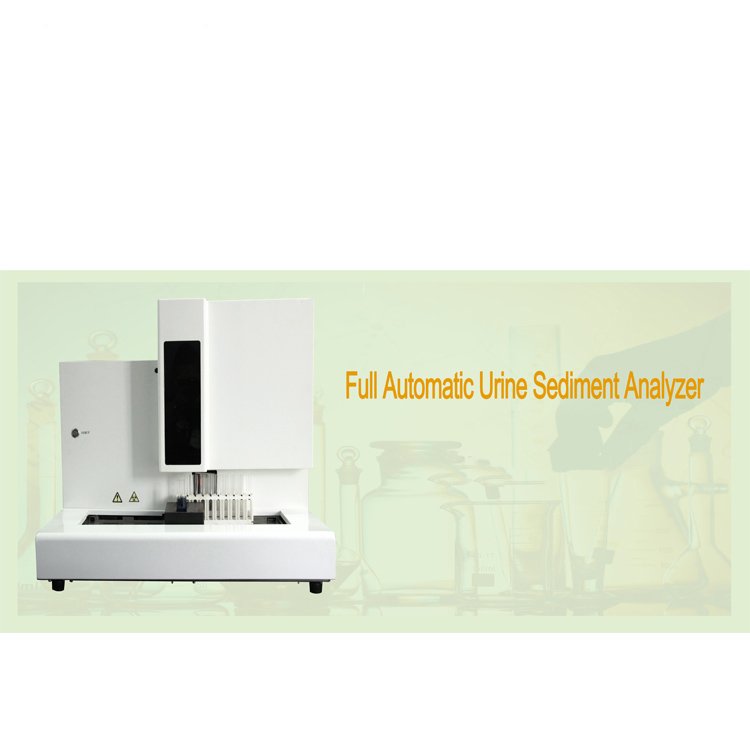

Automatic Urine Sediment Analyzer MDLDJ04
Fully automated urine sediment analyzer delivering high-throughput analysis with advanced flow counting cell technology. Processes up to 60 specimens simultaneously with 120–160 samples per hour throughput, featuring intelligent 4-channel design, automatic focusing, and self-learning identification for superior accuracy and efficiency in clinical laboratories.
Ordering Ref.
MDLDJ04
Configuration4-Channel Flow Cell
MaterialPTFE-Plated Sampling Needle
ApplicationClinical Laboratory Diagnostics
Customisation and OEM configurations available upon request. Contact sales for volume pricing and integration options.
Clinical overview
The MDLDJ04 is a fully automated urine sediment analyzer engineered for high-volume clinical laboratory environments. Utilising advanced flow counting cell technology combined with medical image fusion and machine vision recognition, the instrument automatically positions, tracks, scans, identifies, classifies, counts, and analyzes urine formed components with minimal operator intervention. The system accommodates up to 60 specimens in a single run, eliminating the need for centrifugation and enabling direct analysis of original urine samples.
With detection speeds of 120–160 samples per hour and a data storage capacity of 200,000 results, the MDLDJ04 significantly enhances laboratory throughput and reporting efficiency. The unique 4-channel design allows simultaneous testing across multiple channels, with one channel dedicated to settling and cleaning functions, maximizing specimen detection speed while maintaining the highest standards of cross-contamination prevention.
Key features & surgeon benefits
Throughput
High-Speed Analysis
- 120–160 samples per hour detection speed
- Processes up to 60 specimens simultaneously
- Fully automated orbital 10-tube specimen rack with continuous injection capability
Workflow
Walk-Away Automation
- No centrifugation required; direct analysis of original urine
- Automatic specimen scanning, positioning, suction, and mixing
- Automatic focusing function with special focusing liquid for continuous accuracy
Accuracy
Advanced Recognition Technology
- Recognition rate >95% with artificial auxiliary judgment capability
- Self-learning function for improved identification accuracy over time
- False negative rate <3%; repeatability CV <10%
Quality Control
Cross-Contamination Prevention
- High-precision PTFE-plated sample-sucking needles
- Cross-contamination rate <0.05%
- 4-channel design with dedicated settling and cleaning channel
Technical specifications
| Test Items | RBC, WBC, pus cells, squamous epithelial cells, non-squamous epithelial cells, WBCC, transparent casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus, and RBC morphology analysis |
|---|---|
| Detection Principle | Flow cell technology, medical image information fusion technology, machine intelligence visual recognition technology |

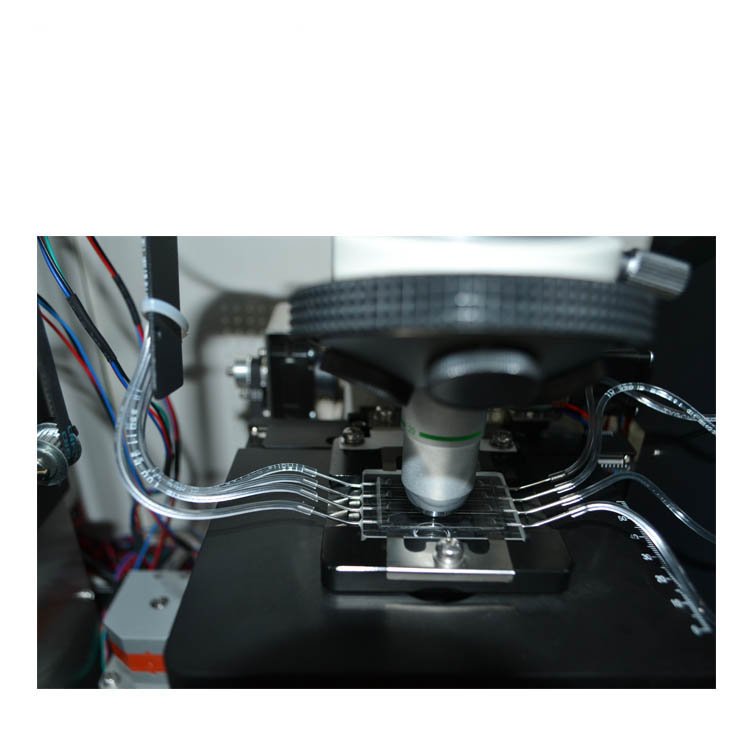

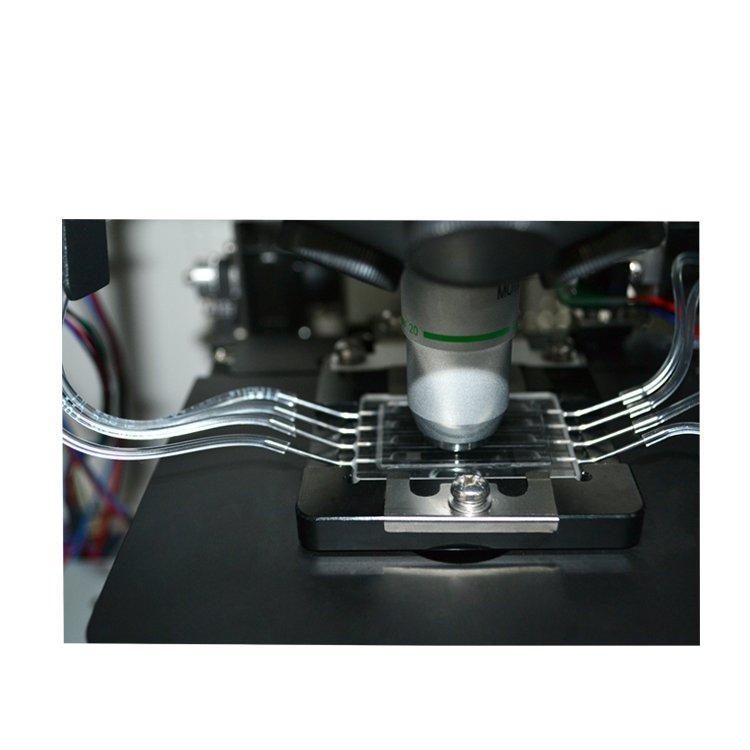

| Channel Configuration | 4-channel quantitative flow counting cell |
| Detection Speed | 120–160 samples per hour |
| Sample Volume | Minimum 2.5–3 ml; aspiration volume 0.5–1 ml |
| Sensitivity | <10 /µl |
| Recognition Rate | >95% with artificial auxiliary judgment |
| Repeatability | CV <10% |
| Cross-Contamination Rate | <0.05% |
| False Negative Rate | <3% |
| Data Storage | 200,000 results |
| Report Format | International quantitative units (XX/µl & HPF); comprehensive graphic report with dry chemical and urine formed elements analysis |
| Operating Temperature | 18–30°C (optimal 20–25°C) |
| Relative Humidity | ≤75% |
| Power Supply | AC 110V/220V ±10%, 50/60Hz |
| Dimensions (Main Unit) | 660 mm (L) × 440 mm (W) × 570 mm (H) |
| Weight | Approximately 33 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | MDLDJ04 Automatic Urine Sediment Analyzer with 4-channel flow cell system | 1 |
| Sample Rack | Orbital 10-tube specimen rack with continuous injection capability (60-specimen capacity) | 1 |

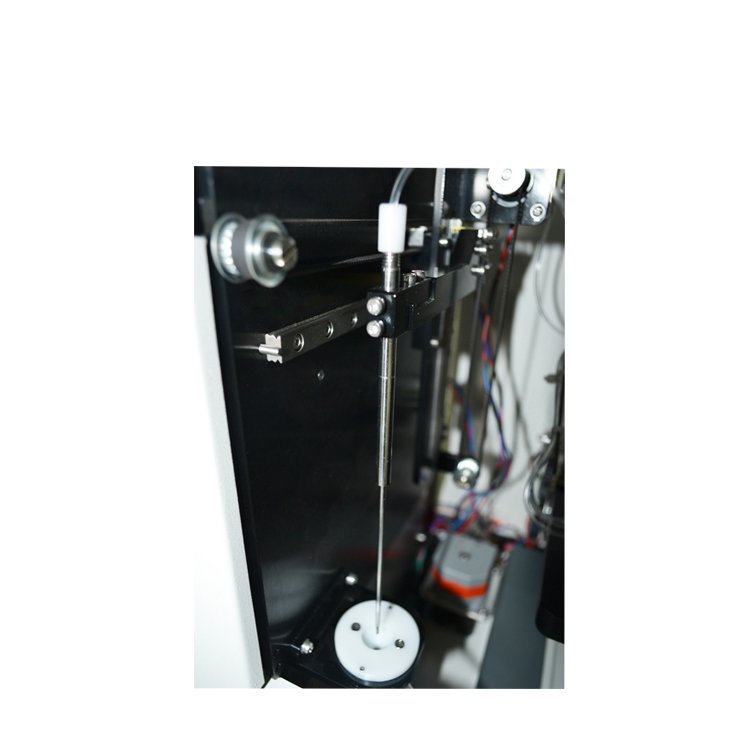

| Sampling Needle | PTFE-plated high-precision sample-sucking needle | 1 |
| Focusing Liquid | Special focusing liquid for automatic microscope focal length correction | As applicable |
| Power Cable | AC 110V/220V ±10%, 50/60Hz compatible power supply cable | 1 |
| Documentation | User manual, technical specifications, warranty certificate, and quality assurance documentation | 1 set |
