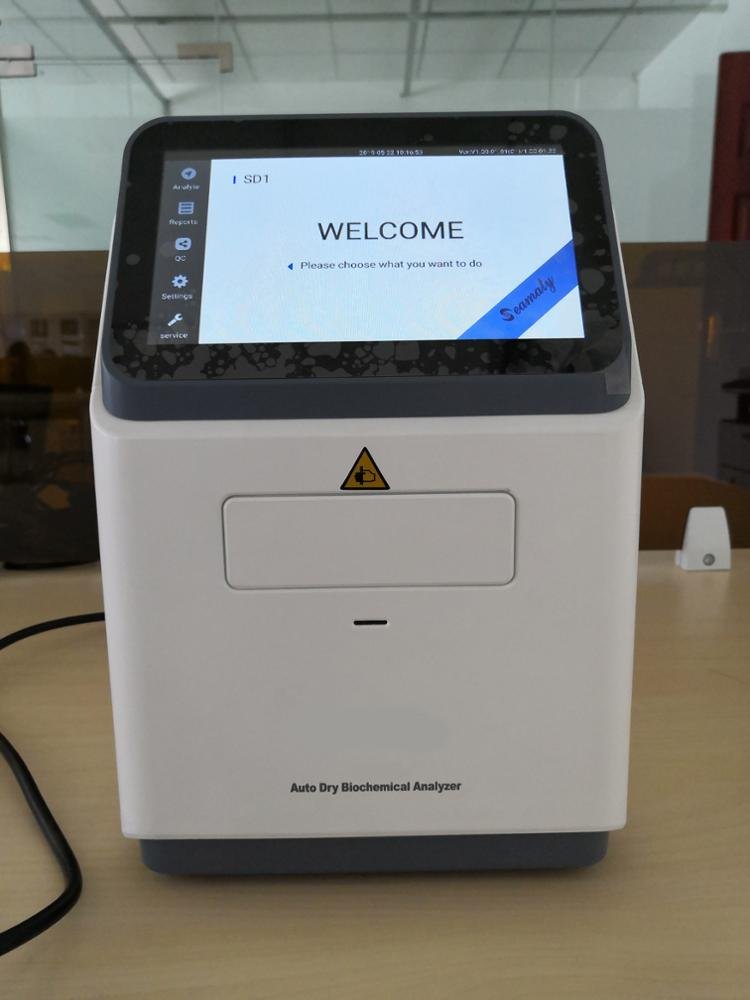

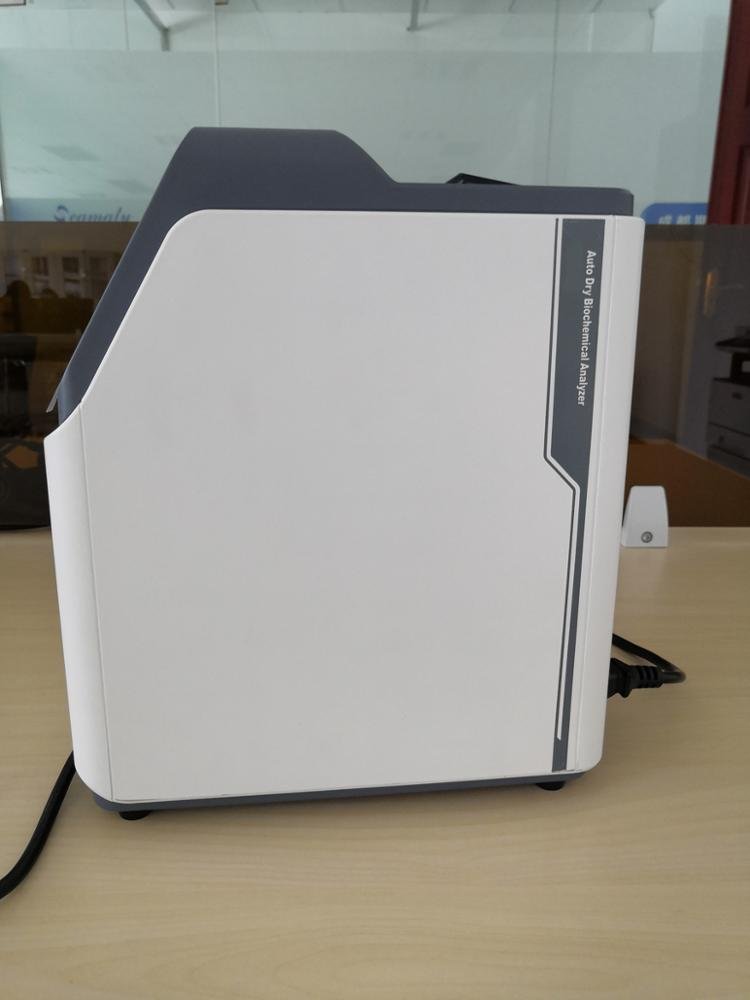

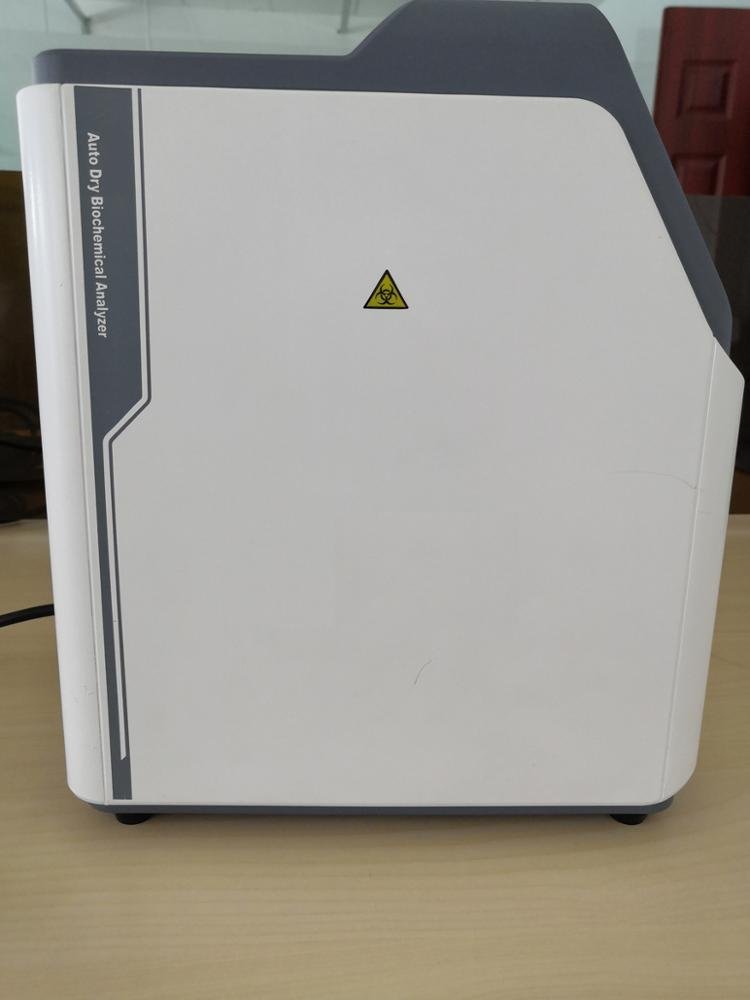

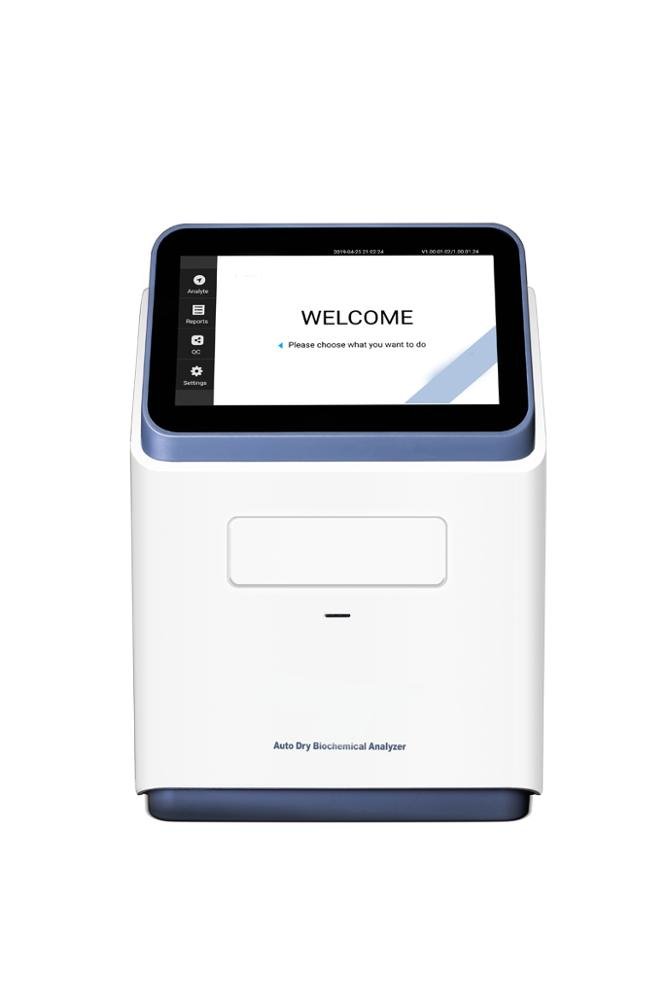

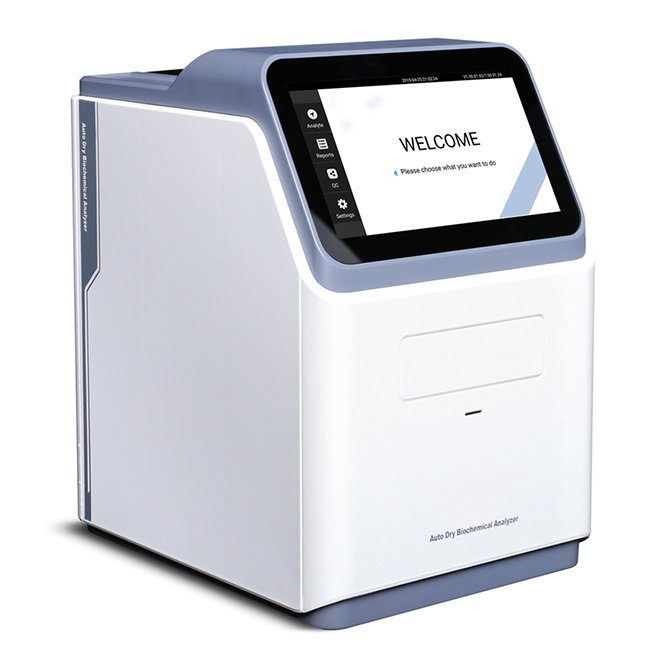

Automated Chemistry Analyzer Full Automatic Dry MDLDBA06
- The Automated Chemistry Analyzer Full Automatic Dry MDLDBA06 is a fully automated biochemical analyzer for accurate human health diagnosis.
- It requires a minimal sample volume, only 1/10-1/20 of a traditional chemistry analyzer.
- Portable and lightweight design at 4.4 kg allows for easy transport and space-saving functionality.
- Maintenance costs are reduced with no consumables required such as tubes, pumps, or valves.
- Offers accurate results with multi-parameter testing for efficient disease screening.
- Compatible with Lithium Heparin Anticoagulant whole blood, serum, and plasma samples.
- Features a QR code barcode for easy sample identification.
- SKU
- MDLDBA06
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Product overview
POCT Chemical Analyser MSLDBA06 Fully Automatic Dry Chemistry Analyzer
MSLDBA06 is a completely new and fully automated animal biochemical analyzer for human health diagnosis, accurate reference laboratory results. Through the latest medical and technological innovation, MSLDBA06 portable automatic biochemical analyzer can provide better diagnosis for blood analysis quickly, easily and accurately.
The reagent disc contains componects that integrated with the optical, electronic and mechanical functions of the analyzer, consisting of freeze drying reagent beads, diluent and QR code. It is single use with six months lifespan at the temperature of 2-8 Deg C. It offers multi-parameter testing for fast, accurate disease screening.
Specifications

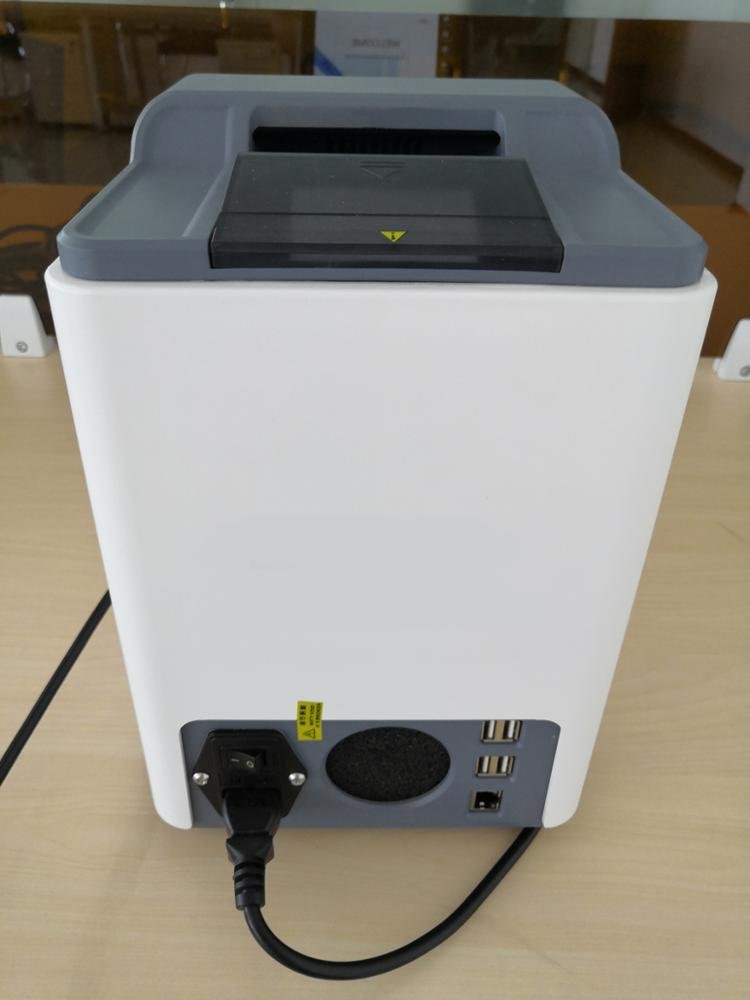

1.Little sample volume required Sample volume needed is 1/10-1/20 of traditional chemistry analyzer 2.Easy to carry 4.2kg the portable analyzer is designed to save space, use it anywhere anytime. 3.Less maintenance No consumables needed such as tubes, pump, value etc., saving your maintenances expense 4.Accurate result Sample Type: Lithium Heparin Anticoagulant whole blood, serum and plasma Size: L:20cm W:25cm H:30cm Weight:4.4 kg Sample Volume:90-120 μl Bar Code: QR code Temperature:37±0.3℃ Resolution:0.001 Abs Absorbance:0-3.0Abs QC & Calibrate: IQC intelligent QC Work Environment:Temperature:10-32℃ Humidity:<30%-70% Testing Principle: Absorption spectroscopy, transmission turbidimetry Testing Method: End point, rate, fixed time Light source:12V/20W, halogen tungsten lamp’s life span is over 2500 hours Power supply:AC100V-110V/240V, 50-60 Hz Power output:15 7.0a, 105W MAX Display: Android 7.0 inch 800*480, multi-point capacitive touch screen, multilingual choice Storage:500,000 results Printer: Built-in thermal printer Connectors:4 USB ports, 1 LAN portAvailable on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Medical Enteral Feeding Pump with Optional Liquid Warmer MDLIS29
- The Medical Enteral Feeding Pump MDLIS29 is a reliable and accurate device for enteral feeding. - It offers a flow rate of 1-2000 ml/h in various increments for precise control. - The pump features alarms for occlusion, air-in-line, and other malfunctions to ensure patient safety. - With additional features like real-time infused volume and history log, monitoring and tracking are made easy. - Optional features include a liquid warmer with over-temperature alarm for patient comfort. - The pump can be powered by AC, battery, or even in a vehicle with a 12 V power supply. - Designed for safety, it has IPX5 fluid ingress protection and is classified as Class II, type CF.
Visible Spectrophotometer Machine MDLUV08
- Single beam visible spectrophotometer ideal for routine analysis - Microprocessor controlled for easy operation - High resolution with 12000 line grating monochromator - Equipped with USB port for data output to PC - Compact design for easy portability - Four display modes for different measurements - Wavelength range: 325-1000nm - Spectral bandwidth: 4nm - Photometric accuracy: ±0.5%T

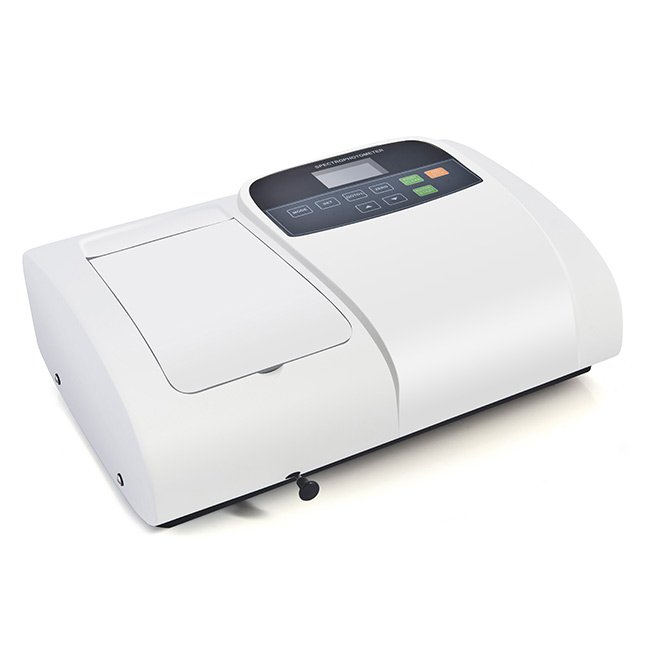

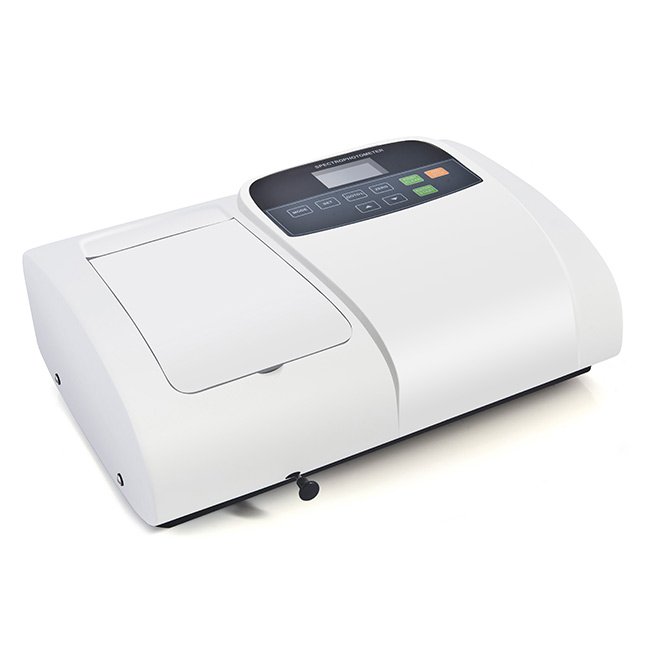

LCD Screen Uv Visible Spectrophotometer MDLUV09
- LCD screen UV visible spectrophotometer model MDLUV09 - Equipped with a 2.5' LCD screen for clear display of standard curves and results - Can set up various standard curves for different solutions - Imported deuterium lamp for low stray light and accurate results - USB port for data output and connectivity to PC - Multiple results readout for wavelength, absorption, and transmittance - Automatic wavelength setting to avoid errors

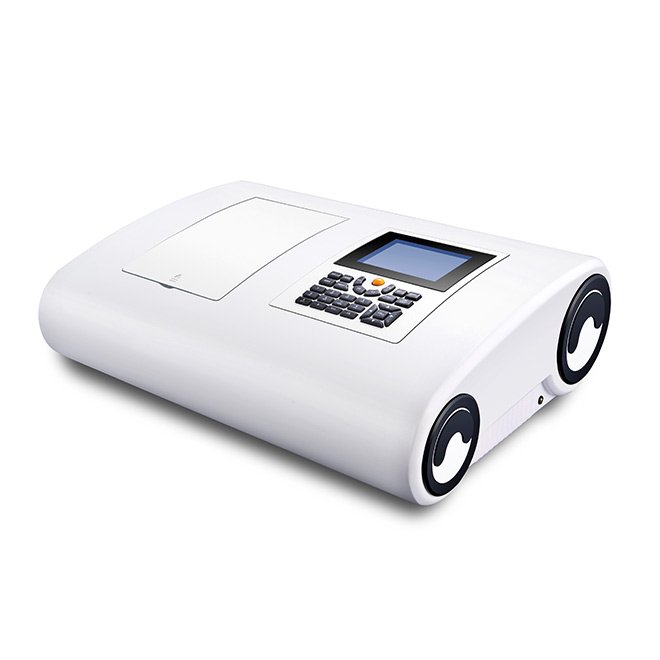

Double Beam Uv Visible Spectrophotometer MDLUV12
- Wide screen double beam spectrophotometer MDLUV12 - Features long light path design for stability and accuracy - Powerful software functions for spectrum scanning, standard curve, kinetics, and more - Unique 520mm long light path design for improved resolution - Equipped with a 6 inches LCD display for easy viewing of results and curves - Calibration system for automatic calibration of baseline, wavelength, and dark current - USB port for data output and connection to a PC

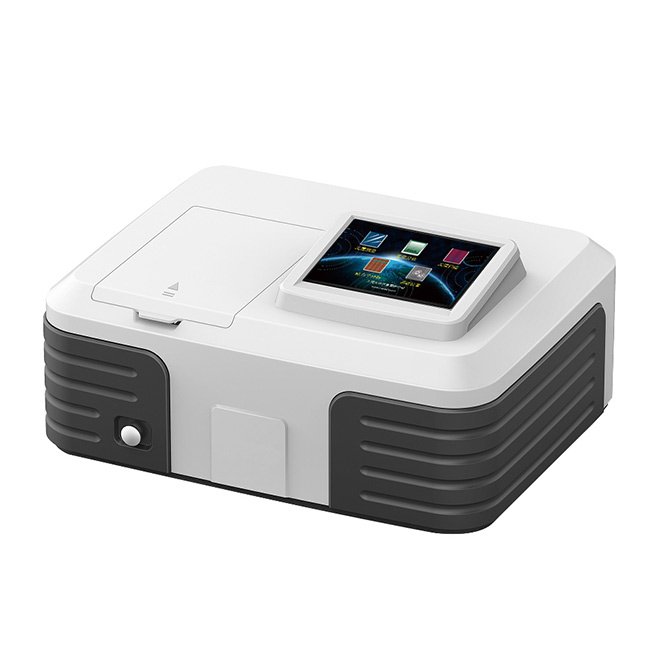

Portable Uv/vis Spectrophotometer MDLUV15
- Touch Screen Portable UV/VIS spectrophotometer MDLUV15 with intelligent alarm function and system encryption - Features an 800x480 touch screen display for clear graphs and data viewing - Stand-alone system for spectrum measurement, quantitative analysis, and more - Rigid 8mm die-case aluminum base for stability and reliability - Automatic system calibration and positioning for accuracy - Can print data and graphs in A4 format directly via USB connection to a printer - Wavelength range: 190-1000nm, spectral bandwidth: 2nm - Photometric accuracy: ±0.2%T(0-100%T), baseline flatness: ±0.001A

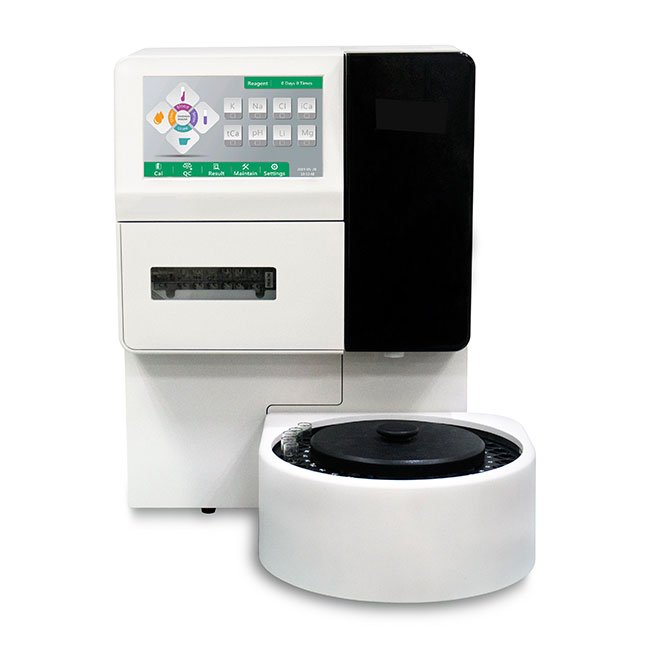

Automatic Blood & Gas Electrolyte Analyzer Machine MDLEA03
- Ion selective electrode method for accurate results - Measures K+, Na+, Cl-, Ca++, Li+, and pH parameters - Offers various combinations of parameter tests - Throughput of 100 samples per hour for efficient testing - Supports different sample types including whole blood, serum, and urine - Automatic and manual calibration options for accuracy - Features collision detection and automatic probe cleaning - Equipped with a 7-inch color touch screen and built-in printer - Multiple interface options for connectivity and data transfer

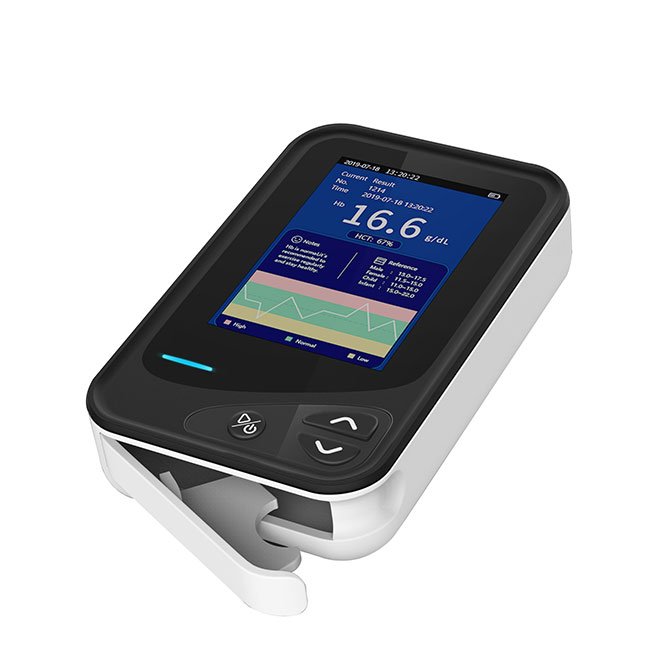

Hemoglobin Analyzer Meter Machine MDLAH01
