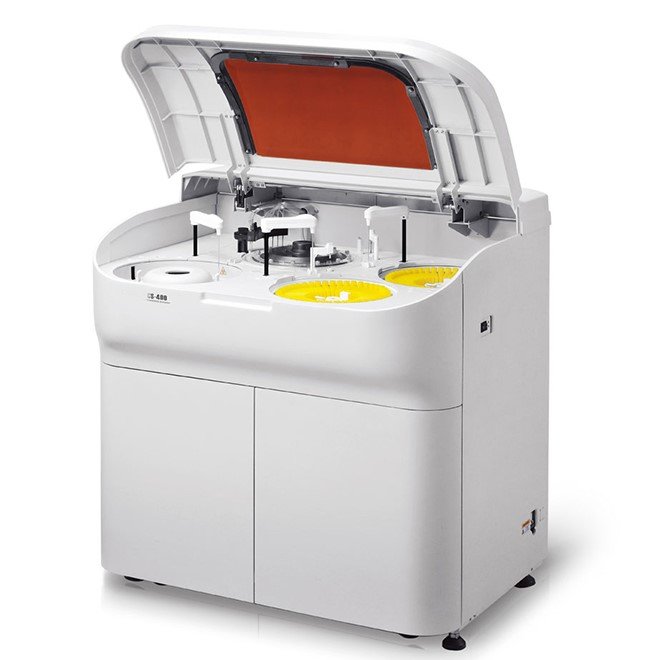

Auto-Chemistry Analyzers CS-400
- The Auto-Chemistry Analyzer CS-400 is a fully automatic, discrete device with STAT priority.
- It offers a high throughput of 400T/H for photometry tests and 600T/H for ISE tests.
- The analyzer utilizes colorimetry, turbidimetry, and ISE test principles.
- It features advanced technology like liquid level detection and collision protection for precise sample analysis.
- The equipment comes with a new design reagent disk for efficient reagent consumption and expanded test items.
- User-friendly interface with LIS connectivity for remote maintenance and user-defined batch input of patient information.
- The CS-400 has multiple sample reagent positions, sample volume ranging from 2μl to 35μl, and reaction cuvettes with a volume of 150μl to 450μl.
- SKU
- CS-400
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Auto-Chemistry Analyzers CS-400
Advanced Fully Automatic Clinical Chemistry Analysis System
The CS-400 is a state-of-the-art fully automatic chemistry analyzer delivering exceptional performance with 400 tests per hour for photometry and 600 tests per hour for ISE. Featuring advanced optical systems with wavelength range 340nm–800nm, versatile sample handling with 115 positions, and comprehensive quality control, this analyzer is engineered for high-volume clinical laboratories requiring precision, efficiency, and reliability in routine and STAT testing.
Clinical Overview
The CS-400 Auto-Chemistry Analyzer represents a breakthrough in clinical chemistry diagnostics, combining cutting-edge technology with user-friendly operation. This fully automatic, discrete analyzer features rear spectrophotometry with a holographic concave flat field grating and cluster-optical path design, enabling supermicro volume detection of reaction solutions. With its sophisticated optical system spanning wavelengths from 340nm to 800nm, the CS-400 delivers exceptional accuracy and reliability for a comprehensive range of biochemical assays.
Engineered for high-volume clinical laboratories, the CS-400 offers unparalleled versatility with 115 sample positions accommodating routine, STAT, calibration, and quality control samples. The innovative reagent disk design minimizes reagent consumption while maximizing the number of available test items. Advanced features including automatic digital liquid level detection, collision protection, and LIS interface connectivity ensure seamless integration into modern laboratory workflows. The system's graphical operating software and user-defined batch input capabilities make it ideal for hospitals, blood stations, and physical examination centers requiring efficient, reliable, and precise clinical chemistry analysis.
Key Features & Surgeon Benefits
High-Performance Testing
- 400 tests/hour for photometry; 600 tests/hour for ISE
- 115 sample positions with simultaneous routine and STAT processing
- STAT priority ensures emergency samples processed immediately
Advanced Spectrophotometry
- Rear spectrophotometry with holographic concave flat field grating
- Wavelength range 340nm–800nm for comprehensive assay coverage
- Photodiode LED array detector with supermicro volume capability
Quality Control Integration
- Real-time, daily, and monthly QC with automatic alarming
- Multiple calibration methods (1-point, 2-point, multi-point, non-linear)
- Automatic K-value trend tracking and lost control documentation
Laboratory Connectivity
- LIS interface with TCP/IP and RS-232C connectivity
- User-defined batch input for efficient data management
- Remote maintenance and customizable reporting formats
Technical Specifications
| Specification | Details |
|---|---|
| Equipment Type | Fully automatic, discrete, STAT priority |
| Throughput | 400 tests/hour (photometry); 600 tests/hour (ISE) |
| Test Principles | Colorimetry, turbidimetry, ISE |
| Analysis Methods | End-point, kinetics, fixed-time; single/double wavelength; 1–2 multiple reagent; linear and non-linear calibration |
| Sample Positions | 115 total: 50 routine, 20 STAT, 34 calibration, 8 QC, 3 detergent |
| Sample Volume | 2–35μL (0.1μL stepping) |
| Reagent Volume | 20–350μL (1μL stepping) |
| Reaction Cuvettes | 120 positions, optical plastic cups |
| Reaction Temperature | 37°C with circulating water heating |
| Total Reaction Volume | 150–450μL |
| Light Source | 20W/12V halogen lamp (2000-hour lifespan) |
| Monochromator | Grating photometry with holographic concave flat field grating |
| Wavelength Range | 340–800nm |
| Detector | Photodiode LED array |
| Calibration Methods | 1-point linear, 2-point linear, multi-point linear, non-linear |
| QC Methods | Real-time QC, daily QC, monthly QC with automatic alarming |
| Operating System | Windows XP with graphical English software |
| Connectivity | TCP/IP network, RS-232C, LIS interface |
| Dimensions | 1060mm × 790mm × 1150mm |
| Weight | 300 kg |
| Power Supply | AC 110V/220V ±22V, 50/60Hz, 2 kVA |
| Warranty | 2 Year Manufacturer Warranty |
Standard Instrument Composition
| Item | Description | Qty |
|---|---|---|
| CS-400 Analyzer Unit | Main analyzer with optical system, sample carousel, reagent disk, and reaction cuvette carousel | 1 |
| Sample Probe | 60nm polished probe with automatic digital liquid level detection and collision protection | 1 |
| Reagent Probes | Dual reagent probes with liquid level detection and collision protection | 2 |
| Reaction Cuvettes | Optical plastic cups for reaction chamber (120 positions) | 120 |
| Waste Container | Concentrated waste liquid collection with level alarming | 1 |
| Water Circulation System | Heating system for 37°C reaction temperature maintenance | 1 |
| Computer Interface | Windows XP graphical software with LIS connectivity | 1 |
| Power Supply Unit | AC 110V/220V ±22V, 50/60Hz, 2 kVA | 1 |
| Documentation | User manual, technical specifications, maintenance guide, QC protocols | 1 set |
