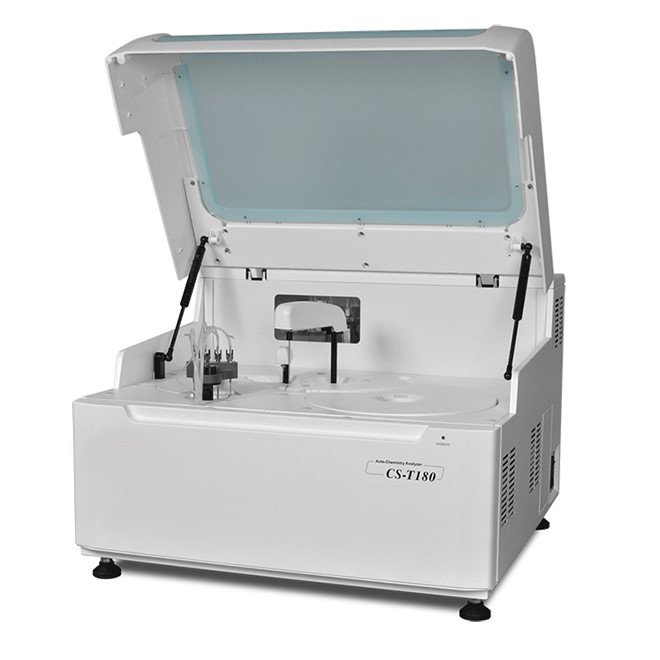

Auto-Chemistry Analyzer CS-T180
- The Auto-Chemistry Analyzer CS-T180 offers high reagent and sample capacity for flexibility
- It features automatic hemolysis function, making HbA1c testing easy and standardized
- Digital liquid level detection with high sensitivity to avoid interference from bubbles
- Equipped with collision protection for added safety during operation
- Visual QC assessment for quality control monitoring
- Low water consumption for efficiency
- Compact size allows for easy placement in narrow spaces
- SKU
- CS-T180
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Auto-Chemistry Analyzer CS-T180
Fully automatic, discrete chemistry analyzer delivering 180 tests/hour with advanced optical detection and integrated quality control. Compact design with high reagent and sample capacity for high-volume laboratory environments.
Clinical overview
The CS-T180 is a fully automatic, discrete chemistry analyzer engineered for high-throughput clinical laboratory environments. With a throughput of 180 tests/hour (single or double reagent mode) and up to 540 tests/hour when combined with integrated ISE (Ion Selective Electrode) capability, this system delivers rapid turnaround times without compromising analytical accuracy. The analyzer features advanced optical detection with halogen lamps and photodiode LED array technology, enabling precise colorimetric and turbidimetric measurements across wavelengths from 340nm to 800nm.
Designed for ease of operation and reliability, the CS-T180 incorporates automatic hemolysis detection for HbA1c testing, digital liquid level sensing to eliminate bubble interference, and collision protection for sample and reagent probes. The compact footprint (744mm × 703mm × 530mm) allows placement in space-constrained laboratory settings, while the 80-position sample/reagent carousel and 56-position reaction disk provide flexibility for diverse testing protocols. Real-time quality control, automated calibration tracking, and comprehensive wastewater management features ensure consistent performance and regulatory compliance.
Key features & surgeon benefits
High-Volume Testing
- 180 tests/hour standard; 540 tests/hour with ISE integration
- 80-position sample and reagent carousel for extended runs
- 56 optical plastic reaction cuvettes for continuous workflow
Automated Operation
- Fully automatic discrete analysis with STAT priority capability
- Automatic hemolysis detection for standardized HbA1c testing
- Digital liquid level and collision detection for error-free operation
Advanced Optical System
- 20W/12V halogen lamp with grating photometry monochromator
- Photodiode LED array detector for multi-wavelength analysis (340–800nm)
- End-point, kinetics, and fixed-time analysis methods supported
Integrated QC & Calibration
- Real-time, daily, and monthly QC protocols with out-of-control alarming
- Automatic calibration tracking with K-value trend monitoring
- Low water consumption and concentrated waste liquid level alarming
Technical specifications
| Equipment Type | Fully automatic, discrete, STAT priority |
|---|---|
| Analysis Throughput | 180 tests/hour (single/double reagent); 540 tests/hour with ISE |
| Test Principles | Colorimetry, turbidimetry |
| Analysis Methods | End-point, kinetics, fixed-time |
| Sample Positions | Up to 80 positions |
| Sample Cuvettes | Standard cup, original blood tube, multi-specification tube (Φ10–13mm × 75–100mm) |
| Reaction Cuvettes | 56 positions, optical plastic |
| Reaction Volume | 100μl–360μl |
| Reaction Temperature | 37°C (air bath constant temperature) |
| Light Source | 20W/12V halogen lamps |
| Wavelength Range | 340nm–800nm |
| Detector | Photodiode LED array |
| Calibration Methods | 1-point linear, 2-point linear, multi-point linear, non-linear |
| QC Methods | Real-time QC, daily QC, monthly QC |
| Operating System | Windows 7 or Windows 10 |
| Network Connectivity | TCP/IP, standard RJ-45 |
| Dimensions | 744mm (W) × 703mm (D) × 530mm (H) |
| Weight | 100 kg |
| Power Supply | AC 100V–110V/240V, 50/60Hz, 600VA |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | CS-T180 fully automatic discrete chemistry analyzer with integrated optical system | 1 |
| Sample Carousel | 80-position sample and reagent carousel assembly | 1 |
| Reaction Disk | 56-position optical plastic reaction cuvette disk | 1 |
| Optical System | Halogen lamp, grating monochromator, photodiode LED array detector | 1 |
| Waste Management System | Integrated wastewater treatment with concentrated waste liquid level alarming | 1 |
| Control Software | Graphical operating software (English version) for Windows 7/10 | 1 |
| Network Interface | TCP/IP connectivity module with RJ-45 connector | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, pricing, delivery timelines, and integration support for the CS-T180 analyzer. We provide comprehensive technical consultation and OEM customisation options.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
