Auto-Chemistry Analyzer CS-1300
- The Auto-Chemistry Analyzer CS-1300 is a fully automatic and discrete system with STAT priority.
- It offers a constant throughput of 900T/H for colorimetric tests and 1260T/H for ISE tests.
- Featuring a long-life halogen lamp as the light source with a wavelength range of 340-800nm and 12 wavelengths.
- Various analysis methods such as end-point, kinetics, and fixed-time are available.
- Calibration options include 1-point, 2-point, multiple point linear, and non-linear methods.
- Equipped with independent sample probes, reagent probes, and automatic liquid level detection for precise measurements.
- The rinsing mechanism includes high-pressure rinsing of probe inner walls for thorough cleaning.
- Offers 140 sample positions and 132 reagent positions, supporting up to 4 kinds of reagents test function.
- SKU
- CS-1300
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Auto-Chemistry Analyzer CS-1300
A fully automatic, random-access chemistry analyzer delivering high-throughput testing with advanced temperature control and precision probe technology. Engineered for clinical laboratories requiring reliable, rapid analysis across multiple testing methodologies with minimal operator intervention.
Clinical overview
The Auto-Chemistry Analyzer CS-1300 is a state-of-the-art clinical chemistry platform designed to meet the demands of high-volume laboratory environments. With throughput capabilities of 900 tests per hour for colorimetric analysis and 1260 tests per hour for ISE (ion-selective electrode) testing, the system delivers rapid turnaround times without compromising accuracy. The analyzer supports multiple analysis methodologies—end-point, kinetics, and fixed-time—enabling comprehensive testing protocols across diverse clinical chemistry panels.
Advanced thermal management via post-position semiconductor technology ensures precise temperature control at 37°C ± 0.1°C, critical for enzymatic reaction stability and result reproducibility. Automatic liquid level detection and independent sample and reagent probes with integrated clot detection minimize pre-analytical errors and reduce operator workload, while the efficient 8- or 12-stop warm-water rinsing system guarantees probe cleanliness between tests. The long-life halogen lamp light source provides consistent optical performance across the 340–800 nm wavelength range with 12 discrete wavelengths, ensuring reliable colorimetric measurements with minimal signal attenuation.
Key features & surgeon benefits
High-Speed Analysis
- 900 tests/hour colorimetric capacity
- 1260 tests/hour ISE capability
- STAT priority mode for urgent samples
Temperature & Optical Stability
- Precise 37°C ± 0.1°C reaction control
- Long-life halogen lamp with 12 wavelengths
- Advanced post-position semiconductor cooling
Automated Quality Assurance
- Automatic liquid level detection
- Integrated clot detection function
- High-pressure probe inner-wall rinsing
Multi-Method Capability
- End-point, kinetics, and fixed-time analysis
- Support for up to 4 reagent types simultaneously
- Flexible sample and reagent volume ranges
Technical specifications
| System Type | Random access, fully automatic, discrete, STAT priority |
|---|---|
| Throughput | 900 tests/hour colorimetric; 1260 tests/hour ISE |
| Light Source | Long-life halogen lamp, 340–800 nm, 12 wavelengths |
| Analysis Methods | End-point, kinetics, fixed-time |
| Calibration Methods | 1-point, 2-point, multiple-point linear, non-linear |
| Temperature Control | 37°C ± 0.1°C reaction disk incubation |
| Sample Capacity | 140 sample positions, supporting multiple tube types and sample cups |
| Reagent Capacity | 132 reagent positions + 2 detergent positions, continuous refrigeration, up to 4 reagent types |
| Reaction Cuvettes | 160 new-type reaction cuvettes |
| Sample Volume Range | 1.5–35 µL (0.1 µL increment) |
| Reagent Volume Range | 15–350 µL (1 µL increment) |
| Minimum Reaction Volume | 100–450 µL |
| Probe System | Independent sample and reagent probes with automatic liquid level detection, probe tracing, and clot detection |
| Rinsing Mechanism | 8 or 12 stops, warm-water high-pressure inner-wall rinsing |
| Mixing System | 2 independent mixers for sufficient reaction |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | Auto-Chemistry Analyzer CS-1300 with integrated thermal control and optical system | 1 |
| Sample Probe Assembly | Independent sample probe with automatic liquid level detection and clot detection | 1 |
| Reagent Probe Assembly | Independent reagent probe with precision dispensing | 1 |
| Reaction Disk | 160 new-type reaction cuvettes with temperature-controlled incubation bath | 1 |
| Halogen Lamp Module | Long-life light source with 12 discrete wavelengths (340–800 nm) | 1 |
| Refrigerated Reagent Carousel | 132 reagent positions + 2 detergent positions with continuous cooling | 1 |
| Sample Rack Carousel | 140 sample positions supporting multiple tube and cup formats | 1 |
| Mixer Assembly | 2 independent mixing mechanisms for reaction optimization | 2 |
| Rinsing System | 8 or 12 stop warm-water high-pressure rinsing module | 1 |
Get in touch for pricing & availability
Contact our laboratory equipment specialists to discuss system configuration, pricing, installation, and training options for the CS-1300 analyzer. We provide comprehensive support and customisation to meet your laboratory's specific testing requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Medical Enteral Feeding Pump with Optional Liquid Warmer MDLIS29
- The Medical Enteral Feeding Pump MDLIS29 is a reliable and accurate device for enteral feeding. - It offers a flow rate of 1-2000 ml/h in various increments for precise control. - The pump features alarms for occlusion, air-in-line, and other malfunctions to ensure patient safety. - With additional features like real-time infused volume and history log, monitoring and tracking are made easy. - Optional features include a liquid warmer with over-temperature alarm for patient comfort. - The pump can be powered by AC, battery, or even in a vehicle with a 12 V power supply. - Designed for safety, it has IPX5 fluid ingress protection and is classified as Class II, type CF.
Visible Spectrophotometer Machine MDLUV08
- Single beam visible spectrophotometer ideal for routine analysis - Microprocessor controlled for easy operation - High resolution with 12000 line grating monochromator - Equipped with USB port for data output to PC - Compact design for easy portability - Four display modes for different measurements - Wavelength range: 325-1000nm - Spectral bandwidth: 4nm - Photometric accuracy: ±0.5%T
LCD Screen Uv Visible Spectrophotometer MDLUV09
- LCD screen UV visible spectrophotometer model MDLUV09 - Equipped with a 2.5' LCD screen for clear display of standard curves and results - Can set up various standard curves for different solutions - Imported deuterium lamp for low stray light and accurate results - USB port for data output and connectivity to PC - Multiple results readout for wavelength, absorption, and transmittance - Automatic wavelength setting to avoid errors
Double Beam Uv Visible Spectrophotometer MDLUV12
- Wide screen double beam spectrophotometer MDLUV12 - Features long light path design for stability and accuracy - Powerful software functions for spectrum scanning, standard curve, kinetics, and more - Unique 520mm long light path design for improved resolution - Equipped with a 6 inches LCD display for easy viewing of results and curves - Calibration system for automatic calibration of baseline, wavelength, and dark current - USB port for data output and connection to a PC
Portable Uv/vis Spectrophotometer MDLUV15
- Touch Screen Portable UV/VIS spectrophotometer MDLUV15 with intelligent alarm function and system encryption - Features an 800x480 touch screen display for clear graphs and data viewing - Stand-alone system for spectrum measurement, quantitative analysis, and more - Rigid 8mm die-case aluminum base for stability and reliability - Automatic system calibration and positioning for accuracy - Can print data and graphs in A4 format directly via USB connection to a printer - Wavelength range: 190-1000nm, spectral bandwidth: 2nm - Photometric accuracy: ±0.2%T(0-100%T), baseline flatness: ±0.001A
Automatic Blood & Gas Electrolyte Analyzer Machine MDLEA03
- Ion selective electrode method for accurate results - Measures K+, Na+, Cl-, Ca++, Li+, and pH parameters - Offers various combinations of parameter tests - Throughput of 100 samples per hour for efficient testing - Supports different sample types including whole blood, serum, and urine - Automatic and manual calibration options for accuracy - Features collision detection and automatic probe cleaning - Equipped with a 7-inch color touch screen and built-in printer - Multiple interface options for connectivity and data transfer

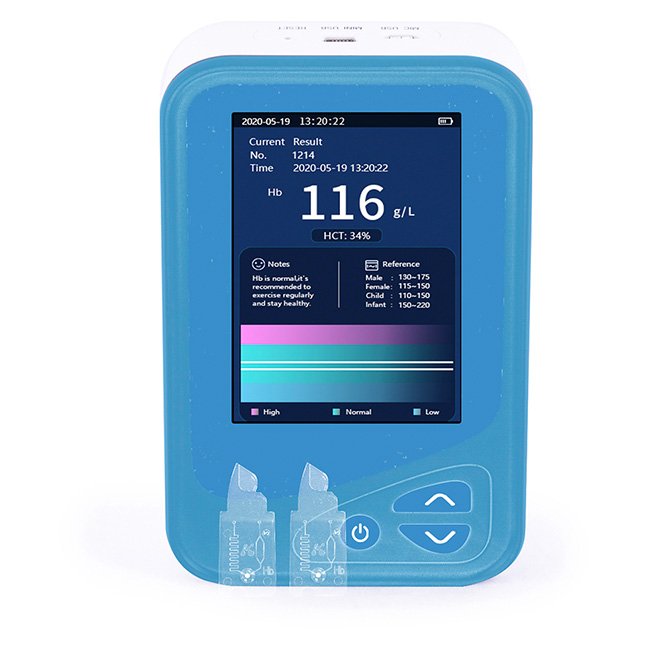

Hemoglobin Analyzer Meter Machine MDLAH01
