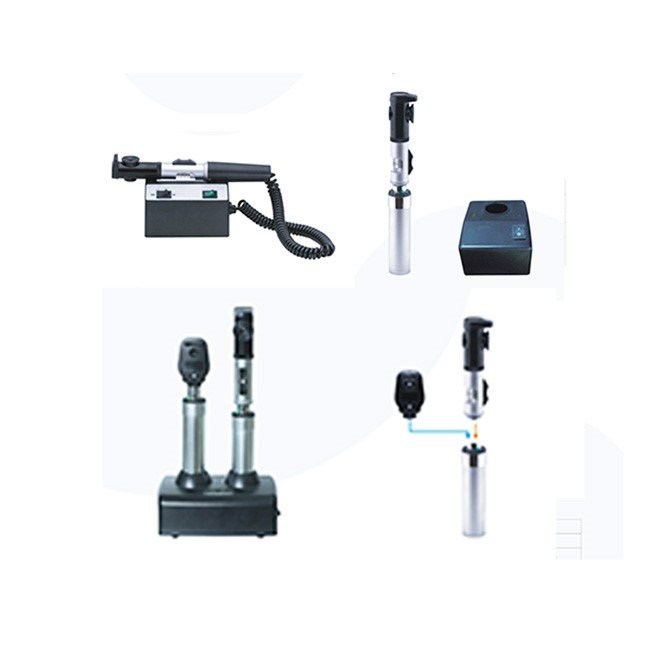

Streak Retinoscope for Astigmatism Axis Measurement MDL24
- Streak retinoscope for precise astigmatism axis measurement
- Features rotation and movement of filament for accuracy
- Adjustable brightness for clear streak visualization
- Conveniently measures astigmatism axis quickly
- Offers convergence, radiation, and parallel light options
- Automatic turning off to protect the bulb
- Available in two models: MDL24 and MDL24B
- SKU
- MDL24
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Streak Retinoscope for Astigmatism Axis Measurement NEU24
Precision streak retinoscope engineered for rapid, accurate astigmatism axis measurement in clinical practice. Features 360° filament rotation, dual-brightness adjustment, and versatile light settings with 1-meter working distance for efficient patient examination and streamlined workflow.
Clinical overview
The Streak Retinoscope NEU24 is a precision diagnostic instrument designed for rapid and accurate measurement of astigmatism axis in routine ophthalmic practice. The adjustable 360° filament rotation enables clinicians to align the streak with the patient's refractive meridian, facilitating efficient axis determination. With dual-brightness settings (S/Bright and W/Dark) and versatile light modes (converged, radiated, and parallel), the retinoscope adapts to diverse examination conditions and patient presentations.
The 1-meter working distance provides optimal positioning for both examiner comfort and patient cooperation. Automatic shut-off protection extends bulb lifespan and reduces maintenance costs. The rechargeable variant (MDL24B) incorporates anti-overcharging battery protection and dual-charging capability, allowing simultaneous charging of compatible accessories. Lightweight ergonomic design minimizes examiner fatigue during extended clinical sessions.
Key features & surgeon benefits
Accurate Astigmatism Axis Detection
- 360° filament rotation for precise meridian alignment
- Streak range 3–20mm for varied refractive errors
- Converged, radiated, and parallel light modes
Streamlined Clinical Examination
- 1-meter working distance for optimal positioning
- Quick and efficient measurement process
- Compatible with ophthalmoscope heads for integrated diagnostics
Extended Service Life & Cost Control
- Automatic shut-off protects halogen bulb lifespan
- Rechargeable option (MDL24B) with anti-overcharging protection
- Lightweight ergonomic design reduces examiner fatigue
Flexible Configuration Options
- Manual (MDL24) and rechargeable (MDL24B) variants
- Dual-brightness adjustment (S/Bright, W/Dark)
- Dual-charging capability for compatible accessories
Technical specifications
| Indications | Astigmatism axis measurement; refraction assessment |
|---|---|
| Streak Range | 3mm–20mm |
| Filament Rotation | 360° with vertical adjustment |
| Working Distance | 1 meter |
| Illumination Source | 3V/2.1W halogen bulb |
| Light Modes | Converged, radiated, parallel |
| Brightness Adjustment | Two-step (S/Bright, W/Dark) or continuous (MDL24B) |
| Auto Shut-off | Yes — protects bulb lifespan |
| Rechargeable Option | MDL24B with anti-overcharging protection |
| Compatibility | Standard ophthalmoscope heads |
| Material | Optical glass, metal housing |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Streak Retinoscope Head | 360° rotatable filament with vertical adjustment | 1 |
| Halogen Bulb | 3V/2.1W illumination source | 1 |
| Optical Lens Assembly | Converged, radiated, parallel light capability | 1 |
| Handle (Manual or Rechargeable) | Ergonomic design; MDL24B includes battery and charger | 1 |
| Protective Case | Storage and transport protection | 1 |
