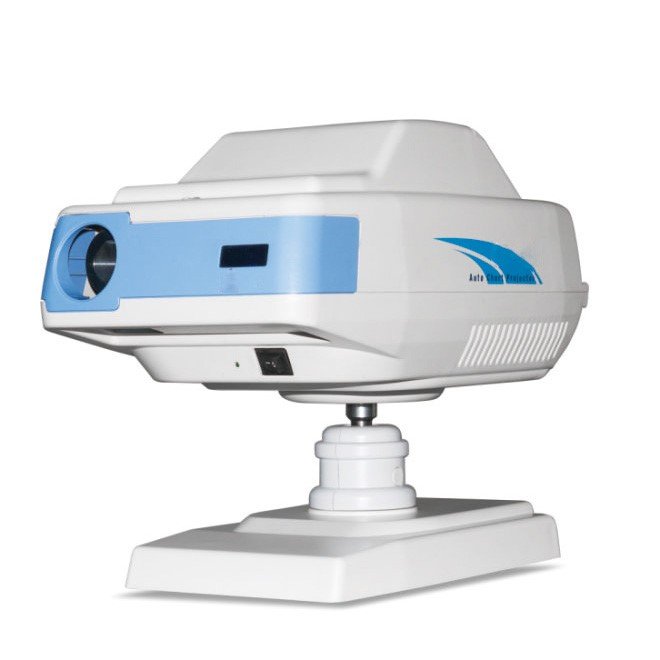

- The Eye Chart Test Chart Projector MDLCP60 is a precise and reliable tool for eye examinations.
- It offers a wide range of projection distances from 3m to 6m.
- With 39 different chart options, it caters to various testing needs.
- Features masking functions including horizontal line, vertical line, and single letter masks.
- Equipped with a red/green filter for added versatility in testing.
- Rapid chart changeover speed of 0.2 seconds or less for efficient examinations.
- LED lamp provides bright and consistent illumination for accurate readings.
- Compact and lightweight design weighing -5kg, making it easy to move and set up.
- Compatible with AC power sources ranging from 100V to 240V, consuming only 36W of power.
Professional-grade eye chart projector designed for comprehensive vision testing in clinical and educational settings. Projects 39 chart types across 3–6 metre distances with advanced masking and filtering capabilities for precise refractive assessments.
The MDLCP60 Eye Chart Test Chart Projector is a high-performance diagnostic tool engineered for rapid, accurate vision assessment across clinical and educational environments. With 39 distinct chart types and variable projection distances from 3 to 6 metres, it accommodates diverse testing protocols and patient populations. The device delivers consistent, high-contrast image projection essential for reliable refractive and visual acuity measurements.
Advanced masking capabilities—including horizontal, vertical, and single-letter modes—enable targeted assessment of specific visual fields and letter recognition. The integrated red/green filtering function supports colour vision and stereopsis testing, expanding diagnostic scope. Ultra-fast chart changeover (≤0.2 seconds) minimises patient fatigue and optimises clinic throughput, while the compact, lightweight design facilitates flexible room placement and portability.
| Indications | Vision testing, refractive assessment, visual acuity screening, colour vision evaluation |
|---|---|
| Projection Distance | 3–6 metres |
| Chart Types | 39 kinds |
| Chart Size (at 5m) | 336(W) × 225(H) mm |
| Masking Function | No mask, horizontal line mask, vertical line mask, single letter mask |
| Filtering Function | Red/green filter |
| Chart Changeover Speed | Average of 0.2 seconds or less |
| Lamp Type | LED |
| Power Source | AC 100–110V/240V, 36W |
| Dimensions | 208 × 346 × 287 mm |
| Weight | 5 kg |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Eye Chart Projector Unit | MDLCP60 main projector with integrated LED lamp and optical system | 1 |
| Chart Cartridge | Pre-loaded with 39 chart types; supports rapid electronic changeover | 1 |
| Power Cable | Universal AC 100–110V/240V input with regional plug adapters | 1 |
| Remote Control | Wireless control for chart selection, masking, and filtering functions | 1 |
| User Manual & Documentation | Multilingual operation guide, maintenance schedule, warranty certificate | 1 |
