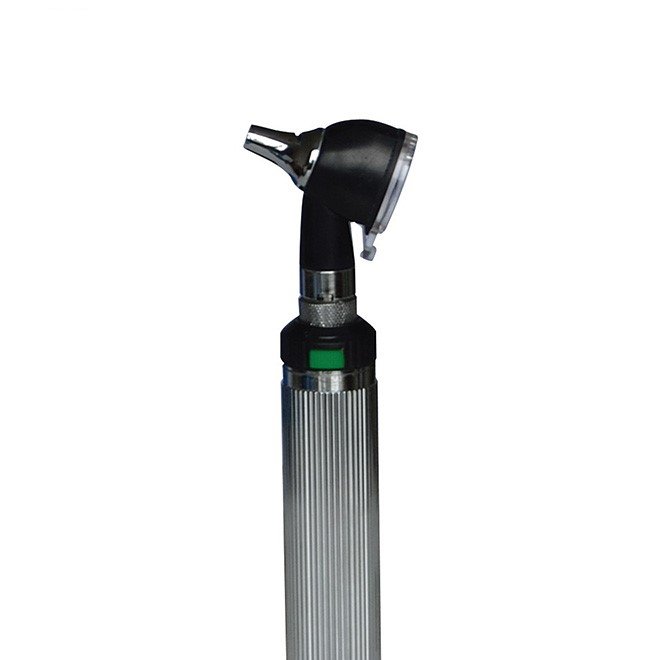

Ophthalmoscope and Otoscope MDLEY01
- Ophthalmoscope and Otoscope MDLEY01 for comprehensive eye and ear examinations
- Features various illumination forms including big spot, small spot, red free, central net, slit, and spot
- Comes with compensation filters such as Polar filter, red-free filter, and no filter for precise diagnostics
- Diopter compensation ranging from 0 to +40 (D) for accurate vision assessment
- Ear speculum sizes available in 2.5mm, 3mm, 4mm, and 5mm for optimal fit and comfort
- Equipped with a 3 times magnifier for detailed examination
- Powered by 2 "C" type batteries for convenience and portability
- SKU
- MDLEY01
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Ophthalmoscope and Otoscope MDLEY01
A dual-function diagnostic instrument combining comprehensive ophthalmoscopy and otoscopy in one portable device. Features multiple illumination modes, precise diopter compensation, and variable ear speculum sizes for efficient clinical examinations across diverse patient presentations.
Clinical overview
The MDLEY01 combines ophthalmoscope and otoscope functionality in a single, lightweight instrument designed for efficient point-of-care diagnostics. The integrated design reduces equipment burden while maintaining optical precision across both ophthalmic and otologic examinations. Clinicians benefit from a unified workflow without compromising image quality or ease of use.
With adjustable diopter compensation spanning -10 to +40 D and multiple illumination modes, the MDLEY01 accommodates diverse refractive errors and pathology presentations. The 3x magnification provides enhanced visibility for detailed fundal and tympanic membrane assessment, while variable ear speculum sizes ensure patient comfort and diagnostic accuracy across age groups.
Key features & surgeon benefits
Multi-Mode Illumination
- Big spot, small spot, red-free, central net, slit, and spot modes
- Polar, red-free, and standard filters for targeted examination
- 3x magnification for enhanced detail visibility
Dual-Function Design
- Single instrument for ophthalmoscopy and otoscopy
- Rapid mode switching without equipment changes
- Lightweight and portable for clinic and bedside use
Customizable Diopter Compensation
- Comprehensive range: -10 to +40 D in discrete steps
- Accommodates myopic and hyperopic patients
- Precise focus for detailed fundal and otologic assessment
Versatile Speculum Sizing
- Four ear speculum sizes: 2.5mm, 3mm, 4mm, 5mm
- Suitable for pediatric through adult patients
- Ensures comfort and diagnostic access across populations
Technical specifications
| Indications | Fundus examination, anterior segment assessment, otologic inspection |
|---|---|
| Illumination Modes | Big spot, small spot, red-free, central net, slit, spot |
| Compensation Filters | Polar filter, red-free filter, no filter |
| Diopter Compensation | 0, ±1, ±2, ±3, ±4, ±5, ±6, ±8, ±10, ±15, ±20, ±25, +40 (D) |
| Ear Speculum Sizes | 2.5mm, 3mm, 4mm, 5mm |
| Magnification | 3x |
| Power Supply | 1.5V × 2 "C" type batteries |
| Illumination Bulb | 2.5V / 0.45A |
| Material | Durable clinical-grade construction |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Instrument | Combined Ophthalmoscope/Otoscope Head | 1 |
| Ear Specula Set | 2.5mm, 3mm, 4mm, 5mm sizes | 4 |
| Illumination Bulb | 2.5V / 0.45A replacement | 1 |
| Batteries | 1.5V "C" type (as applicable) | 2 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and institutional arrangements. We offer fast delivery and comprehensive support for all MDLEY01 instruments.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

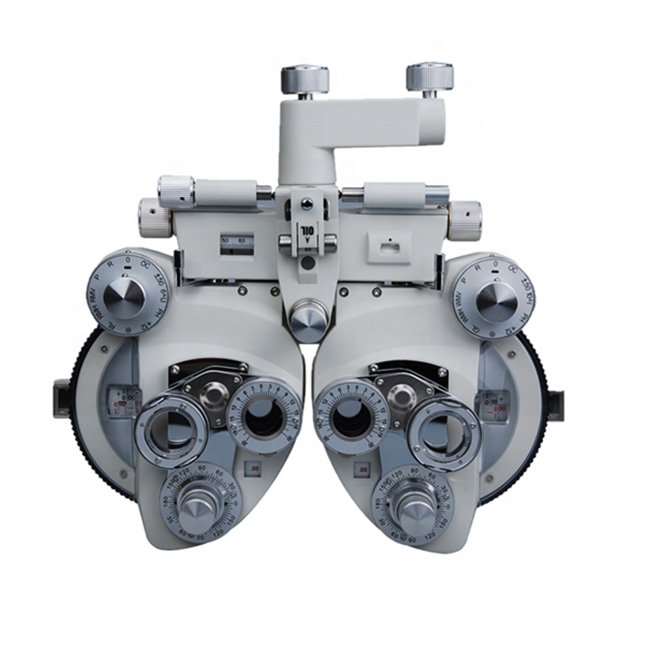

Portable Ophthalmic Phoropter Machine MDLPHP01
- Portable ophthalmic phoropter machine suitable for eye examinations - Sphere Power range from +16.75 to -19.00 diopters - Cylinder Power range from 0.00 to -6.00 diopters (optional up to -8.00 diopters with additional lens) - Cylinder axis adjustable from 0 to 180° in 5° steps - Cross Cylinder adjustment of ±25 diopters - Rotary Prisms from 0 to 20 in 1 step increments - P.D. adjustment from 50-75mm in 1mm steps - Comes with standard accessory lenses and accessories - Lightweight with a net weight of approximately 4.5 kg and compact dimensions of 31.8 x 9.6 x 29.3(cm)

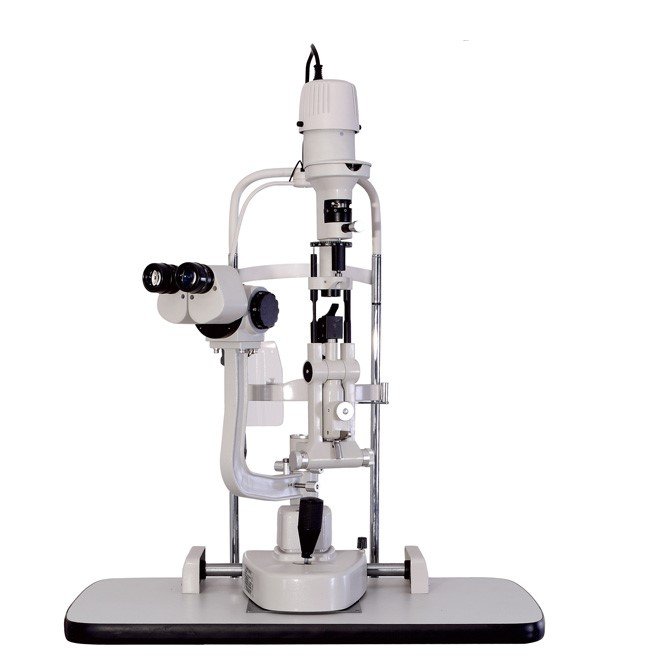

Digital Slit Lamp Microscope MDL-2ER
- Galileo parallel style digital slit lamp microscope - Multiple magnification options: 6x, 10x, 16x, 25x, 40x (SLM-2ER); 10x, 16x, 25x (SLM-2ER-L) - Eyepiece with 12.5x magnification - Adjustable pupil distance range of 55mm-75mm - Range of adjusting eyepieces from -8D to +8D - Slit length adjustable from 1mm to 14mm - Various diameter apertures available: φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm - Illumination angle options: 0, 5, 10, 15, 20 degrees

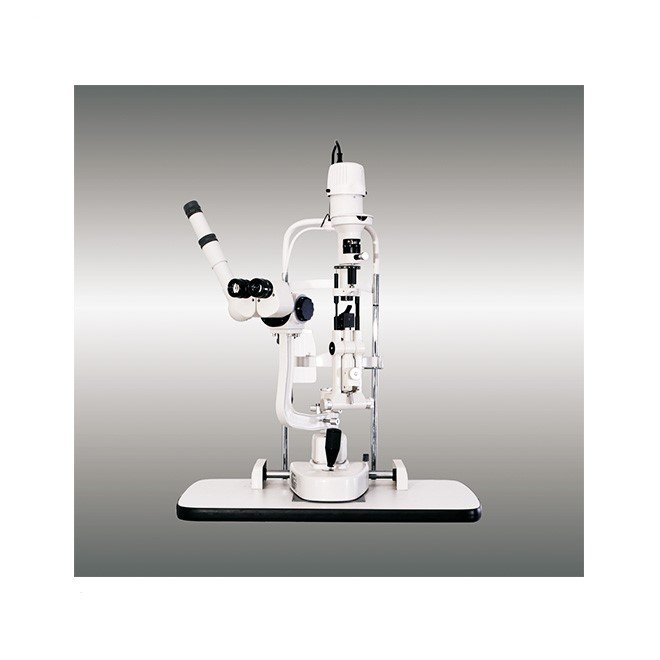

Slit Lamp Eye Examination Instruments MDL-2ER-L
- Galileo parallel style microscope with 3 or 5 magnification options - 12.5x eyepiece with total magnification of 10x, 16x, 25x - Field of view ranging from 33mm to 5mm for different magnifications - Adjustable pupil distance from 55mm to 75mm and eyepieces from -8D to +8D - Slit width and length adjustable from 1mm to 14mm - Diameter of aperture options include φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm - Illumination angle choices of 0, 5, 10, 15, 20 degrees with heat absorption, Grey, red free, Cobalt blue filters

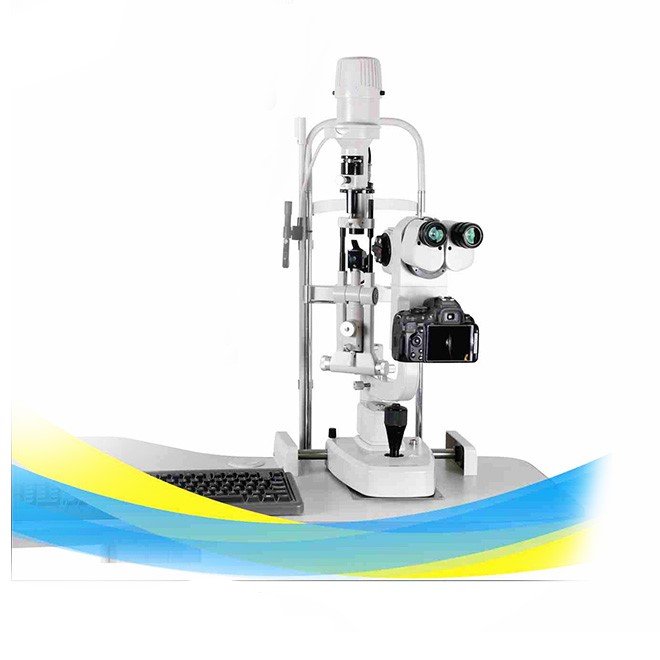

Slit Lamp MDL-3ER
- Galileo Parallel microscope type - Nikon D 5200 with High Definition DSLR 24.1 Mega pixels for image capturing - Eyepiece magnification of 12.5x - Total magnifications of 6x, 10x, 16x, 25x, 40x - Diopter adjustable from -5D to +5D - Slit width ranging from 0-14mm - Continuous slit height adjustable from 1-14mm - Continuous slit angle adjustable from 0-180 degrees - Includes various light spot diameters and filters: 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm light spot diameters; Heat Absorption, Grey, Redfree, Cobalt Blue filters

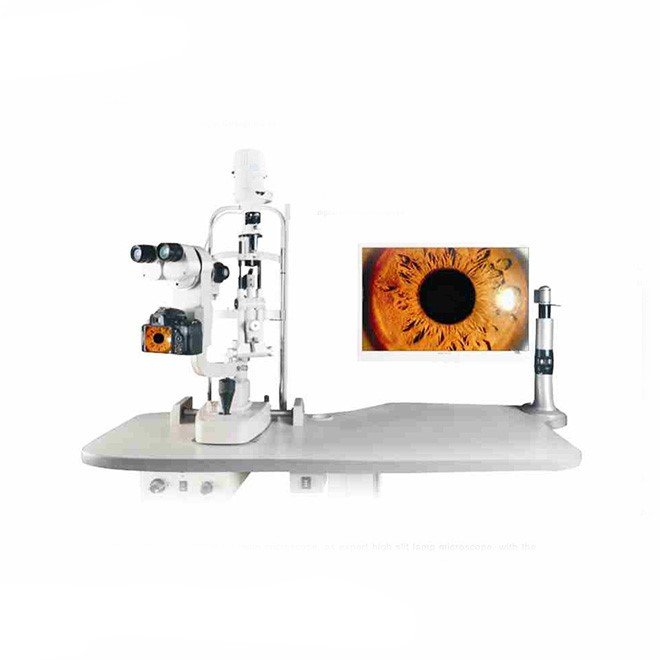

Slit lamp Bio-microscopy MDL-3ER-E
- Galileo Parallel microscope type - Nikon D 5200 camera with high definition DSLR 24.1 Mega pixels for image capturing - Eyepiece magnification: 12.5x - Total magnification options: 6x, 10x, 16x, 25x, 40x - Diopter adjustable range: -5D to +5D - Slit width range: 0-14mm - Continuous slit height range: 1-14mm - Continuous slit angle adjustable from 0-180 degrees - Light spot diameter options: 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm - Filters included: Heat Absorption, Grey, Redfree, Cobalt Blue

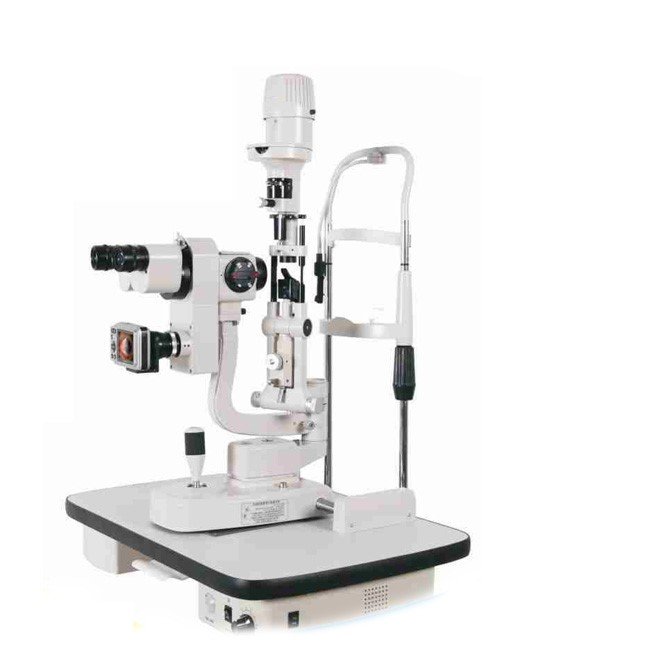

Clinical Slit Lamps MDL-4ER
- The MDL-4ER clinical slit lamp microscope comes with a digital camera and software for enhanced imaging. - Features a red LED fixation light for accurate examination. - Offers five magnification settings (6X, 10X, 16X, 25X, 40X) for detailed observation. - Equipped with a 12.5x eyepiece for clear visualization. - Various slit inclination angles (5°, 10°, 15°, 20°) for precise examination. - Adjustable eyepieces ranging from -5D to +5D to accommodate different vision needs. - Provides a magnification ratio of 0.794x for detailed examination. - Offers a wide range of slit width (0mm-14mm) and length (1mm-14mm) adjustments for versatile use.

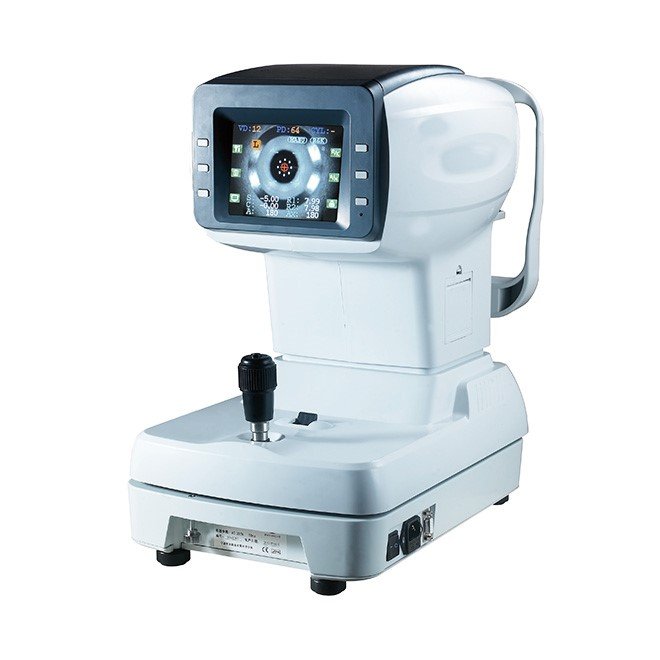

Automatic Ref-Keratometer Machine MDLKM01
