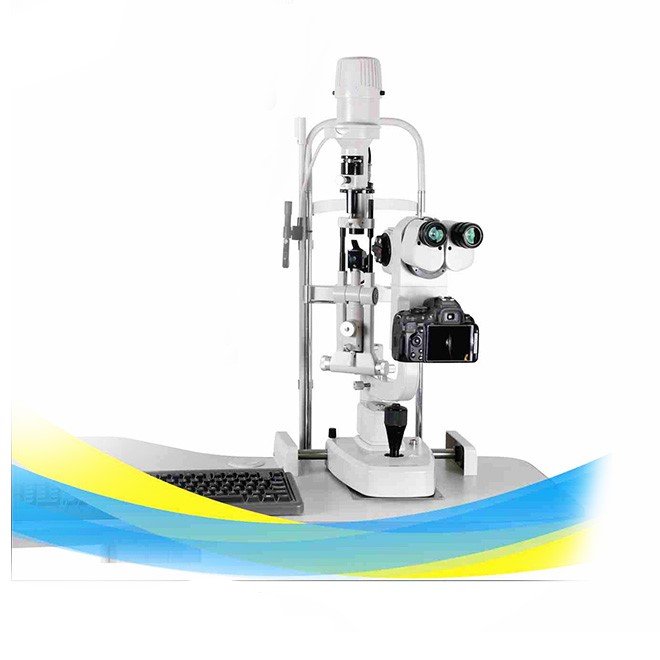

Slit Lamp MDL-3ER
- Galileo Parallel microscope type
- Nikon D 5200 with High Definition DSLR 24.1 Mega pixels for image capturing
- Eyepiece magnification of 12.5x
- Total magnifications of 6x, 10x, 16x, 25x, 40x
- Diopter adjustable from -5D to +5D
- Slit width ranging from 0-14mm
- Continuous slit height adjustable from 1-14mm
- Continuous slit angle adjustable from 0-180 degrees
- Includes various light spot diameters and filters: 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm light spot diameters; Heat Absorption, Grey, Redfree, Cobalt Blue filters
- SKU
- MDL-3ER
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Slit Lamp NEU3ER
High-precision slit lamp system with Galileo parallel microscope and integrated Nikon D 5200 DSLR imaging. Delivers exceptional optical clarity and diagnostic capability across six magnification levels, with comprehensive adjustable parameters for anterior segment examination and documentation.
Clinical overview
The Slit Lamp NEU3ER represents a comprehensive diagnostic platform for anterior segment evaluation. The Galileo parallel microscope design ensures minimal optical distortion and superior depth perception, critical for detecting subtle pathology in the cornea, conjunctiva, iris, and lens. Integration of the Nikon D 5200 DSLR (24.1 megapixels) enables high-definition image capture and documentation, supporting clinical record-keeping, patient education, and research applications.
Dual eyepiece magnification (6×, 10×, 16×, 25×, 40×) accommodates both screening and detailed examination workflows. Continuous adjustment of slit width (0–14 mm), height (1–14 mm), and angle (0–180°) provides granular control over illumination geometry. Diopter compensation (−5D to +5D) accommodates refractive variation among examiners. Multiple light spot diameters and filter options (heat absorption, grey, redfree, cobalt blue) enhance diagnostic specificity for corneal abrasion, anterior uveitis, hyphema, and other anterior segment conditions.
Key features & surgeon benefits
Galileo Parallel Microscope
- Minimal optical aberration for precise anterior segment visualization
- Six magnification levels (6×–40×) for flexible examination depth
- Superior depth perception and stereoscopic clarity
Integrated DSLR Capture
- Nikon D 5200 with 24.1 MP sensor for high-resolution documentation
- Real-time image review and archival for clinical records
- Supports patient communication and telemedicine workflows
Granular Adjustment Parameters
- Slit width 0–14 mm and height 1–14 mm for targeted illumination
- Slit angle 0–180° for oblique and tangential viewing
- Diopter range −5D to +5D for examiner accommodation
Multi-Filter Illumination
- Heat absorption filter reduces photothermal stress
- Grey, redfree, and cobalt blue filters enhance pathology detection
- Six light spot diameters (0.2–14 mm) for variable illumination
Technical specifications
| Microscope Type | Galileo Parallel |
|---|---|
| Image Capture System | Nikon D 5200 DSLR, 24.1 megapixels, high-definition |
| Eyepiece | 12.5× |
| Total Magnification | 6×, 10×, 16×, 25×, 40× |
| Diopter Adjustment | −5D to +5D |
| Slit Width | 0–14 mm (continuous) |
| Slit Height | 1–14 mm (continuous) |
| Slit Angle | 0–180° (adjustable) |
| Light Spot Diameters | 0.2 mm, 1 mm, 2 mm, 5 mm, 10 mm, 14 mm |
| Filters | Heat absorption, grey, redfree, cobalt blue |
| Packaging | As applicable |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Slit Lamp Base Unit | Galileo parallel microscope with integrated illumination arm | 1 |
| DSLR Camera | Nikon D 5200 with 24.1 MP sensor and lens adapter | 1 |
| Eyepieces | 12.5× magnification (paired) | 1 set |
| Objective Lenses | Multi-magnification turret (6×, 10×, 16×, 25×, 40×) | 1 |
| Filter Set | Heat absorption, grey, redfree, cobalt blue | 1 set |
| Light Spot Apertures | 0.2 mm, 1 mm, 2 mm, 5 mm, 10 mm, 14 mm | 1 set |
| Chin Rest & Forehead Support | Adjustable patient positioning assembly | 1 |
| Power Supply & Controls | Illumination control unit with brightness adjustment | 1 |
Get in touch for pricing & availability
Contact our ophthalmic equipment specialists to discuss system configuration, imaging integration, and institutional pricing. We provide comprehensive training and ongoing technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

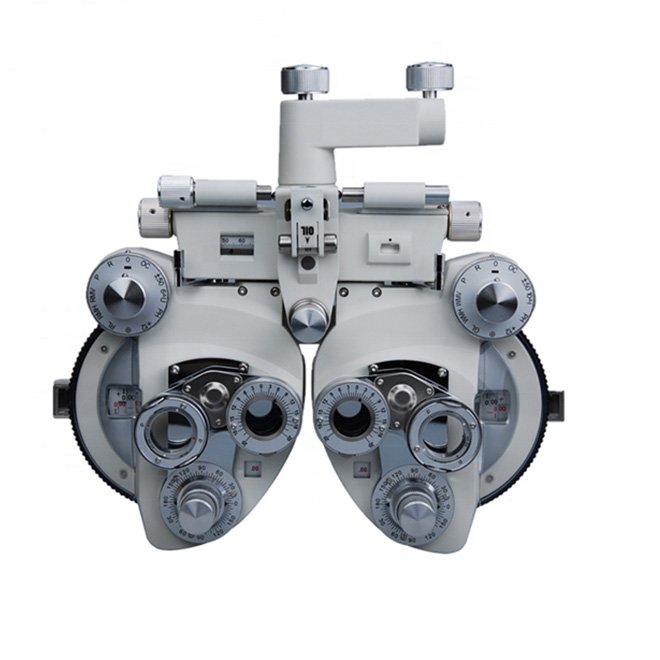

Portable Ophthalmic Phoropter Machine MDLPHP01
- Portable ophthalmic phoropter machine suitable for eye examinations - Sphere Power range from +16.75 to -19.00 diopters - Cylinder Power range from 0.00 to -6.00 diopters (optional up to -8.00 diopters with additional lens) - Cylinder axis adjustable from 0 to 180° in 5° steps - Cross Cylinder adjustment of ±25 diopters - Rotary Prisms from 0 to 20 in 1 step increments - P.D. adjustment from 50-75mm in 1mm steps - Comes with standard accessory lenses and accessories - Lightweight with a net weight of approximately 4.5 kg and compact dimensions of 31.8 x 9.6 x 29.3(cm)

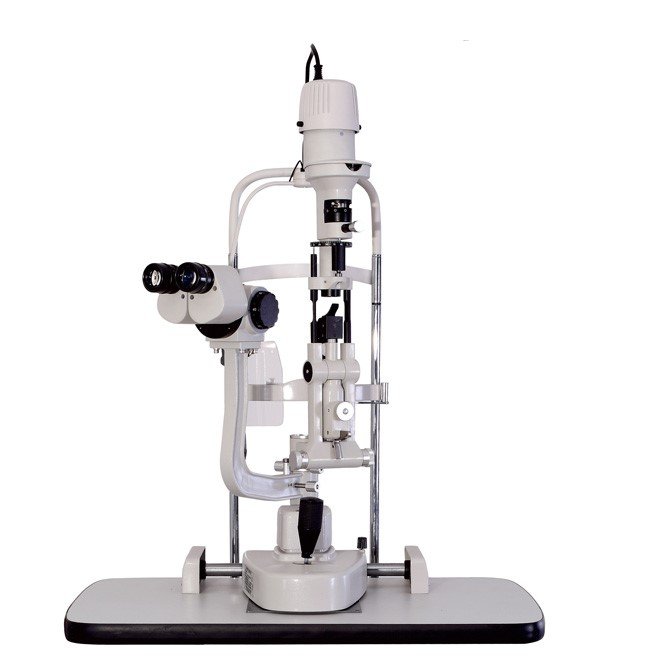

Digital Slit Lamp Microscope MDL-2ER
- Galileo parallel style digital slit lamp microscope - Multiple magnification options: 6x, 10x, 16x, 25x, 40x (SLM-2ER); 10x, 16x, 25x (SLM-2ER-L) - Eyepiece with 12.5x magnification - Adjustable pupil distance range of 55mm-75mm - Range of adjusting eyepieces from -8D to +8D - Slit length adjustable from 1mm to 14mm - Various diameter apertures available: φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm - Illumination angle options: 0, 5, 10, 15, 20 degrees

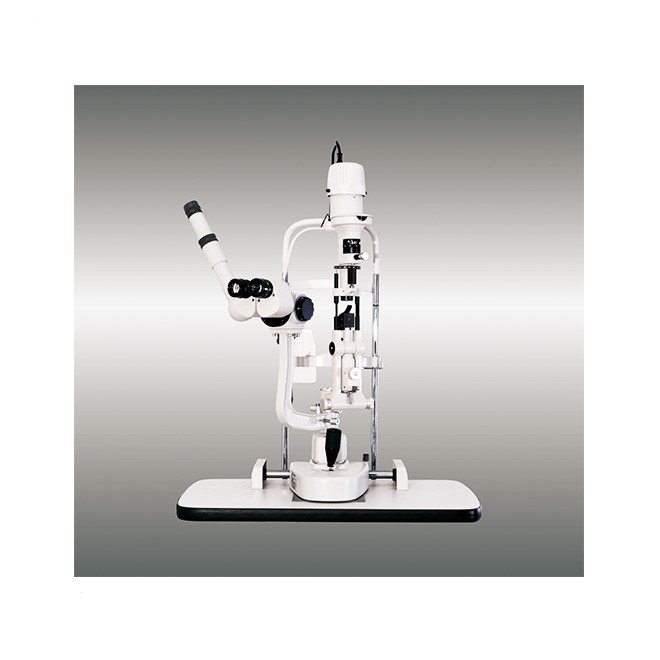

Slit Lamp Eye Examination Instruments MDL-2ER-L
- Galileo parallel style microscope with 3 or 5 magnification options - 12.5x eyepiece with total magnification of 10x, 16x, 25x - Field of view ranging from 33mm to 5mm for different magnifications - Adjustable pupil distance from 55mm to 75mm and eyepieces from -8D to +8D - Slit width and length adjustable from 1mm to 14mm - Diameter of aperture options include φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm - Illumination angle choices of 0, 5, 10, 15, 20 degrees with heat absorption, Grey, red free, Cobalt blue filters

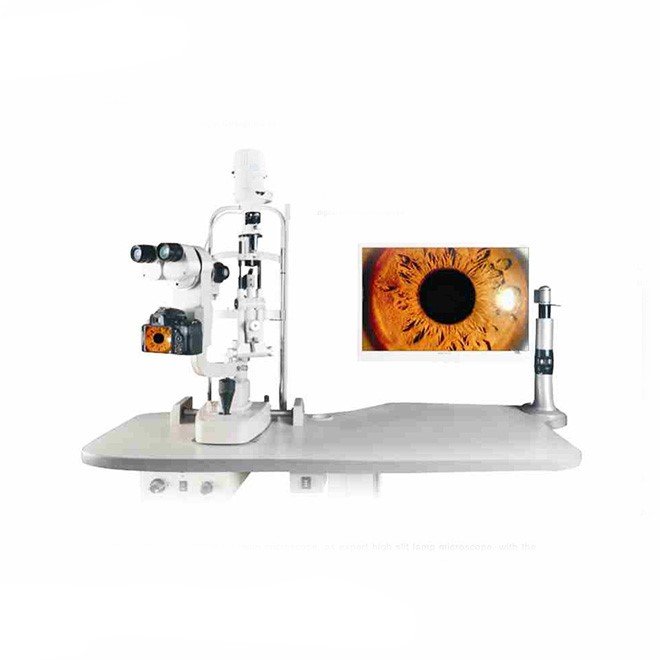

Slit lamp Bio-microscopy MDL-3ER-E
- Galileo Parallel microscope type - Nikon D 5200 camera with high definition DSLR 24.1 Mega pixels for image capturing - Eyepiece magnification: 12.5x - Total magnification options: 6x, 10x, 16x, 25x, 40x - Diopter adjustable range: -5D to +5D - Slit width range: 0-14mm - Continuous slit height range: 1-14mm - Continuous slit angle adjustable from 0-180 degrees - Light spot diameter options: 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm - Filters included: Heat Absorption, Grey, Redfree, Cobalt Blue

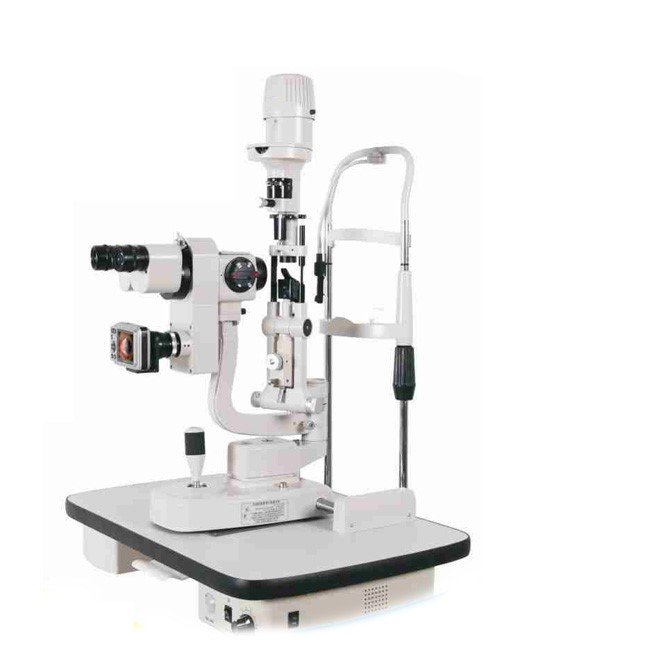

Clinical Slit Lamps MDL-4ER
- The MDL-4ER clinical slit lamp microscope comes with a digital camera and software for enhanced imaging. - Features a red LED fixation light for accurate examination. - Offers five magnification settings (6X, 10X, 16X, 25X, 40X) for detailed observation. - Equipped with a 12.5x eyepiece for clear visualization. - Various slit inclination angles (5°, 10°, 15°, 20°) for precise examination. - Adjustable eyepieces ranging from -5D to +5D to accommodate different vision needs. - Provides a magnification ratio of 0.794x for detailed examination. - Offers a wide range of slit width (0mm-14mm) and length (1mm-14mm) adjustments for versatile use.

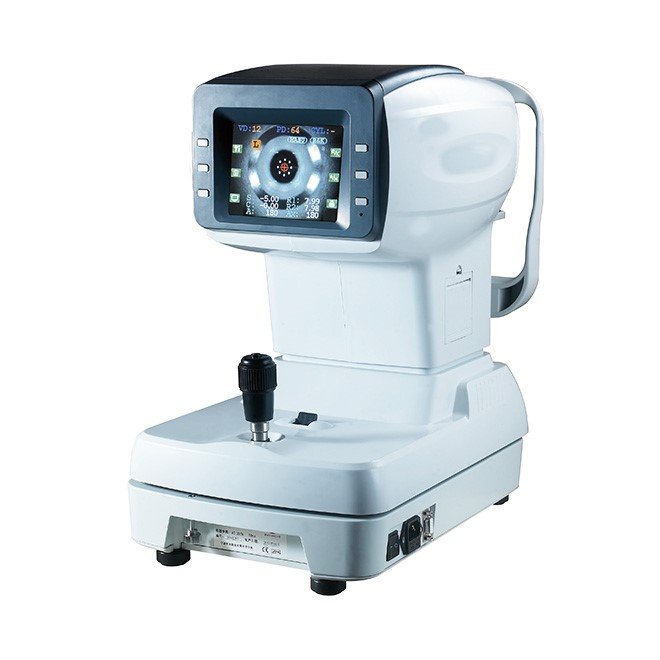

Automatic Ref-Keratometer Machine MDLKM01
- Fast and clear image processing with ARM processor - Japan's mature optical path system for precise measurements - Stable measuring system with CNC machining - Color LCD display with 5.7 inches man-machine interface - Automatic PD measurement function - Quick lock function for mobile platforms - Human body engineering design for comfort

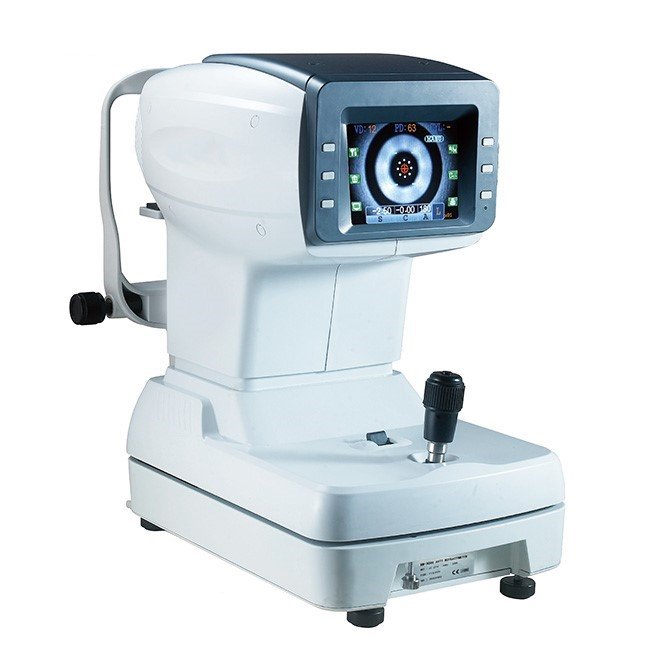

Ophthalmic Eye Test Machine MDLRM01
