Digital Slit Lamp Microscope NEU2ER
Advanced Galileo parallel-style slit lamp microscope with five magnification options (6x–40x), adjustable eyepieces, and comprehensive filter suite. Designed for precise anterior segment examination with superior optical clarity and ergonomic patient positioning.
Clinical overview
The NEU2ER Digital Slit Lamp Microscope represents a precision diagnostic platform for comprehensive anterior segment evaluation. Its Galileo parallel optical design delivers exceptional image quality across five magnification levels, enabling clinicians to transition seamlessly from overview assessment to high-magnification detail work. The wide field of view at lower magnifications (33mm at 6x) facilitates rapid patient positioning and overall anatomy review, while the 40x magnification with 5mm field of view provides exceptional detail for corneal topography, lens opacity grading, and anterior chamber angle assessment.
Equipped with four specialized filter options—heat absorption, neutral grey, red-free (green), and cobalt blue—the microscope supports diverse diagnostic protocols including fundus examination, retinal photography preparation, and anterior segment imaging. The halogen illumination system (12V, 50W) delivers consistent, bright illumination across all magnification levels, while the comprehensive slit adjustment capabilities (0–14mm width and length) enable precise illumination control for enhanced contrast and diagnostic accuracy.
Key features & surgeon benefits
Multi-magnification versatility
- Five magnification options (6x, 10x, 16x, 25x, 40x) for comprehensive diagnostic range
- Galileo parallel optical design ensures consistent image quality across all magnifications
- Field of view from 33mm to 5mm enables both overview and detailed examination
Clinician-focused design
- Adjustable eyepieces (−8D to +8D) accommodate diverse refractive needs
- Pupil distance range 55–75mm for comfortable binocular viewing
- Smooth motorized movement: 90mm forward/backward, 100mm left/right, 30mm up/down
Advanced light control
- Four filter types: heat absorption, grey, red-free (green), cobalt blue
- Halogen bulb (12V, 50W) with adjustable output (4.5V, 9V, 12V)
- Slit angle 0–180° and illumination angles (0°, 5°, 10°, 15°, 20°) for precise contrast control
Flexible jaw bracket system
- Chin rest vertical adjustment: 80mm range for varied patient heights
- Red LED fixation target aids patient alignment and comfort
- Compact footprint (25kg gross weight) suitable for standard examination rooms
Technical specifications
| Indications | Anterior segment examination, corneal assessment, lens evaluation, anterior chamber inspection, fundus preparation |
|---|---|
| Magnification | 6x, 10x, 16x, 25x, 40x (five-magnification model NEU2ER) |
| Field of view | 6x: 33mm | 10x: 20mm | 16x: 13mm | 25x: 8mm | 40x: 5mm |
| Eyepiece adjustment | −8D to +8D (diopter range) |
| Pupil distance | 55–75mm |
| Slit width | 0–14mm adjustable |
| Slit length | 1–14mm adjustable |
| Aperture diameter | φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm |
| Slit angle | 0–180° |
| Illumination angle | 0°, 5°, 10°, 15°, 20° |
| Filters | Heat absorption, grey, red-free (green), cobalt blue |
| Illumination source | Halogen bulb, 12V 50W |
| Output voltage | Illumination: 4.5V, 9V, 12V | Fixation: 6V |
| Movement range | Forward/backward: 90mm | Left/right: 100mm | Up/down: 30mm | Chin rest vertical: 80mm |
| Power input | 110/110V/220V ±10%, 50/60Hz, 60VA |
| Safety standard | IEC 601-1, Type I BF Model |
| Net weight | 21kg |
| Gross weight | 25kg |
| Packing dimensions | 720mm × 495mm × 480mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Slit lamp microscope head | Galileo parallel design with five magnifications (6x–40x) | 1 |
| Binocular eyepieces | 12.5x, adjustable −8D to +8D | 1 pair |
| Illumination system | Halogen bulb (12V, 50W) with variable output | 1 |
| Filter turret | Heat absorption, grey, red-free (green), cobalt blue | 1 |
| Slit adjustment mechanism | Width 0–14mm, length 1–14mm, angle 0–180° | 1 |
| Aperture disc | Six aperture sizes (φ14mm to φ0.2mm) | 1 |
| Motorized stage | XY movement (90mm F/B, 100mm L/R) with joystick control | 1 |
| Vertical focusing | Manual fine focus with 30mm range | 1 |
| Chin rest assembly | Adjustable jaw bracket with 80mm vertical range and red LED fixation | 1 |
| Power supply unit | 110/110V/220V input, multi-voltage output (4.5V, 9V, 12V illumination; 6V fixation) | 1 |
| Control footswitch | Illumination and stage movement control | 1 |
Get in touch for pricing & availability
Contact our ophthalmic equipment specialists to discuss pricing, delivery timelines, and customization options for the NEU2ER Digital Slit Lamp Microscope. We offer volume discounts, extended warranty packages, and comprehensive training support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Portable Ophthalmic Phoropter Machine MDLPHP01
- Portable ophthalmic phoropter machine suitable for eye examinations - Sphere Power range from +16.75 to -19.00 diopters - Cylinder Power range from 0.00 to -6.00 diopters (optional up to -8.00 diopters with additional lens) - Cylinder axis adjustable from 0 to 180° in 5° steps - Cross Cylinder adjustment of ±25 diopters - Rotary Prisms from 0 to 20 in 1 step increments - P.D. adjustment from 50-75mm in 1mm steps - Comes with standard accessory lenses and accessories - Lightweight with a net weight of approximately 4.5 kg and compact dimensions of 31.8 x 9.6 x 29.3(cm)
Slit Lamp Eye Examination Instruments MDL-2ER-L
- Galileo parallel style microscope with 3 or 5 magnification options - 12.5x eyepiece with total magnification of 10x, 16x, 25x - Field of view ranging from 33mm to 5mm for different magnifications - Adjustable pupil distance from 55mm to 75mm and eyepieces from -8D to +8D - Slit width and length adjustable from 1mm to 14mm - Diameter of aperture options include φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm - Illumination angle choices of 0, 5, 10, 15, 20 degrees with heat absorption, Grey, red free, Cobalt blue filters
Slit Lamp MDL-3ER
- Galileo Parallel microscope type - Nikon D 5200 with High Definition DSLR 24.1 Mega pixels for image capturing - Eyepiece magnification of 12.5x - Total magnifications of 6x, 10x, 16x, 25x, 40x - Diopter adjustable from -5D to +5D - Slit width ranging from 0-14mm - Continuous slit height adjustable from 1-14mm - Continuous slit angle adjustable from 0-180 degrees - Includes various light spot diameters and filters: 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm light spot diameters; Heat Absorption, Grey, Redfree, Cobalt Blue filters
Slit lamp Bio-microscopy MDL-3ER-E
- Galileo Parallel microscope type - Nikon D 5200 camera with high definition DSLR 24.1 Mega pixels for image capturing - Eyepiece magnification: 12.5x - Total magnification options: 6x, 10x, 16x, 25x, 40x - Diopter adjustable range: -5D to +5D - Slit width range: 0-14mm - Continuous slit height range: 1-14mm - Continuous slit angle adjustable from 0-180 degrees - Light spot diameter options: 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm - Filters included: Heat Absorption, Grey, Redfree, Cobalt Blue
Clinical Slit Lamps MDL-4ER
- The MDL-4ER clinical slit lamp microscope comes with a digital camera and software for enhanced imaging. - Features a red LED fixation light for accurate examination. - Offers five magnification settings (6X, 10X, 16X, 25X, 40X) for detailed observation. - Equipped with a 12.5x eyepiece for clear visualization. - Various slit inclination angles (5°, 10°, 15°, 20°) for precise examination. - Adjustable eyepieces ranging from -5D to +5D to accommodate different vision needs. - Provides a magnification ratio of 0.794x for detailed examination. - Offers a wide range of slit width (0mm-14mm) and length (1mm-14mm) adjustments for versatile use.
Automatic Ref-Keratometer Machine MDLKM01
- Fast and clear image processing with ARM processor - Japan's mature optical path system for precise measurements - Stable measuring system with CNC machining - Color LCD display with 5.7 inches man-machine interface - Automatic PD measurement function - Quick lock function for mobile platforms - Human body engineering design for comfort

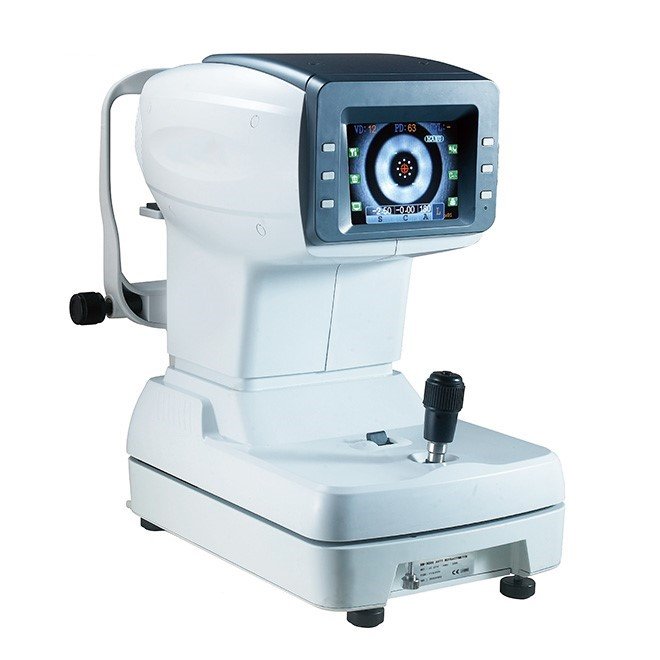

Ophthalmic Eye Test Machine MDLRM01
