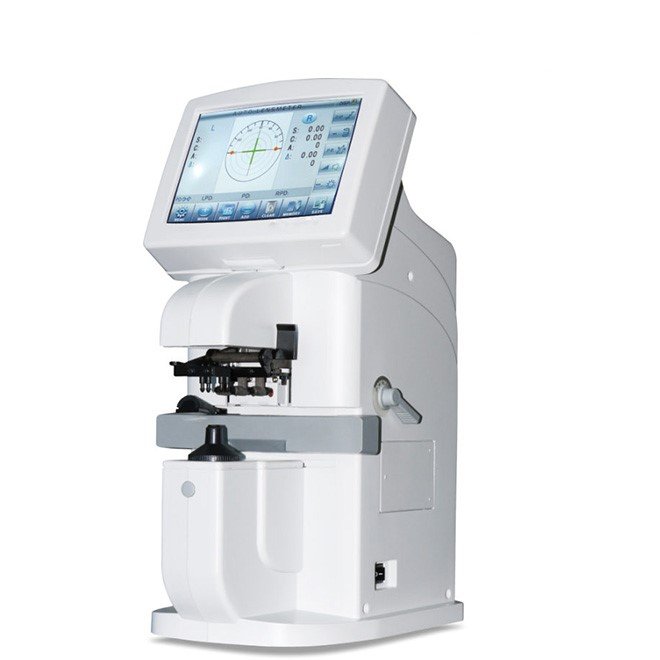

Auto Lensmeter MDLJD20
- Auto Lensmeter MDLJD20 with a range of measurement for sphere, cylinder, axis, add, and prism degree
- Offers measurement modes for cylinder, prism, and contact lens including single/progressive/automatic recognition
- Can measure lenses with a diameter of Φ20～108mm and PD range of 40～90mm
- Features a speedy measurement of 0.1S with a 7” TFT LCD display
- Printer options available: Thermal Printer for MDLJD26 & MDLJD20, No Printer for MDLJD20B
- Compact dimensions: MDLJD26 - 216mm×300mm×456mm, MDLJD20＆MDLJD20B - 196mm×286mm×442mm
- Lightweight design weighing approximately 6KG
- Power supply: 100-240V 50-60Hz for versatile usage
- SKU
- MDLJD20
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Auto Lensmeter MDLJD20
Precision optical measurement system for comprehensive lens analysis. The MDLJD20 delivers fast, accurate readings across sphere, cylinder, axis, and add power with support for both soft and hard contact lenses. Ideal for optical dispensaries, eye care clinics, and refraction centers requiring reliable, high-speed measurements.
Clinical overview
The Auto Lensmeter MDLJD20 is a fully automated optical measurement instrument designed for rapid, accurate analysis of spectacle lenses and contact lenses in clinical and retail optical environments. With measurement speed of just 0.1 seconds and a comprehensive measurement range, the MDLJD20 enables efficient workflow while maintaining precision across all optical parameters including sphere, cylinder, axis, add power, and prism degree.
The 7-inch TFT LCD display provides clear, real-time visual feedback, and the instrument supports multiple measurement modes—single, progressive, and automatic recognition—making it adaptable to diverse clinical scenarios. Compact design and global power compatibility (100–110V/240V, 50–60Hz) ensure seamless integration into any optical practice worldwide.
Key features & surgeon benefits
Comprehensive Optical Coverage
- Sphere: ±25D with 0.01/0.12/0.25D step options
- Cylinder: ±9.99D with flexible step increments
- Axis: 0°–180° in 1° increments for precise orientation
- Add power: ±9.99D for progressive lens analysis
- Prism: 0–15 in multiple step modes
Fast, Flexible Measurement Modes
- 0.1-second measurement speed for high-throughput environments
- Single, progressive, and automatic recognition modes
- Support for soft and hard contact lenses
- Cylinder notation: +, +/−, − options
- Prism measurement: X-Y and P-B coordinate systems
Clear Visual Feedback
- 7-inch TFT LCD display for easy reading
- Adjustable PD measurement: 40–90mm in 0.5mm steps
- Lens diameter range: Φ20–108mm for versatile lens sizes
- Intuitive user interface for rapid operation
- Optional thermal printer integration available
Compact, Global-Ready Design
- Lightweight: approximately 6kg for easy repositioning
- Compact footprint: 196×286×442mm (MDLJD20 base model)
- Universal power supply: 100–110V/240V, 50–60Hz
- Durable optical construction for long-term clinical use
- 2-year manufacturer warranty with lifetime support
Technical specifications
| Indications | Optical lens measurement, contact lens verification, prescription verification, refraction analysis |
|---|---|
| Sphere Range | 0–±25D (0.01/0.12/0.25D step) |
| Cylinder Range | 0–±9.99D (0.01/0.12/0.25D step) |
| Axis Range | 0°–180° (1° increments) |
| Add Power Range | 0–±9.99D (0.01/0.12/0.25D step) |
| Prism Range | 0–15 (0.01/0.12/0.25D step) |
| Lens Diameter | Φ20–108mm |
| PD Adjustment | 40–90mm (0.5mm steps) |
| Measurement Speed | 0.1 seconds |
| Display | 7-inch TFT LCD |
| Contact Lens Support | Soft and hard lenses |
| Measurement Modes | Single, progressive, automatic recognition |
| Cylinder Notation | +, +/−, − |
| Prism Notation | X-Y, P-B |
| Dimensions (MDLJD20) | 196mm × 286mm × 442mm |
| Weight | Approximately 6kg |
| Power Supply | 100–110V/240V, 50–60Hz |
| Printer Option | Thermal printer available (MDLJD26 & MDLJD20); not included in MDLJD20B |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Auto Lensmeter Unit | MDLJD20 optical measurement instrument with 7-inch TFT LCD display | 1 |
| Power Cable | Universal AC power cord (100–110V/240V, 50–60Hz compatible) | 1 |
| User Manual | Multilingual instruction guide and technical documentation | 1 |
| Lens Holder Accessories | Standard lens positioning fixtures for various lens sizes | 1 set |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customisation options including thermal printer integration and OEM configurations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Portable Ophthalmic Phoropter Machine MDLPHP01
- Portable ophthalmic phoropter machine suitable for eye examinations - Sphere Power range from +16.75 to -19.00 diopters - Cylinder Power range from 0.00 to -6.00 diopters (optional up to -8.00 diopters with additional lens) - Cylinder axis adjustable from 0 to 180° in 5° steps - Cross Cylinder adjustment of ±25 diopters - Rotary Prisms from 0 to 20 in 1 step increments - P.D. adjustment from 50-75mm in 1mm steps - Comes with standard accessory lenses and accessories - Lightweight with a net weight of approximately 4.5 kg and compact dimensions of 31.8 x 9.6 x 29.3(cm)
Digital Slit Lamp Microscope MDL-2ER
- Galileo parallel style digital slit lamp microscope - Multiple magnification options: 6x, 10x, 16x, 25x, 40x (SLM-2ER); 10x, 16x, 25x (SLM-2ER-L) - Eyepiece with 12.5x magnification - Adjustable pupil distance range of 55mm-75mm - Range of adjusting eyepieces from -8D to +8D - Slit length adjustable from 1mm to 14mm - Various diameter apertures available: φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm - Illumination angle options: 0, 5, 10, 15, 20 degrees
Slit Lamp Eye Examination Instruments MDL-2ER-L
- Galileo parallel style microscope with 3 or 5 magnification options - 12.5x eyepiece with total magnification of 10x, 16x, 25x - Field of view ranging from 33mm to 5mm for different magnifications - Adjustable pupil distance from 55mm to 75mm and eyepieces from -8D to +8D - Slit width and length adjustable from 1mm to 14mm - Diameter of aperture options include φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm - Illumination angle choices of 0, 5, 10, 15, 20 degrees with heat absorption, Grey, red free, Cobalt blue filters

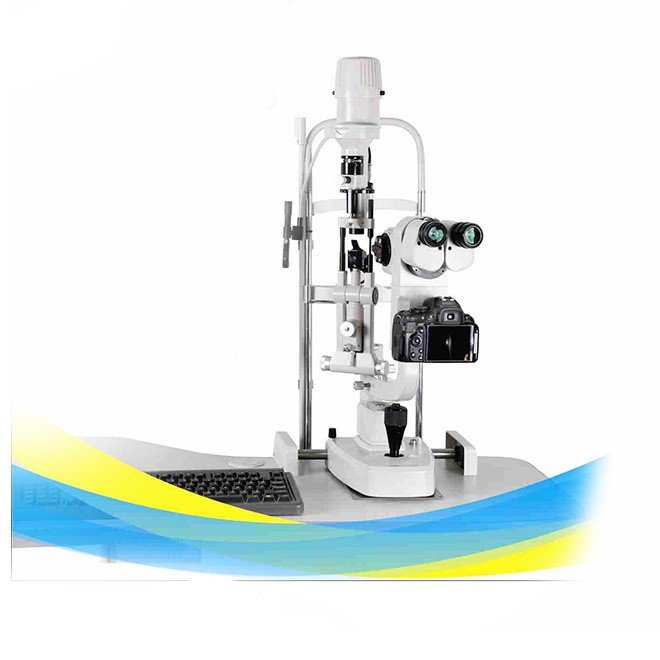

Slit Lamp MDL-3ER
