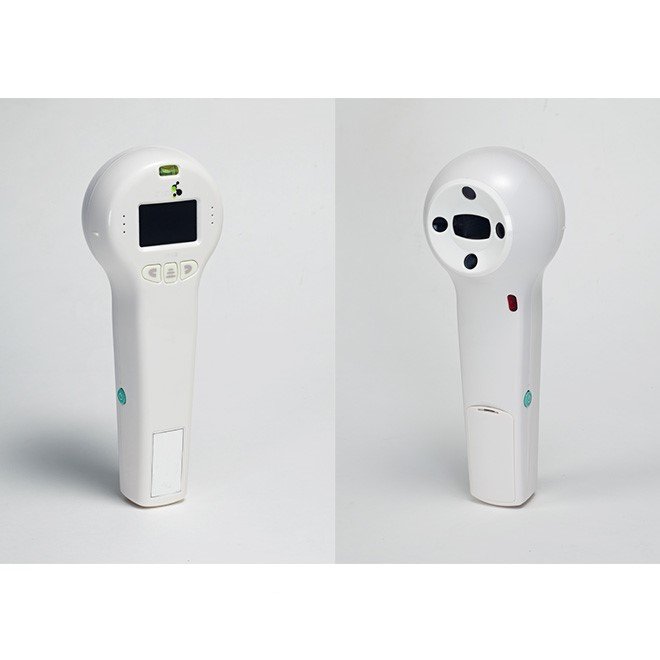

Portable Handheld Curvature Radius Keratometer MDLYZ05
- Portable handheld keratometer for measuring corneal curvature
- Measuring range from 6.5mm to 9.5mm with precision of ±0.05mm
- Resolution of curvature radius of cornea is 0.01mm
- Main meridian axial position measurement deviation: ± 2°
- Equipped with a wireless infrared thermal printer for output
- Allows direct observation of the eye through the screen
- Compact and lightweight design, weighing less than 0.5Kg
- Dimensions: 240mm×90mm×60mm
- Power consumption: 500mW+15%
- SKU
- MDLYZ05
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Portable Handheld Curvature Radius Keratometer MDLYZ05
Advanced portable keratometry solution for precise corneal curvature measurement. Lightweight handheld design delivers professional-grade precision in a compact form factor, enabling eye care professionals to perform accurate keratometry measurements anywhere.
Clinical overview
The MDLYZ05 Portable Handheld Curvature Radius Keratometer revolutionizes corneal curvature measurement by combining clinical-grade accuracy with unprecedented portability. Weighing less than 0.5 kilograms and measuring just 240mm × 90mm × 60mm, this sophisticated instrument fits comfortably in your hand while delivering the precise measurements required for contact lens fitting, pre-operative assessments, and comprehensive eye examinations. The device's wireless infrared thermal printer output eliminates the need for cumbersome cables, while the integrated observation screen allows for direct visualization during measurement procedures.
Designed for the demands of modern ophthalmology and optometry practices, the MDLYZ05 provides exceptional versatility without compromising measurement integrity. Whether you're conducting mobile eye care services, performing bedside examinations, or operating in a traditional clinical setting, this keratometer delivers consistent, reliable results. The device's ability to measure corneal curvature radius from 6.5mm to 9.5mm with 0.01mm resolution ensures you can accurately assess a wide range of corneal topographies, from steep to flat curvatures, making it an indispensable tool for comprehensive eye care delivery.
Key features & surgeon benefits
Ultra-Portable Design
- Weighs less than 0.5kg for easy handling
- Compact dimensions 240mm × 90mm × 60mm
- Enables mobile eye care and bedside examinations
High-Precision Measurement
- ±0.05mm accuracy for clinical-grade results
- 0.01mm curvature radius resolution
- ±2° meridian axial position deviation
Wireless & Integrated Observation
- Wireless infrared thermal printer output
- Direct eye observation through integrated screen
- Rapid measurement acquisition for efficient workflow
Comprehensive Measurement Coverage
- 6.5mm to 9.5mm measurement range
- Accommodates steep to flat corneal curvatures
- Suitable for diverse patient populations
Technical specifications
| Indications | Contact lens fitting, pre-operative assessment, corneal diagnostics, mobile eye care, post-operative monitoring, optical retail, research applications, bedside examinations |
|---|---|
| Measuring range | 6.5mm to 9.5mm |
| Precision | ±0.05mm |
| Curvature radius resolution | 0.01mm |
| Meridian axial position deviation | ±2° |
| Output method | Wireless infrared thermal printer |
| Observation system | Direct eye observation through integrated screen |
| Weight | Less than 0.5kg |
| Dimensions | 240mm × 90mm × 60mm |
| Power consumption | 500mW ±15% |
| Device type | Portable handheld keratometer |
| Application | Ophthalmology, optometry, eye care |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLYZ05 Keratometer | Portable handheld curvature radius keratometer with integrated observation screen and wireless printer connectivity | 1 |
| Wireless Infrared Thermal Printer | Portable printer for wireless output of measurement results | 1 |
| Power Supply & Battery | Rechargeable battery pack with charging adapter for extended clinical use | 1 |
| Carrying Case | Protective carrying case for safe transport and storage of the device | 1 |
| User Manual & Documentation | Comprehensive operating instructions and technical documentation | 1 |
| Calibration Certificate | Factory calibration verification and quality assurance documentation | 1 |
