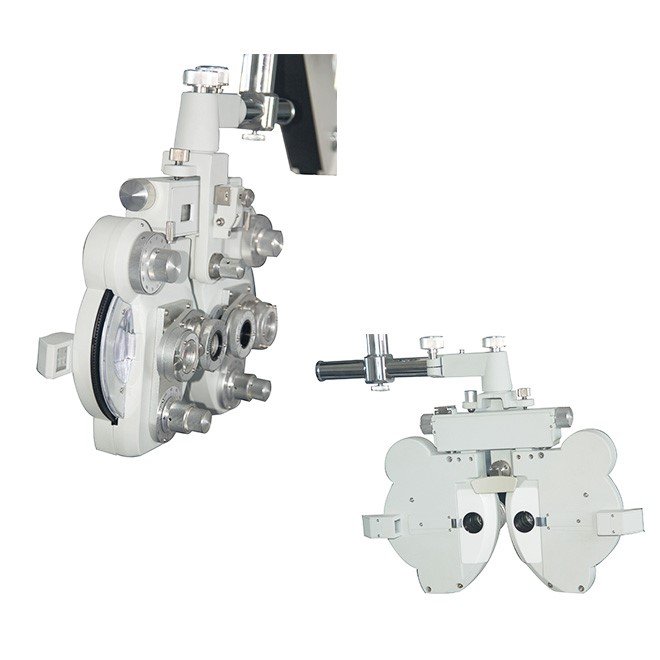

Phoropter for Precision Measurement of Visual Functions MDLVT5A
- Sphere powers range from +16.75D to -19.00D
- Cylinder power range from 0 to -6.00D
- Astigmatic axis scale from 0 to 180° in 5° steps
- Cross cylinder of ±0.25D
- Rotary prism range from 0 to 20∆D in 1∆D step
- Allows precise measurement of visual functions
- Comes with optional auxiliary lenses for expanded capabilities
- Synchronized cross cylinder for enhanced accuracy
- SKU
- MDLVT5A
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Phoropter for Precision Measurement of Visual Functions MDLVT5A
Advanced phoropter designed for accurate and efficient measurement of refractive errors and visual functions. Delivers precise sphere, cylinder, and axis measurements with optional auxiliary lenses for extended range capability. Ideal for comprehensive optometric examinations in clinical and private practice settings.
Clinical overview
The MDLVT5A phoropter is a precision optical instrument engineered for comprehensive refractive assessment in clinical optometry and ophthalmology. It provides accurate measurement of sphere power, cylinder power, astigmatic axis, and prism correction, enabling clinicians to determine precise eyeglass prescriptions and diagnose refractive errors with confidence. The instrument's intuitive design and synchronized controls streamline the refraction process, reducing examination time while maintaining measurement accuracy.
With a compact footprint suitable for modern clinical environments, the MDLVT5A accommodates both standard and extended measurement ranges through optional auxiliary lenses. The high-quality optical construction ensures consistent performance across thousands of patient examinations, making it a reliable investment for optometry practices and eye care facilities seeking durable, precision refraction equipment.
Key features & surgeon benefits
Comprehensive Refractive Coverage
- Sphere power: +16.75D to −19.00D with 0.25D or 0.12D increments
- Cylinder power: 0 to −6.00D, expandable to −8.00D with auxiliary lens
- Extended range to ±10.00D with optional auxiliary lenses
Efficient Clinical Operation
- Synchronized cross cylinder (±0.25D) with astigmatic axis control
- Astigmatic axis scale 0 to 180° in 5° increments for precise alignment
- Rotary prism 0 to 20∆D in 1∆D steps for binocular balance assessment
Long-Term Value
- Durable high-quality construction for extended clinical use
- Compact design minimizes space requirements in busy practices
- Reduced maintenance costs with robust optical and mechanical components
Flexible Configuration
- Optional ±0.12D auxiliary lens for enhanced measurement precision
- Optional ±10.00D lens for extended sphere power range
- Optional −2.00D auxiliary lens for expanded cylinder measurement
Technical specifications
| Indications | Measurement of refractive errors including sphere power, cylinder power, astigmatic axis, and prism correction for eyeglass prescription determination |
|---|---|
| Sphere power range | +16.75D to −19.00D (standard); +26.75D to −29.00D (with ±0.12D auxiliary lens); +6.75D to −9.00D (with ±10.00D lens) |
| Sphere minimum reading | 0.25D or 0.12D (with auxiliary lens) |
| Cylinder power range | 0 to −6.00D (standard); 0 to −8.00D (with −2.00D auxiliary lens) |
| Cylinder minimum reading | 0.25D or 0.12D (with auxiliary lens) |
| Astigmatic axis scale | 0 to 180° in 5° increments |
| Cross cylinder | ±0.25D, reversal type, synchronized with astigmatic axis |
| Rotary prism | 0 to 20∆D in 1∆D steps |
| Material | Precision optical glass and aluminium construction |
| Design | Compact tabletop configuration suitable for clinical settings |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Phoropter Head | Complete optical refraction unit with sphere, cylinder, and prism mechanisms | 1 |
| Astigmatic Axis Scale | 0 to 180° graduated scale with 5° increments | 1 |
| Cross Cylinder | ±0.25D reversal type, synchronized with axis control | 1 |
| Rotary Prism | 0 to 20∆D in 1∆D steps | 1 |
| Auxiliary Lens Holder | Mounting system for optional auxiliary lenses | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the MDLVT5A phoropter, optional auxiliary lenses, and custom configurations for your practice. We provide competitive pricing, fast delivery, and comprehensive support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
