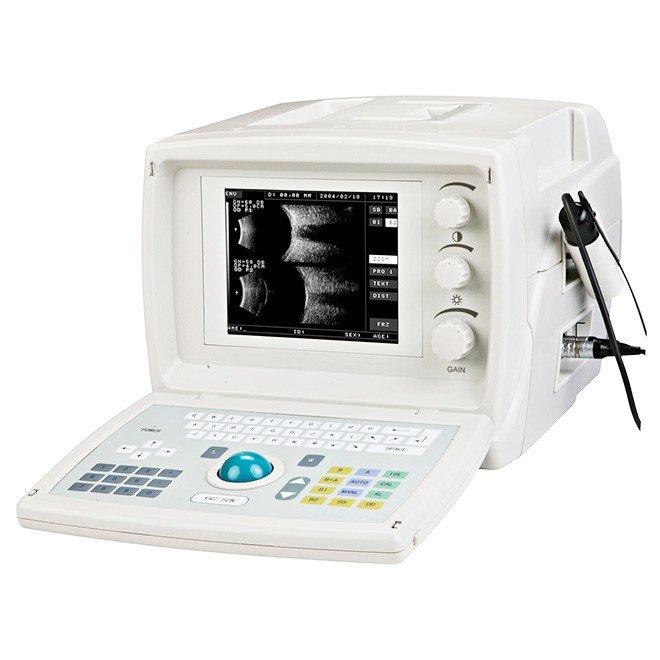

Ophthalmological Diagnosis Ultrasonic A/B Scanner MDLOD21S
- High-quality ophthalmological diagnosis ultrasonic A/B scanner
- Features both B Mode and A Mode capabilities
- Precise measurements with ultrasonic frequency of 10MHz
- Adjustable gain control up to 98dB for clear imaging
- Multiple display modes including B, B+B, and B+A
- Accurate geometrical position with resolution as fine as ≤0.2mm
- A Mode offers biometry accuracy of ≤0.06mm
- Allows for IOL power calculations with various methods
- Ideal for measuring anterior chamber depth, lens thickness, vitreous length, and axial length
- SKU
- MDLOD21S
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Ophthalmological Diagnosis Ultrasonic A/B Scanner MDLOD21S
High-performance 10 MHz ultrasonic A/B scanner for comprehensive anterior and posterior segment imaging. Delivers exceptional axial resolution of ≤0.2 mm with dual-mode capability for biometric measurements and structural assessment. Ideal for cataract surgery planning, IOL calculations, and diagnostic evaluation of opaque media.
Clinical overview
The MDLOD21S is a precision ultrasonic imaging system engineered for comprehensive ophthalmic diagnostics and biometric assessment. Operating at 10 MHz, it delivers exceptional spatial resolution with axial accuracy of ≤0.2 mm and lateral resolution of ≤0.4 mm, enabling detailed visualization of anterior chamber structures, lens morphology, and posterior segment pathology. The dual A/B mode architecture supports both qualitative imaging and quantitative biometry, making it indispensable for cataract surgery planning, IOL power calculations, and evaluation of dense cataracts or corneal opacities where optical imaging is limited.
The mechanical sector scan method with 53° coverage and adjustable gain control (0–98 dB) ensures optimal image quality across diverse tissue densities and pathologies. Electronic calipers provide real-time distance measurement with ≤0.25 mm accuracy, while A Mode biometry achieves ≤0.06 mm precision for axial length and anterior chamber depth. Support for six IOL calculation formulas (SRK-1, SRK/T, SRK-II, BINK/2, HOLLADAY, HOFFER-Q) streamlines refractive planning workflows.
Key features & surgeon benefits
Dual-Mode Visualization
- B, B+B, and B+A display modes for flexible diagnostic workflows
- 256-level grayscale for subtle tissue differentiation
- Mechanical sector scan with 53° angle and 31–63 mm depth range
Rapid Biometric Assessment
- Automatic and manual measurement modes for anterior chamber depth, lens thickness, vitreous length, and axial length
- Electronic caliper with real-time cursor positioning
- Integrated IOL power calculation with six formula options
Exceptional Precision
- Axial resolution ≤0.2 mm; lateral resolution ≤0.4 mm
- A Mode biometry accuracy ≤0.06 mm for critical IOL calculations
- Geometric position accuracy: axial ≤5%, lateral ≤10%
Flexible Integration
- Adjustable gain control (0–98 dB) for diverse tissue types
- Digital scan converter capacity ≥4×512×512×8 bit for high-fidelity image processing
- OEM integration and bespoke configurations available
Technical specifications
| Indications | Anterior chamber depth, lens thickness, vitreous length, axial length measurement, IOL power calculation, posterior segment imaging in opaque media |
|---|---|
| Ultrasonic Frequency | 10 MHz |
| Scanning Method | Mechanical sector scan |
| Display Modes | B, B+B, B+A |
| Grayscale Levels | 256 |
| Scanning Depth | 31–63 mm |
| Scanning Angle | 53° |
| Axial Resolution | ≤0.2 mm |
| Lateral Resolution | ≤0.4 mm |
| Geometric Position Accuracy | Axial ≤5%, Lateral ≤10% |
| Gain Control (B Mode) | 0–98 dB |
| Electronic Caliper Accuracy | ≤0.25 mm |
| A Mode Biometry Accuracy | ≤0.06 mm |
| A Mode Resolution | 0.01 mm |
| Axial Length Measuring Range | 15–39 mm |
| A Mode Gain Range | 0–55 dB (user adjustable); total 98 dB |
| Measuring Parameters | Anterior chamber depth, lens thickness, vitreous length, axial length |
| Measuring Methods | Automatic and manual |
| IOL Power Calculation Formulas | SRK-1, SRK/T, SRK-II, BINK/2, HOLLADAY, HOFFER-Q |
| Digital Scan Converter Capacity | ≥4×512×512×8 bit |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | MDLOD21S Ophthalmological Ultrasonic A/B Scanner with integrated display and control panel | 1 |
| Transducer Probe | 10 MHz mechanical sector scan probe with integrated electronics | 1 |
| Power Supply | AC power adapter with universal voltage input | 1 |
| Footswitch | Dual-function footswitch for image capture and measurement activation | 1 |
| Coupling Gel | Sterile ophthalmic ultrasound coupling gel (starter bottle) | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
| Calibration Certificate | Factory calibration and performance verification report | 1 |
