Ophthalmic A/B Scan MDLYZ09
- 10MHz B scan with magnetic driven, noiseless operation
- Sector Scanning mode with multi continuous magnification and Real-Time magnification
- Image resolution: Lateral ≤0.3mm; Vertical ≤0.2mm
- Depth of 60mm for enhanced vitreous body and retina imaging
- Gain of probe ranging from 30dB to 105dB for clear imaging
- A scan with 10MHz frequency and LED lighting
- Measures anterior chamber depth, lens thickness, vitreous body length, total length, and average
- Supports various eye modes and IOL formulas
- Compatible with Windows XP, VISTA, and WINDOWS 7 platforms, with user-defined report templates
- SKU
- MDLYZ09
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

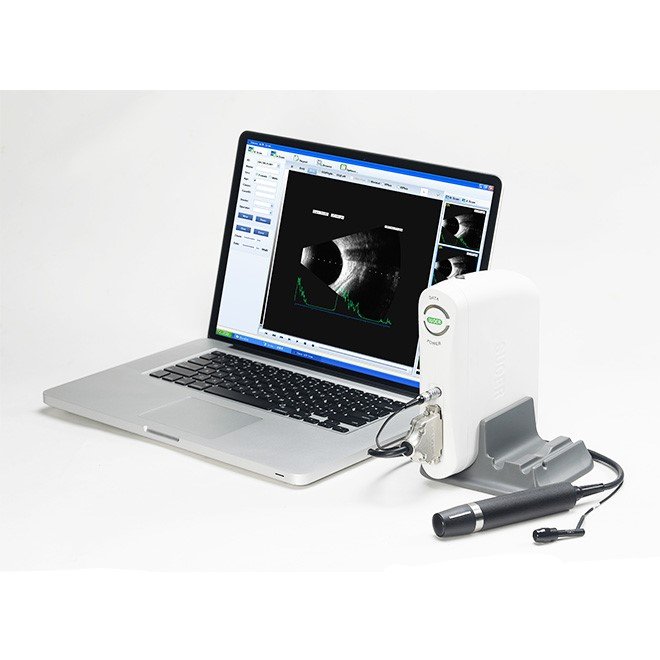

Ophthalmic A/B Scan MDLYZ09
Comprehensive dual-mode ultrasound scanning system for precise anterior and posterior segment evaluation. High-frequency 10MHz B-scan with noiseless magnetic drive and advanced A-scan biometry for IOL calculations and comprehensive eye measurements.
Clinical overview
The MDLYZ09 is a dual-mode ophthalmic ultrasound scanner combining high-resolution B-scan imaging with precise A-scan biometry in a single integrated platform. The 10MHz B-scan delivers exceptional lateral (≤0.3mm) and vertical (≤0.2mm) resolution with real-time magnification, enabling detailed visualization of vitreous body, retina, and posterior segment pathology. The noiseless magnetic drive ensures stable, artifact-free imaging for reliable clinical assessment.
The A-scan module provides accurate biometric measurements with ±0.05mm precision across a 40mm depth range, supporting multiple IOL calculation formulas (SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS) for comprehensive cataract and refractive surgery planning. Storage capacity for up to 10 scanning results per eye, combined with customizable report templates and multi-format image export (AVI, JPG), streamlines clinical workflow and documentation.
Key features & surgeon benefits
High-Resolution B-Scan
- 10MHz frequency with noiseless magnetic drive
- Lateral ≤0.3mm and vertical ≤0.2mm resolution
- 53° sector scanning angle for comprehensive coverage
- 256 gray scale with multi-color false color and OCT modes
- Real-time multi-continuous magnification
Precision A-Scan Measurements
- ±0.05mm precision across 40mm depth
- Anterior chamber depth, lens thickness, vitreous length
- Six IOL formula compatibility for accurate power calculations
- Phakic, aphakic, and dense cataract modes
- Statistical analysis with average and standard deviation
Integrated Clinical Platform
- Dual display modes: B, B+B, B+A, A for flexible viewing
- Storage for 10 scanning results per eye
- Multi-keyword case search and preset keywords
- User-defined report templates for standardized documentation
- 100-image movie review capability
Advanced Image Processing
- Multiple curve processing and pseudo-color processing
- Multigroup distance, perimeter, and area measurements
- AVI and JPG format export for easy sharing and archiving
- Windows XP, VISTA, and Windows 7 compatible
- Probe gain adjustment 30dB–105dB
Technical specifications
| B-Scan Frequency | 10MHz, magnetic driven, noiseless |
|---|---|
| B-Scan Resolution | Lateral ≤0.3mm; Vertical ≤0.2mm |
| B-Scan Depth | 60mm |
| B-Scan Angle | 53° |
| B-Scan Magnification | Multi-continuous real-time magnification |
| A-Scan Frequency | 10MHz with LED |
| A-Scan Depth | 40mm |
| A-Scan Precision | ±0.05mm |
| IOL Formulas | SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS |
| Gray Scale | 256 levels |
| Display Modes | B, B+B, B+A, A |
| Image Storage | 10 scanning results per eye |
| Image Export | AVI, JPG formats |
| Movie Review | 100 images |
| Operating System | Windows XP, VISTA, Windows 7 |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Ophthalmic A/B Scan Console with integrated display and controls | 1 |
| B-Scan Probe | 10MHz sector scanning probe with magnetic drive | 1 |
| A-Scan Probe | 10MHz A-scan biometry probe with LED | 1 |
| Software | Windows-compatible imaging and analysis software with customizable templates | 1 |
| Power Supply | Medical-grade power adapter and cable | 1 |
| Documentation | User manual, quick reference guide, and technical specifications | 1 |
Get in touch for pricing & availability
Contact our ophthalmic equipment specialists to discuss system configuration, pricing, and delivery timelines. We provide comprehensive support and training for all MDLYZ09 installations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
