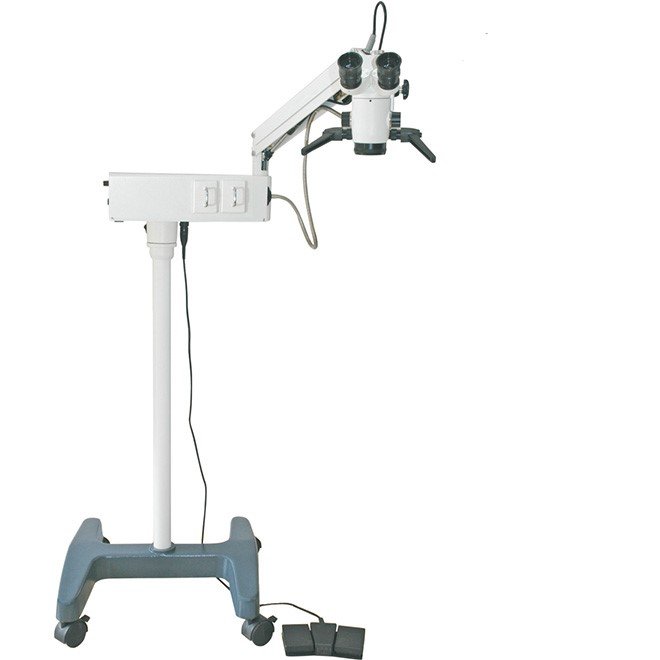

Multi-section Ophthalmic Operation Microscope MDL20P5
- The Multi-section Ophthalmic Operation Microscope MDL20P5 is a high-quality microscope designed for ophthalmic operations.
- It features eyepiece magnification of 12.5× and various objective lens options for precise viewing.
- With magnifications of 5.3×, 8×, and 12×, this microscope offers versatile magnification settings.
- The adjustable diopter and pupil distance make it comfortable for users with different vision needs.
- Equipped with a powerful illumination source and coaxial cold light, it ensures clear and bright images.
- The microscope has a wide reaching radius of 870mm and adjustable vertical range for ease of use.
- Optional accessories like a 10X eyepiece, table installation parts, video devices, and more, enhance its functionality.
- SKU
- MDL20P5
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Multi-section Ophthalmic Operation Microscope NEU20P5
High-precision surgical microscope engineered for ophthalmic procedures with exceptional optical clarity and ergonomic design. Features 12.5× eyepiece magnification, multiple objective magnifications, and coaxial cold light illumination exceeding 30,000 lux for superior visualization during delicate eye surgery.
Clinical overview
The NEU20P5 is a precision ophthalmic surgical microscope designed to deliver exceptional optical performance and ergonomic comfort during complex eye procedures. With a 12.5× eyepiece magnification and selectable objective magnifications of 5.3×, 8×, and 12×, surgeons gain flexible magnification control for procedures ranging from anterior segment work to detailed posterior segment visualization. The microscope's 190mm working distance provides ample space for instrument manipulation while maintaining optimal visualization.
Advanced coaxial cold light illumination with brightness exceeding 30,000 lux ensures superior tissue visualization without thermal stress. The adjustable pupil distance range of 50–80mm accommodates diverse user anatomies, while the fine focusing range of 30mm enables precise depth control. With maximal optical resolution of 100 LP/mm and a robust 41kg construction, the NEU20P5 delivers stability and durability essential for demanding surgical environments.
Key features & surgeon benefits
Superior Magnification & Resolution
- 12.5× eyepiece with 5.3×, 8×, 12× objective magnifications
- 100 LP/mm maximal resolution for detailed tissue visualization
- Multiple field diameters (37mm, 25mm, 16.7mm) for procedural flexibility
Coaxial Cold Light Excellence
- ≥30,000 lux brightness for superior visualization
- 6°+0° coaxial cold light source eliminates thermal stress
- 12V/100W medical-grade halogen lamp for consistent performance
Surgeon Comfort & Control
- Adjustable pupil distance: 50–80mm for personalized fit
- Fine focusing range of 30mm for precise depth control
- 190mm working distance accommodates diverse surgical approaches
Modular & Expandable Design
- Optional 10× eyepiece for enhanced magnification
- Video integration: 1/2″ or 1/4″ CCD camera compatibility
- Specialized adapters for ENT and multi-specialty use
Technical specifications
| Eyepiece Magnification | 12.5× |
|---|---|
| Objective Lens | f=200 |
| Magnifications (Main) | 5.3×, 8×, 12× |
| Field Diameters | F37mm, F25mm, F16.7mm |
| Working Distance | 190mm |
| Adjustable Diopter | ±7D |
| Pupil Distance Range | 50–80mm |
| Maximal Resolution | 100 LP/mm |
| Illumination Source | 12V/100W medical cold reflection halogen lamp |
| Illumination Type | 6°+0° Coaxial cold light source |
| Coaxial Illumination Brightness | ≥30,000 lux |
| Arm Reaching Radius | 870mm |
| Vertical Adjustment Range | 700–1100mm |
| Fine Focusing Range | 30mm |
| Voltage | AC 220V±22V / 50Hz±1Hz or AC 110V±11V / 60Hz±1Hz |
| Power Consumption | 120VA |
| Fuse | AC 250V T1.25A or AC 125V T2.5A |
| Electrical Safety Standard | GB9706.1-2007, Type I |
| Packing Volume | 0.2 m³ (1 carton) |
| Total Gross Weight | 41 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Microscope Unit | Multi-section ophthalmic operation microscope with integrated illumination | 1 |
| Eyepieces | 12.5× magnification binocular eyepieces | 1 pair |
| Objective Turret | Multi-magnification objective lens assembly (5.3×, 8×, 12×) | 1 |
| Illumination System | 12V/100W halogen lamp with coaxial cold light delivery | 1 |
| Arm & Support | Precision articulated arm with 870mm reach radius | 1 |
| Focusing Mechanism | Fine focus control with 30mm adjustment range | 1 |
| Power Supply | AC mains adapter (dual voltage: 110V/220V) | 1 |
Get in touch for pricing & availability
Contact our ophthalmic equipment specialists to discuss the NEU20P5 microscope, pricing, delivery timelines, and optional accessories tailored to your surgical facility's requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
