Reliable rebound measurement
Repeatability has been good across a range of pressures and it is far easier on children than air-puff devices. Alignment can be fiddly with deep-set eyes.
Dr. Beatrice Lindqvist, MDVerified buyerJan 24, 2026
MDL

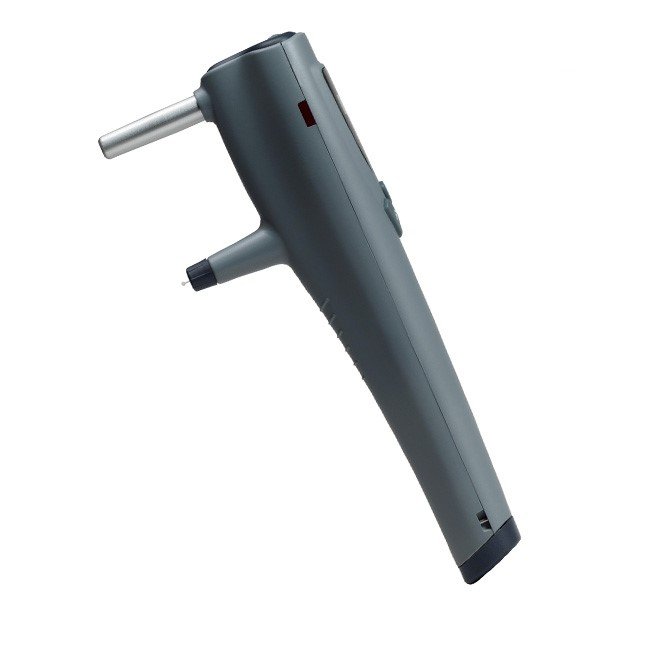

Intraocular Pressure Measurement Rebound Tonometer MDLYZ06
4.3(3 reviews)- Measures intraocular pressure from 3mmHg to 70mmHg
- Precision of ±1.5mmHg for IOP between 3mmHg and 25mmHg, and ±2.5mmHg for IOP between 25mmHg and 70mmHg
- Can perform measurements in both vertical and horizontal positions
- Features a wireless Infrared Thermal Printer for output
- User-friendly and easy to operate
- Compact and portable design for convenience
- Does not require anesthesia for measurements
- SKU
- MDLYZ06
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Ophthalmic Diagnostic Equipment
Intraocular Pressure Measurement Rebound Tonometer MDLYZ06
Precise, non-contact intraocular pressure measurement from 3–70 mmHg with ±1.5 mmHg accuracy in the low-to-moderate range. This portable, anesthesia-free rebound tonometer delivers rapid results in both vertical and horizontal measurement modes, ideal for glaucoma screening and monitoring in clinical and home settings.
Ordering Ref.
MDLYZ06
ConfigurationPortable Rebound Tonometer
MaterialMedical-grade polymer & optics
ApplicationOphthalmic diagnostics
Customisation available for OEM integration and clinical workflow requirements. Contact sales for bespoke configurations.
Clinical overview
The MDLYZ06 rebound tonometer represents a significant advancement in non-invasive intraocular pressure (IOP) measurement. Utilizing rebound technology, this device eliminates the need for topical anesthesia while delivering clinically accurate results across the full diagnostic range of 3–70 mmHg. The measurement principle relies on a lightweight probe that gently contacts the cornea and rebounds, with the rebound velocity directly correlating to IOP. This approach is particularly valuable for patients with corneal sensitivity, contact lens wearers, and pediatric populations where anesthesia avoidance is preferred.
The MDLYZ06 excels in high-volume screening environments and routine glaucoma monitoring. Its dual measurement modes (vertical and horizontal) accommodate patient positioning constraints and ensure reliable readings regardless of head posture. Wireless infrared thermal printer integration enables seamless data capture and patient record documentation, reducing manual transcription errors and improving workflow efficiency in busy ophthalmic practices.
Key features & surgeon benefits
Measurement Accuracy
Precision across full range
- ±1.5 mmHg accuracy for 3–25 mmHg (low-to-moderate pressures)
- ±2.5 mmHg accuracy for 25–70 mmHg (elevated pressures)
- Rapid, repeatable measurements for confidence in diagnosis
Patient Comfort
Anesthesia-free measurement
- Non-invasive rebound technology eliminates topical anesthesia requirement
- Suitable for contact lens wearers and sensitive corneas
- Ideal for pediatric and geriatric populations
Workflow Integration
Portable and wireless
- Compact, lightweight design for easy transport between examination rooms
- Wireless infrared thermal printer for immediate documentation
- Dual measurement modes (vertical and horizontal) for flexible patient positioning
Durability & Support
Robust construction
- Medical-grade materials ensure long-term reliability
- 2-year manufacturer warranty with lifetime technical support
- Easy-to-interpret results for timely clinical decision-making
Technical specifications
| Measuring range | 3–70 mmHg |
|---|---|
| Precision (low–moderate) | ±1.5 mmHg (3–25 mmHg) |
| Precision (elevated) | ±2.5 mmHg (25–70 mmHg) |
| Measurement modes | Vertical and horizontal |
| Output | Wireless infrared thermal printer |
| Design | Portable, compact, lightweight |
| Anesthesia requirement | None |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLYZ06 Tonometer | Main measurement unit with rebound probe and display | 1 |
| Wireless infrared thermal printer | Portable printer for immediate result documentation | 1 |
| Calibration probe | For device verification and maintenance | 1 |
| Carrying case | Protective transport case for portability | 1 |
| Power adapter | AC/DC power supply for device and printer | 1 |
| User manual & quick reference | Multilingual documentation and clinical guidelines | 1 |
Get in touch for pricing & availability
Contact our ophthalmic equipment specialists to discuss pricing, delivery timelines, and integration with your clinical workflow. We offer flexible purchasing options and comprehensive training for your team.
Phone: (424) 270-9077
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.3· 3 reviewsQuick, comfortable IOP readings
The rebound probe needs no anaesthetic drops and readings correlate well with applanation on our glaucoma follow-ups. Patients barely register the measurement, which improves compliance.
Dr. Lauren Ashworth, MDVerified buyerAug 12, 2024
Handy screening tonometer
Fast to acquire six readings and the averaging reduces operator variability nicely. Probe base changes are cheap enough but do add up over a busy list.
Dr. Emeka Nwosu, MDAug 14, 2024
