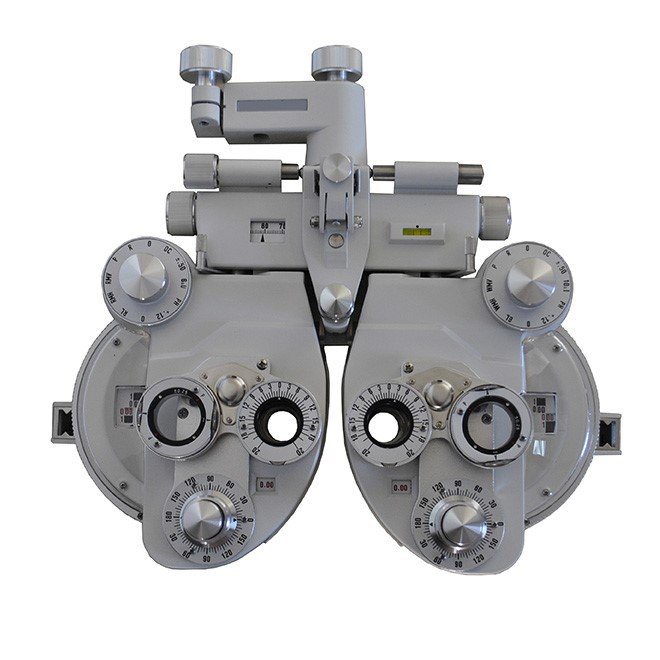

Eye Test Phoropter MDLYG100
- The Eye Test Phoropter MDLYG100 is a versatile tool for conducting comprehensive eye exams.
- It offers a wide range of sphere powers from +16.75D to -19.00D, with the option for more precise readings of 0.25D or 0.12D.
- The cylinder power range extends from 0 to -6.00D, with a minimum reading of 0.25D or 0.12D when using an auxiliary lens.
- For more advanced measurements, the device can accommodate up to -8.00D with a -2.00D auxiliary lens.
- The astigmatic axis scale covers a full range of 0 to 180° in 5° increments for accurate diagnosis.
- A convenient cross cylinder feature allows for quick adjustments of ±0.25D, synchronized with the astigmatic axis.
- Additionally, the rotary prism function offers a range of 0 to 20∆D in 1∆D increments for further precision during eye examinations.
- SKU
- MDLYG100
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Eye Test Phoropter MDLYG100
Professional-grade phoropter for comprehensive refractive examinations. Delivers precise sphere, cylinder, and axis measurements with reversible cross-cylinder and rotary prism capabilities. Ideal for optometry clinics and ophthalmology practices requiring high-precision refraction testing.
Clinical overview
The MDLYG100 phoropter is a precision optical instrument designed for comprehensive refractive examinations in clinical and private practice settings. It combines a wide range of sphere and cylinder powers with synchronized astigmatic axis control, enabling clinicians to perform accurate refraction testing and diagnose refractive errors with confidence. The reversible cross-cylinder and rotary prism features support advanced testing protocols for astigmatism and binocular vision assessment.
Built to exacting optical and mechanical standards, the MDLYG100 delivers consistent, reliable performance across thousands of patient examinations. Its intuitive design minimises examination time while maintaining the precision required for optimal patient outcomes.
Key features & surgeon benefits
Comprehensive Power Coverage
- Sphere range +16.75D to −19.00D with 0.25D increments
- Cylinder range 0 to −6.00D with fine 0.25D steps
- Extended range available with optional auxiliary lenses (up to ±10.00D)
Advanced Astigmatism Assessment
- Astigmatic axis scale 0–180° in 5° increments
- Reversible ±0.25D cross-cylinder synchronized with axis control
- Rotary prism 0–20∆D in 1∆D steps for binocular vision testing
Efficient Examination Protocol
- Intuitive lens dial arrangement reduces examination time
- Smooth mechanical operation ensures repeatable measurements
- Compatible with standard trial frame and auxiliary lens systems
Flexible Configuration Options
- Optional ±0.12D and ±10.00D auxiliary lenses for extended power ranges
- Adaptable to various clinical setups and examination protocols
- OEM customisation available for institutional requirements
Technical specifications
| Indications | Comprehensive eye examinations, refractive error assessment, astigmatism evaluation, binocular vision testing |
|---|---|
| Sphere power range | +16.75D to −19.00D (minimum reading 0.25D or 0.12D with auxiliary lens); extended to +26.75D to −29.00D with optional ±10.00D lens |
| Cylinder power range | 0 to −6.00D (minimum reading 0.25D or 0.12D); extended to 0 to −8.00D with −2.00D auxiliary lens |
| Astigmatic axis scale | 0 to 180° in 5° increments |
| Cross cylinder | ±0.25D, reversible type, synchronized with astigmatic axis |
| Rotary prism | 0 to 20∆D in 1∆D steps |
| Material | Precision optical glass and aluminium construction |
| Packaging | Standard protective case with carrying handle |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Phoropter Head | Complete optical and mechanical assembly with sphere, cylinder, and axis controls | 1 |
| Cross Cylinder | ±0.25D reversible lens, synchronized with astigmatic axis | 1 |
| Rotary Prism | 0–20∆D prism with 1∆D step increments | 1 |
| Protective Case | Padded carrying case with handle | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your phoropter requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive after-sales support.
