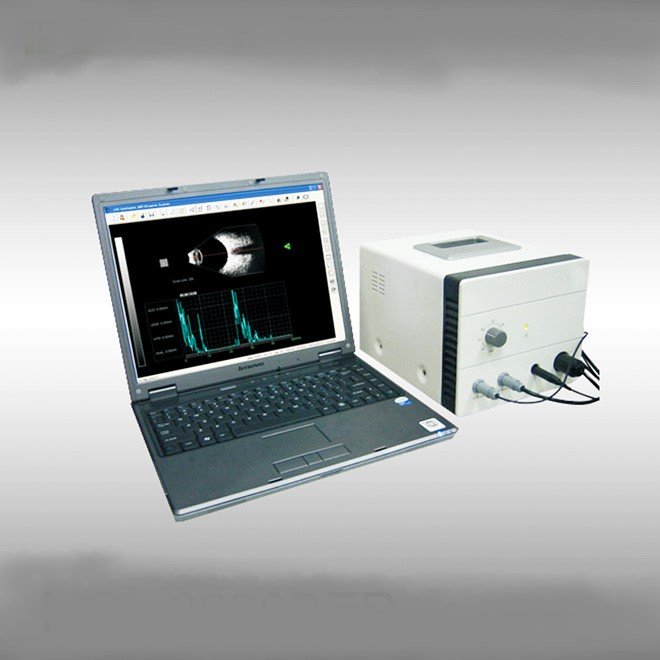

Basic Ophthalmic A/B Scan MDL-2000BER
- The Basic Ophthalmic A/B Scan MDL-2000BER is a versatile device for A-scan and B-scan modes
- A-scan capabilities include precise measurements of ACD depth, lens, axial length, and more
- IOL calculation options include SRK/II, SRK/T, Holladay, SCDK, Hoffer-Q
- Automatic and manual operation modes for convenience
- B-scan mode offers mechanic sector scans with a scan angle of 53 degrees
- Detect depth of 50mm with a probe frequency of 10 MHZ
- Image post-processing features for enhanced image quality and analysis
- SKU
- MDL-2000BER
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Basic Ophthalmic A/B Scan NEU2000BER
Advanced dual-mode A/B scan system delivering precise biometric measurements and comprehensive intraocular imaging. Engineered for cataract surgery planning, retinal assessment, and IOL power calculations with high-resolution 256 gray-scale imaging and intuitive automatic or manual operation.
Clinical overview
The NEU2000BER is a dual-mode ophthalmic ultrasound system combining A-scan biometry with B-scan imaging in a single, integrated platform. The A-scan mode delivers high-precision measurements of axial length, anterior chamber depth, and lens thickness—critical parameters for accurate IOL power calculations. The B-scan mode provides real-time mechanical sector imaging for posterior segment assessment, particularly valuable in cases of dense cataracts or vitreous opacities where optical biometry is limited.
With 10 MHz probe frequency, ±0.05 mm measurement precision, and support for five major IOL calculation formulas (SRK/II, SRK/T, Holladay, SCDK, Hoffer-Q), the system streamlines preoperative planning and reduces calculation errors. The 256 gray-scale display, combined with post-processing tools (brightness, contrast, smooth, sharp, stretch, equalize), ensures diagnostic clarity in all clinical scenarios. Dual operation modes—automatic for routine cases and manual for complex anatomy—provide flexibility for diverse patient populations.
Key features & surgeon benefits
High-Precision Biometry
- ±0.05 mm measurement precision for axial length, ACD, and lens thickness
- 10 MHz probe frequency with ±0.5 MHz error tolerance
- Automatic and manual operation modes for flexible measurement protocols
Five Formula Options
- SRK/II, SRK/T, Holladay, SCDK, and Hoffer-Q formulas
- Built-in IOL table for rapid power selection
- Mass memory storage for case data and patient records
Comprehensive B-Scan
- Mechanical sector scans with 53° scan angle and 50 mm detection depth
- 0.5 mm vertical and 1.0 mm lateral resolution for detailed imaging
- 256 gray-scale display with 10-frame storage capacity
Clinician-Friendly Design
- Image post-processing: brightness, contrast, smooth, sharp, stretch, equalize
- External high-definition ink-jet printer support for reports
- Intuitive interface for rapid measurement and documentation
Technical specifications
| Indications | Cataract surgery planning, axial length measurement, anterior chamber depth assessment, lens thickness evaluation, retinal imaging, IOL power calculation |
|---|---|
| A-Scan Probe Frequency | 10 MHz (±0.5 MHz error) |
| A-Scan Precision | 0.05 mm |
| A-Scan Measurement Parameters | ACD depth, lens thickness, axial length, average values |
| IOL Calculation Formulas | SRK/II, SRK/T, Holladay, SCDK, Hoffer-Q |
| A-Scan Operation Modes | Automatic, Manual |
| B-Scan Mode | Mechanical sector scans |
| B-Scan Angle | 53° |
| B-Scan Detection Depth | 50 mm |
| B-Scan Probe Frequency | 10 MHz (±0.5 MHz error) |
| B-Scan Vertical Resolution | 0.5 mm |
| B-Scan Lateral Resolution | 1.0 mm |
| Gray Scale Display | 256 levels |
| Display Modes | B; B+B; B+A |
| Image Storage | 10 frames |
| Image Post-Processing | Brightness, contrast, smooth, sharp, stretch, equalize |
| Data Storage | Mass memory with built-in case data |
| Output | External high-definition ink-jet printer support |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Console Unit | A/B scan processor with integrated display and controls | 1 |
| A-Scan Probe | 10 MHz transducer with cable assembly | 1 |
| B-Scan Probe | 10 MHz mechanical sector transducer with cable assembly | 1 |
| Probe Holder | Adjustable stand for probe positioning | 1 |
| Power Supply | AC adapter with regional plug options | 1 |
| User Manual | Comprehensive operating and maintenance guide | 1 |
| Calibration Block | Reference standard for system verification | 1 |
Get in touch for pricing & availability
Contact our ophthalmic equipment specialists to discuss system configuration, pricing, and delivery timelines. We offer flexible financing options and comprehensive training for your clinical team.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
