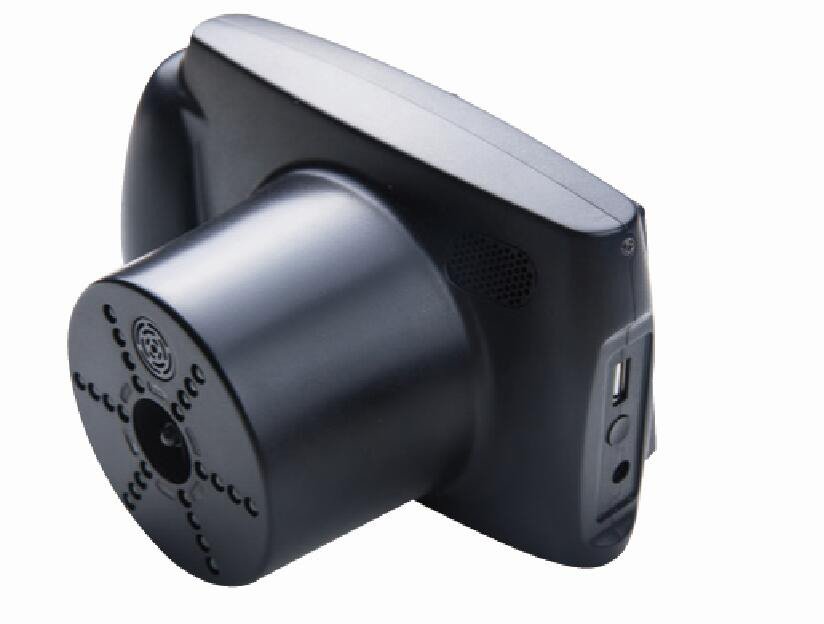

Automatic Ocular Screening Vision Screener MDLYZ07
- Automatic Ocular Screening Vision Screener MDLYZ07
- Bino/Mono operation mode
- Automatic optometry with high precision
- Wide range of DS, DC, and Axis measurements
- Accurate pupil size and distance measurements
- Fast measurement time of about 1 second

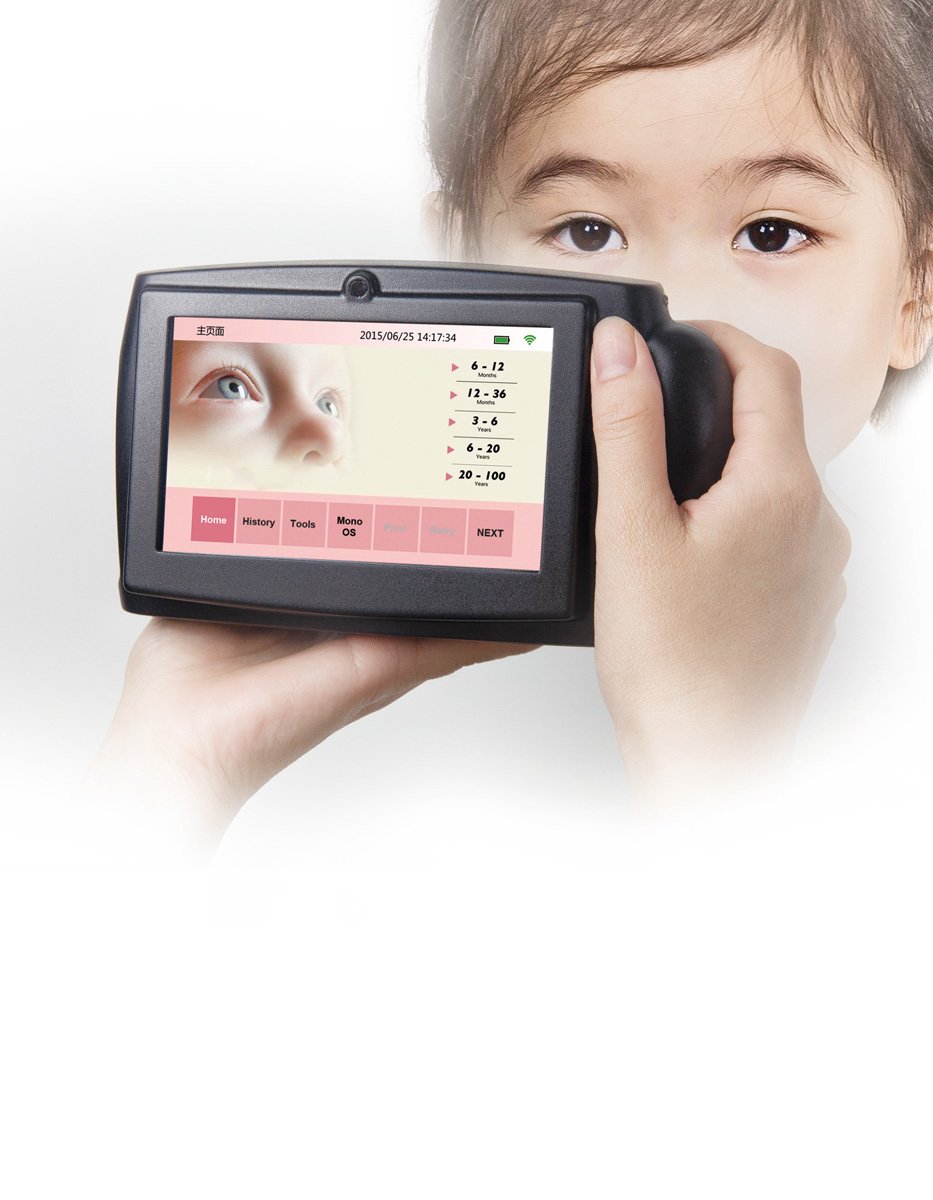

- User-friendly 5 inch touch screen display
- Rechargeable lithium batteries with 6 hours of usage
- Optional accessories available, such as camera tripods and printer
- SKU
- MDLYZ07
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Automatic Ocular Screening Vision Screener MDLYZ07
Advanced automated refraction and pupil measurement system designed for rapid, accurate ocular screening in clinical and community settings. Delivers comprehensive binocular and monocular optometry with high-resolution measurement capabilities and intuitive touchscreen operation.
Clinical overview
The MDLYZ07 Automatic Ocular Screening Vision Screener is a fully automated refraction system engineered for rapid, objective measurement of refractive error in diverse clinical environments. Utilising advanced optical technology, the device delivers sphere, cylinder, and axis measurements with high precision and repeatability, eliminating subjective bias inherent in manual refraction techniques. The system accommodates both binocular and monocular operation, making it suitable for comprehensive screening protocols in primary care, occupational health, community vision programmes, and specialist ophthalmology practices.

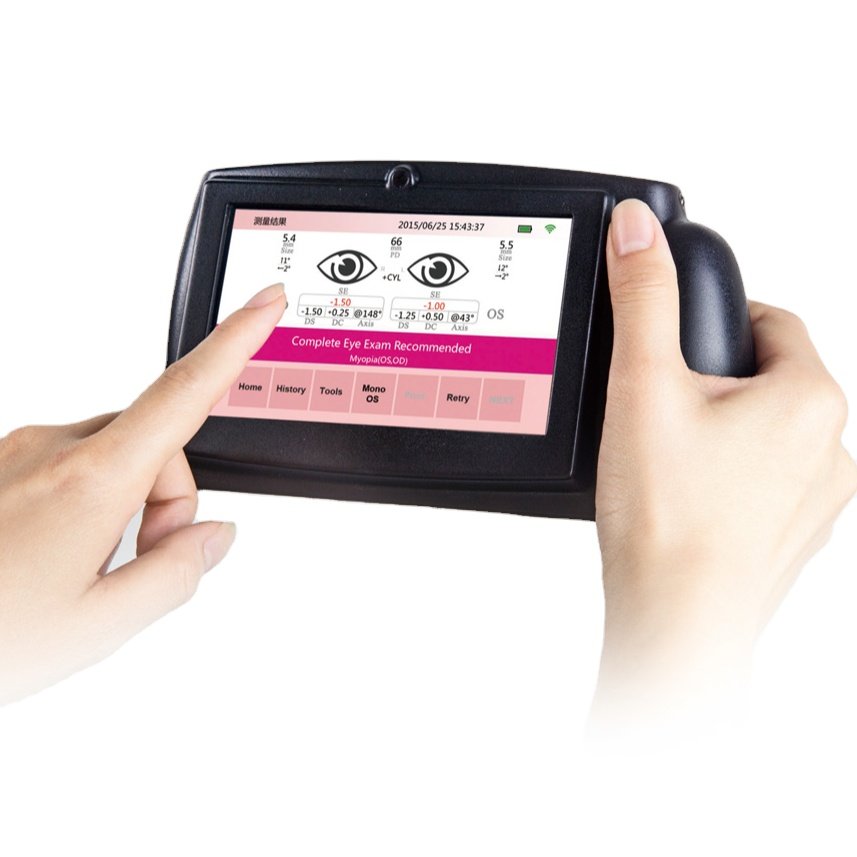

With measurement times of approximately 1 second per eye and a measurement distance of 1 metre, the MDLYZ07 enables high-throughput screening without compromising accuracy. The integrated 5-inch touchscreen display provides intuitive navigation and real-time result visualisation, whilst Wi-Fi and USB connectivity facilitate seamless data integration with electronic health records and external reporting systems. The rechargeable lithium battery provides 6 hours of continuous operation, supporting mobile screening campaigns and remote clinic deployments.
Key features & surgeon benefits
Comprehensive Refractive Coverage
- Sphere range: −7.50D to +7.50D
- Cylinder range: 0.00D to 3.00D with 1° axis resolution
- Pupil distance: 35–80 mm for accurate lens centration
Rapid, Automated Screening
- ~1 second measurement time per eye
- Automatic optometry eliminates manual refraction steps
- Binocular and monocular modes for flexible protocols
High-Resolution Precision
- Resolution options: 0.25D or 0.01D for fine-tuning
- Accuracy: ±0.50D sphere, ±0.50D cylinder, ±5° axis
- Pupil size and distance accuracy: ±0.1 mm and ±1 mm respectively
Seamless Data Integration
- Wi-Fi and USB data interfaces for EHR integration
- USB printer interface for on-site report generation
- Portable design with 6-hour rechargeable battery
Technical specifications
| Operation Mode | Binocular / Monocular |
|---|---|
| Optometry Type | Automatic |
| Sphere (DS) Range | −7.50D to +7.50D |
| Sphere Resolution | 0.25D / 0.01D |
| Sphere Accuracy | ±0.50D |
| Cylinder (DC) Range | 0.00D to 3.00D |
| Cylinder Resolution | 0.25D / 0.01D |
| Cylinder Accuracy | ±0.50D |
| Axis Range | 1° to 180° |
| Axis Resolution | 1° |
| Axis Accuracy | ±5° |
| Pupil Size Range | 4.0–9.0 mm |
| Pupil Size Resolution | 0.1 mm |
| Pupil Size Accuracy | ±0.1 mm |
| Pupil Distance Range | 35–80 mm |
| Pupil Distance Resolution | 1 mm |
| Pupil Distance Accuracy | ±1 mm |
| Gaze Range | 0° to 20° |

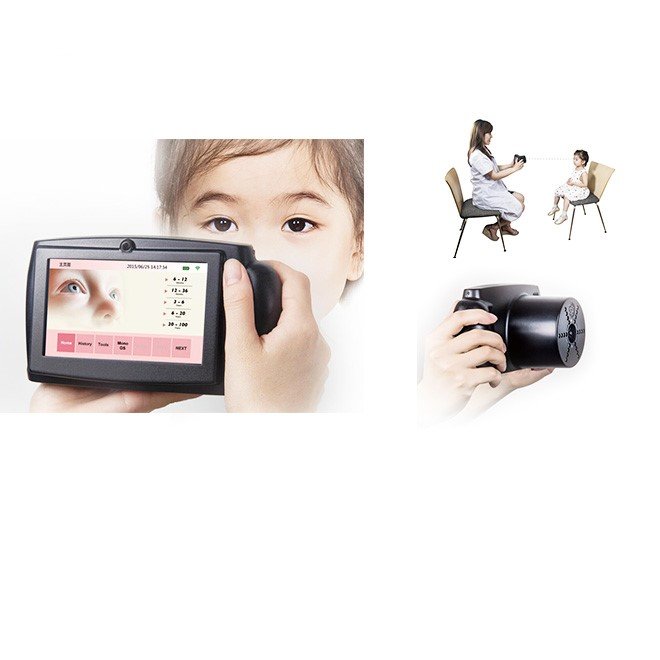

| Measuring Distance | 1 m ± 5 cm |
| Time per Measurement | ~1 second |
| Fixation Target | Light flash with attractive sound |
| Data Interface | Wi-Fi, USB |
| Printer Interface | USB |
| Battery | Rechargeable lithium, 6 hours duration, replaceable |
| Display | 5-inch touchscreen |
| Dimensions | 180 mm × 130 mm × 110 mm |
| Weight | 0.8 kg |
| Warranty | 2 Year Manufacturer Warranty |

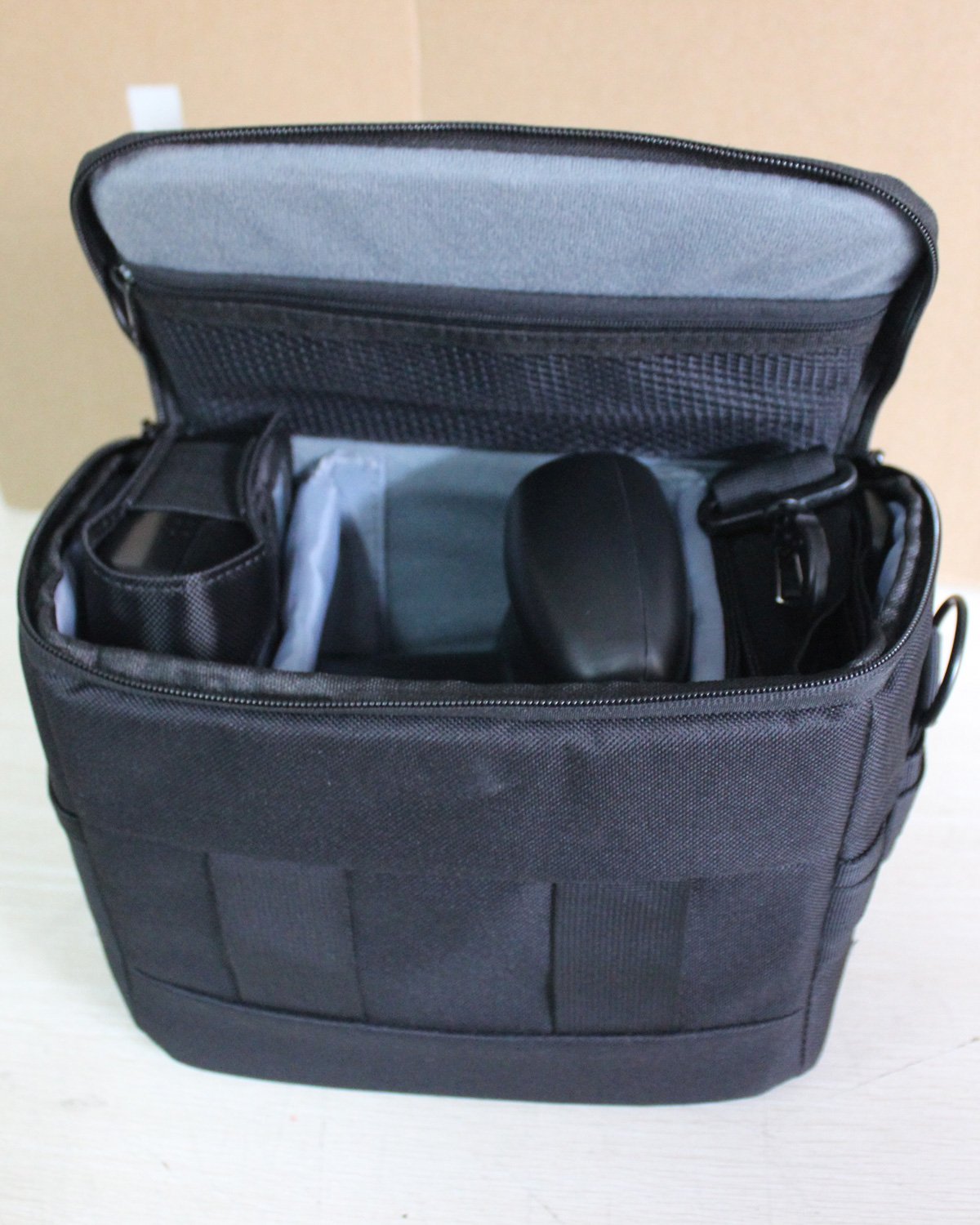

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Vision Screener Unit | MDLYZ07 automatic refraction system with 5-inch touchscreen | 1 |
| Rechargeable Lithium Battery | 6-hour duration, replaceable | 1 |
| USB Cable | Data and charging interface | 1 |
| Power Adapter | AC charging adapter | 1 |
| User Manual | Operation and maintenance guide | 1 |
| Optional: Camera Tripod | Stabilisation and positioning accessory | As applicable |
| Optional: USB Printer | Report generation and printing | As applicable |
