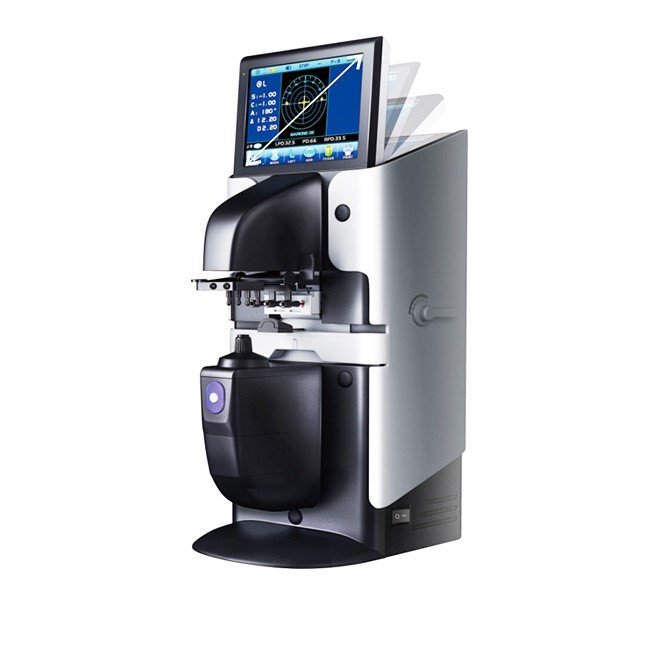

Auto Lensmeter with Tilt Color Screen MDLJD26A
- Auto Lensmeter with Tilt Color Screen MDLJD26A
- Range of measurement: Sphere 0～±25D, Cylinder 0～±9.99D, Axis 0°～180°, Add 0～±9.99D, Prism degree 0～15△
- Measurement mode: Cylinder: +, +/-, -, Prism: X-Y, P-B, Contact lens: Soft/hard
- Measuring mode: Single/progressive/automatic recognition
- Diameter of lens: Φ20～108mm, PD 40～90mm
- Speed of measurement: 0.1S
- Display: 7”TFT LCD, Printer: Thermal Printer
- Dimension: 222(D)mm×161(W)mm×372(H)mm, Weight: ~5.5KG
- Power supply: 100-240V 50-60Hz
- SKU
- MDLJD26A
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Auto Lensmeter with Tilt Color Screen MDLJD26A
Advanced automated lensmeter with large tilt color display for precise lens measurement. Fast 0.1-second measurement speed with thermal printer output, compatible with soft, hard, single, and progressive lenses. Ideal for optical laboratories and dispensing practices.
Clinical overview
The Auto Lensmeter MDLJD26A is a fully automated optical measurement system designed for high-throughput lens analysis in professional optical environments. With measurement speeds of just 0.1 seconds and a comprehensive measurement range covering sphere, cylinder, axis, add power, and prism values, this device streamlines lens verification and quality control workflows. The large tilt color display (available in 7" or 5.6" formats) ensures operator comfort and readability during extended use, while the integrated thermal printer provides instant hard-copy documentation of all measurements.
The system supports multiple lens types—soft contact lenses, hard contact lenses, single-vision, and progressive lenses—with automatic recognition capability. Adjustable PD measurement (40–90mm in 0.5mm increments) and flexible cylinder/prism measurement modes accommodate diverse clinical and retail requirements. Compact design and universal power supply (100–110V/240V, 50–60Hz) make installation straightforward in any optical facility.
Key features & surgeon benefits
Comprehensive optical parameters
- Sphere: 0 to ±25D in 0.01/0.12/0.25D steps
- Cylinder: 0 to ±9.99D with flexible step selection
- Axis: 0° to 180° in 1° increments
- Add power and prism measurement included
Fast, automated measurement
- 0.1-second measurement speed for rapid throughput
- Automatic lens type recognition (soft/hard/single/progressive)
- Thermal printer for instant result documentation
- Flexible cylinder and prism measurement modes
Operator-friendly design
- Large tilt color display (7" or 5.6" TFT LCD options)
- Compact footprint: 222(D) × 161(W) × 372(H) mm
- Lightweight at ~5.5 kg for flexible placement
- Universal power supply (100–110V/240V, 50–60Hz)
Multi-lens compatibility
- Supports soft and hard contact lenses
- Single-vision and progressive lens measurement
- Lens diameter range: Φ20–108mm
- PD adjustment: 40–90mm in 0.5mm steps
Technical specifications
| Indications | Lens power measurement, axis determination, prism measurement, progressive lens analysis, contact lens verification |
|---|---|
| Measurement range — Sphere | 0 to ±25D (0.01/0.12/0.25D step) |
| Measurement range — Cylinder | 0 to ±9.99D (0.01/0.12/0.25D step) |
| Measurement range — Axis | 0° to 180° (1° step) |
| Measurement range — Add | 0 to ±9.99D (0.01/0.12/0.25D step) |
| Measurement range — Prism | 0 to 15△ (0.01/0.12/0.25D step) |
| Lens diameter | Φ20–108mm |
| PD measurement | 40–90mm (0.5mm step) |
| Measurement speed | 0.1 seconds |
| Display options | 7" TFT LCD (MDLJD26A) or 5.6" TFT LCD (MDLJD26B) |
| Printer | Thermal printer |
| Cylinder measurement mode | +, +/−, − |
| Prism measurement mode | X-Y, P-B |
| Contact lens mode | Soft / Hard |
| Measuring mode | Single / Progressive / Automatic recognition |
| Dimensions | 222(D) × 161(W) × 372(H) mm |
| Package dimensions | 515(H) × 320(W) × 390(D) mm |
| Weight | ~5.5 kg |
| Power supply | 100–110V/240V, 50–60Hz |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Auto Lensmeter | Main unit with tilt color display and thermal printer | 1 |
| Power cable | Universal AC power supply cable (100–110V/240V, 50–60Hz) | 1 |
| Thermal paper roll | Replacement thermal paper for printer | 1 |
| User manual | Operating instructions and maintenance guide | 1 |
