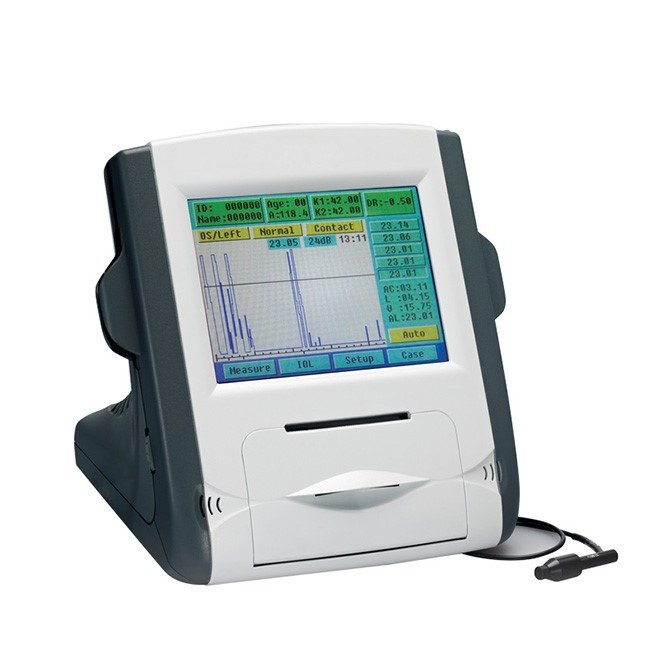

A Scan Ophthalmic Equipment MDLYZ08
- A scan Ophthalmic Equipment MDLYZ08 with 10MHz small size probe
- Built-in luminotron for accurate measurements
- Measuring range of 15mm-40mm with ±0.05mm precision
- Features macula lutea trace function for detailed analysis
- Can measure anterior chamber depth, lens thickness, vitreous body length, and more
- Supports various eye modes including Phakic, Aphakic, and Dense
- Includes IOL formula options: SRK-II, SRK-T, BINKHORST-II, and more
- SKU
- MDLYZ08
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
MDLYZ08 Ophthalmic A-Scan & P-Scan Ultrasound Biometer
High-performance dual-mode ophthalmic ultrasound system combining A-scan and P-scan capabilities for precise biometric eye measurements. Delivers ±0.05mm precision with advanced IOL calculation formulas and flexible diagnostic display modes for comprehensive anterior segment imaging.
Clinical overview
The MDLYZ08 is a high-performance ophthalmic ultrasound system equipped with both A-scan and P-scan probes, offering reliable and precise biometric eye measurements for various clinical applications. This dual-mode platform enables comprehensive anterior segment evaluation and accurate IOL power calculations across multiple eye conditions.
Ideal for ophthalmology clinics, hospitals, and vision care centers requiring fast, reliable, and detailed ocular biometry and anterior segment imaging. The system supports immersion and contact measurement techniques with built-in data management for streamlined case review and patient tracking.
Key features & surgeon benefits
Axial Length & IOL Measurement
- ±0.05mm measurement precision across 15–40mm range
- Macula Lutea Trace function for consistent tracking
- Six IOL calculation formulas: SRK-II, SRK-T, Binkhorst-II, Holladay, Hoffer-Q, Haigis
High-Resolution Anterior Segment
- 20MHz frequency with 5μm resolution for detailed imaging
- 45° angled probe design for improved ease of use
- SINGLE and MAP display modes for flexible diagnostics
Streamlined Data Management
- Patient name, ID, and operator name input for complete case documentation
- Storage capacity: up to 10 cases with 5 readings per case
- Printable IOL calculation sheets for patient records
Multi-Condition Support
- Phakic, Aphakic, and Dense Cataract modes
- Multiple IOL condition settings for diverse surgical scenarios
- IOP adjustment capability for measured vs. actual intraocular pressure
Technical specifications
| A-Scan Frequency | 10MHz imported small-size probe with built-in luminotron |
|---|---|
| A-Scan Measurement Range | 15–40mm |
| A-Scan Precision | ±0.05mm |
| P-Scan Frequency | 20MHz with 45° angled probe |
| P-Scan Resolution | 5μm |
| P-Scan Measurement Range | 150–1500μm |
| Display Modes | A-scan waveform, P-scan SINGLE and MAP modes |
| Measurement Methods | Immersion and contact techniques |
| Eye Modes | Phakic, Aphakic, Dense Cataract, multiple IOL conditions |
| IOL Calculation Formulas | SRK-II, SRK-T, Binkhorst-II, Holladay, Hoffer-Q, Haigis |
| Data Storage | Up to 10 cases, 5 readings per case |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Console Unit | MDLYZ08 ultrasound biometer with integrated display and controls | 1 |
| A-Scan Probe | 10MHz imported small-size probe with built-in luminotron | 1 |
| P-Scan Probe | 20MHz 45° angled probe for anterior segment imaging | 1 |
| Probe Cables | Connection cables for A-scan and P-scan probes | 2 |
| Power Supply | AC power adapter and cable | 1 |
| User Manual | Comprehensive operating and maintenance guide | 1 |
| Calibration Block | Reference standard for system calibration verification | 1 |
