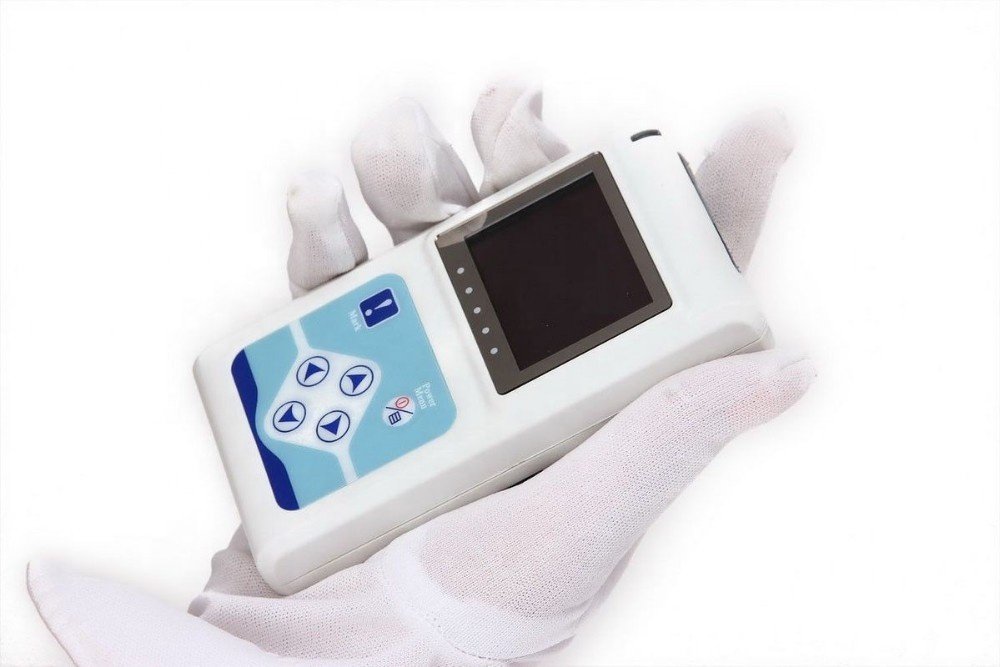

TLC5000 Dynamic ECG Systems
- Continuous 24-hour ECG waveform recording capability
- Advanced arrhythmia analysis using MCSSTM and TMCATM
- Sync analysis for 12-lead with accurate QRS waveform detection
- Over 10 templates and user-defined modules for comprehensive waveform analysis
- Flexible channel selection for customized analysis
- In-depth analysis functions for heart rate variability
- Convenient one-key print for fast report generation
- SKU
- MDL-9AB881CE9B
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
TLC5000 Dynamic ECG Systems
Advanced 12-lead dynamic ECG system for continuous 24-hour cardiac monitoring with real-time data storage and comprehensive arrhythmia analysis. Designed for medical institutions and community healthcare settings requiring high-precision waveform detection and clinical decision support.
Clinical overview
The TLC5000 Dynamic ECG System adopts the international standard 12-lead configuration to enable continuous 24-hour ECG waveform recording and analysis via integrated PC software. This system is applicable for use in medical institutions and community healthcare settings where comprehensive cardiac monitoring and diagnostic support are essential. The device combines real-time data acquisition with advanced post-analysis capabilities, allowing clinicians to identify and characterize arrhythmias, assess myocardial ischemia, and evaluate pacemaker function with high precision.
With proprietary MCSSTM and TMCATM arrhythmia analysis algorithms, the TLC5000 significantly reduces clinician workload while maintaining diagnostic accuracy. The system's synchronized 12-lead QRS detection ensures undistorted waveform capture, and its extensive template library—including over 10 predefined patterns plus user-defined modules—enables differentiation of virtually any pathologic waveform. Advanced features such as heart rate variability analysis, ST segment assessment, sleep apnea prediction, and HRT (heart rate turbulence) analysis provide comprehensive risk stratification and clinical insight.
Key features & surgeon benefits
Comprehensive Arrhythmia Detection
- 12-lead synchronized QRS detection with zero distortion
- Over 10 predefined templates: atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, and more
- User-defined modules for custom pathologic waveform recognition
- Flexible channel selection for main analysis channel assignment
Streamlined Analysis & Reporting
- Real-time 24-hour ECG data storage and retrieval
- Fast review analysis for single or full-lead ECG in any time bucket
- One-key print function for rapid report generation
- Perfect case management system for patient data organization
Advanced Risk Stratification
- Heart rate variability analysis: 5-minute, 1-hour, and 24-hour intervals
- ST segment analysis with myocardial ischemia load assessment
- Sleep apnea syndrome prediction for comorbidity screening
- HRT analysis to predict post-MI mortality risk
Pacemaker & Advanced Metrics
- Comprehensive pacemaker analysis: AAI, VVI, DDD, and all modes
- Pacing templates: dual chamber, atrial, ventricular, pseudofusion, asynchronous
- T-wave alternation for malignant arrhythmia and sudden cardiac death prediction
- QTD, VCG, VLP, and TVCG analysis modules for enhanced diagnostic value
Technical specifications
| Indications | Continuous cardiac monitoring, arrhythmia detection, pacemaker analysis, myocardial ischemia assessment, heart rate variability evaluation, sleep apnea prediction, sudden cardiac death risk stratification |
|---|---|
| Lead Configuration | 12-lead synchronized system per international standard |
| Recording Duration | 24-hour continuous ECG waveform capture |
| Analysis Algorithms | MCSSTM and TMCATM arrhythmia analysis; QRS sync detection; ST segment analysis; HRT analysis; T-wave alternation; QTD, VCG, VLP, TVCG modules |
| Template Library | Over 10 predefined templates plus user-defined modules |
| Heart Rate Variability | 5-minute, 1-hour, and 24-hour interval analysis |
| Pacemaker Modes Supported | AAI, VVI, DDD, and all standard pacing modes |
| Data Management | Real-time storage; fast review analysis; one-key print; comprehensive case management |
| Software Platform | PC-based analysis and reporting |
| Warranty | 2 Year Manufacturer Warranty |

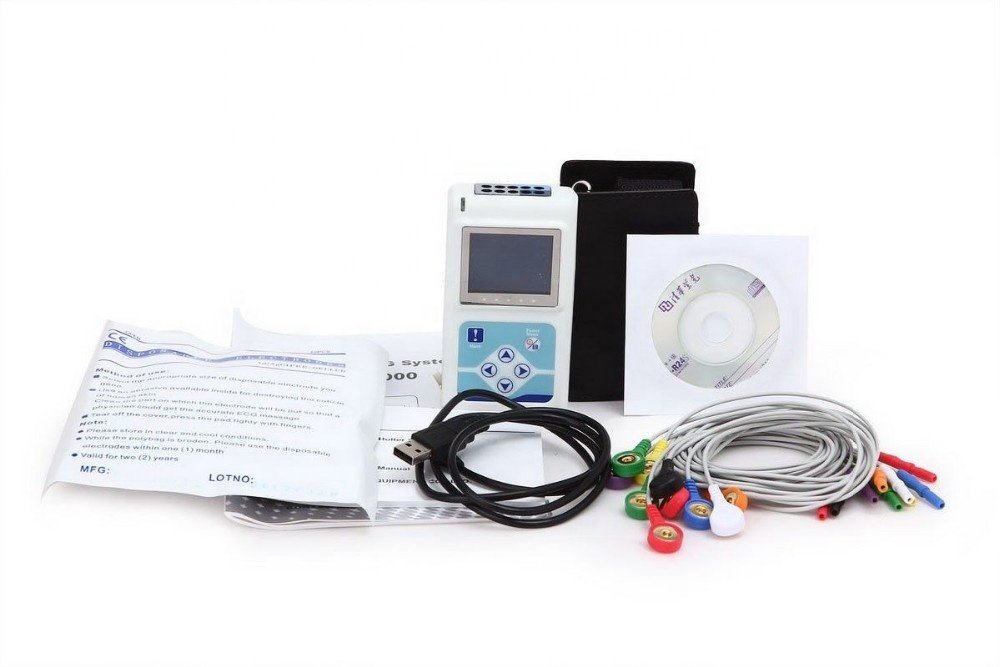

Standard instrument composition
| Item | Description | Qty |
|---|---|---|

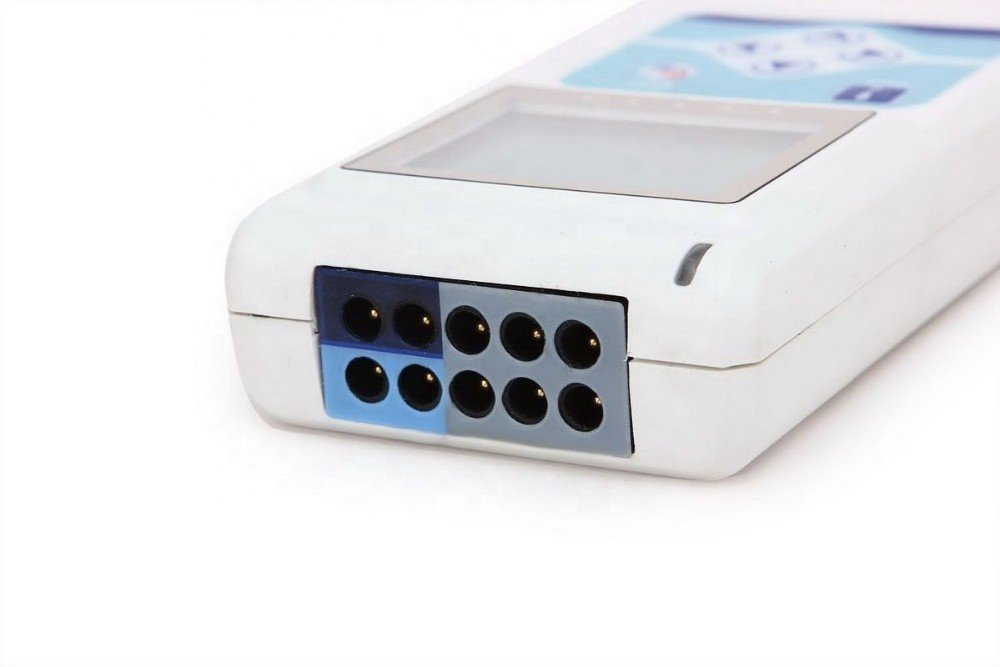

| ECG Recorder Unit | 12-lead dynamic ECG recorder with 24-hour recording capacity | 1 |
| PC Analysis Software | Comprehensive ECG analysis and reporting software suite | 1 |
| Patient Electrodes | Standard 12-lead electrode set for continuous monitoring | As applicable |
| Data Cable | USB/serial interface for data transfer to PC | 1 |
| Power Supply | Recorder power adapter and battery backup | 1 |
| User Documentation | Operating manual, software guide, and clinical reference | 1 |
