ECG300GT Electrocardiograph
- Collects 12-lead ECG signal and prints waveform
- Sync collection for high-quality ECG waveform
- Display of 3/6/12-lead ECG on one screen
- Multiple printing modes and formats available
- Auto-analysis and auto-diagnosis for routine ECG parameters
- Built-in memory stores up to 1000 cases
- Multi-language interface and report available
- SKU
- MDL-FCE4BA2E9B
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

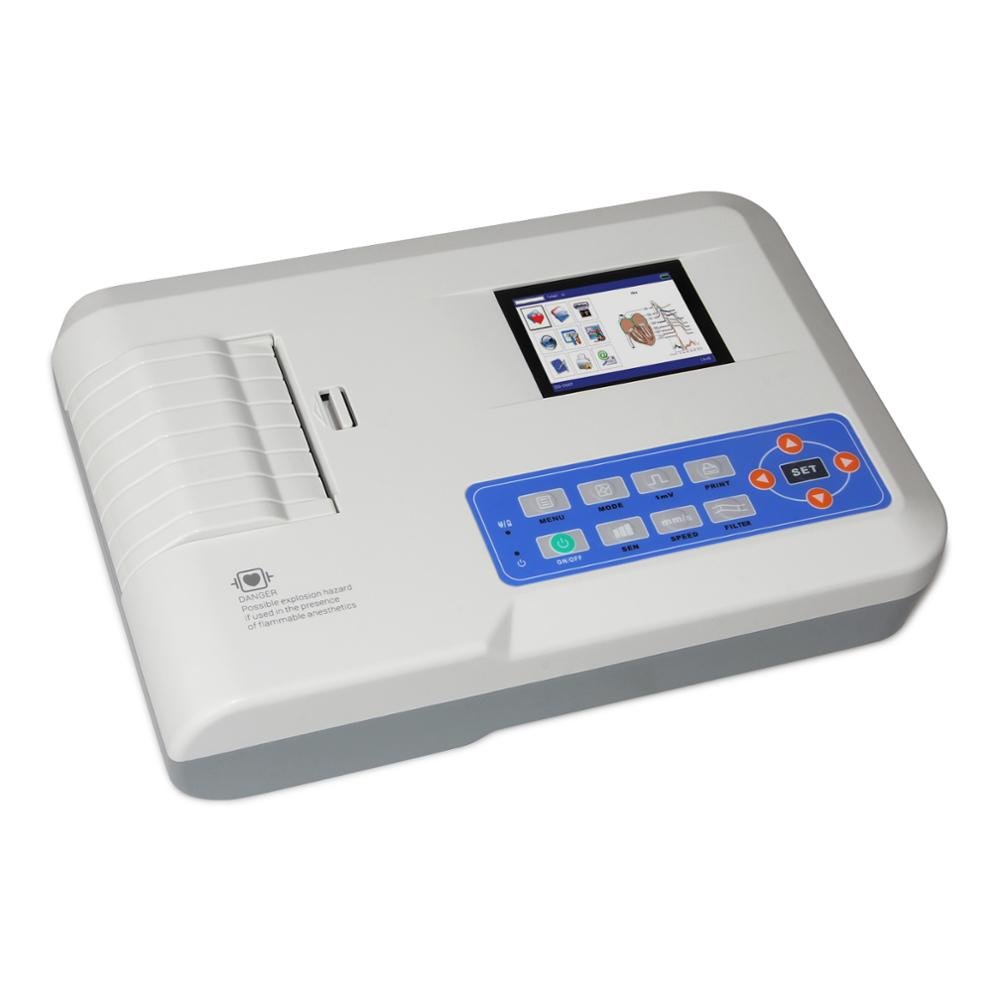

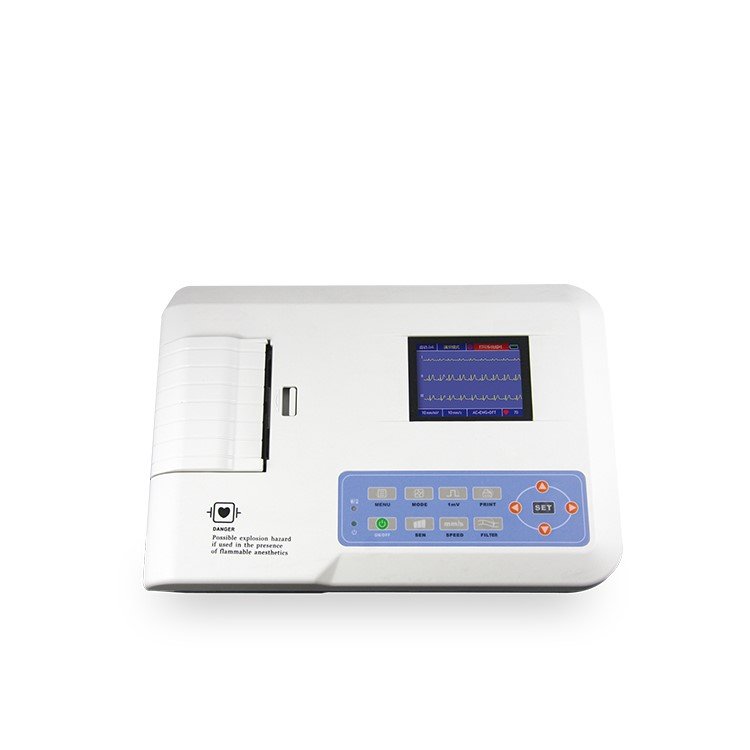

ECG300GT Electrocardiograph
A comprehensive 12-lead electrocardiograph designed for high-quality ECG signal collection and analysis. Features advanced digital signal processing, multiple display and printing modes, and built-in auto-analysis capabilities to support rapid, accurate cardiac diagnosis in clinical settings.
Clinical overview
The ECG300GT is a synchronous 12-lead electrocardiograph engineered for reliable cardiac signal acquisition and analysis in clinical environments. It combines advanced digital signal processing with intuitive workflow design, enabling clinicians to capture, display, and interpret ECG waveforms with confidence. The device incorporates multi-stage filtering (power frequency, baseline, and EMG) to deliver high-quality diagnostic-grade waveforms suitable for routine screening, arrhythmia detection, and comprehensive cardiac assessment.
With built-in auto-analysis and auto-diagnosis capabilities, the ECG300GT measures and interprets key cardiac parameters—including HR, PR interval, QRS duration, QT interval, axis calculations, and voltage measurements—reducing manual interpretation burden and supporting faster clinical decision-making. The integrated case database stores up to 1000 patient records, facilitating longitudinal review, statistical analysis, and quality assurance workflows in high-volume diagnostic settings.
Key features & surgeon benefits
Advanced Digital Processing
- Synchronous 12-lead ECG collection for simultaneous multi-channel acquisition
- Multi-stage filtering (power frequency, baseline, EMG) for noise reduction
- High-fidelity waveform output suitable for diagnostic interpretation
Flexible Display & Printing
- Real-time display of 3/6/12-lead ECG on single screen for comparative analysis
- 12+ printing modes (manual, auto 4×3, auto 3×4+1, rhythm strips, etc.)
- Adjustable waveform length and integrated time-stamp printing
Auto-Analysis & Diagnosis
- Automatic measurement of HR, intervals, durations, axes, and voltage parameters
- Auto-diagnosis conclusions to support clinical interpretation
- Reduces clinician workload and standardises measurement accuracy
Multi-Language & Data Management
- 14-language interface (Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakh, Russian, Ukrainian, Serbian, Slovenian)
- Built-in memory for 1000 cases with easy review and statistical reporting
- Supports diverse clinical and geographic deployment scenarios
Technical specifications
| Indications | Cardiac assessment, arrhythmia detection, routine ECG screening, diagnostic cardiology |
|---|---|
| Leads | 12-lead simultaneous acquisition |
| Display Options | 3-lead, 6-lead, or 12-lead ECG on single screen |
| Printing Modes | Manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3, rhythm 2 |
| Auto-Analysis Parameters | HR, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Memory Capacity | Up to 1000 patient cases |
| Signal Processing | Power frequency filter, baseline filter, EMG filter |
| Printing System | Thermal printing with adjustable waveform length and time-stamp function |
| Languages Supported | Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakh, Russian, Ukrainian, Serbian, Slovenian |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG300GT Main Unit | 12-lead electrocardiograph with integrated thermal printer and display | 1 |
| Patient Cable Assembly | 12-lead patient electrode cable with standard connectors | 1 |
| Power Supply | AC mains adapter with regional plug variants | 1 |
| Thermal Paper | Diagnostic-grade thermal recording paper (consumable) | As applicable |
| User Manual | Multi-language operation and maintenance guide | 1 |
| Quick Reference Card | Laminated workflow and troubleshooting guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, lead times, and customisation options for the ECG300GT. We support direct purchase, lease, and OEM integration pathways.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
