ECG90A Electrocardiograph
- Collects 12-lead ECG signal and prints waveform
- High-quality ECG waveform via digital signal processing technology
- Real-time recording with annotation characters
- Auto-analysis and auto-diagnosis for routine ECG parameters
- Optional SD card storage for up to 100 cases
- Two language interface options (Chinese/English)
- Rechargeable lithium battery for portable use
- SKU
- MDL-EC91084011
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

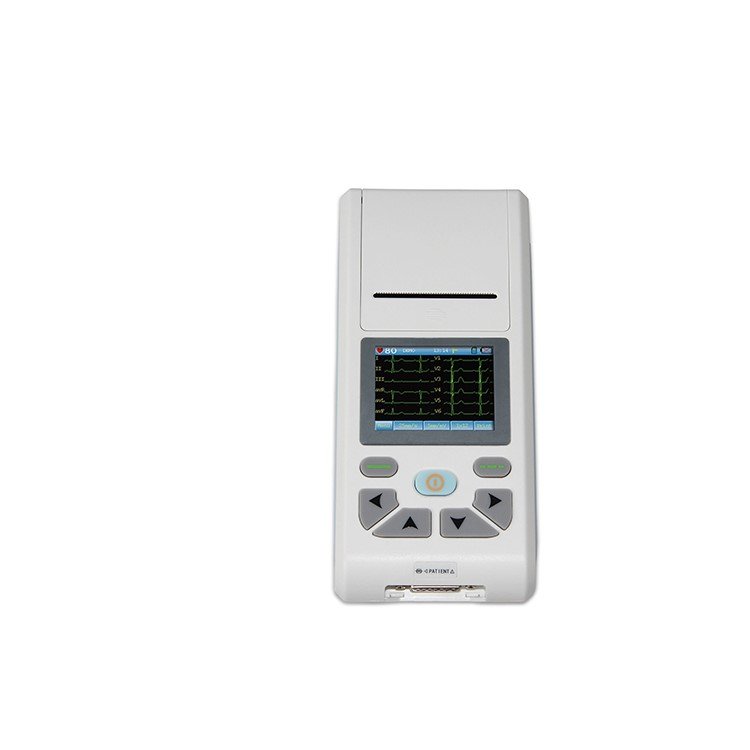

ECG90A Electrocardiograph
A portable 12-lead electrocardiograph with high-quality digital signal processing, real-time waveform recording, and auto-analysis capabilities. Ideal for clinical settings, home visits, and body examinations with optional SD card storage and PC connectivity.
Clinical overview
The ECG90A is a synchronous 12-lead electrocardiograph designed for rapid, accurate cardiac assessment in diverse clinical environments. It employs advanced digital signal processing with multi-stage filtering (power frequency, baseline, and EMG) to deliver high-fidelity waveforms free from distortion and baseline drift. The device supports both AUTO and manual recording modes, enabling clinicians to adapt workflow to patient presentation and clinical urgency.
With integrated auto-analysis and auto-diagnosis functions, the ECG90A measures and interprets routine ECG parameters—including HR, PR interval, P duration, QRS duration, QT interval, QTc, and axis measurements—reducing diagnostic burden and supporting clinical decision-making. Optional SD card storage (up to 100 cases) and USB 2.0 connectivity enable seamless case review, statistical analysis, and integration with PC-based ECG workstations.
Key features & surgeon benefits
High-Fidelity Waveform Capture
- Synchronous 12-lead collection with advanced digital filtering
- 8 dot/mm thermal printing at up to 150 Hz recording frequency
- Eliminates baseline drift and EMG noise without waveform distortion
Flexible Recording & Analysis
- AUTO/Manual mode recording with real-time annotation
- Display of 3/6/12-lead ECG with sensitivity, paper speed, and filter state
- Automatic parameter measurement and diagnostic conclusion generation
Portable & Cost-Effective
- Built-in rechargeable lithium battery: 4 hours continuous operation
- Compact design ideal for home visits and body examinations
- No consumable adjustments required; thermal printing is maintenance-light
Integration & Expansion
- Optional SD card storage for up to 100 cases with review and statistics
- USB 2.0 connectivity for real-time PC integration and ECG workstation setup
- Dual-language interface (Chinese/English) and report generation
Technical specifications
| Indications | Cardiac assessment, arrhythmia detection, routine ECG monitoring, home visits, body examinations |
|---|---|
| Lead configuration | 12-lead synchronous collection |
| Signal processing | Digital filtering: power frequency, baseline drift, EMG noise elimination |
| Recording frequency | Up to 150 Hz |
| Printing system | High-resolution thermal printer (8 dot/mm) |
| Display modes | 3/6/12-lead ECG with sensitivity, paper speed, and filter state |
| Auto-analysis parameters | HR, PR interval, P duration, QRS duration, QT interval, QTc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Storage | Optional SD card: up to 100 cases |
| Connectivity | USB 2.0 for PC integration and ECG workstation |
| Power supply | AC/DC with built-in rechargeable lithium battery |
| Battery life | 4 hours continuous operation; up to 90 minutes printing; 150 ECG recordings per charge |
| Languages | Chinese and English interface and reports |
| Warranty | 2 Year Manufacturer Warranty |

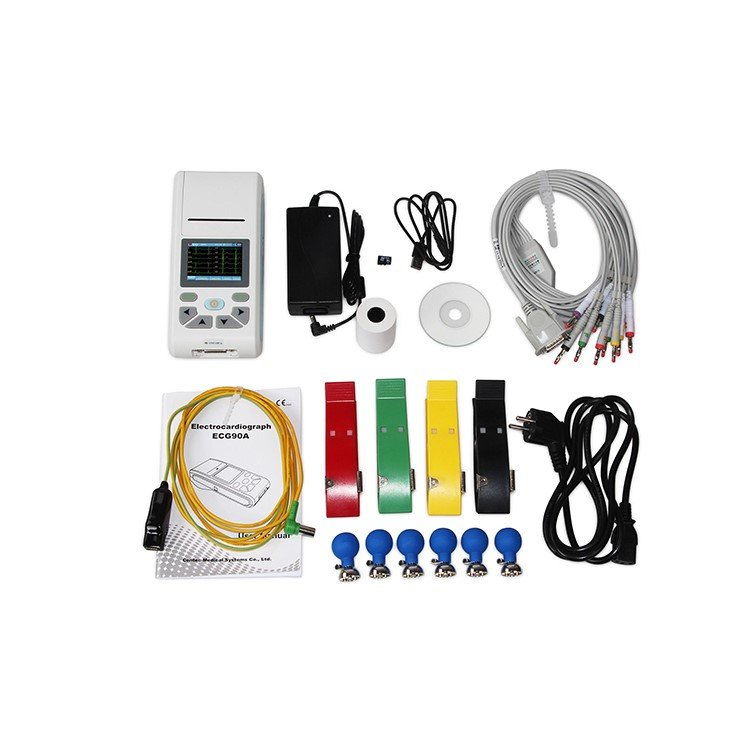

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG90A Main Unit | 12-lead electrocardiograph with thermal printer and display | 1 |
| Patient cable assembly | 12-lead patient cable with standard connectors | 1 |
| Electrode set | Disposable ECG electrodes (standard pack) | 1 pack |
| Thermal paper | High-resolution thermal recording paper | 1 roll |
| Rechargeable battery | Lithium-ion battery pack (detachable) | 1 |
| Battery charger | AC/DC power adapter and charging dock | 1 |
| USB cable | USB 2.0 cable for PC connectivity | 1 |
| User manual | Multilingual operation and maintenance guide | 1 |
| Optional SD card | Storage module for up to 100 cases (optional) | As ordered |
| Optional ECG-Sync software | PC workstation software for real-time analysis and reporting (optional) | As ordered |
