ECG80A Digital one-Channel 12-lead ECG/EKG Machine Electrocardiograph USB
- ECG80A Digital one-Channel 12-lead ECG/EKG Machine Electrocardiograph USB
- Collects 12-lead ECG signal and prints waveform
- Features digital signal processing technology for high-quality ECG waveform
- Real-time single-channel ECG waveform recording with annotation
- Multi-language interface and report options
- Detachable lithium battery for convenient use and replacement
- Up to 8-hour standby time in optimal DC state
- Waterproof degree: IPX0, suitable for various medical settings
- SKU
- ECG80A
- Brand
- Contec
- Availability
- In stock
- ✓ Worldwide shipping
ECG80A Digital One-Channel 12-Lead ECG/EKG Machine Electrocardiograph
Compact, portable 12-lead electrocardiograph with high-resolution thermal printing, real-time LCD display, and advanced digital signal processing. Ideal for clinics, emergency departments, and ward environments requiring reliable cardiac signal acquisition and recording.
Clinical overview
The ECG80A is a compact, portable electrocardiograph designed for rapid 12-lead ECG signal acquisition and thermal printing in diverse clinical settings. It combines advanced digital signal processing with intuitive operation, enabling clinicians to obtain high-quality cardiac waveforms in examination rooms, emergency departments, and ward environments. The device features real-time waveform display on a 2.7-inch LCD screen with multi-language support (Chinese, English, French, Italian, German, Spanish, Turkish), reducing training time and improving workflow efficiency across international healthcare facilities.

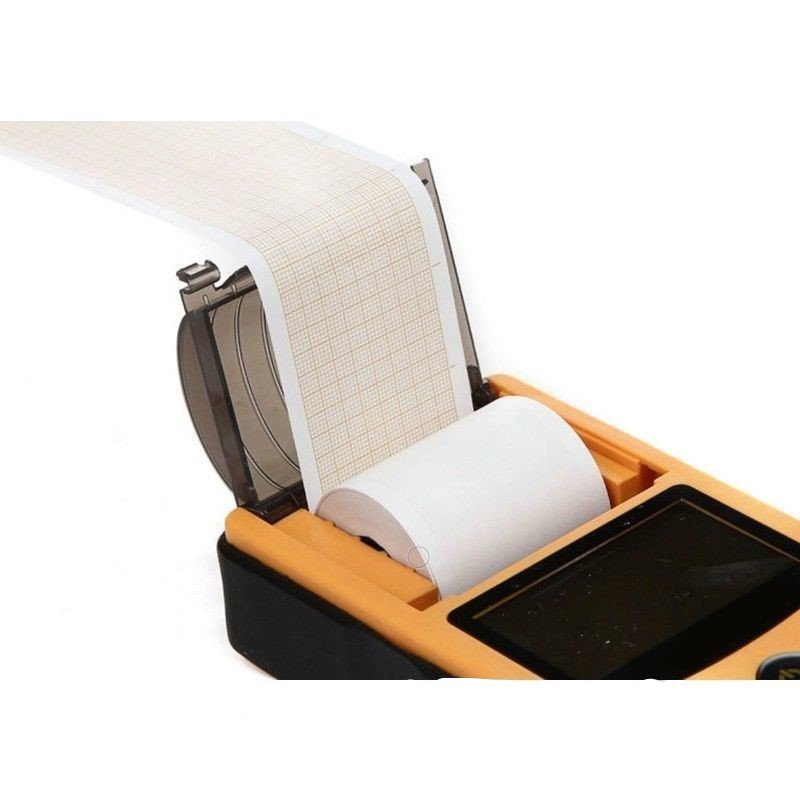

With a detachable lithium battery offering up to 8 hours of standby time and continuous printing capability for 4 hours, the ECG80A provides reliable performance in resource-limited or mobile clinical scenarios. The high-resolution thermal printer (8 dot/mm) with 150 Hz recording frequency ensures diagnostic-quality output without requiring paper adjustments or calibration, while advanced filtering (power frequency, baseline, and EMG) delivers clean, artifact-free signals suitable for clinical interpretation.
Key features & surgeon benefits
Advanced Digital Processing
- Power frequency filter (AC 50/60 Hz, -20 dB)
- Baseline drift correction and EMG interference suppression (35 Hz, -3 dB)
- 12-bit sampling accuracy at 800 Hz for precise waveform capture
- Noise level ≤15 µVp-p ensures diagnostic clarity
Intuitive Operation & Speed
- AUTO mode: single-button recording for rapid patient throughput
- Manual mode for operator control and selective lead recording
- Real-time LCD display with lead annotations and filter status
- Multi-language interface reduces training and supports global deployment
Field-Ready Design
- Lightweight, compact form factor for clinic and ward mobility

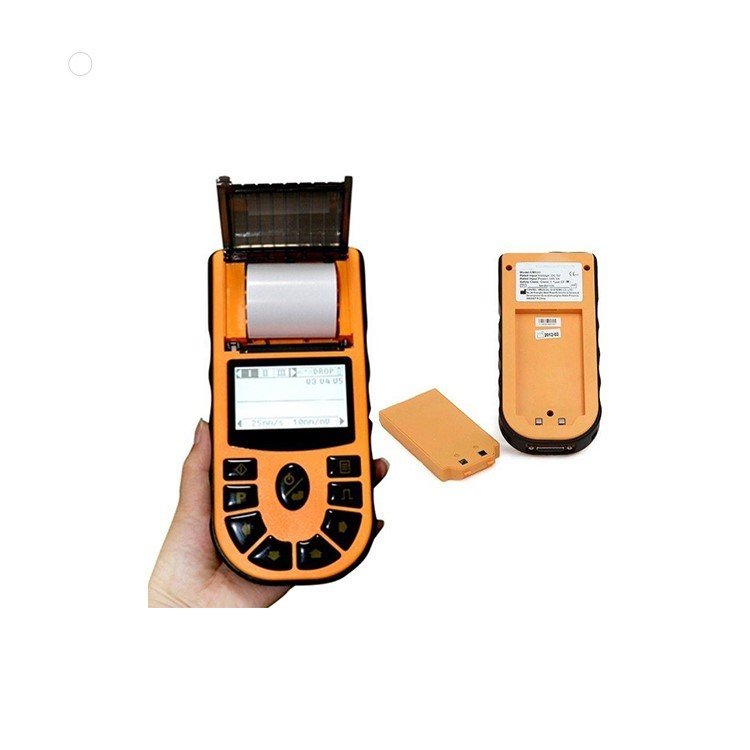

- Detachable 7.4V/2000 mAh lithium battery with 8-hour standby
- Continuous thermal printing up to 4 hours; records up to 150 ECG waveforms
- USB connectivity for data export and integration with EMR systems
Clinical-Grade Protection
- Class I, Type CF defibrillation-proof applied part
- Patient leak current <10 µA; input impedance ≥50 MΩ
- CMRR >60 dB (≥100 dB with filter) for EMI rejection
- Floating input mode with comprehensive safety classification
Technical specifications
| Indications | Cardiac examination, clinic assessment, emergency treatment, ward monitoring |
|---|---|
| Configuration | Single-channel 12-lead electrocardiograph |
| Frequency response | 0.05 Hz – 150 Hz (−3 dB ~ +0.4 dB) |
| Sampling frequency | 800 Hz |
| Sampling accuracy | 12-bit |
| Recording frequency | Up to 150 Hz |
| Sensitivity | 5, 10, 20 mm/mV ±5%; standard 10 mm/mV ±2% |
| Paper speed | 25, 50 mm/s ±5% |
| Paper size | 50 mm (W) × 20 m (L) |
| Thermal printer resolution | 8 dot/mm (high-resolution) |
| Display | 2.7-inch LCD, real-time waveform & annotations |
| CMRR | >60 dB; >100 dB (with filter) |
| Time constant | ≥3.2 s |
| Noise level | ≤15 µVp-p |
| Input impedance | ≥50 MΩ |
| Patient leak current | <10 µA |
| Input circuit current | ≤50 nA |
| Calibration voltage | 1 mV |
| Power frequency filter | AC 50/60 Hz (−20 dB) |
| EMG filter | 35 Hz (−3 dB) |
| Power supply | DC 9V adapter; 7.4V/2000 mAh rechargeable lithium battery |
| Battery standby time | Up to 8 hours |
| Continuous printing | Up to 4 hours |
| Recording capacity | Up to 150 ECG waveforms |
| Waterproof degree | IPX0 |
| Working mode | Continuous working |
| Safety classification | Class I, Type CF; defibrillation-proof applied part |
| Interface languages | Chinese, English, French, Italian, German, Spanish, Turkish |
| Connectivity | USB data export |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG80A Main Unit | Single-channel 12-lead electrocardiograph with integrated thermal printer and 2.7" LCD display | 1 |
| Lithium Battery Pack | 7.4V/2000 mAh rechargeable lithium battery, detachable | 1 |

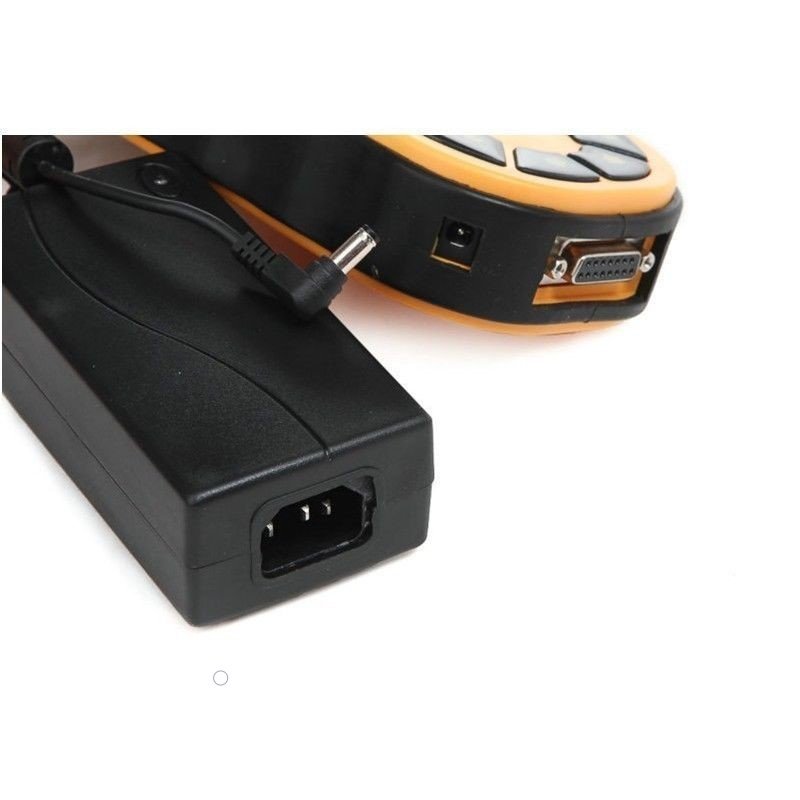

| AC/DC Power Adapter | 9V DC adapter for mains operation and battery charging | 1 |
| Thermal Paper Roll | 50 mm (W) × 20 m (L) thermal recording paper | 1 |
| Patient Lead Set | Standard 12-lead ECG electrode cables with connectors | 1 |
| USB Cable | USB data export and connectivity cable | 1 |
| User Manual | Multi-language instruction guide (Chinese, English, French, Italian, German, Spanish, Turkish) | 1 |
| Carrying Case | Protective transport case for portable deployment | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss ECG80A specifications, bulk pricing, multi-language customisation, and delivery timelines. We support OEM partnerships and international distribution.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
