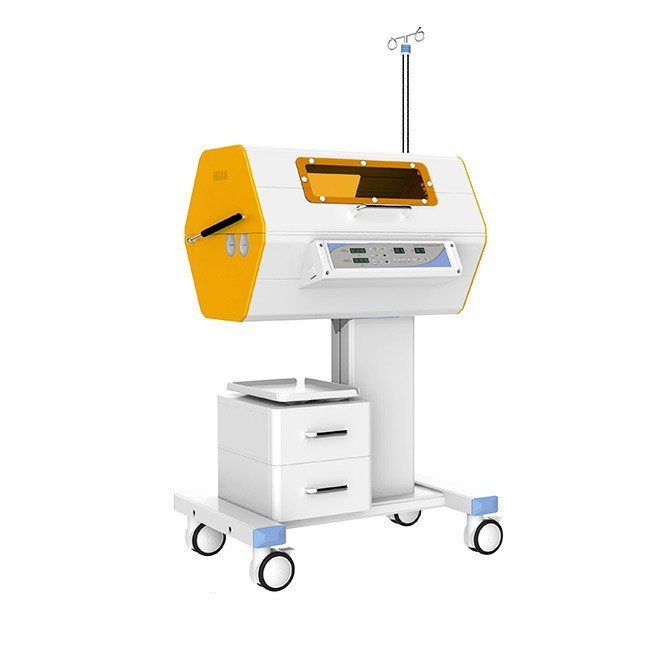

- Small Size Infant Phototherapy Unit MDLHD04 is a compact and efficient device for treating newborn jaundice.
- It features blue light radiation with specific wavelengths for effective treatment.
- The unit is equipped with a durable blue light tube that has a lifespan of over 20,000 hours.
- It comes with air temperature and skin temperature display ranges for monitoring.
- The device has a count-up and count-down timer function for precise treatment sessions.
- Included in the package are essential components like an IV pole, mattress, tray, and transparent protector.
- The unit is packed in a single case with dimensions of 90CMX77CMX132CM and a weight of 90KG.
Compact, high-intensity phototherapy system designed for neonatal jaundice treatment. Features 360° light radiation with adjustable temperature monitoring and flexible treatment timing for safe, effective care in resource-conscious clinical environments.
The MDLHD04 is a compact, high-intensity phototherapy unit engineered for safe and effective treatment of neonatal jaundice in resource-conscious healthcare settings. Its 360° light radiation design ensures uniform bilirubin exposure across the infant's body, with three distinct radiation zones (circle 3700 μW/cm², up side 3300 μW/cm², down side 2400 μW/cm²) optimised for clinical efficacy. The blue light wavelength range of 420–490 nm aligns with peak bilirubin absorption, enabling rapid photoisomerisation of unconjugated bilirubin.
Integrated temperature monitoring—both air and skin—allows clinicians to maintain precise thermal control during treatment, critical for preventing hypothermia or hyperthermia in vulnerable neonates. Flexible count-up and count-down timer functions, combined with cumulative treatment tracking, support evidence-based phototherapy protocols and comprehensive patient records. The compact mattress (613×300 mm) and mobile frame design make the unit suitable for NICU, maternity wards, and transport scenarios.
| Indications | Neonatal hyperbilirubinemia and jaundice treatment |
|---|---|
| Power supply | AC 110V/220V ±10%, 50/60Hz ±2%; input ≤400 VA |
| Blue light wavelength | 420–490 nm |
| Light radiation (circle) | 3700 μW/cm² |
| Light radiation (up side) | 3300 μW/cm² |
| Light radiation (down side) | 2400 μW/cm² |
| Blue light tube lifespan | ≥20,000 hours |
| Air temperature display range | 0–45.0°C |
| Skin temperature display range | 0–45.0°C |
| Time accuracy | 1 min per 2 hours |
| Count-up timer range | 0–99.9 hours |
| Count-down timer range | 1 min–99.9 hours |
| Total cumulative time | 0–999,999 hours |
| Mattress size | 613×300 mm |
| Working environment temperature | +18°C to +30°C |
| Working environment humidity | 30–75% relative humidity |
| Working environment pressure | 700–1060 hPa |
| Storage temperature | −10°C to +55°C |
| Storage humidity | ≤95% relative humidity |
| Storage pressure | 500–1060 hPa |
| Package dimensions | 90 cm × 77 cm × 132 cm |
| Gross weight | 90 kg |
| Net weight | 65 kg |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main body | Radiant source, control system, infant bed, bracket assembly | 1 |
| IV pole | Stainless steel intravenous support pole | 1 |
| Skin temperature sensor | Thermistor probe for continuous skin temperature monitoring | 1 |
| Air temperature sensor | Ambient temperature probe for environmental control | 1 |
| Tray | Accessory storage and organisation tray | 1 |
| Mattress | Medical-grade infant mattress (613×300 mm) | 1 |
| Transparent protector | Protective cover for light source and infant | 1 |
| Castors | Mobile wheels with locking mechanism | 4 |
| Drawers | Storage drawers for supplies and accessories | 2 |
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the MDLHD04. We offer volume discounts, OEM partnerships, and comprehensive after-sales support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
