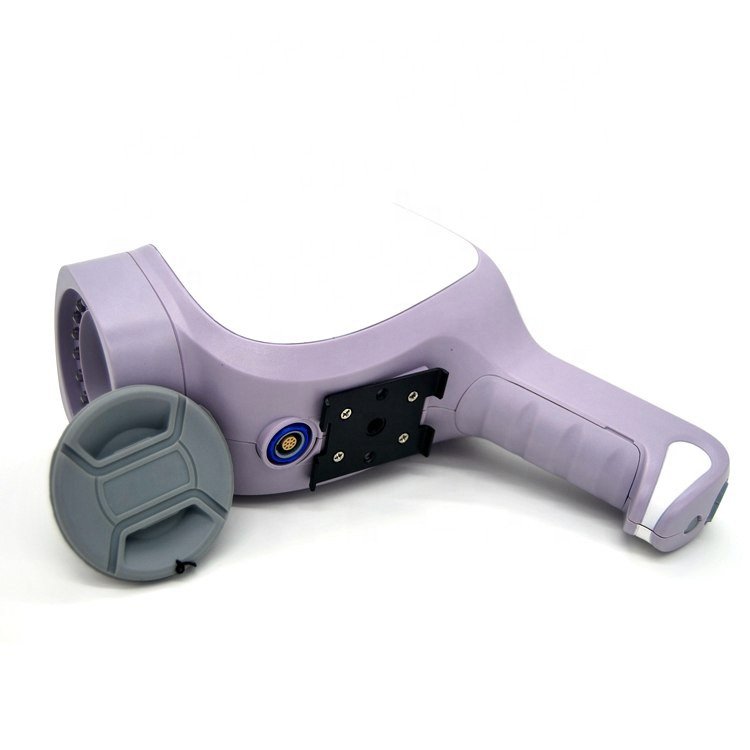

Portable Gynaecology Digital Colposcope System MDLCE07
- Portable Gynaecology Digital Colposcope System MDLCE07
- High Resolution CCD camera with 550 TV lines and video output

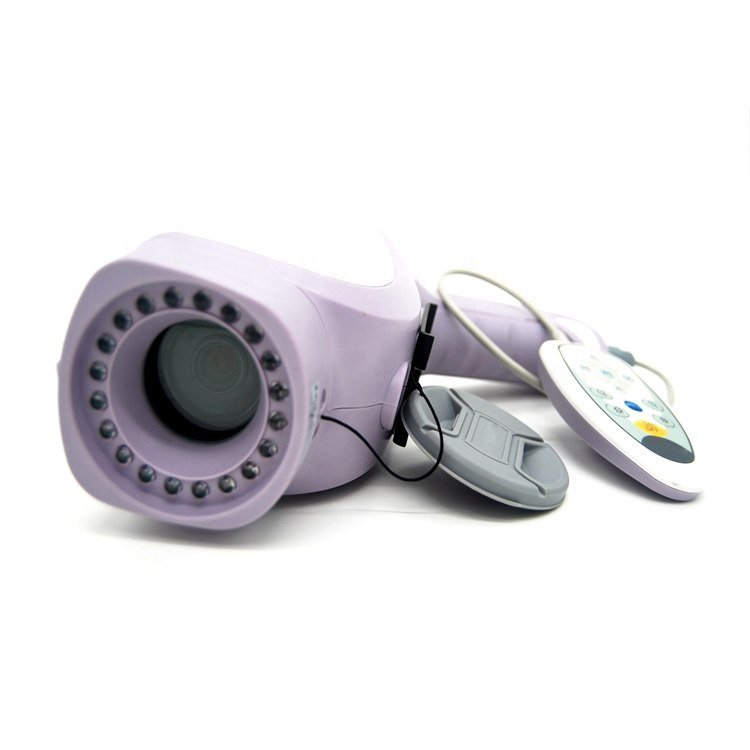

- Unique adjustable super cold LED light source design for brightness control
- Swing arm for height adjustments and locking
- Unique foot switch for convenient picture taking
- Control handle for easy adjustments like focal length, zoom, and white balance
- Integrated computer imaging with multiple language support and case report templates
- Optional 2.5" LCD screen for real-time image observation.
- SKU
- MDLCE07
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Product overview
Specifications
|
Performance Parameter
|
|
|
Safety Classification |
Photographic Device II |
|
Operation Mode |
Intermittent Load, Continuously Operate |
|
Power Supply |
AC110V/220V±10%,50/60Hz±2%. |
|
Rated Power |
200VA |
|
Working Environment
|
Temp:5~40℃ |
|
Relative Humidity:≤85% |
|
|
Atmosphere:700~1060hpa |
|
|
Transportation and Storage Environment
|
Temp:-40~55℃ |
|
Relative Humidity:≤95% |
|
|
Atmosphere:500~1060hpa |
|
|
Packing Dimension |
752mm×550mm×290mm (Trolley) Cartonx1
752mm ×550mm ×460mm (Trolley and Stand) Cartonx1
800mm×545mm×210mm (Spare Parts)Cartonx1
500mm×235mm×265mm (Printer)Cartonx1
525mm×300mm×520mm (Host Computer)Cartonx1
520mm×155mm×460mm (LCD Screen)Cartonx1
|
|
Weight |
NW:33kg GW:55kg |
|
Photographic Device |
|
|
Power Supply |
DC 12V |
|
Imaging Sensor |
1/4"CCD |
|
Scanning System |
PAL; NTSC(Optional) |
|
Pixel |
795(H)×596(V)(PAL);811(H)×508(V)(NTSC) |
|
Horizontal Resolution |
550TVL |
|
Minimum Illumination |
0.2Lux(Color) |
|
Magnification |
x352times (Optically x22;Digitally x16) |
|
Focusing |
Auto/Manual |
|
Auto |
Video, S-video, PAL; |
|
White- Balance |
Yes |
|
Optional |
2.5" LCD Screen |
|
LED Light Source |
|
|
Illumination |
More Than 1200LUX(Within working distance) |
|
Irradiated Surface Temperature |
Lower Than 41℃ |
|
Computer |
CPU:≥2.7GHz;RAM:≥1G;Hard disk:≥250G |
|
LCD Screen |
19"LCD 1024×768 Screen |
|
Printer |
HP True color ink jet printer |
|
Working Distance |
200~400mm |
|
Software Operating Environment |
WINXP/WIN7/WIN8 32bit 64bit |
|
Performance Features
|
|
|
High Resolution CCD
|
✲1/4" high resolution colorful digital CCD camera with 550 TV lines.
✲Video output.
✲Fast auto-focus and manual focus control.
✲White balance auto-adjusted |
|
Unique Light Source Design
|
With adjustable super cold LED light source, brightness can be adjusted; |
|
Stand
|
With vertical stand, the height can be adjusted and locked freely. |
|
Unique Foot Switch
|
With unique-designed foot switch , more convenient to take pictures. |
|

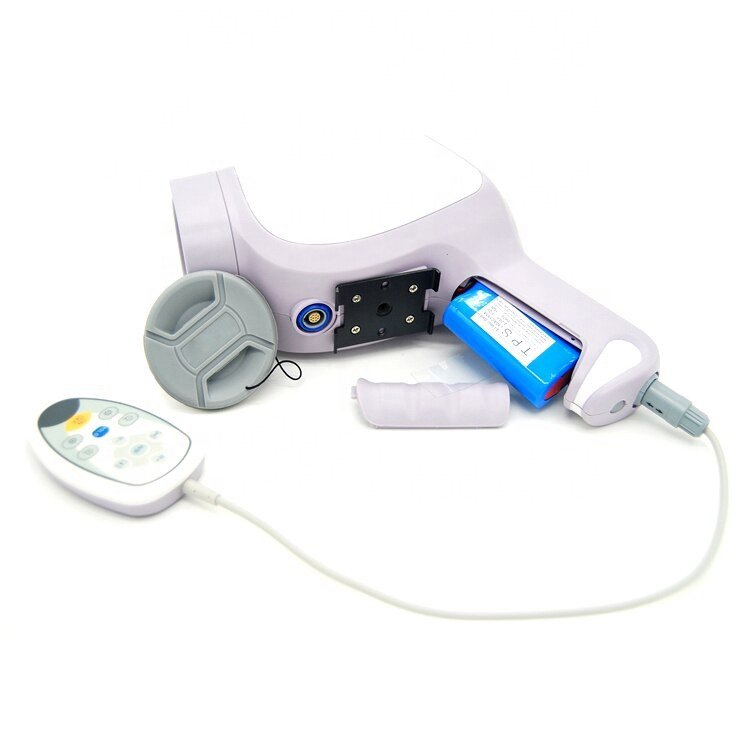

Control Handle
|
With control handle , easy to adjust the focal length, zoom in/out ,red light ,white-balance, freezing picture, light brightness etc; |
|
Integrated Computer Imaging, Data
Management and
Analysis Function
|
✲The true color image output function;
✲With Chinese, English , Vietnamese, Spanish and Russian language;
✲Timing of acetic acid and iodine reaction tests;
✲With 175 pictures for diagnosis;
✲Contains standard case report template, convenient for edit and print the
report with real color pictures.
✲Case report can be searched and back-up copied.
✲Abundant image data can be stored ;
|
|
LCD Screen(On the
Back of Camera)-
Optional
|

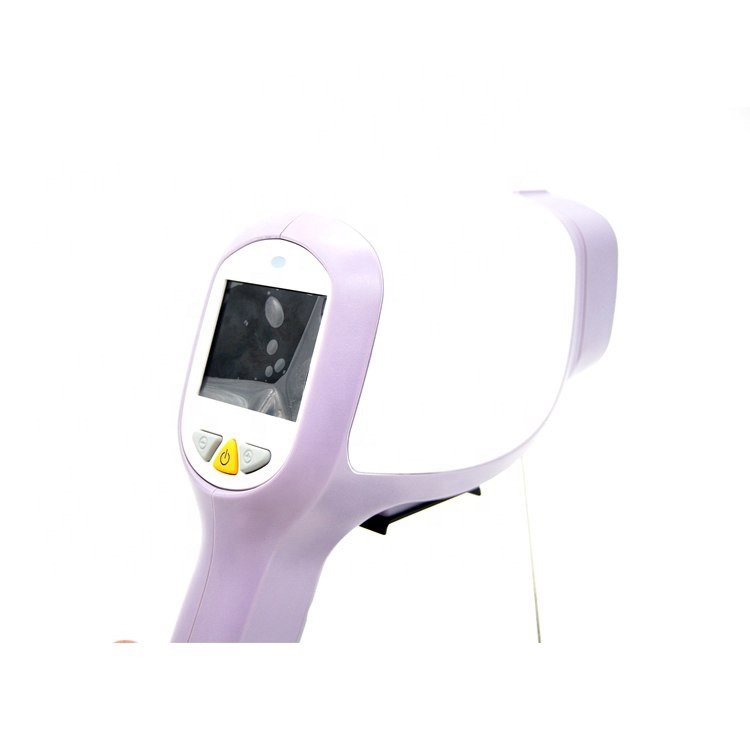

2.5" LCD screen, Real-time dynamic images can be observed |
